M2 Antenna Systems 10M7DX Bedienungsanleitung

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

7/16/18

REV A

Model ........................................ 10M7DX

Frequency Range ...................... 28.0 To 29.0 MHz

*Gain, (FS) / Over gnd............... 12.4dBi / 17.6dBi @35’

Front to back.............................. 25 dB Typical

Beamwidth ............................... E=43° / H=50°

Feed type................................... Hair pin match

Feed Impedance........................ 50 Ohms Unbalanced

Maximum VSWR ....................... 1.2:1

Input Connector ......................... SO-239, Others avl.

Power Handling ......................... 3 kW, Higher avl.

Boom Length / Dia ..................... 45’ 2” / 2-1/2” To 2”

Element Length / Dia. ................ 18.5’ / 1” To 1/2”

Turning Radius: ......................... 26’

Stacking Distance ...................... 35’

Mast Size ................................... 2” to 3 ” Nom.

Wind area / Survival................... 6 Sq. Ft. / 100 MPH

Weight / Ship Wt........................ 49 Lbs. / 60 Lbs.

M2 Antenna Systems, Inc.

Model No: 10M7DX

FEATURES:

The 10M7DX was designed for the DX’er using computer optimization techniques. Performance is excellent on

both the CW and phone. The pattern is sharp and clean reducing noise and QRM. The 10M7DX is a band opener and

closer. It makes 100 watts sound like a kW! Mechanically, CNC machined aluminum (6061-T6) ring clamps ground the

elements to the boom and make assembly a snap. A hairpin type match couples the 3 kW 1: balun to the feed line. The

antenna is completely DC grounded. Great effort has been put into making sure this antenna stays in the air for years to

come while providing enjoyment and satisfaction along the way. The 10M7DX is destined for the DX antenna HONOR

ROLL!

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd / FS = Free Space

Note: A cup of zinc paste (PENETROX, NOALOX, or equivalent) has been provided to enhance the

quality of all the electrical joints in this antenna. Apply a thin coat wherever two pieces of aluminum

come in contact PARTICULARLY IN THE DRIVEN ELEMENT MATCHING ASSEMBLY.

BOOM SETUP AND ASSEMBLY

1. Refer to the Dimension Sheet. Note the different boom sections and the approximate position of

each element. Lay out the boom sections in order of assembly but do not couple together yet. Slide

the appropriate size and number of RING CLAMPS into their approximate positions on ALL boom

sections. For example, the rear boom section, 2” x 95”, has three 2” ring clamps. Spread the ring

clamp fingers with a flat blade screwdriver to ease movement on boom. Loosely add a 1/4-20 x 1” bolt

and locknut to fingers of all clamps. After all 7 ring clamps have been put into their relative positions,

GO AHEAD AND ASSEMBLE THE BOOM. Add the two EYEBOLTS and tighten in place. Then

POSITION each ring clamp accurately starting with the rear ring clamp about 1/2” in from the end of

the boom. Final element alignment can be done once the antenna is fully assembled.

DRIVEN ELEMENT ASSEMBLY

2. Locate the two 1” x 12” swaged tube sections. Insert a 3/4 x 36” section into the swaged end and

add the 8-32 x 1-1/4” screws and locknuts. SPACE PERMITTING, add the correct set of 1/2” tips and

secure with 5/8” COMPRESSION CLAMPS (See compression clamp & tip assembly detail sheet).

Locate the 7/8 x 15” center fiberglass section and slip the two white polyethylene rings on the rod

centering them between the outer and inner holes on each side. Slide the two half element sections

over the 7/8 x 15” center fiberglass rod insulator and add the 1/4-20 x 2” bolts and locknuts loosely

through the outer holes in the rod. Locate the balun mounting plate and drop two 1/4-20 x 2” bolts

through the smaller holes in the plate and then down through the inner holes in the rod. Set this

assembly onto the driven element ring clamp. Add the 1/4" locknuts and tighten. Mount the 1:1 balun

to the plate using one 2-1/2” U-bolt and saddle. Orient the balun so the drain/vent hole is down and

tighten the U-bolt gently.

3. Locate the 1/2” wide balun straps and connect one to each side of the balun finger tight. Now

remove the loose bolts holding the element halves to the rod and insert the bolts up from the bottom,

through the rod and element butt. Place two clamp blocks on each stud. Place the balun strap on the

remaining stud and add the nuts loosely.

4. Locate the band clamp and insert a 1/4-20 x 2” bolt through the hole from the inside. Add the 3/8” x

1” spacer tube to the bolt and set the shorting bar on the spacer. Add a locknut and finger tightnen.

Slide the long, straight ends of the 3/8” hairpin tubes through the shorting bar and add the 1/4-20 x

1/4” set screws to each end of the shorting bar but don’t tighten yet. Set the open band clamp on the

boom just in front of the driven element and feed the hairpin tubes into the clamp block openings until

they are flush with the back edges. Align the tubes and begin to tighten up the clamp block bolts.

5. Adjust the shorting bar position,(see dimension sheet) align and tighten the set screws. Now

tighten the band clamp. RECHECK and tighten all the hairpin match assembly and driven element

assembly hardware, including the balun studs.

PARASITIC ELEMENT ASSEMBLY

6. Assemble the other six pairs of elements and set each on the correct ring clamp on the boom.

NOTE THERE ARE TWO 1” TUBE SECTIONS THAT ARE DRILLED TO FIT THE 2-1/2” RING

CLAMPS. BE SURE THE RIGHT TIPS ARE INSTALLED IN THESE ELEMENTS Note: Directors 2

and 3 mount to 2-1/2” ring clamps.

10M7DX ASSEMBLY MANUAL

OVERHEAD GUY ASSEMBLY

7. If possible, attach the feedline to the balun and route it forward to about 18 feet from the rear of the

boom. Seal the connector with black tape, coax seal or equivalent. Now pick up the antenna and mark

the balance point. It should be about 18-1/2 feet from the rear of the boom Center the BOOM TO

MAST PLATE here and secure to the boom with two 2-1/2" U-bolts, cradles, stainless lockwashers

and nuts. 2” U-bolts are supplied for attaching the antenna to the mast.

10. To prepare the overhead guy system, begin by temporarily installing a 2” U-bolt through the

TURNBUCKLE PLATE and into the top set of 2” U-bolt holes on the boom to mast plate. Add a couple

of 5/16” nuts to hold it in place. UNSCREW the turnbuckle eyes / hooks until only a thread or two

shows inside the turnbuckle body and hook them to turnbuckle plate.

11. Uncoil DACRON CORD. Secure one end to rear eyebolt, taking two turns through the eyebolt,

then adding three TIGHT half-hitches. Pull hard on cord to set the knots. Repeat for the front eyebolt.

Seal cord ends with heat (lighter, propane torch, etc) and tape to main length.

12. Equalize cord length at turnbuckle plate and cut. Put two turns trough rear turnbuckle eye. Pull the

Dacron rope as tight as possible and add three TIGHT half-hitches. Repeat for front cord section. Seal

and tape cord ends. When finished the overhead guys should be taught and laying parallel with the

boom. Now remove the turnbuckle plate from the boom to mast plate and lift it temporarily to note the

approximate height at which the boom becomes level. ( usually about 3 feet).

14. During final installation on the tower / mast, secure the turnbuckle plate at the appropriate height

with the 2” U-bolt. Then lean or pull on the cords to increase the tension and help the knots take their

final “set.” Make sure the knots are not slipping. When the guy system has taken a “set”, loosen the 2”

U-bolt and adjust turnbuckle plate height until boom is straight and level. Finer adjustments can be

made with the turnbuckles at any time, if necessary.

15. This completes the ASSEMBLY. REMEMBER to support the feedline at the antenna boom and on

the mast. Leave an adequate feedline loop for rotation around the tower. When stacking this

antenna with other H.F. models, maintain at least 8’ separation; more if practical. Mount

horizontally polarized VHF and UHF antennas at least 40” above or below this antenna to minimize

interaction.

Carefully designed and manufactured by:

M2 ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: sales@m2inc.com

10M7DX ASSEMBLY MANUAL

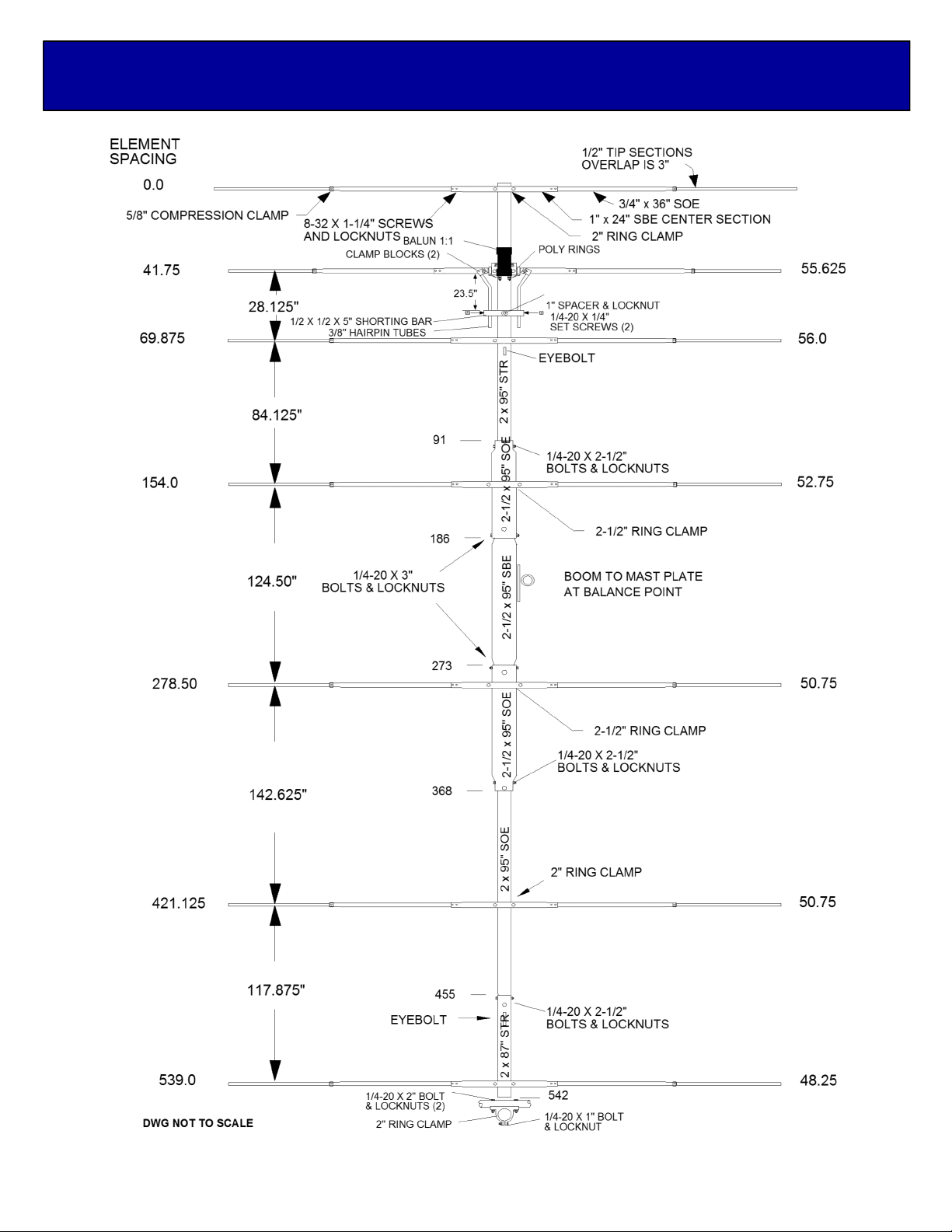

10M7DX DIMENSION SHEET

62.813

EXPOSED TIP

LENGTH

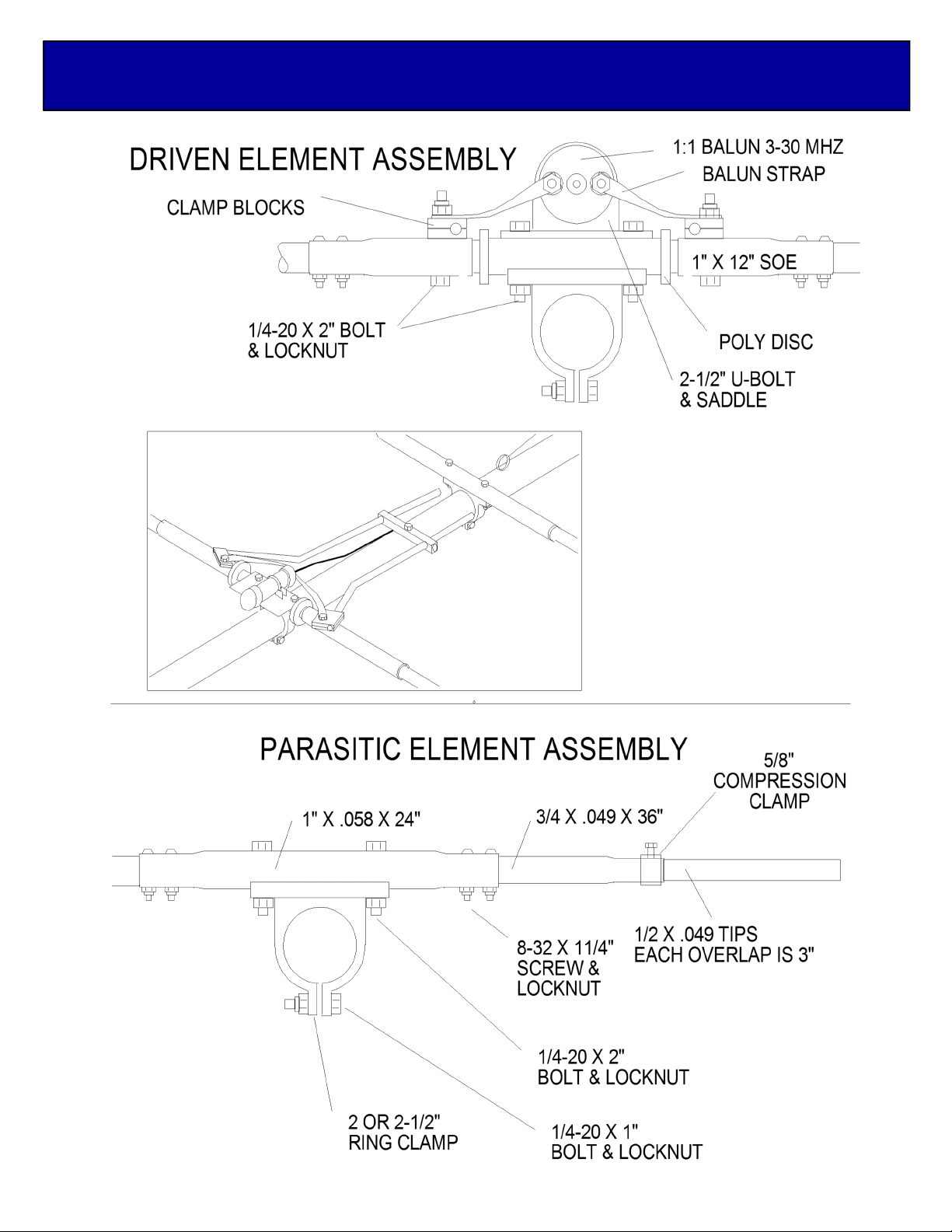

10M7DX ASSEMBLY DETAILS

GENERIC COMPRESSION CLAMP DETAIL

DESCRIPTION QTY

BOOM SECTION, 2 X .058 X 95” STRAIGHT.......................................... 1

BOOM SECTION, 2 X .058 X 87” STRAIGHT.......................................... 1

BOOM SECTION, 2 X .058 X 95’ SWAGED ONE END........................... 1

BOOM SECTION, 2-1/2 X .065 X 95” SWAGED ONE END .................... 2

BOOM SECTION, 2-1/2 X .065 X 95” SWAGED BOTH ENDS ............... 1

ELEMENT SECTION, 1” X 24 SBE FOR 2” RING CLAMP...................... 4

ELEMENT SECTION, 1” X 24 SBE FOR 2-1/2” RING CLAMP ............... 2

ELEMENT SECTION 1” X .058 X 12” SOE .............................................. 2

ELEMENT SECTION, 3/4” X .049 X 36” SOE ........................................ 14

ELEMENT TIP SECTION 1/2” X .049 X SEE DIMENSION SHEET ...... 14

FIBERGLASS INSULATOR 7/8” X 15” ROD............................................ 1

BALUN, 1:1 3-30 MHZ ............................................................................. 1

HAIRPIN TUBE 3/8 X 26” ......................................................................... 2

HARIPIN KIT BAG INCLUDING:

STRAP, BALUN, 1/2 X .050 X 4” ......................................................... 2

PLATE, BALUN MTG. 1/8 X 2 X 4” ALUM. ......................................... 1

U-BOLT, 2-1/2” AND SADDLE ............................................................ 1

CLAMP BLOCK, FOR 3/8”................................................................... 4

SHORTING BAR, HAIRPIN, 1/2 X 1/2 X 5.......................................... 1

POLY DISC, 7/8” HOLE....................................................................... 2

BAND CLAMP, MODIFIED WITH 1/4” HOLE #32 (2.0 MAX DIA) ...... 1

SPACER, 3/8 X 1” ALUM. ................................................................... 1

NUT, 5/16-18 SS.................................................................................. 2

LOCKWASHER, 5/16” SPLIT RING, SS ............................................. 2

BOLT, 1/4-20 X 2” SS .......................................................................... 3

NUT, 1/4-20 LOCKING, SS ................................................................. 3

SET SCREW, 1/4-20 X 1/4” SS........................................................... 2

ALLEN WRENCH, 1/8" ........................................................................ 1

RING CLAMP, 2” ...................................................................................... 5

RING CLAMP, 2-1/2” ................................................................................ 2

BOOM TO MAST PLATE, 6” X 8” X 1/4” .................................................. 1

TURNBUCKLE PLATE, 3/16 X 2 X 5” ...................................................... 1

DACRON CORD, 5/16”, 38’...................................................................... 1

EYEBOLTS, 5/16” X 4” ............................................................................. 2

TURNBUCKLES, 3/8”, HOOK & EYE....................................................... 2

U-BOLT AND CRADLE, 2 INCH............................................................... 5

U-BOLT AND CRADLE, 2-1/2” ................................................................. 2

COMPRESSION CLAMP, 5/8” ............................................................... 14

ASSEMBLY INSTRUCTIONS .................................................................. 1

10M7DX PARTS & HARDWARE

HARDWARE BAG

NUT, 5/16-18 SS .....................................................................................14

LOCKWASHER, SPLIT RING 5/16"........................................................14

BOLT, 1/4-20 X 3” SS................................................................................4

BOLT, 1/4-20 X 2-1/2" SS .........................................................................6

BOLT, 1/4-20 X 2” SS..............................................................................14

BOLT, 1/4-20 X 1" SS................................................................................7

NUT, 1/4-20 LOCKING, SS .....................................................................31

SCREW, 8-32 X 1-1/4" SS ......................................................................28

SCREW, 8-32 X 1/2" SS .........................................................................14

NUT, 8-32 LOCKING, SS ........................................................................28

NUT, 8-32, SS .........................................................................................14

NYLON TIE, LARGE BLACK, 11” .............................................................6

ZINC PASTE, 1 OZ. CUP..........................................................................1

M2 ANTENNA SYSTEMS, INC.

4402 N. Selland AVE

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: sales@m2inc.com

10M7DX PARTS & HARDWARE

Inhaltsverzeichnis

Andere M2 Antenna Systems Antenne Handbücher

M2 Antenna Systems

M2 Antenna Systems 348CP18 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems EB-144/RK2M Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 6M-3SS Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 440-11X Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 2MCP22 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 440-6SX Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 902-14WLC Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 678-14 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 440-18X Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 215-470LP16 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 222 HO LOOP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 167XP22 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 11M5DX Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 393CP18 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 80M1L Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems SYSTEM SAMPLE 3 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 6-30LP11 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 40M2C Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 222 HO LOOP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 25M4 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 248CP22A Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 40M1L Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 222XP40 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 6M3 Bedienungsanleitung

Beliebte Antenne Handbücher anderer Marken

Alfa Network

Alfa Network APA-L01 Bedienungsanleitung

Naval

Naval PR-422CA Bedienungsanleitung

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Bedienungsanleitung

TERK Technologies

TERK Technologies TV44 Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Bedienungsanleitung

HP J8999A Bedienungsanleitung

MobilSat

MobilSat MSP-S Bedienungsanleitung

Steren

Steren ANT-UHF 13 Bedienungsanleitung

Novatel

Novatel 600-G Bedienungsanleitung

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Bedienungsanleitung

TRENDnet

TRENDnet TEW-AO12O Bedienungsanleitung

Radio Shack

Radio Shack 15-1837 Bedienungsanleitung

CommScope

CommScope CMAX-OMFX-43M-I53 Bedienungsanleitung

Ramsey Electronics

Ramsey Electronics DAP25 Bedienungsanleitung

COBHAM

COBHAM SAILOR 800 VSAT Gebrauchs- und Pflegehandbuch

Trango Systems

Trango Systems AD900-9 Bedienungsanleitung

Steren

Steren ANT-100 Bedienungsanleitung

Proxim

Proxim 5054-PA-23 Bedienungsanleitung
