M2 Antenna Systems 6M-3SS Bedienungsanleitung

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

Rev.05

Model ………………………..6M-3SS

Frequency Range................ 50.0 To 54.0 MHz Tunable

*Gain ................................... 8.1 dBi

Front to back ....................... 28 dB Typical

Beamwidth ........................ E=64° H=96°

Feed type ............................ Gamma Match

Feed Impedance. ................ 50 Ohms Unbalanced

Maximum VSWR................. 1.5:1

Input Connector................... SO-239

Power Handling ..........................0.5 kW

Boom Length / Dia......................5’ 8” / 1”

Maximum Element Length..........123”

Turning Radius: ..........................5’ 5”

Stacking Distance.......................14’ High & 18’ Wide

Mast Size....................................1-1/2” to 2” Nom.

Wind area / Survival ...................0.7Sq. Ft. / 75 MPH

Weight / Ship Wt.........................6 Lbs. / 7 Lbs.

M2 Antenna Systems, Inc.

Model No: 6M-3SS

FEATURES:

New licensed Hams will find the 6M-3SS a low cost, medium performance antenna to be a

great choice for a starter antenna without compromising quality. A single heavy duty mounting cradle

and stainless steel hardware, give you the confidence of quality construction you have come to ex-

pect from M2. Built with size and portability in mind, this antenna is great for Field Days, Mountain

Topping, Fox Hunts and DXpedition use. The antenna breaks down to no more than 40” long, making

it a natural for trips.

SPECIFICATIONS:

*Subtract 2.14 from dBi for dBd

REFLECTOR EXPOSED TIP LENGTH 41 3/8” 40 3/8” 39 1/4” 38 3/16”

DRIVEN ELEMENT EXPOSED TIP LENGTH

GAMMA SIDE

38 1/2” 37 3/4” 36 1/4” 35”

DRIVEN ELEMENT EXPOSED TIP LENGTH

NON GAMMA SIDE

38 1/2” 39 1/4” 37 1/2” 36”

DIRECTOR # 1 EXPOSED TIP LENGTH 35 3/8” 34 1/2” 33 7/16” 32 7/16”

GAMMA TUBE TO GAMMA FEED BLOCK 1/8” 3/8” 3/8” 3/8”

GAMMA FEED BLOCK TO SHORTING BARS 7 5/8” 7 7/8” 7 7/8” 7 7/8”

DIMENSION DESCRIPTION 50.150 MHZ 51.00 MHZ 52.00 MHZ 53.00 MHZ

TUNING CHART

Congratulations on your purchase of the 6M-3SS, You have chosen a versatile 6M antenna, it can be

tuned for all modes of communication in the 6M band. This versatile antenna can break down into a small

package so you can use it for field days or DXpeditions, making this antenna a good choice. We have offered (4)

tuning choices, 50.150 MHZ used primarily on Horizontal polarity on SSB, 51.00 MHZ, 52.00 MHZ, and 53.00

MHZ used primarily on Vertical polarity on FM.

MOUNTING AND TUNING YOUR ANTENNA:

Normally M2 dose not condone mounting yagi antennas on vertical metal masts in front of the reflector in

the same plain as the elements. Mounting in this manor can cause VSWR changes, pattern changes, and gain

loss. It is a technical no no. Normally M2 would suggest a non metallic mast and routing your feed line off the rear

of your antenna. This may not be practical. So M2 has tuned the antenna on 51, 52 and 53 MHz on TOP of a

metal mast and with the feed line routed down the mast. Keep in mind we have mounted the mast on the

opposite side of the boom to allow the most amount of offset available so the mast and feed lines are not exactly

in the same plain as the elements. If you must run the metal mast up through and past the top of the element,

some further retuning may be required.

When mounting Vertically it is important to point the Gamma Match tube up with the vinyl cap in place.

This will give you your best results for wet and rainy conditions. You will also notice in the TUNING CHART that

the driven element tips may be set to different lengths, This helps compensate for the metal masts and feed line

in the same plain as the elements.

If you choose to mount on a non metallic mast and route your feed line off the rear of the antenna, or

mount your antenna vertically on a horizontal cross boom, balancing the driven elements tips may be required.

Use the “B” dimension for the “C” dimension as a starting point.

When mounting your antenna Horizontally you will probably be using it on SSB. So you would be setting

for 50.150 MHZ. Mounting your antenna with the element mount blocks on top of the boom and the Gamma

Match hanging below the boom, This allows the feed line to come off the boom cleanly.

Standard waterproofing techniques apply, although M2 suggests not to seal up both ends of the gamma

tube. If you get water in the tube it can cause VSWR changes and if you seal it at both ends, water will have a

more difficult time drying or getting back out. Keeping one end open, allows rapid drying.

M2 recommends Times LMR-400 type 50 Ohm coax or equivalent. If you are thinking of stacking two or

more 6M-3SS yagis’, contact the factory for phasing and matching information.

6M-3SS ASSEMBLY MANUAL

Tools handy for assembly process: Phillips head screwdriver,11/32” nut driver or socket, 7/16” end

wrenches / sockets, measuring tape. *We have supplied a small container of zinc paste with the

hardware. It is best to apply a small amount of this zinc paste to each aluminum to aluminum

connection to help slow down the oxidation process and for the best electrical connection. The zinc

paste can also be used on the threads of the stainless steel hardware to minimize thread galling.

1. This antenna uses a two-piece boom which has two U-Bolt patterns that allows the antenna to be

mounted either Horizontal or Vertical.

2. Layout the boom sections as shown on the DIMENSION sheet, *Note* the rear boom is 36” long

and has a Swedged end to fit the front boom. Assemble with 8-32 x 1 1/4” screws and lock nuts.

Tighten the nuts securely.

3. To install the center element sections, layout the following parts: (3) center element sections 1/2” x

36”, (3) element mounting blocks and the (3) 8-32 x 2” screws and lock nuts.

4. Slide the 8-32 x 2” screw through the hole in the center of the element section, be sure to have the

two end holes pointing down. Now slide the element and screw through an element mounting

block. Take this whole assembly and attach it to the first element mounting hole on the top of the

rear boom section. Secure the element into place with an 8-32 locking nut. Repeat the same

assembly for the driven element and the director element.

5. Preassemble the 1/2” element compression clamps by installing a 8-32 hex nut into the inner flat

surface of the clamp. While holding the 8-32 hex nut in place with your fingers, insert a 8-32 x 1/2”

screw through the hole and tighten until the screw is flush with the bottom of the hex nut.

6. Slide a 1/2” compression clamp assembly onto each tip of the 1/2” x 36” element sections. Align

the screw with the hole on the bottom of the 1/2” tube and thread the screw into the hole enough to

hold the compression clamp in place.

7. Layout the 3/8” element tips on a table or work bench. Starting from the rear of the antenna, insert

the (2) longest elements into either side of the 1/2” center element sections. Using the TUNING

CHART for proper frequency setting, slide the 3/8” elements in or out until you have the

desired EXPOSED tip length. At this point, tighten the 1/2” element compression clamps until the

3/8” elements do not spin or move. Continue with the (2) next longest elements for the driven

element section and finally the (2) shortest elements for the director. It’s always best to double

check that all of the 1/2” element compression clamps are completely tightened at this point.

8. Mount the Gamma connector block assembly just forward of the element mount block on the

bottom side of the boom using a single 8-32 X 1-1/4" screw . Orient the block with the SO-239 feed

connector facing towards the center of the antenna.

9. Slide the Gamma Insulator onto the Gamma Rod making sure that the insulator hangs off the end

of the Gamma Rod 1/8”.

10. Slide a #6 flat washer over the Gamma Connector Stud. Now install the flat surface of the Gamma

Rod over the stud followed by a #6 lock washer and 6-32 nut. *Note* The connector stud can spin

freely. Use a pair of needle nose pliers or a small wrench to hold the flat surface when tightening.

11. Now slide the Gamma Tube over the Gamma Insulator and refer to the TUNING CHART for

proper placement.

6M-3SS ASSEMBLY MANUAL

12. Install the two halves of the Shorting Bar onto the Gamma Tube and the driven element below.

Refer to the TUNING CHART for proper location of the shorting bar. Tighten the shorting bar in

place using a single 8-32 x 7/8” screw and lock nut.

13. Now Slide the 3/8” x 3/8” Vinyl cap over the Gamma Tube until it is flush with the end of the

Gamma Tube.

14. At this point it is important to determine whether your antenna will be mounted horizontally (SSB/

CW) or Vertically (FM). Locate the two sets of holes at the rear or center of the boom

assembly.

15. Insert the 2” u-bolt into the uni-cradle and slide this assembly into one of the two sets of holes at

the center of the boom assembly. Finish the assembly by installing (2) 1/4” lock washers and 1/4

-20 nuts.

Stacking or Phasing ? Call us and let us help you DO IT RIGHT.

THIS COMPLETES THE ANTENNA ASSEMBLY.

CAREFULLY DESIGNED AND MANUFACTURED BY:

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]

6M-3SS ASSEMBLY MANUAL

“A” DIM “A” DIM

YOUR CHOICE—————

YOUR CHOICE————— YOUR CHOICE—————

“C” DIM “B” DIM

“D” DIM “D” DIM

YOUR CHOICE————— YOUR CHOICE—————

2” U-BOLT & UNICRADLE

HOLE PATERN

USED FOR VERTICAL

POLARITY

COMPRESSION

CLAMP

SPACING

1”

28 1/16”

69”

THE GAMMA

CONNECTOR

BLOCK MOUNTS

IN THE HOLE FORWARD

OF THE ELEMENT

MOUNTING HOLE

DRIVEN ELEMENT

DIRECTOR # 1

REFLECTOR

SCREW, 8-32 X 1.25

& LOCKNUT

BOTTOM VIEW

YOUR CHOICE—————-

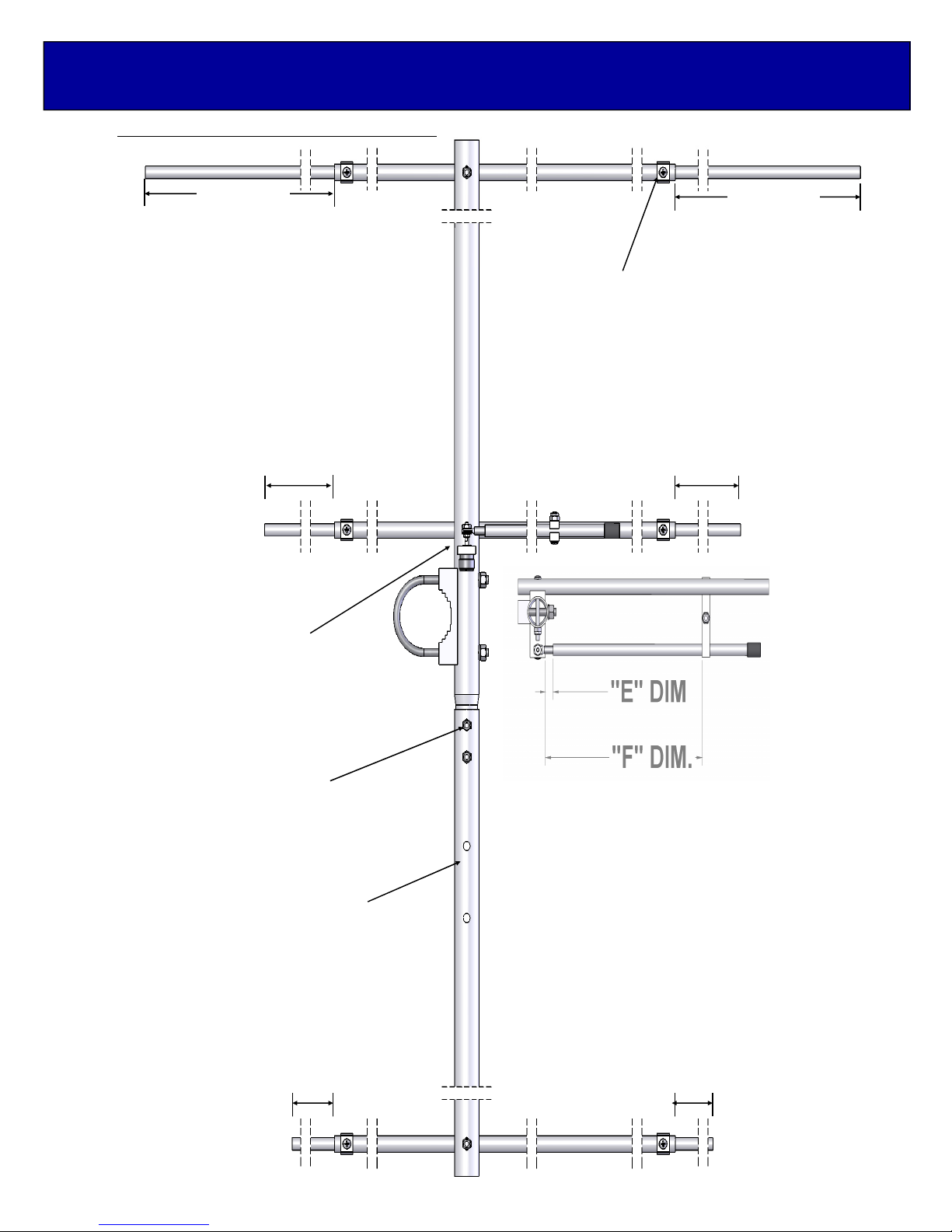

6M-3SS DIMENSION SHEET

1/2” x 36”

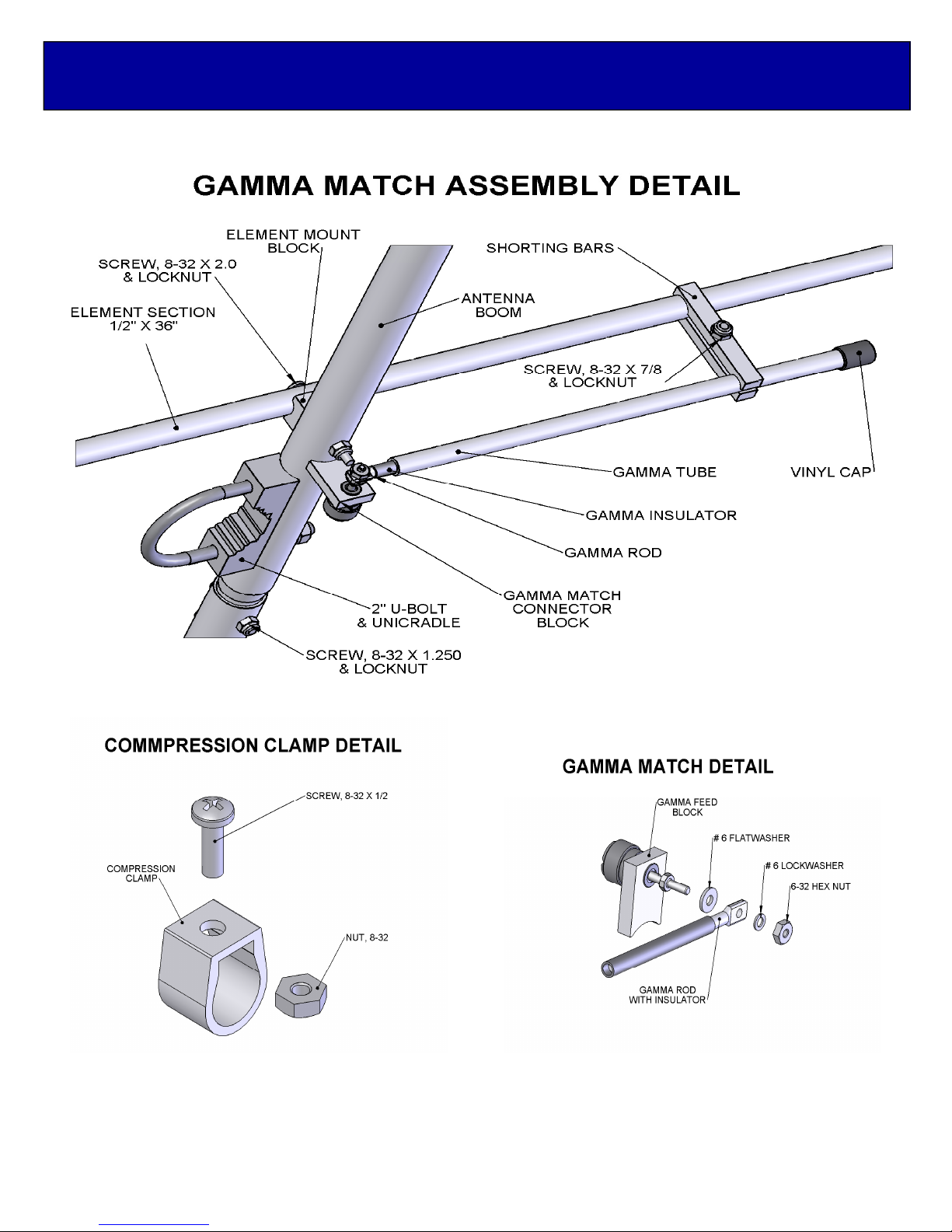

6M-3SS ASSEMBLY DETAILS

DESCRIPTION…………………………………………………..QTY

BOOM SECTION, 1 X .058 X 36” SOE .................................. 1

BOOM SECTION, 1 X .058 X 37”........................................... 1

ELEMENT SECTION, 1/2 X .049 X 36”.................................. 3

ELEMENTS, 3/8 X .049 X SEE DIM SHEET.......................... 6

GAMMA CONNECTOR BLOCK ASSEMBLY ........................ 1

GAMMA ROD, 3/16 X 5.00 ALUM ROD................................ 1

GAMMA TUBE, 3/8 X .058 X 10.00 ALUM TUBE .................. 1

GAMMA INSULATOR, .1/4 X .031 X 4.750 TEFLON TUBE .. 1

VINYL CAP, 3/8 X 1/2 ........................................................... 1

UNI CRADLE.......................................................................... 1

U-BOLT, 2” SS ....................................................................... 1

ASSEMBLY MANUAL ............................................................ 1

ZINC PASTE 1/2 OZ. ............................................................. 1

HARDWARE BAG:

SHORTING BAR, 1/4 X 3/8 X 2.60 ........................................ 2

ELEMENT MOUNT BLOCK, .375 X .750 X .750.................... 3

COMPRESSION CLAMP, 1/2”............................................... 6

SCREW, 8-32 X 2.0 SS.......................................................... 3

SCREW, 8-32 X 1.25 SS........................................................ 3

SCREW, 8-32 X .875 SS........................................................ 1

SCREW, 8-32 X 1/2 SS.......................................................... 6

NUT, 8-32 SS......................................................................... 6

LOCKNUT, 8-32 SS ............................................................... 7

FLATWASHER, #6 SS ........................................................... 1

LOCKWASHER, #6 SS .......................................................... 1

NUT, 6-32 SS......................................................................... 1

LOCKWASHER, 1/4 SS ......................................................... 2

NUT, 1/4-20 SS ...................................................................... 2

NYLON TIE, 7 3/4 ................................................................. 3

M2ANTENNA SYSTEMS, INC.

4402 N. SELLAND AVE.

FRESNO, CA 93722

(559) 432-8873 FAX: 432-3059

www.m2inc.com Email: [email protected]

6M-3SS PARTS & HARDWARE

Inhaltsverzeichnis

Andere M2 Antenna Systems Antenne Handbücher

M2 Antenna Systems

M2 Antenna Systems 6M5XHP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems Relay/Preamp Housing with MAP65 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 222 HO LOOP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 7-10-30LP8 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 35.7-4 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 215-470LP16 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 915XBISP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 436CP42UG Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 6-30LP11 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 10M4DX Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 2M5-440XP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 6M7JHVHD Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 25M4 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 440-6SX Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 420-450-11HP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 48.5-4 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 40M1L Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 30M3-125 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 7-10-30LP8 UP-KIT Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 2068-26-2 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 32 HO LOOP Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 436CP16 Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 40M2C Bedienungsanleitung

M2 Antenna Systems

M2 Antenna Systems 2MCP8A Bedienungsanleitung

Beliebte Antenne Handbücher anderer Marken

Alfa Network

Alfa Network APA-L01 Bedienungsanleitung

Naval

Naval PR-422CA Bedienungsanleitung

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Bedienungsanleitung

TERK Technologies

TERK Technologies TV44 Bedienungsanleitung

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Bedienungsanleitung

HP J8999A Bedienungsanleitung

MobilSat

MobilSat MSP-S Bedienungsanleitung

Steren

Steren ANT-UHF 13 Bedienungsanleitung

Novatel

Novatel 600-G Bedienungsanleitung

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Bedienungsanleitung

TRENDnet

TRENDnet TEW-AO12O Bedienungsanleitung

Radio Shack

Radio Shack 15-1837 Bedienungsanleitung

CommScope

CommScope CMAX-OMFX-43M-I53 Bedienungsanleitung

Ramsey Electronics

Ramsey Electronics DAP25 Bedienungsanleitung

COBHAM

COBHAM SAILOR 800 VSAT Gebrauchs- und Pflegehandbuch

Trango Systems

Trango Systems AD900-9 Bedienungsanleitung

Steren

Steren ANT-100 Bedienungsanleitung

Proxim

Proxim 5054-PA-23 Bedienungsanleitung
