Manual

PF-12Plus Compact photometer

Photometer PF-12Plus

28 04.07.2014

CONTENT

1. Safety precautions …………………………………………………………………30

1.1 General safety precautions …………………………………………………………30

1.2 Chemical / biological safety …………………………………………………………30

2. Compact photometer PF-12Plus ……………………………………………………31

2.1 Technical data ………………………………………………………………………31

2.2 Design …………………………………………………………………………………32

2.3 Shipment………………………………………………………………………………32

2.4 Interface and power supply …………………………………………………………32

2.5 Operating environment ………………………………………………………………32

3. Usage …………………………………………………………………………………33

4. Setup……………………………………………………………………………………34

4.1 Unpacking the instrument……………………………………………………………34

4.2 Operation with batteries ……………………………………………………………34

4.3 Operation with battery pack …………………………………………………………34

5. Operation ………………………………………………………………………………35

5.1 Keypad ………………………………………………………………………………36

5.2 Configuration …………………………………………………………………………36

5.3 Performance of VISOCOLOR®ECO tests ………………………………………39

5.4 Performance of NANOCOLOR®tube tests ………………………………………40

5.5 Basic photometric functions…………………………………………………………41

6. Memory…………………………………………………………………………………42

6.1 Display memory ………………………………………………………………………42

6.2 Search memory ………………………………………………………………………42

6.3 Delete memory ………………………………………………………………………42

6.4 Output memory ………………………………………………………………………42

7. Special methods ……………………………………………………………………43

7.1 User defined methods ………………………………………………………………43

7.2 Sample numbering …………………………………………………………………44

7.3 Identification of sample location ……………………………………………………44

7.4 Sample dilution ………………………………………………………………………45

7.5 Special methods ……………………………………………………………………45

8. Sample preparation …………………………………………………………………46

9. Procedures for colored or turbid samples ………………………………………47

9.1 Determination of correction values for NANOCOLOR ®tube tests ……………47

10. Cleaning the instrument …………………………………………………………50

04.07.2014

11. Troubleshooting ……………………………………………………………………50

12. Inspection equipment monitoring ………………………………………………50

13. Service ………………………………………………………………………………51

13.1 Spare parts and accessories………………………………………………………51

13.2 Disposal ……………………………………………………………………………51

13.3 Warranty ……………………………………………………………………………51

13.4 Contact ………………………………………………………………………………51

30 04.07.2014

1. Safety precautions

1.1 General safety precautions

Please read the manual carefully and completely before setting up and using the instru-

ment. Please adhere to all remarks. Not complying with this information may cause harm to

the user or damage the instrument. In order not to compromise the instrument`s safety

measures, it may never be installed or used in any other way than described in this manual.

1.2 Chemical / biological safety

When using the instrument, it may be necessary to handle hazardous chemicals or biologi-

cally harmful samples. Please adhere to the following guidelines when using the instrument:

• Please read all information concerning hazards and safety measures in the material

safety data sheets and on the packages of the compounds you work with.

• All used up compounds need to be disposed of in agreement with national rules and

regulations.

• The type of safety equipment needs to be in line with the concentration and hazard

potential of the given substance used.

04.07.2014

2. Compact photometer PF-12Plus

2.1 Technical data

Type: Single-beam filter photometer with microprocessor control,

self test and auto calibration

Wavelength range: 340–860 nm

Optics: Automatic filter wheel with 7 interference filters, insensitive to

external light for fast measurements without cuvette slot cover

Wavelengths: 345 / 436 / 470 / 540 / 585 / 620 / 690 nm plus 1

compartment

for an additional filter

860 nm LED for NTU-Measurement

Wavelength accuracy: ± 2 nm

Bandwidth at half of maximum transmission 10–12 nm

Light source: Xenon lamp

Detector: Silicon-photodiode

Blank value: Automatic

Measuring modes: Over 100 preprogrammed tests (NANOCOLOR®tube tests

and VISOCOLOR®ECO tests), absorbance, transmission,

factor, standard, turbidity, 50 freely programmable methods

Photometric range: ± 3 E

Photometric accuracy: ± 1 %

Stability: < 0.002 E/h

Cuvette holder: Round tubes 16 mm OD Data

memory: 1000 results, GLP-compatible

Display: Backlit graphic display, 64 x 128 pixels, 12 languages; All

important data at a glance: result with measuring unit, date,

time, sample number, sample location, dilution

Operation: Intuitive menu navigation, durable keypad, test selection via

entering the test number or from parameter lists

Quality control: With NANOCONTROL NANOCHECK

Interfaces: USB B 2.0

Update: Free of charge via Internet / PC

Operating range: 0–50 °C, up to 90 % relative humidity

Power supply: USB-power supply, disposable or rechargeable batteries

Housing: Water- and dustproof, IP 68

Dimensions: 215 x 100 x 65 mm

Weight: 0.7 kg

Warranty: 2 years

This device complies with the following directives:

2006/95/EC Low Voltage Directive

2004/108/EC EMC Directive

32 04.07.2014

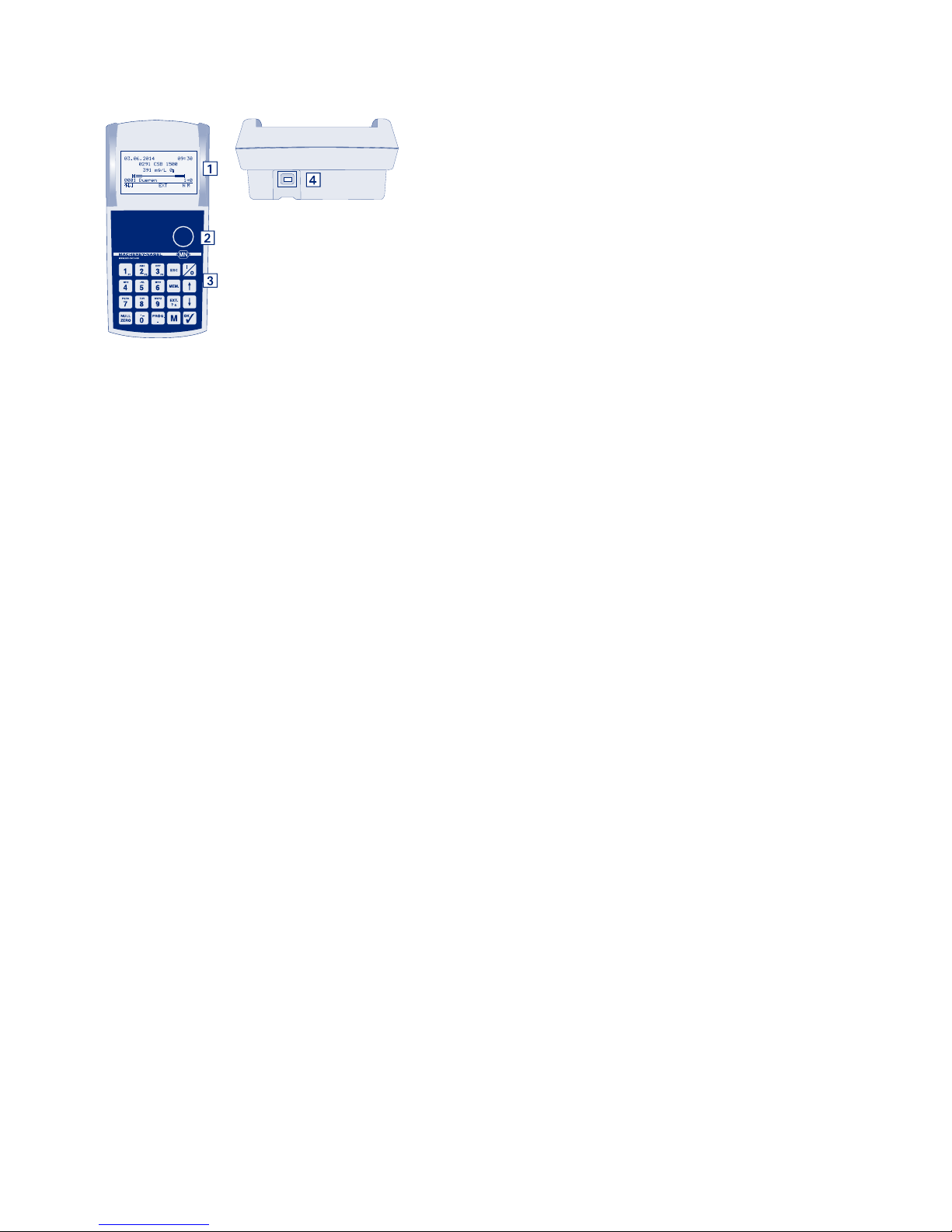

2.2 Design

1. Graphic display 128 x 64 Pixels

2. Cuvette slot for tubes with 16 mm outer diameter

3. Keypad

4. USB-interface (2.0) for connection of power sup-

ply, charging the optional battery pack, data trans-

fer and update

2.3 Shipment

If one of the components from the following list should be defective or missing, please con-

tact MACHEREY-NAGEL or your local distributor.

Compact photometer PF-12Plus

incl.: Software DVD, manual, 4 AA Mignon batteries, 4 empty cuvettes, funnel, beaker,

syringe, USB-cable, calibration cuvette and certificate in a rugged case

2.4 Interface and power supply

USB-interface for:

• Update via Internet

• Data export to PC

• Power supply via PC USB-interface

• External power supply (REF 919 220) with USB-interface

Additional power supply:

• BatteriesAA/ Mignon

• 4 rechargeable batteries (REF 919 221), rechargeable with additional charger

• Battery pack (REF 919 201), rechargeable via USB

2.5 Operating environment

The following conditions are necessary to provide longevity and flawless functioning of the

instrument.

• Operating temperature 0–50 °C

• Relative humidity: up to 90 %

• To ensure safe results, the instrument should not be stored in extremely dusty, damp

or wet conditions (the instrument optics are IP 68 proof and don’t experience any

sustained damage from such conditions).

Keep the instrument surface, cuvette slot and any accessories clean and dry. Splashes or

spilled substances should be wiped away and cleaned immediately (see 10. Cleaning the

instrument, page 50).

Important note: Protect the instrument from extreme temperatures (e.g. radiators, direct sun

light and other heat sources).

PF-12Plus

04.07.2014

3. Usage

As part of GLP, please familiarize yourself with all reagents used in your application. Read

all product labels and MSDS before working with chemicals.

To ensure proper functioning of all inbuilt safety measures, the instrument may, under no

circumstances, be used or installed in a different way than stated in the manual.

Only use the instrument as instructed to analyze MACHEREY-NAGEL tests. Please do not

open the instrument or make any other unauthorized modifications. The instrument is a

highly sensitive measuring device with high accuracy for the photometric evaluation of

MACHEREY-NAGEL tests. Unauthorized modifications or opening the instrument in an inap-

propriate way can result in maladjustments of the instrument’s optical components, or similar

damage, which in turn can lead to wrong results.

Note: Due to the reasons stated above, MACHEREY-NAGEL declines any responsibility for

the correct functioning of the instrument if it has been opened or used improperly and objects

to any warranty claims made in such a case. MACHEREY-NAGEL’s warranty and liability

obligations as to product(s) or to any party on account thereof shall be void and of no effect

if the product(s) or any part thereof have been subject to unauthorized change, abuse,

misuse, accident or alteration, unauthorized application or installation not in compliance with

the pro- duct(s) specifications as set forth in the product leaflets / instructions hereof

(“unauthorized action”) and such unauthorized.

34 04.07.2014

4. Setup

4.1 Unpacking the instrument

Take the instrument out of the box and check for damage caused during shipment.

4.2 Operation with batteries

The PF-12Plus photometer runs on 4 AA Mignon batteries (included in delivery). Recharge-

able batteries, e.g. 4 NiMH AA 2500 mAh can be used in the instrument and are available as

accessories (REF 919 221). The charger and rechargeable batteries need to be ordered

separately. The battery status is displayed in the upper part of the display after switching on

the device. When connected to an USB adapter, a “U” is displayed besides the battery symbol.

When changing batteries, we recommend to always exchange the entire set. The battery

compartment is at the bottom of the instrument. To change the batteries, the cuvette slot has

to be empty.

1. Turn the instrument around and place it on a soft surface.

2. Unscrew the screws of the battery compartment and take off the lid.

3. Insert the 4 batteries in the respective slots. Make sure polarity of batteries and slots match.

4. Put the lid back on, tighten the screws and turn the instrument around.

4.3 Operation with battery pack

The PF-12Plus can be equipped with an internal battery pack, which can be charged via the

USB port. The charging status of the internal battery pack is displayed in the upper part of

the display in form of a small battery symbol with an “A”. When connected to a USB charger

additionally a “L” is going to be displayed besides the battery symbol, indicating the ongoing

charging process. You can order such a power pack separately and insert it into the instru-

ment. Detailed installation instructions come with the battery pack.

04.07.2014

5. Operation

The PF-12Plus is designed for easy handling and operation. The photome-

ter PF-12Plus has a 20-part keypad: 10 numbered keys and 10 keys with

special functions.

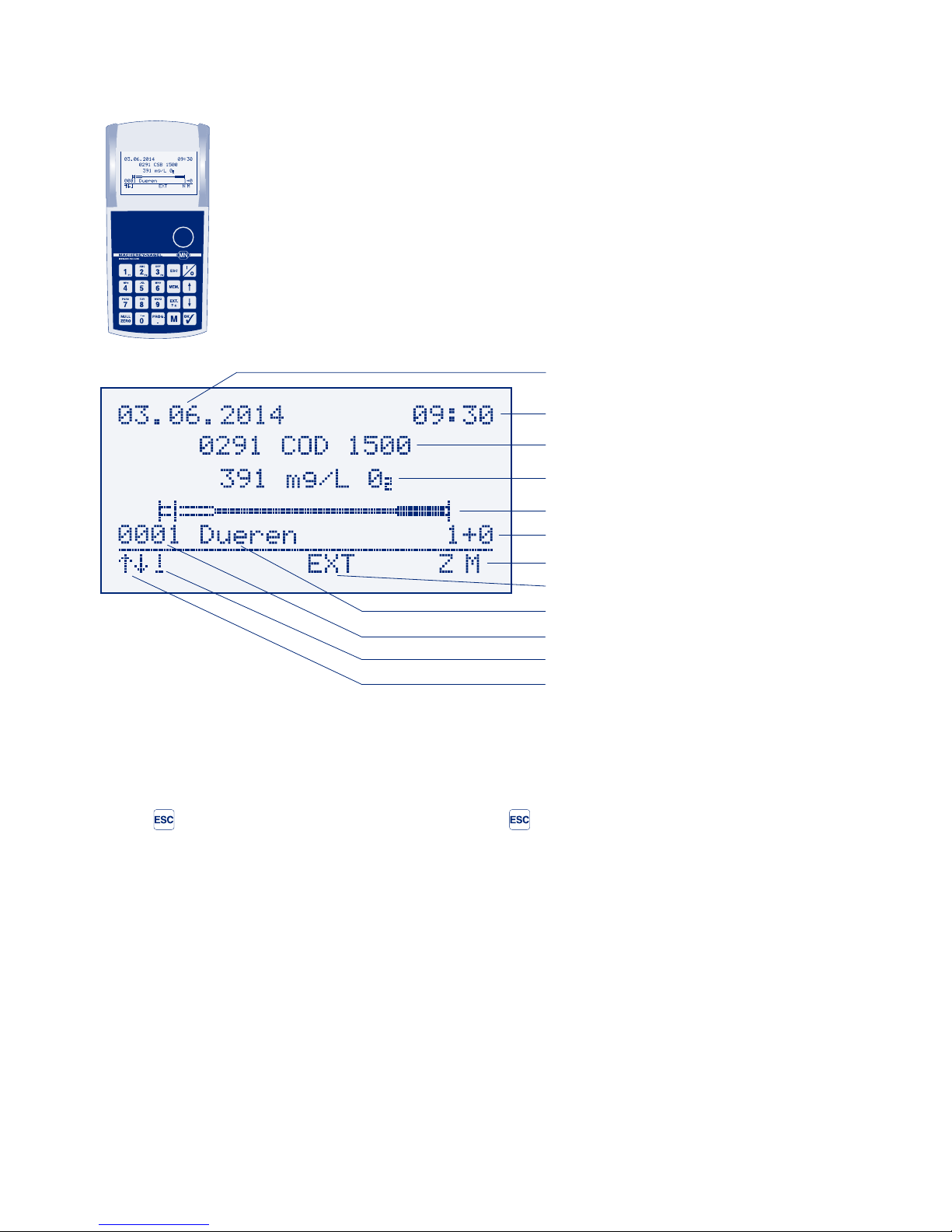

Date

Additional information

Selected sub-method

Selection of sub-method

Sample location

Sample number

Time

Method number and title

Measurement value with unit and suffix

20–80 % range

Dilution

Zero and measurement

The display is devided into three sections. In the upper part date, battery status and time are

shown. Depending on the mode, in the middle section the actual measurement values, menu

options or respective menu symbols are displayed. The lower part of the display is a task bar

showing the possible options in the current mode.

Press to return to the next higher level. Press repeatedly to return to the method se-

lection mode.

PF-12Plus

36 04.07.2014

5.1 Keypad

Key : On / Off switch

Keys ... : For entering digits, letters, special characters

Keys / / : Double-function keys, for sample number, location, dilution

Key : For entering decimal points, to select special method

Key : Abort, return to method selection

Key : Scroll up

Key : Scroll down

Key : Enter, call up last result

Key : Memory, call-up memory functions, store / not-store results

Key : Absorbance program, recall the absorbance after measure-

ment, estimated value and NTU value after measurement / se-

lection of prefix

Key : Manuell zero adjustment

Key : Measurement, consecutive measurements are numbered con-

tinuously, call up last test

5.2 Configuration

To get to the configuration mode enter “900” in the method selection mode

or use / to select the entry “Settings” in the list and press

to confirm.

Additionally there is a quick start option. Every setting has its

own three-digit number which can be entered in the start menu

to directly access each menu.

The configuration menu is based on icons. You can navigate through the menu via / ,

confirm by pressing and follow the instructions on the display.

5.2.1 Language (Method 954)

Select the desired language via / and press to confirm.

5.2.2 Time (Method 951)

Select the digits via / and adjust via keypad. Press to confirm. Select the

desired time format via / and press to confirm.

Andere Handbücher für PF-12 Plus

Inhaltsverzeichnis

Andere Macherey-Nagel Messgerät Handbücher

Macherey-Nagel

Macherey-Nagel PF-12 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel URYXXON Relax Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel PF-12 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel PF-3 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel NANOCOLOR Advance Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel PF-12 Plus Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel NANOCOLOR Advance Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel PF-3 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel URYXXON Relax Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel NucleoSpin 740727.10 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel URYXXON Relax Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel Nanocolor Vario C2 Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel NucleoSpin RNA Clean-up XS Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel NANOCOLOR UV/VIS II Bedienungsanleitung

Macherey-Nagel

Macherey-Nagel PF-12 Plus Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
