Macnaught BOP IM012EB-01 Bedienungsanleitung

Innovation. The only way to stay ahead.

Macnaught Pty Ltd 41-49 Henderson St, Turrella NSW 2205. Australia

Ph: +61 2 9567 0401 Fax: +61 2 9597 7773 Email: [email protected]

*For Macnaught warranty, terms and conditions see macnaught.com/warranty ©Macnaught Pty Ltd, 2021

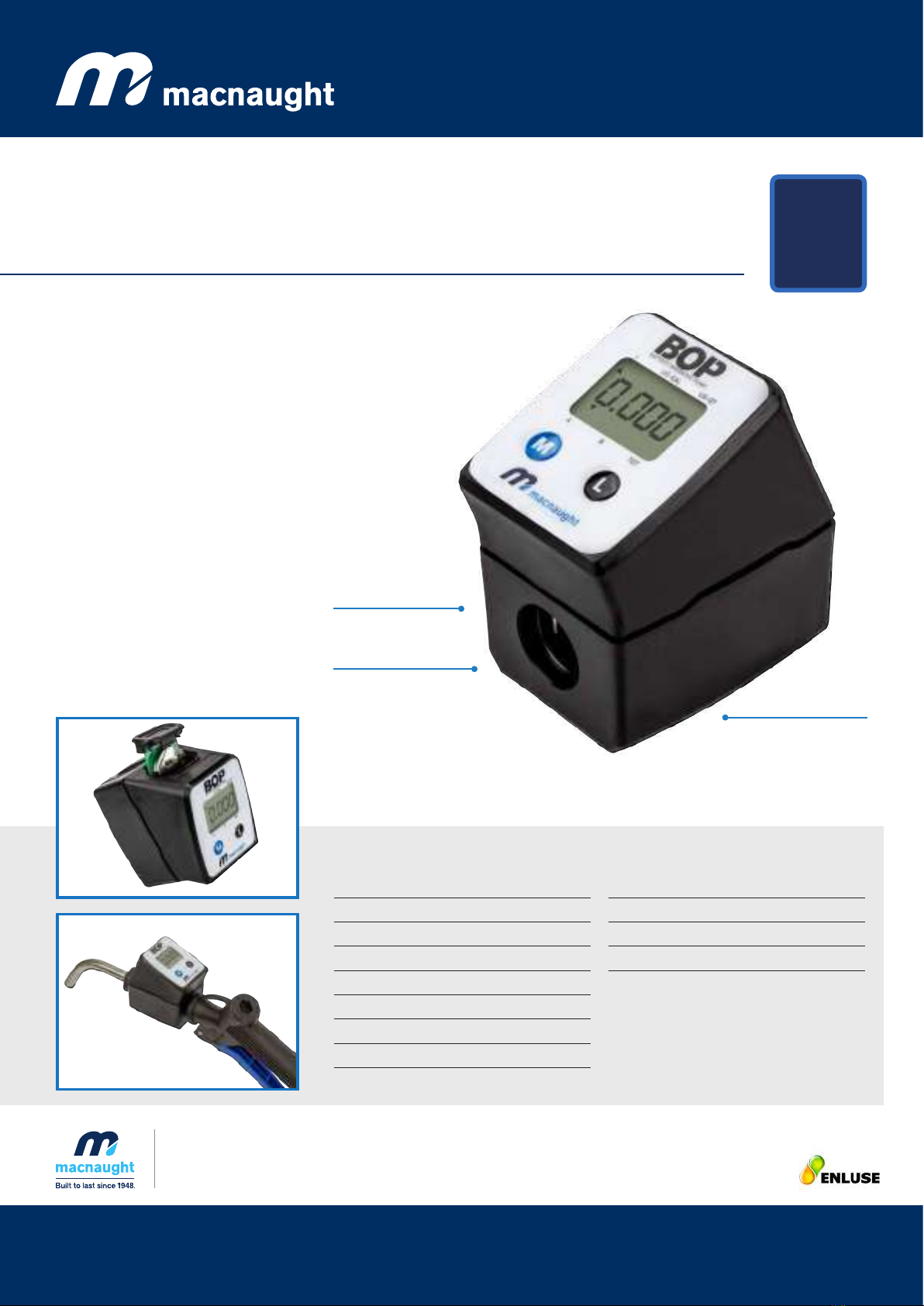

BOP INLINE METER

Metric and Imperial Units

Back Light Function

P/N: IM012EB-01

YEARS

MACNAUGHT

WARRANTY

TECHNICAL SPECIFICATION PACKAGE INCLUDES

Flow Rate up to 10LPM

Operating Temperature -20 Deg C to +70 Deg C

Operating Pressure 20psi (Max 60psi)

Accuracy +/- 2% of Reading

IP Rating IP65

Inlet Connection 1/2” Inlet Connector Supplied

Outlet Connection 1/2” BSP (F)

Power 1 x Cr2450 3V Lithium Coin Battery

BOP Inline Meter

Fittings

Batteries

Operators Manual

Macnaught’s new BOP Inline Meter

has been created to compliment the

entire range of Macnaught’s Patented

BOP (Battery Operated Pump) range.

The BOP Inline Meter can be tted to

existing and new BOP dispense guns to

provide accurate volume measurement.

The unique swivel tting allows quick

assembly to the BOP dispense gun and

allows 360ºrotation of the meter for

clear visibility and usability. A backlight

function is also provided to further

enhance this usability.

Available individually or as part of the BOP

Starter or Pump Stem kits, this IP 67 rated

meter has been developed for accuracy

and durability and is powered by a single

coin battery located with easy access.

Designed here in Australia, this Inline

Meter delivers reliable and accurate

readings in both metric and imperial units.

Four Digit Display

- Resettable batch total

- Resettable accumulative total

- Non resettable accumulative total

www.enluse.com

enluse.com

INSTRUCTION MANUAL

IM012EB-01 ELECTRONIC METER

This meter is designed specifically for the Macnaught BOP Battery Operated Pump Series

INTRODUCTION

IMPORTANT INFORMATION

PLEASE READ THIS INFORMATION CAREFULLY

BEFORE USE.

Read and retain this instruction manual to assist you

in the operation of this product.

If you have any problems with the meter, refer to the

maintenance and trouble shooting sections of this

manual.

If you need further assistance, please contact your

local representative or distributor for advice.

OPERATING PRINCIPAL

WARNING

This Flow Meter has incorporated the oval rotor

principal into its design. This has proven to be a

reliable and accurate method of measuring flow.

Exceptional repeatability is the feature of the oval

rotor design.

This product should only be used with

automotive oils and lubricants

When fluid passes through the meter the rotors

turn, as shown below. The magnets which are

located in the rotors will pass across the PCB

sensors.

A signal is generated which is then sent by the PCB

to the LCD as a Pulse Output.

* Macnaught recommends the use of PPE

equipment such as safety glasses, protective

gloves, safety shoes etc before handling or

using this product.

* Do not modify or alter this product any way

* Ensure that any fluid spillage is cleaned up

immediately to prevent slipping or injury.

* Firmly tighten all connections and check for

any sign of leakage before use.

CAUTION

METER TO GUN ASSEMBLY

1) Prior to assembling connector (2) to the gun (1)

remove item (5) from the gun (1).

2) Screw item (2) to the gun outlet (1) - Do not over

tighten.

3) Slide O’ring (6) all the way onto screw (2)

4) Remove the ‘U’clip (3) from the meter (4)

5) Insert the meter inlet (4) onto the connector (2)

apply light pressure to the meter, this will slightly

compress the O’ring (6) then carefully fit the U clip

(3) as shown

6) Carefully screw the outlet tube (5) onto the meter

outlet (4) - Do not over tigthen

6 2

OPERATING INSTRUCTIONS

LITRE

US GAL

US QT

RESET BATCH TOTAL

RESET ACCUMULATIVE TOTAL

NON RESET TOTAL

INLET

SELECT UNITS

BACK LIGHT

The display wakens when flluid passes through the

meter or either the “M”or “L”button is pressed.

Note: The display will go to sleep after 3 seconds if

no flow is detected

BACK LIGHT

To turn on the backlight press “L“ button

Change Units Setting

1) Waken display by pressing either the ‘M”or “L”

button

2) Press and hold down the “L” button until the

arrow moves to the next unit setting

a) Press and hold down button to change from

L to US-GAL

b) Press and hold down button to change from

US-GAL to US-Qt

c) Press and hold down button to change from

US-Qt to L

Change Batch and Total Setting

1) Waken display by pressing either the ‘M”or “L”

button

2) Press and release “M” button to move arrow

to desired batch or total setting

A = Resettable batch total

B = Resettable accumulative total

C = Non ressettable accumulative total

REPLACE BATTERY

1) Carefully pull open the battery drawer as shown

2) Carefully slide the old battery from the PCB

3) Carefully insert the new CR2450 Lithium Coin

battery.

Note:

Ensure the battery is fitted with the + on the battery

pointing up as shown below.

4) Slide the battery drawer shut firmly to ensure the

O’ring seals the drawer opening correctly,

Reset batch or accumulative totals to zero

1) Waken display by pressing either the ‘M”or “L”

Button

2) Press and release “M” button to move arrow

to desired batch (A) or total (B) setting

3) Simultaneously press and release the “M”and

“L”buttons to reset the numbers to zero.

TROUBLE SHOOTING

TROUBLE CAUSE REMEDY

Meter not reading a) Damaged or faulty PCB a) Replace meter

b) Damaged or jammed rotors b) Replace meter

No display a) Flat battery a) Replace battery (Lithium CR2450)

b) Damaged or faulty PCB b) Replace meter

Meter not accurate a) Air in the oil a) Ensure the system is fully primed and air free

b) Leakage b) Check and ensure all connections are properly

assembled and sealed, otherwise replace meter

as required.

c) Flowrate too high c) See specification for maximum flowrate

SPECIFICATIONS

FLOWRATEUpto10LPM

OPERATINGTEMPERATURE‐20degCto+70degC

OPERATINGPRESSURE20psi(Max60psi)

ACCURACY+/‐2%ofreading

IPRATINGIP65

INLETCONNECTION½”inletconnectorsupplied

OUTLETCONNECTION1/2"BSPP(F)

POWER1xCR2450‐3VLithiumCoinBattery

WEEE Directive - Waste Electrical and Electronic Equipment

The WEEE Directive requires the recycling of waste electrical and electronic

equipment in the European Union.

Whilst the WEEE Directive does not apply to some of Macnaught’s products, we

support its policy and ask you to be aware of how to dispose of this product.

The crossed out wheelie bin symbol illustrated and found on our products signifies that

this product should not be disposed of in general waste or landfill.

Please contact your local dealer national distributor or Macnaught Technical Services

for information on product disposal.

Note:

This product should be disposed of according to all applicable local

and national government environment regulations and guidelines.

For Warranty Terms and Conditions see macnaught.com.au

For a list of Australian Service Centres see macnaught.com.au
