PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR

REFRIGERATOR AND KEEP IT FOR FUTURE REFERENCE.

Model HVDR1040W / HVDR1040B / HVDR1040S / HVDR1040ST

9.9 Cu. Ft.

TOP MOUNT REFRIGERATOR

User's Manual

Product Registration

Thank you for purchasing a Magic Chef® product. The ﬁrst step to protect your new product is to complete the product registration on our website:

www.mcappliance.com/register. The beneﬁts of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notiﬁcation or product update.

2. Registering your product will allow for more efﬁcient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef®product.

TABLE OF CONTENTS

OPERATING YOUR REFRIGERATOR

FREEZER COMPARTMENT OPERATION .

CARE & MAINTENANCE

....

CHANGING THE REVERSIBLE DOOR

....

6-7

9-10

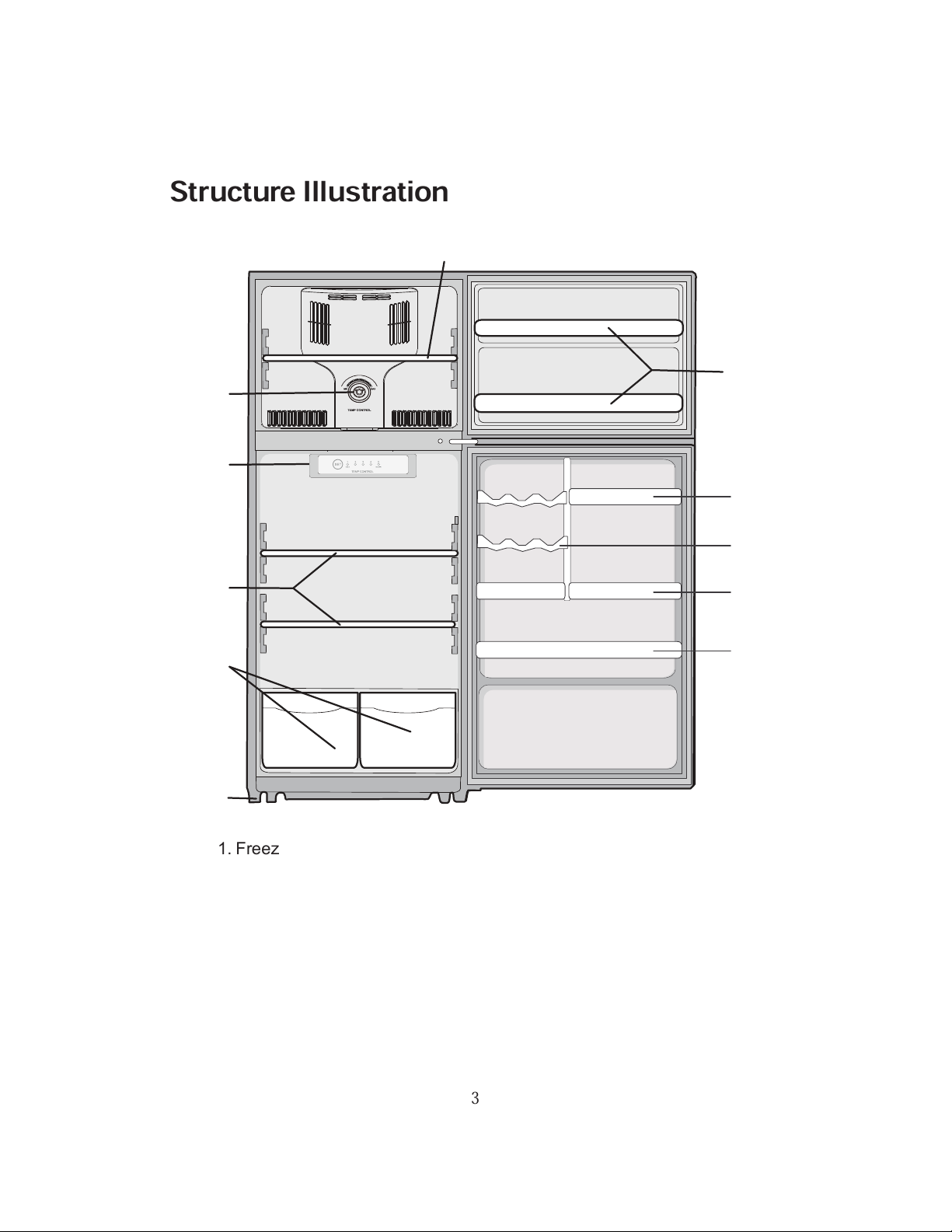

Structure Illustration

1. Freezer control knob

2. Refrigerator temperature control

3. Refrigerator glass shelf

4. Vegetable bin

5. Adjustable feet

6. Freezer shelf

7. Freezer door rail

8. Bottle rack (Small)

9. Can rack

10. Gallon rack

Bottle rack (Large)

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury follow

these basic precautions when using your refrigerator.

13) Do not use an extension cord with this appliance. If the power cord is too short, have a ƋƵĂůŝĮed

electrician install an outlet near the appliance. Use of an extension can nega vely aīect the

unit’s performance.

risk of Įre

1) WARNING͸Keep ven la on openings, in the appliance enclosure or in the built-in structure,

clear of obstruc on.

2) WARNING͸Do not use mechanical devices or other means to accelerate the defros g process,

other than those recommended by the manufacturer.

3) WARNING͸Do not damage the refrigerant tubing to increase the risk of a leak when handle, move

4) WARNING͸Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

5) WARNING͸DANGER: Never allow children to play with, operate, or crawl inside the refrigerator.

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

Take oīthe doors

Leave the shelves in place so that children may not easily climb inside.

6) The appliance has to be unplugged before carrying out user maintenance on the appliance.

7) This appliance can be used by children age 8 years and above and persons with reduced physical

sensory or mental capabili es or lack of experience and knowledge if they have been given

supervision or ins concerning use of the appliance in a safe way and understand the

hazards involved. Children should not play with the appliance. Cleaning and maintenance should not

be made by children without supervision.

8) If the component part is damaged, it must be replaced by the manufacturer, its service agent or

similar ƋƵĂůŝĮed persons in order to avoid a hazard.

9) Please abandon the refrigerator according to local regula as the unit contains Ňammable

blowing gas and refrigerant.

10) Follow local regula ons regarding disposal of the appliance due to Ňammable refrigerant and

law must be removed before disposal. It is the consumer's responsibility to comply with federal and

owing gas

11) This appliance is intended to be used in household and similar environments such as

staīkitchen areas in shops, oĸces and other working environments;

farm houses and by clients in hotels, motels and other residen al type environments;

bed and breakfast type environments;

catering and similar non-retail applica

12) ŽŶŽƚƐƚŽƌĞŽƌƵƐĞŐĂƐŽůŝŶĞŽƌĂŶǇŝŶŇĂŵŵĂďůĞůŝƋƵŽƌƐĂŶĚůŝƋƵŝĚƐŝŶƐŝĚĞŽƌŝŶƚŚĞǀŝĐŝŶŝƚǇŽĨƌĞĨƌŝŐĞƌĂƚŽƌ

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE PERSONNEL TO

CARRY OUT SERVICES OR REPAIRS INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

and use of refrigerator.

Installation Instructions

BeforeUsingUsing YourYour Refrigerator

Remove the exterior and interior packing.

Before connecting the refrigerator to the power source,

let

stand upright for

approximately 4 hours. This will reduce the possibility of a malfunction

the cooling

system from improper handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth. (Cleaning

instructions on page 7)

Location

Do not recess or build-in. This appliance is designed to be free standing

only.

Allow 5 inches clearance space between the back and sides of the refrigerator,

which allows the proper air ventilation.

Avoid Installation

On weak surfaces unable to support refrigerator when

fully

loaded.

In direct sunlight and sources of heat (stove, heater, radiator, etc.). Ambient

temperature below 50 F or above 85 F will hinder the performance of this

appliance.

In moist areas.

In garage.

This unit is not designed for

any

type of outside installation.

In moving vehicle.

This unit is not designed to be installed in an RV or

used with an inverter. This unit is intendedfor householduse

only.

Installing Your Refrigerator

Adjust the leveling feet to keep the refrigerator level.

Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) prong from the power cord.

After plugging the appliance into a wall outlet, turn the unit on and allow the unit to

cool down for 24 hours before placing food

the refrigerator or freezer compartment.

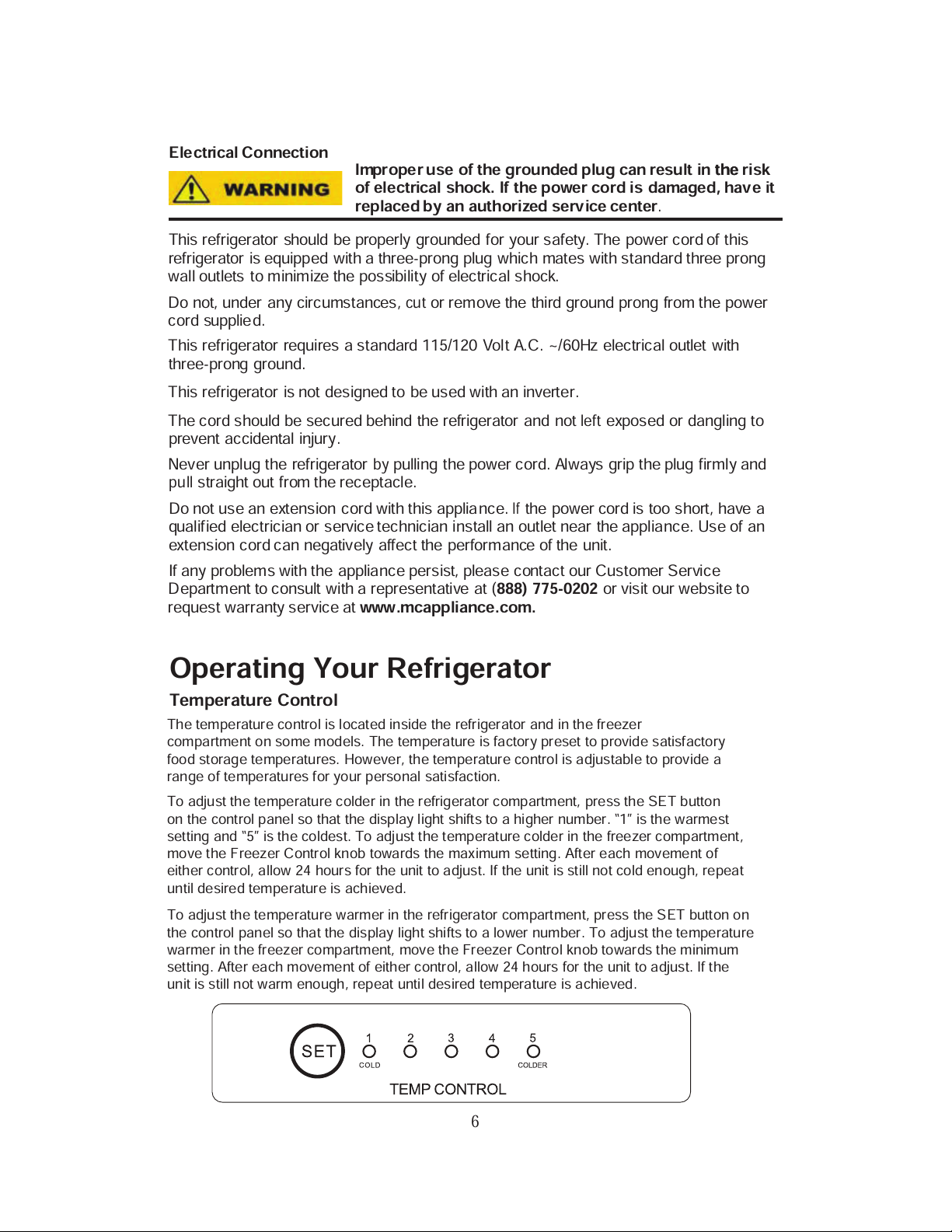

Electrical Connection Improper use of the grounded plug can result in thethe risk

of electrical shock. If the power cord is damaged, have it

replacedby an authorized service center

This refrigerator should be properly grounded for your safety. The power cord of this

refrigerator is equipped with a three-prong plug which mates with standard three prong

wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances,

cut

or remove the third ground prong from the power

cord supplied.

This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with

three-prong ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not

left

exposed or dangling to

prevent accidental injury.

Never unplug the refrigerator

pulling the power cord. Always grip the plug firmly and

pull

straight out from the receptacle.

Do not use an extension cord with this appliance.

the power cord is too short, have a

qualified electrician or service technician install an outlet near the appliance. Use of an

extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service

Department to consult with a representative at (

888) 775-0202

or visit our website to

request warranty service at

www.mcappliance.com.

Operating Your Refrigerator

The temperature control is located inside the refrigerator and in the freezer

compartment on some models. The temperature is factory preset to provide satisfactory

food storage temperatures. However, the temperature control is adjustable to provide a

range of temperatures for your personal satisfaction.

To adjust the temperature colder in the refrigerator compartment, press the SET button

on the control panel so that the display light shifts to a higher number. “1” is the warmest

setting and “5” is the coldest. To adjust the temperature colder in the freezer compartment,

move the Freezer Control knob towards the maximum setting. After each movement of

either control, allow 24 hours for the unit to adjust. If the unit is still not cold enough, repeat

until desired temperature is achieved.

To adjust the temperature warmer in the refrigerator compartment, press the SET button on

the control panel so that the display light shifts to a lower number. To adjust the temperature

warmer in the freezer compartment, move the Freezer Control knob towards the minimum

setting. After each movement of either control, allow 24 hours for the unit to adjust. If the

unit is still not warm enough, repeat until desired temperature is achieved.

Temperature Control

NOTE

If the unit is unplugged or loses power; you must wait 3 to 5 minutes before

restarting the unit. If

you

attempt to restart before this time delay, the

refrigerator may not start.

Replacing the Interior Light

Before removing the light bulb, turn the refrigerator temperature control to the “1”

position. Then unplug the electrical cord from the wall outlet. Failure to do so may

result in electrical shock or personal injury. Replace the old bulb with a new bulb of

the same wattage and size.

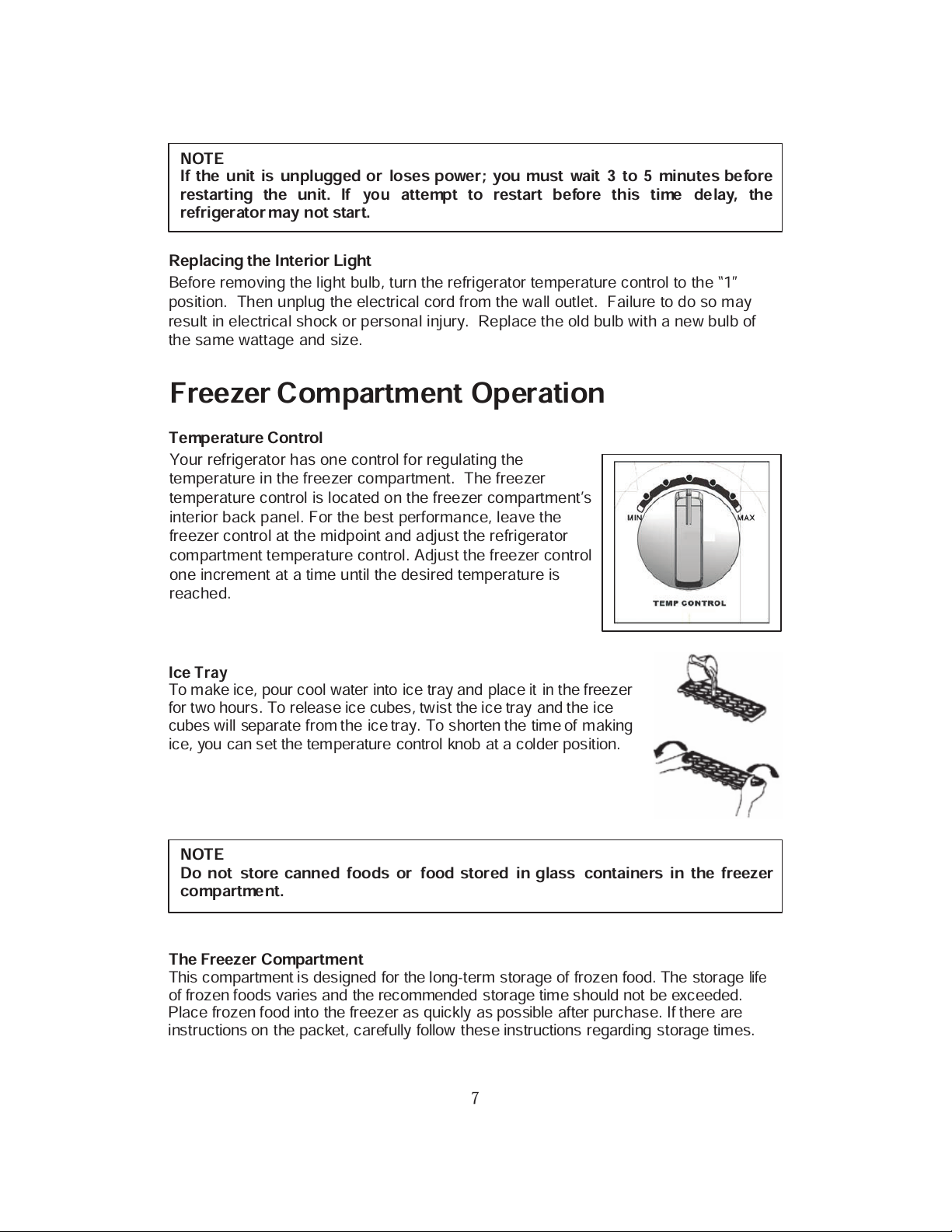

Freezer Compartment Operation

Temperature Control

Ice

Tray

To make ice, pour cool water into ice tray and place

the freezer

for two hours. To release ice cubes, twist the ice tray and the ice

cubes will separate from the ice tray. To shorten the time of making

ice, you can set the temperature control knob at a colder position.

NOTE

Do not store canned foods or food stored in glass containers in the freezer

compartment.

The Freezer Compartment

This compartment is designed for the long-term storage of frozen food. The storage

life

of frozen foods varies and the recommended storage time should not be exceeded.

Place frozen food into the freezer as quickly as possible after purchase. If there are

instructions on the packet, carefully follow these instructions regarding storage times.

Your refrigerator has one control for regulating the

temperature in the freezer compartment. The freezer

temperature control is located on the freezer compartment’s

interior back panel. For the best performance, leave the

freezer control at the midpoint and adjust the refrigerator

compartment temperature control. Adjust the freezer control

one increment at a time until the desired temperature is

reached.

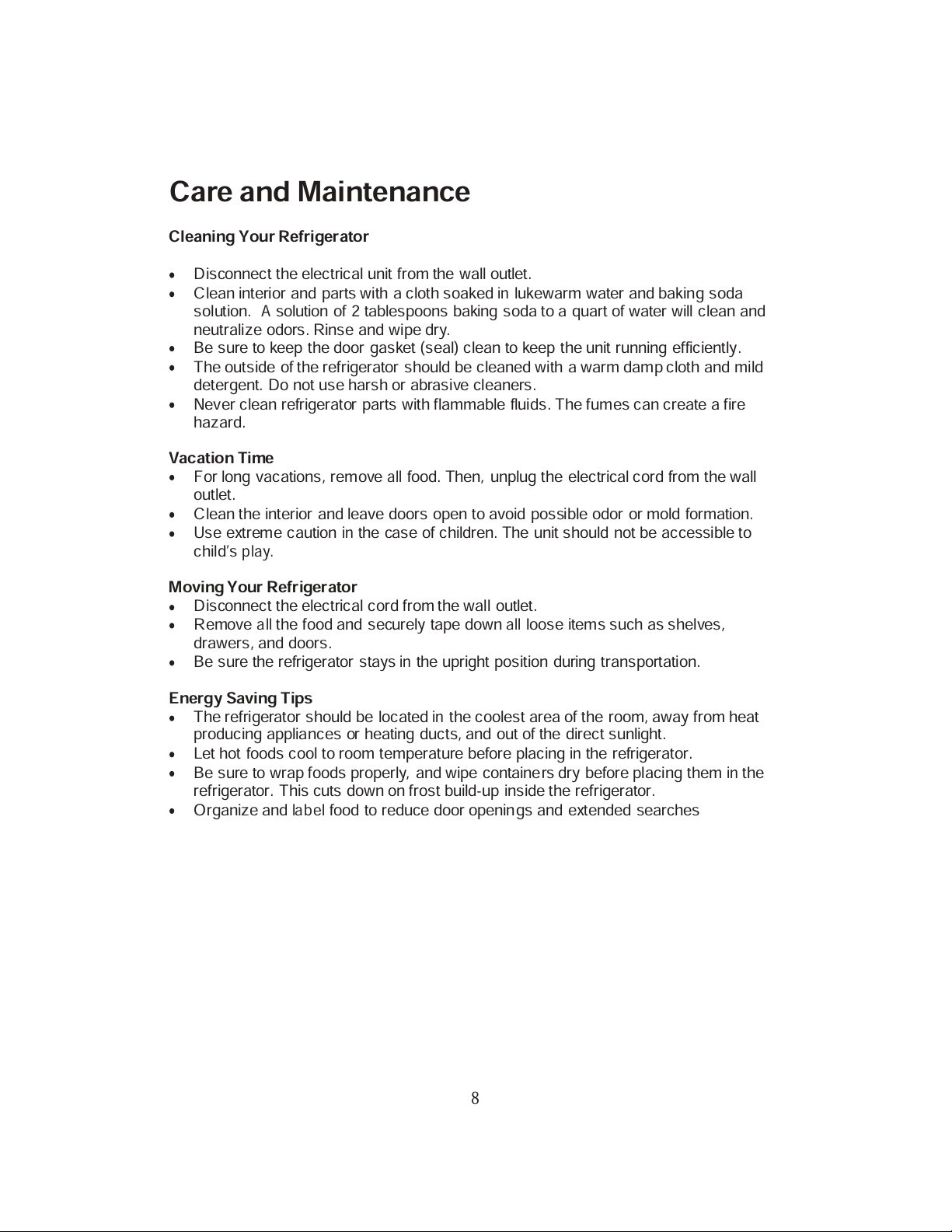

Care and Maintenance

Cleaning Your Refrigerator

Disconnect the electrical unit from the wall outlet.

Clean interior and parts with a cloth soaked

lukewarm water and baking soda

solution.

solution of 2 tablespoons baking soda to a quart of water will clean and

neutralize odors. Rinse and wipe dry.

Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.

The outside of the refrigerator should be cleaned with a warm damp cloth and mild

detergent. Do not use harsh or abrasive cleaners.

Never clean refrigerator parts with flammable fluids. The fumes can create a fire

hazard.

Vacation Time

For long vacations, remove

all

food. Then, unplug the electrical cord from the wall

outlet.

Clean the interior and leave doors open to avoid possible odor or mold formation.

Use extreme caution

the case of children. The unit should not be accessible to

child

’

play.

MovingYour Refrigerator

Disconnect the electrical cord from the wall outlet.

Remove

all

the food and securely tape down

all

loose items such as shelves,

drawers, and doors.

Be sure the refrigerator stays

the upright position during transportation.

Energy Saving Tips

The refrigerator should be located

the coolest area of the room, away from heat

producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing

the refrigerator.

Be sure to wrap foods properly, and wipe containers dry before placing them

the

refrigerator. This cuts down on frost build-up inside the refrigerator.

Organize and

label

food to reduce door openings and extended searches

Changing the Reversible Door

Before reversing the door swing, ensure the appliance is unplugged and empty. Provide

additional support for the doors while hinges are being removed. Do not depend on the door

magnets to hold the door in place. It is recommended that two people perform this task. DO

NOT lay the appliance completely flat as this may damage the coolant system.

Unscrew and remove the middle

hinge and middle hinge washer.

Reserve the screws. Lift the

refrigerator door up and away

from the appliance.

Remove top hinge cover. Unscrew

and remove the top hinge and top

hinge washer. Reserve the screws.

Lift the freezer door up and away

from the appliance.

Included parts

Unscrew and remove the bottom right hinge.

Reserve the screws. Remove screw covers from

opposite corner (left) and cover exposed

holes (right). Attach bottom left hinge with the

reserved screws.

Top hinge

Top hinge washer

Middle hinge washer

Middle hinge

Door parts

Bottom right hinge

Right pin assembly (2)

Screw

Left pin assembly (2)

Bottom left hinge

Step 2

Step 1

Step 4

Step 3

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Magic Chef Kühlschrank Handbücher

Magic Chef

Magic Chef MCBM920S Bedienungsanleitung

Magic Chef

Magic Chef HMCR440WE Bedienungsanleitung

Magic Chef

Magic Chef HMBR350WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR480W Bedienungsanleitung

Magic Chef

Magic Chef MCBR265BEF Bedienungsanleitung

Magic Chef

Magic Chef HMR330WE Bedienungsanleitung

Magic Chef

Magic Chef CTB1821VRW01 Bedienungsanleitung

Magic Chef

Magic Chef CSB2121ARW Montageanleitung

Magic Chef

Magic Chef MCBR405B Bedienungsanleitung

Magic Chef

Magic Chef MCKC490B Bedienungsanleitung

Magic Chef

Magic Chef HMR440WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR402S Bedienungsanleitung

Magic Chef

Magic Chef RB15HA-1 Bedienungsanleitung

Magic Chef

Magic Chef MCAR240B Bedienungsanleitung

Magic Chef

Magic Chef MCDR450WEF Bedienungsanleitung

Magic Chef

Magic Chef MCQR1500ST Bedienungsanleitung

Magic Chef

Magic Chef MCBR445W1F Bedienungsanleitung

Magic Chef

Magic Chef MCBR170B Bedienungsanleitung

Magic Chef

Magic Chef MCBR265WEF Bedienungsanleitung

Magic Chef

Magic Chef MCBR170BMD Bedienungsanleitung

Magic Chef

Magic Chef HMBR445WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR445B2 Bedienungsanleitung

Magic Chef

Magic Chef HMAR265WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR170B Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
