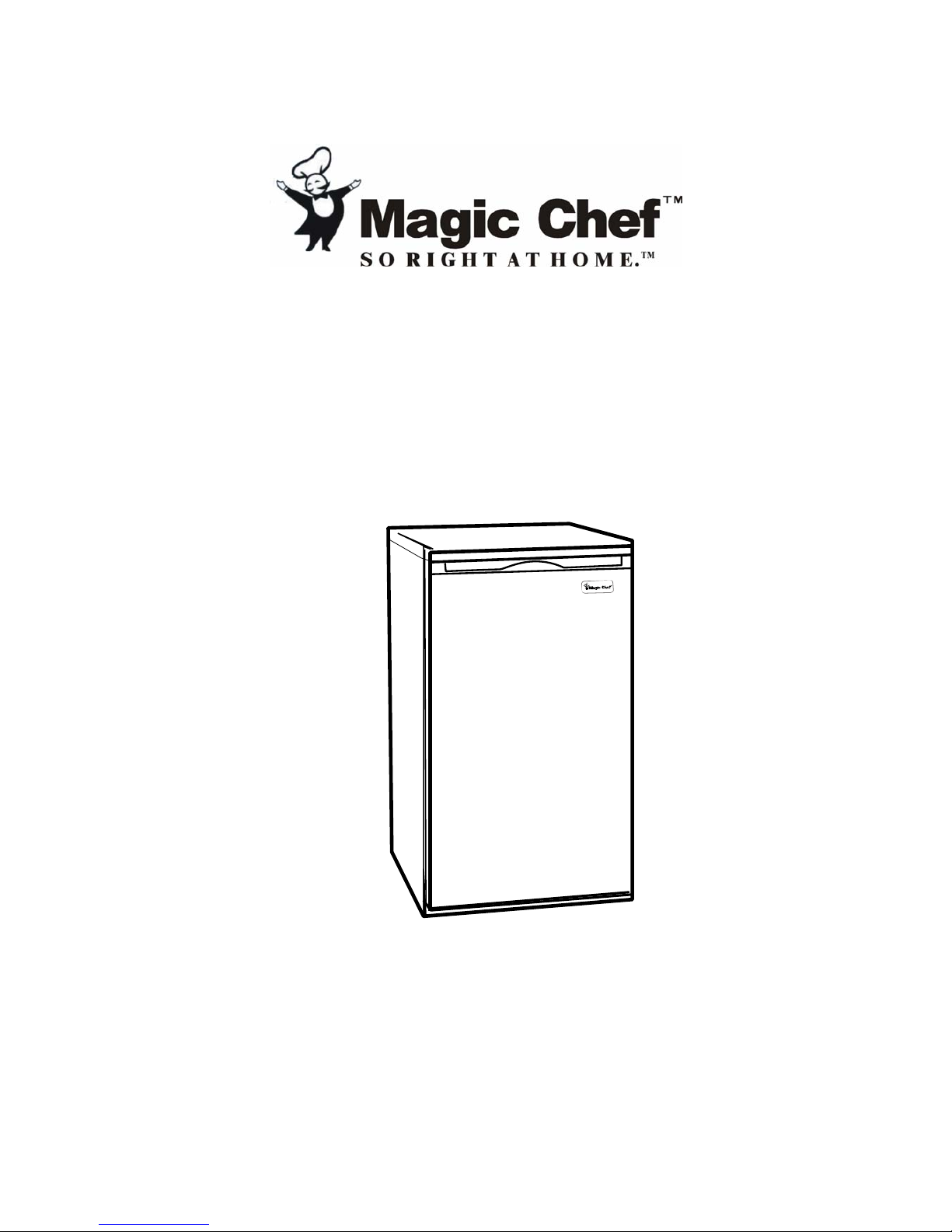

4.5 CU.FT. REFRIGERATOR

INSTRUCTION MANUAL

Model No.: MCBR465S

To ensure proper use of this appliance and your safety, please read the

following instructions completely before operating this appliance.

TABLE OF CONTENTS

NAMES OF THE PARTS……………………………………………………… 2

SPECIFICATIONS…………………………………………………………….. 2

IMPORTANT SAFETY INSTRUCTIONS………………………….………… 3

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR REFRIGERATOR ………………………... 3

INSTALLING YOUR REFRIGERATOR ………………………..…… 3-4

ELECTRICAL CONNECTION………………………………………… 4

OPERATING YOUR REFRIGERATOR

TEMPERATURE CONTROL………………………………………….. 5

CHANGING THE REVERSIBLE DOOR ……………………………………. 6

CARE AND MAINTENANCE

CLEANING YOUR REFRIGERATOR………………………………… 7

VACATION TIME…………………………………………….…………. 7

MOVING YOUR REFRIGERATOR…………………………………… 7

ENERGY SAVING TIPS…………………………………….…………. 7

LIGHT REPLACEMENT…………………………………….…………. 7

TROUBLESHOOTING GUIDE……………………………….……….………. 8 - 9

REFRIGERATOR WARRANTY……………………….…………….………… 10

NAMES OF THE PARTS

MODEL NO.: MCBR465S

aWARNINGa: Never touch the interior of the Freezer Chamber or frozen foods in the

compartment with wet hands as this could result in frost bite.

SPECIFICATIONS – Model # MCBR465S

Product Description

Magic Chef Refrigerator

Model No.

MCBR465S

Capacity

4.5 Cu. Ft.

Width

Depth

Height

Unit Dimensions

( inches )

19.9” 20.8”

34.1”

Net Weight ( lbs)

61 ( lbs )

IMPORTANT SAFETY INSTRUCTIONS

aWARNINGa

To reduce the risk of fire, electrical shock,

or injury when using your refrigerator,

follow these basic precautions:

•

Read all instructions before using the refrigerator.

DANGER or WARNING: Risk of child entrapment.

To avoid the possibility of child entrapment, please take the following precautions

before throwing out the refrigerator.

- Remove all doors from the unit.

- Leave the shelves in place so that children may not easily climb inside.

Never allow children to operate, play with, or crawl inside the refrigerator.

Refrigerants: All refrigeration products contain refrigerants, which under the

guidelines of federal law must be removed before disposal of product. It is the

consumer’s responsibility to comply with federal and local regulations when

disposing of this product.

Never clean refrigerator parts with flammable fluids. The fumes can create a fire

hazard or explosion.

Do not store or use gasoline or any other flammable vapors and liquids in the vicinity

of this or any other refrigerator. The fumes can create a fire hazard or an explosion.

-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

•Remove the exterior and interior packing.

•Before connecting the refrigerator to the power source, let it stand upright for approximately 4

hours. This will reduce the possibility of a malfunction in the cooling system from improper

handling during transportation.

•Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 7)

Installing Your Refrigerator

•This appliance is designed to be free standing only, and should not be recessed or built-in.

•Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully

loaded.

•Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper

air ventilation. Adjust the feet to keep the refrigerator level.

•Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator,

etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical

consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the

performance of this appliance. This unit is not designed for use in a garage or any other

outside installation.

•Avoid locating the refrigerator in moist areas.

•Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any

circumstances cut or remove the third (ground) prong from the power cord. Any questions

concerning power and/or grounding should be directed toward a certified electrician or an

authorized service center. This unit is not designed to be installed in an RV or used with an

inverter.

•After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for

2~3 hours under before placing food in the refrigerator or freezer compartment.

Electrical Connection

aWARNINGa

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is

damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is

equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the

possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115/120 Volt A.C. ~/60Hz electrical outlet with three-prong

ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent

accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight

out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified

electrician or service technician install an outlet near the appliance. Use of an extension cord can

negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with

a representative at 888 775-0202 or visit our website to request warranty service at

www.mcappliance.com.

OPERATING YOUR REFRIGERATOR

Temperature Control

•Your refrigerator has one control for regulating

the temperature. The temperature control is

located on the upper right hand corner of the

interior compartment.

•The first time you turn the unit on, adjust the

temperature control knob to “4” and run for at

least 2 hours before putting foods inside. This

will ensure the cabinet is thoroughly chilled

before food is put in.

•The range of the refrigerator temperature control is from position "1" the warmest to "6" the

coldest. Adjust the temperature control to the setting that best suits your needs. The setting of “4”

should be appropriate for home or office refrigerator use.

•Turning the temperature control knob to “OFF” position stops the cooling cycle but does not shut

off the power to the unit.

•NOTE;

•If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the

unit. If you attempt to restart before this time delay, the refrigerator will not start.

•Large amounts of food will lower the cooling efficiency of the appliance.

•Do not place the foods on the air outlet, and leave spaces for airflow.

•If you choose to change the thermostat setting, adjust thermostat control by one

increment at a time. Allow several hours for temperature to stabilize between

adjustments.

CHANGING THE REVERSIBLE DOOR

CARE AND MAINTENANCE

Cleaning Your Refrigerator

•Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.

•Turn off the refrigerator first and then unplug the unit from the wall outlet.

•Remove all food content.

•Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution.

The solution should be about 2 tablespoons of baking soda to a quart of water.

•Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.

•The outside of the refrigerator should be cleaned with mild detergent and warm water.

•Dry the interior and exterior with a soft cloth.

Vacation Time

•Use extreme caution in the case of children. The unit should not be accessible to child’s play.

•Short vacations: Leave the refrigerator operating during vacations of less than three weeks.

•Long vacations: If the appliance will not be used for several months, remove all food and unplug

the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave

the door open slightly: blocking it open if necessary or have the door removed.

Moving Your Refrigerator

•Turn off the refrigerator first and then unplug the unit from the wall outlet.

•Remove all the food.

•Securely tape down all loose items inside your refrigerator.

•Tape the doors shut.

•Be sure the refrigerator stays in the upright position during transportation.

Energy Saving Tips

•The refrigerator should be located in the coolest area of the room, away from heat producing

appliances or heating ducts, and out of the direct sunlight.

•Let hot foods cool to room temperature before placing in the refrigerator. Overloading the

refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or

spoil.

•Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator.

This cuts down on frost build-up inside the refrigerator.

•Organize and label food to reduce door openings and extended searches. Remove as many

items as needed at one time, and close the door as soon as possible.

Light Replacement

•Changing the lamp as following:

•Disconnect the power.

•Remove the transparent lamp cover.

•Remove and change the lamp

•Replace the lamp cover.

•Never fit a lamp with a higher wattage rating than that stated above.

•The voltage (V) marked on the lamp must always correspond to that shown on the appliance

rating plate.

TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible

service call. Try the suggestions below to see if you can solve the problem before calling for

service.

PROBLEM POSSIBLE CAUSE

Refrigerator does not operate. Not plugged in.

The circuit breaker tripped or a blown fuse.

Compressor turns on and off frequently. The room temperature is hotter than normal.

A large amount of food has been added to the

refrigerator.

The door is opened too often.

The door is not closed completely.

The temperature control is not set correctly.

The door gasket does not seal properly.

The refrigerator does not have the correct

clearances.

The refrigerator has recently been disconnected

for a period of time. 4 hours are required for the

refrigerator to cool down completely.

Temperature inside the refrigerator is too warm. Temperature control is set too warm. Turn the

control to a cooler setting and allow several hours

for the temperature to stabilize.

Door is kept open too long or is opened too

frequently. Warm air enters the refrigerator every

time the door is opened. Open the door less

often.

The door is not closed completely.

The door gasket does not seal properly.

A large amount of warm or hot food might have

been stored recently. Wait until the refrigerator

has had a chance to reach its selected

temperature.

The refrigerator has recently been disconnected

for a period of time. 4 hours are required for the

refrigerator to cool down completely.

Temperature inside the refrigerator is too cold. Temperature control is set too cold. Turn the

control to a warmer setting and allow several

hours for the temperature to stabilize.

Temperature of external refrigerator surface is

warm. The exterior refrigerator walls can be as much as

30οF warmer than room temperature. This is

normal while the compressor works to transfer

heat from inside the refrigerator cabinet.

Popping or cracking sound when compressor

comes on. Metal parts undergo expansion and contraction,

as in hot water pipes. This is normal. Sound will

level off or disappear as refrigerator continues to

run.

Bubbling or gurgling sound, like water boiling. Refrigerant (used to cool refrigerator) is

circulating throughout the system. This is normal.

Vibrations. Check to assure that the refrigerator is on a level

surface.

Floor is uneven or weak. Refrigerator rocks on

the floor when it is moved slightly. Be sure floor

can adequately support refrigerator. Level the

refrigerator by putting wood or metal shims under

part of the refrigerator.

The refrigerator is touching the wall. Re-level the

refrigerator and move it from the wall.

See “Installation Instructions”.

Moisture forms on inside refrigerator walls. Weather is hot and humid, which increases

internal rate of frost build-up. This is normal.

Door is slightly open.

Door is kept open too long, or is opened too

frequently. Open the door less often.

The door is not sealed properly.

Moisture forms on outside of refrigerator. Door is slightly open, causing cold air from inside

the refrigerator to meet warm moist air from

outside.

The door will not close properly. The refrigerator is not on a level surface.

The gasket is dirty.

The storage basket is out of position.

Inhaltsverzeichnis

Andere Magic Chef Kühlschrank Handbücher

Magic Chef

Magic Chef MCR16CHW Bedienungsanleitung

Magic Chef

Magic Chef MCBR160B2 Bedienungsanleitung

Magic Chef

Magic Chef MCR32CHW Bedienungsanleitung

Magic Chef

Magic Chef HMBR350WE1 Bedienungsanleitung

Magic Chef

Magic Chef CRD22AY-3A Bedienungsanleitung

Magic Chef

Magic Chef HMCR440WE Bedienungsanleitung

Magic Chef

Magic Chef AON-C502 Bedienungsanleitung

Magic Chef

Magic Chef AON-2703 Bedienungsanleitung

Magic Chef

Magic Chef CTB1821VRW01 Bedienungsanleitung

Magic Chef

Magic Chef MCBR405B Bedienungsanleitung

Magic Chef

Magic Chef MCBR170S Bedienungsanleitung

Magic Chef

Magic Chef MCQR1500ST Bedienungsanleitung

Magic Chef

Magic Chef MCBR360HB Bedienungsanleitung

Magic Chef

Magic Chef HMBR350WE Bedienungsanleitung

Magic Chef

Magic Chef 440YW-2 Bedienungsanleitung

Magic Chef

Magic Chef MCBR480W Bedienungsanleitung

Magic Chef

Magic Chef MCBM920W Bedienungsanleitung

Magic Chef

Magic Chef MCBR980W Bedienungsanleitung

Magic Chef

Magic Chef RB15HA-1 Bedienungsanleitung

Magic Chef

Magic Chef HMAR265WE Bedienungsanleitung

Magic Chef

Magic Chef MCBR265BEF Bedienungsanleitung

Magic Chef

Magic Chef MCBR170B Bedienungsanleitung

Magic Chef

Magic Chef HMAR33WE Bedienungsanleitung

Magic Chef

Magic Chef HMBR265WE1 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
