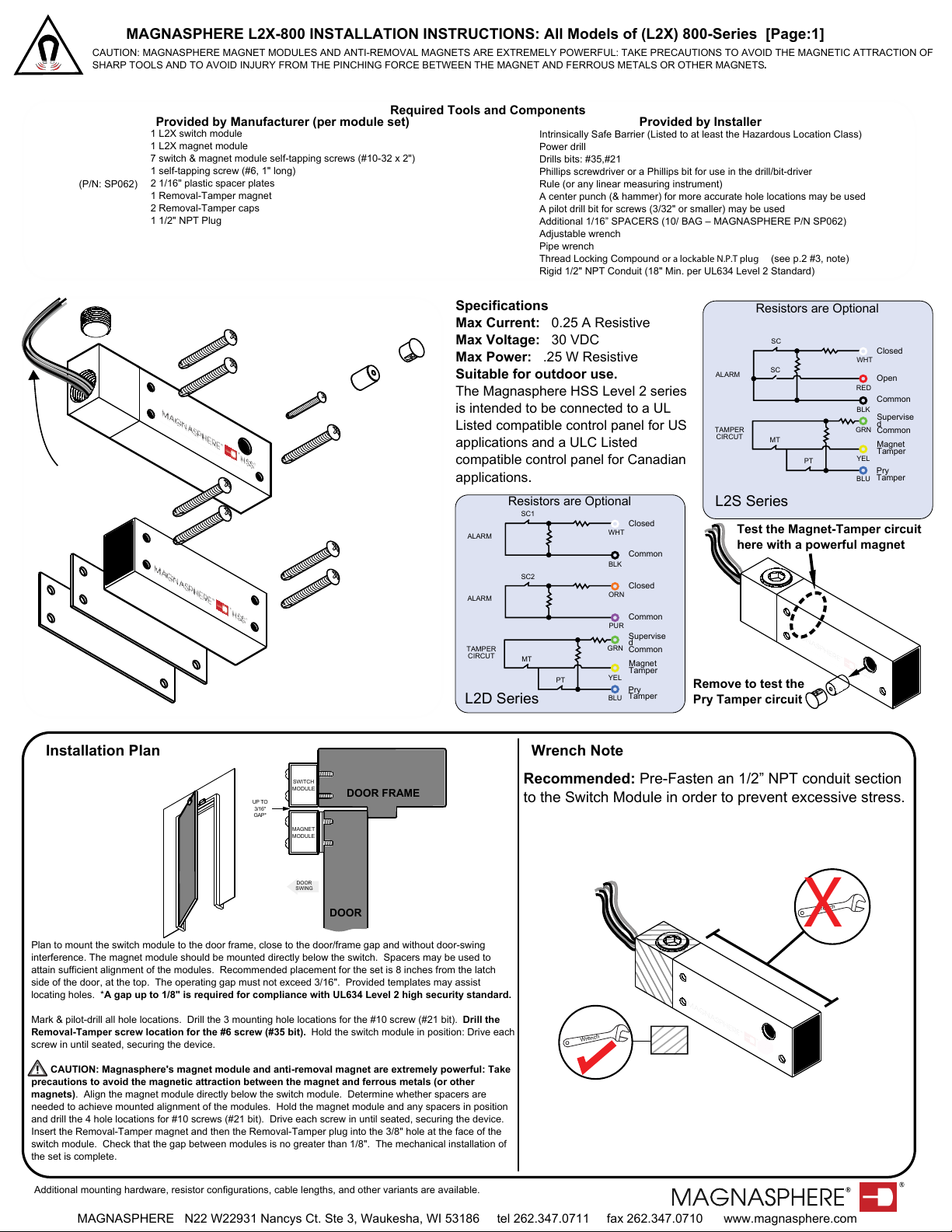

MAGNASPHERE L2X-800 INSTALLATION INSTRUCTIONS: All Models of (L2X) 800-Series [Page:1]

CAUTION: MAGNASPHERE MAGNET MODULES AND ANTI-REMOVAL MAGNETS ARE EXTREMELY POWERFUL: TAKE PRECAUTIONS TO AVOID THE MAGNETIC ATTRACTION OF

SHARP TOOLS AND TO AVOID INJURY FROM THE PINCHING FORCE BETWEEN THE MAGNET AND FERROUS METALS OR OTHER MAGNETS.

Required Tools and Components

Provided by Manufacturer (per module set)

1 L2X switch module

1 L2X magnet module

7 switch & magnet module self-tapping screws (#10-32 x 2")

1 self-tapping screw (#6, 1" long)

2 1/16" plastic spacer plates

1 Removal-Tamper magnet

2 Removal-Tamper caps

1 1/2" NPT Plug

(P/N: SP062)

Provided by Installer

Intrinsically Safe Barrier (Listed to at least the Hazardous Location Class)

Power drill

Drills bits: #35,#21

Phillips screwdriver or a Phillips bit for use in the drill/bit-driver

Rule (or any linear measuring instrument)

A center punch (& hammer) for more accurate hole locations may be used

A pilot drill bit for screws (3/32" or smaller) may be used

Additional 1/16” SPACERS (10/ BAG – MAGNASPHERE P/N SP062)

Adjustable wrench

Pipe wrench

Thread Locking Compound or a lockable N.P.T plug (see p.2 #3, note)

Rigid 1/2" NPT Conduit (18" Min. per UL634 Level 2 Standard)

Installation Plan

Plan to mount the switch module to the door frame, close to the door/frame gap and without door-swing

interference. The magnet module should be mounted directly below the switch. Spacers may be used to

attain sufficient alignment of the modules. Recommended placement for the set is 8 inches from the latch

side of the door, at the top. The operating gap must not exceed 3/16". Provided templates may assist

locating holes. *A gap up to 1/8" is required for compliance with UL634 Level 2 high security standard.

Mark & pilot-drill all hole locations. Drill the 3 mounting hole locations for the #10 screw (#21 bit). Drill the

Removal-Tamper screw location for the #6 screw (#35 bit). Hold the switch module in position: Drive each

screw in until seated, securing the device.

CAUTION: Magnasphere's magnet module and anti-removal magnet are extremely powerful: Take

precautions to avoid the magnetic attraction between the magnet and ferrous metals (or other

magnets). Align the magnet module directly below the switch module. Determine whether spacers are

needed to achieve mounted alignment of the modules. Hold the magnet module and any spacers in position

and drill the 4 hole locations for #10 screws (#21 bit). Drive each screw in until seated, securing the device.

Insert the Removal-Tamper magnet and then the Removal-Tamper plug into the 3/8" hole at the face of the

switch module. Check that the gap between modules is no greater than 1/8". The mechanical installation of

the set is complete.

DOOR FRAME

DOOR

SWITCH

MODULE

MAGNET

MODULE

DOOR

SWING

UP TO

3/16"

GAP*

Wrench Note

Recommended: Pre-Fasten an 1/2” NPT conduit section

to the Switch Module in order to prevent excessive stress.

Wrench

Specifications

Max Current: 0.25 A Resistive

Max Voltage: 30 VDC

Max Power: .25 W Resistive

Suitable for outdoor use.

The Magnasphere HSS Level 2 series

is intended to be connected to a UL

Listed compatible control panel for US

applications and a ULC Listed

compatible control panel for Canadian

applications.

Closed

Open

Common

Supervise

Common

Magnet

Tamper

Pry

Tamper

ALARM

TAMPER

CIRCUT

WHT

RED

BLK

GRN

YEL

BLU

L2S Series

Resistors are Optional

Supervise

Common

Magnet

Tamper

Pry

Tamper

TAMPER

CIRCUT

GRN

YEL

BLU

Closed

Common

ALARM WHT

SC1

Closed

Common

ALARM ORN

SC2

PUR

BLK

L2D Series

Resistors are Optional

Test the Magnet-Tamper circuit

here with a powerful magnet

Remove to test the

Pry Tamper circuit

SWITCH MODULE

#10 SCREW

#10 SCREWS

MAGNET MODULE

1/16" SPACER

REMOVAL

TAMPER

MAGNET

REMOVAL

TAMPER

CAP

#6 SCREW

#10 SCREWS

1/2" NPT PLUG

22 AWG (36" L)

(Longer leads can be ordered)

Attention: modules à aimants Magnasphere et anti-enlèvement aimants sont très puissants: prendre des précautions pour éviter l'attraction magnétique d'outils

tranchants et à éviter les blessures de la force de pincement entre l'aimant et les métaux ferreux ou d'autres aimants.

Patents: #5977873, #6506987, #6803845, #7291794, #7944334, #8314698, #6087936, #6603378, #7023308, #RE39731, #8228191, #8648720 & Other Patents Pending

MAGNASPHERE N22 W22931 Nancys Ct. Ste 3, Waukesha, WI 53186 tel 262.347.0711 fax 262.347.0710 www.magnasphere.com

Additional mounting hardware, resistor configurations, lead wire lengths, and other variants are available.

Patents #5673021, #6603378, #8228191, #8314698 & Patents Pending

21 Jan 2014 L2X-8XX

"Explosion proof Apparatus: Apparatus enclosed in a case

that is capable of withstanding an explosion of specified

gas or vapor that may occur within it and of preventing the

ignition of a specified gas or vapor surrounding the

enclosure by sparks, flashes or explosion of the gas or

vapor within, and that a surrounding flammable atmosphere

will not be ignited thereby. "

Key Technical Terms

vs.

Explosion Proof Intrinsically Safe

"Intrinsically Safe System: An assembly of interconnected

intrinsically safe apparatus, associated apparatus, and

interconnecting cables, in that those parts of the system

that may be used in hazardous(classified) locations are

intrinsically safe circuits."

Source: Class I Division 1 ( UL Standard pertaining Flammable gases, vapors or liquids)

Note: Explosion Proof and Intrinsic Safety are two Independent means to satisfy the Division of Hazardous Locations

Figure 1-1

L2X-800

(Intrinsically Safe

& Simple Device

)

Hazardous Zone Non- Hazardous Zone

Intrinsic Safety

Barrier Control

Installation Note #2

Note for out-

swinging

(egress) door:

An adapting

bracket may be

necessary to

accommodate

egress door

installations.

Installation Notes (#3, #4, #5, #6, #7)

#3 Dual NPT Fitting

Once lead-wire routing is determined, install enclosed NPT plug in the remaining hole.

The use of a thread locking compound (e.g. Loctite® Threadlocker Red 271™) is

recommended for securing the plug permanently.

Note: The enclosed NPT plug must be installed in the remaining hole (unless both NPT

ports are used by conduit). Alternatively, a security NPT locking plug may be used for

non-permanent closure of the port (used by utility companies, manufacturers include:

Highfield and Inner-Tite).

#4 Wire Twisting Note

For installations where the switch module must be spun, wrenched on to a stationary

conduit and the lead-ends cannot freely rotate within the conduit: Counter-rotate the

leads before threading the switch module to the conduit. Approximately six revolutions

from the start of thread should allow the fitting to be tightened. FAILURE TO

PROTECT THE LEADS FROM TENSION OR TWIST CAN CAUSE FATAL DAMAGE

TO THE SWITCH MODULE.

#5 Intrinsically Safe Barrier must be installed in

order to meet Intrinsic Safety Requirements

#6 Refer to figure 1-1 for completed installation.

#7 Magnasphere L2X Series is a Simple Apparatus; when used with an Intrinsically safe

Barrier, will meet or exceed the requirements for certain hazardous locations.

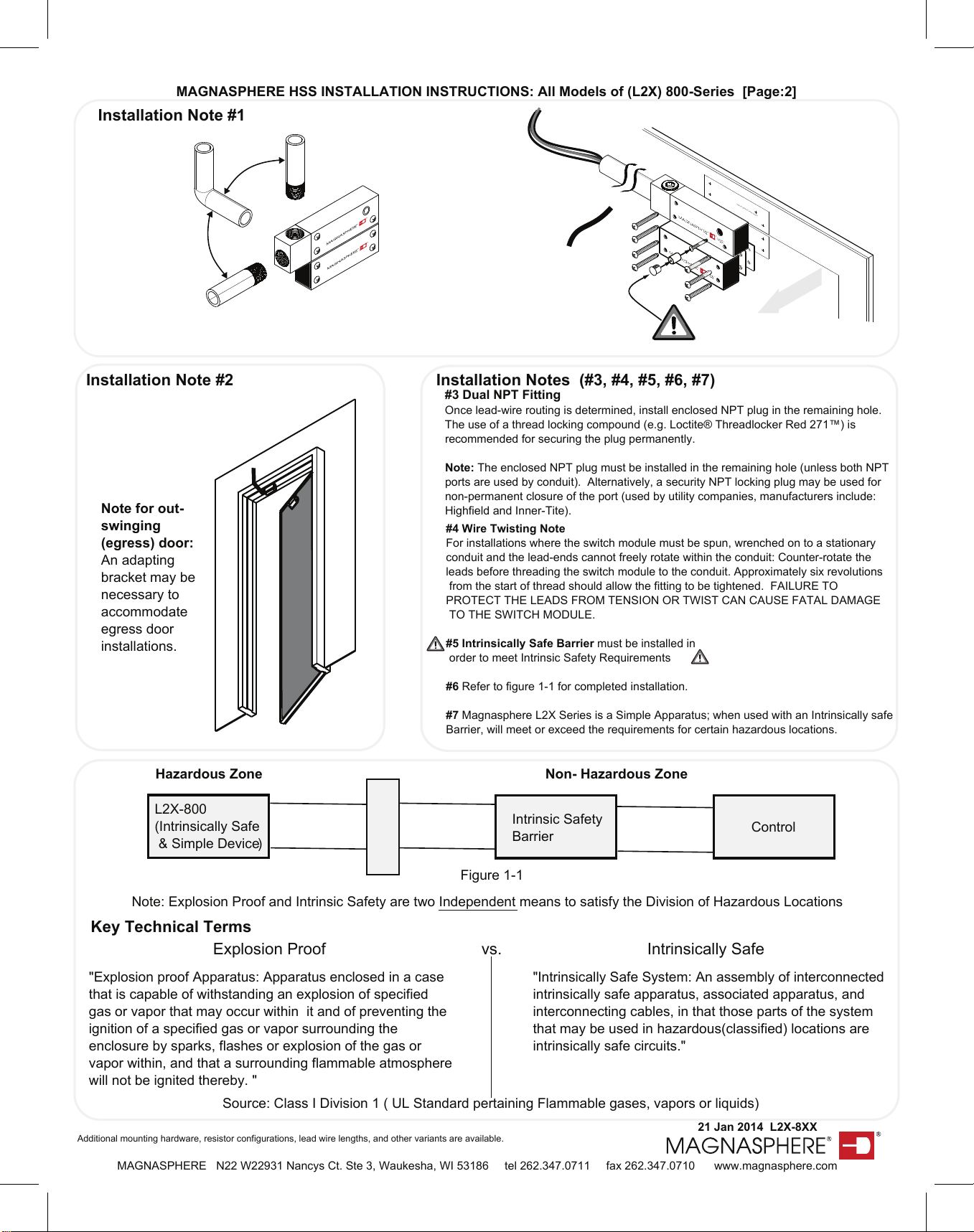

MAGNASPHERE HSS INSTALLATION INSTRUCTIONS: All Models of (L2X) 800-Series [Page:2]

Installation Note #1

^SWITCH MODULEPERIMETER ^

MAGNET MODULE

SWITCH MODULE FACE MOUNT

DOOR

SWING

#6 screw

{

Conduit Length: 18" Min

* Not required to be straight.

Dual fitting note: either or both

Patents #5977873, #6087936, #6506987, #6603378, #6803845, #7023308, #7291794 #RE39731, #7944334, #8228191& Other Patents Pending

Patents: #5977873, #6506987, #6803845, #7291794, #7944334, #8314698, #6087936, #6603378, #7023308, #RE39731, #8228191, #8648720 & Other Patents Pending
