Manhattan 179072 Bedienungsanleitung

HI-SPEED

USB 2.0 TO

SATA/IDE

ADAPTER

WITH POWER SUPPLY

USER

MANUAL

Model 179072

MAN-179072-UM-0208-01

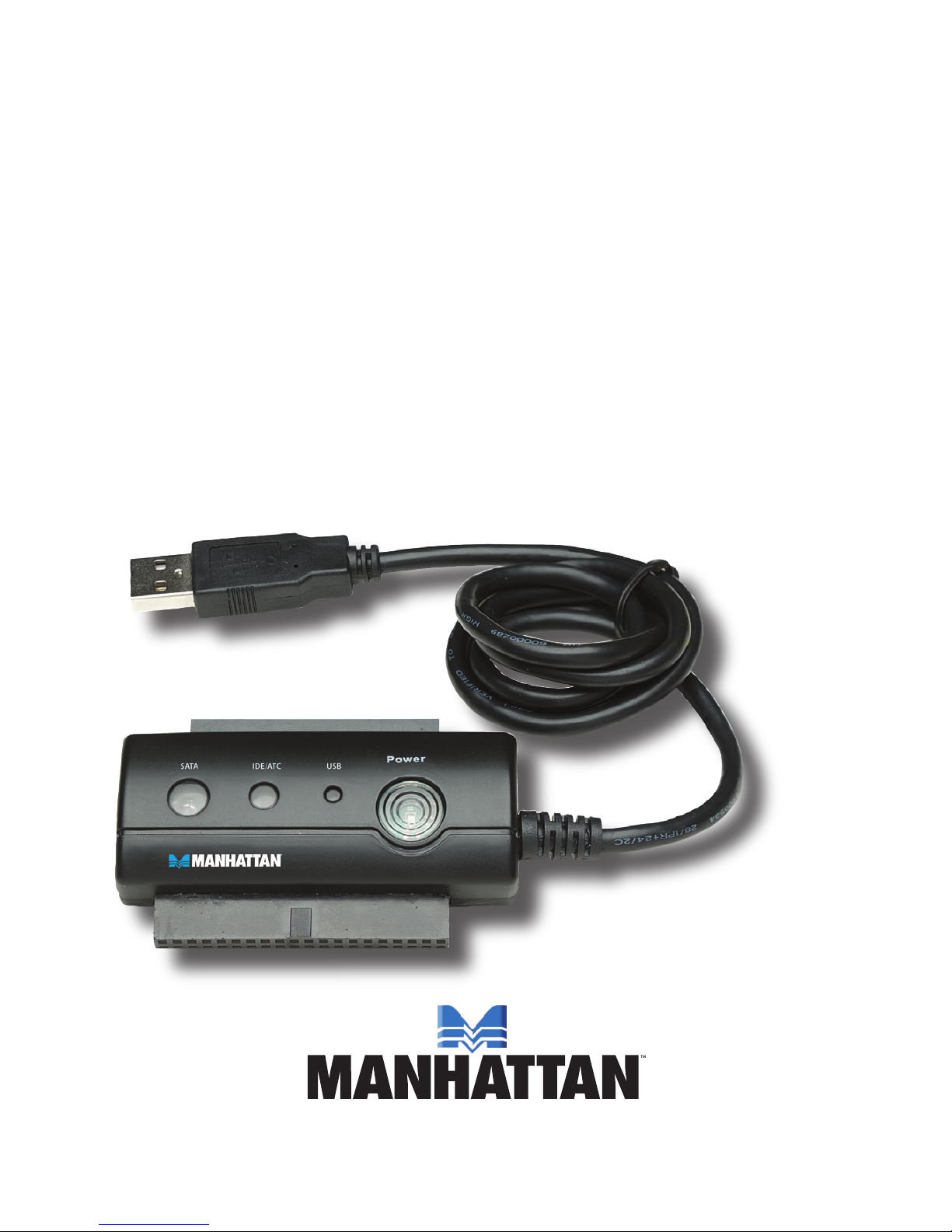

Thank you for purchasing the MANHATTAN

Hi-Speed USB 2.0 to

SATA/IDE Adapter with Power Supply, Model 179072.

This convenient device connects SATA, SATA-enhanced, IDE and

enhanced-IDE hard disks and CD/DVD drives to desktop and notebook

computers using a USB port so that transferring, sharing and backing

up les or storing large le archives on external drives is faster and

easier to accomplish.

Installation of the adapter is quick and simple, so you’ll soon be enjoying

the benets of these features:

• Supports data transfer SATA 150 speeds up to 1.5 Gbps and Hi-Speed

USB 2.0 speeds up to 480 Mbps

• Supports 48-bit LBA (Logical Block Addressing) for drives up to 750 GB

• Fits external SATA 150 and IDE hard disks and CD/DVD drives up to

5.25”

• Plug and Play; hot-swappable; Windows, Mac and Linux compatible

• Lifetime Warranty

INSTALLATION

NOTE: Do not store or operate this device in conditions of excessive heat

or humidity. If the initial installation attempt fails, go to My Computer ‡

Control Panel ‡System Properties ‡Device Manager and remove any

items tagged with a question mark (?) or exclamation point (!).

1. Connect the Hi-Speed USB 2.0 to SATA/IDE Adapter to the HDD

IDE port and the computer’s USB port.

2. Windows will detect a new device and automatically install the driver

(no added software is needed).

• To verify the connection, go to My Computer ‡Control Panel ‡

System Properties ‡Device Manager. Open “Hard disk controllers”

to display the newly added hard disk drive.

• If connecting to a brand new hard disk drive, use “Fdisk” to set its

capacity. NOTE: This will destroy any data on the HDD. Back up any

data on the drive rst if it needs to be saved.

Format the HDD using standard procedures. If its icon appears on

the desktop but you can’t nd it listed, check/conrm the following:

- The HDD has been properly installed

- The HDD is set in the “Master” position

- The correct driver for this HDD is installed

SPECIFICATIONS

Standards and Certications

• Hi-Speed USB 2.0

• USB 1.1

• Complies with ATA/ATAOI-100 spec v1.0 standards

• SATA 1.0a

• FCC

• CE

General

• 1 Hi-Speed USB 2.0 type A male; 1 SATA 150 L-type male; IDE 40-pin;

IDE 44-pin ports

• Hi-Speed USB 2.0 transfer interfaces

• HDD/CD-ROM/CD-R/RW/DVD/MO/ZIP-compatible mode

• 480 Mbps maximum transfer rate

• Supports SATA, enhanced-SATA, IDE and enhanced-IDE drives

Power Supply

• Input 100 – 250 V AC; 50/60 Hz maximum, 0.5 A

• Output: 5 V / 2 A; 12 V / 2 A

Physical

• 3.8 x 2.5 x 1.25 cm (2.75 x 1.75 x 0.5 in.)

• Cables: USB, 76.2 cm (30 in.); SATA, 10 cm (4 in.); 4-pin housing /

SATA Y-power, 10 cm (4 in.); power, 1.7 m (67 in.)

• Weight: 303 g (10.7 oz.) with power supply

System Requirements

• Windows 2000/XP/Vista, Mac OS 10, Linux

Package Contents

• Hi-Speed USB 2.0 to SATA/ IDE Adapter with Power Supply

• User manual

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at
