Manhattan Plaza HDR S 500GB Bedienungsanleitung
YOUR USER GUIDE
LET’S GET
STARTED
Manhattan
Model: Plaza HDR•S 500GB
2
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
WELCOME TO FREESAT
We are so pleased you bought this 500GB Manhattan
Plaza HDR•S Freesat+ HD recorder.
Now you can enjoy:
• Quality state-of-the-art satellite TV receiver
• Over 180 of your favourite channels
• Picture perfect High Definition (selected channels)
• BBC iPlayer, ITV Player
• Pause, Record and Rewind at the touch of a button
• Easy plug and play set up
• Expert customer support - visit Freesat.co.uk
or call 0345 313 0051
Not included:
• Monthly subscriptions (It’s free)
• Lengthy contracts (It’s free forever)
• Baffling, complicated technology (It’s simple)
The Plaza HDR•S is packed with amazing
features. Some of the highlights are:
• Whisper-quiet fanless design
• Record two channels at the same time whilst
playing back a recording (see p23)
• Record an entire series, automatically
grouped & organised (p23)
• Create your own personal Programme Guide
of favourite channels (see p29)
TECHNICAL SUPPORT FOR
YOUR PLAZA HDR•S
Phone: 020 8450 0005
Web: www.manhattan-tv.com
You can submit a support request via our website 24 hours a
day. However, if your matter is urgent then please contact us by
phone. We are open Monday to Friday from 9am to 5:30pm.
3
CONTENTS
In The Box 5
Your receiver 6
Remote control 8
Preparation 10
The satellite dish 10
Connecting your receiver 10
Switching on 12
Tuning in 12
Everyday Use 15
Turning on the receiver 15
Changing channels 15
Changing the volume 16
Browsing bar 16
Subtitles and Audio Description (AD) 17
Using the channel list 18
Regional channels 18
Using the programme guide 19
Interactive TV services 21
Pausing live TV 21
Recording a programme 23
Using the library 24
Playing a recorded programme 26
1
2
3
Advanced Use 27
The lock PIN 27
Display mode 28
TV/DTV 28
Changing the channel list 28
Using the favourite channel lists 29
Manual timer recording 29
Using the menu system 30
Setup menu 31
General menu section 31
- Subtitles 31
- Subtitle language 31
- Auto standby 31
- HDCP 31
Picture menu section 32
- Screen type 32
- Display mode 32
- HDMI resolution 32
- Scart mode 32
Sound menu section 33
- Audio language 33
- Audio description 33
- Dolby digital 33
- Lip-sync delay 33
4
continued...
4
5
6
1
CONTENTS
Advanced Use (continued...)
Record menu section 33
- Default rec mode 34
- Add to start of rec 34
- Add to end of rec 34
- Live pause length 34
- Skip forwards time 34
- Skip backwards time 34
- Auto disk management 35
- Format hard disk drive 35
System menu section 35
- Freesat installation 35
- Add non-Freesat channels 35
- Network configuration 35
- Parental guidance 35
- Hide adult channels 36
- Lock online content 36
- Change parental pin 36
- Software update via oad 36
- Software update via usb 36
- Check for software update 36
- Restore factory default 36
Information menu 36
4On Demand TV 37
Setting up for On Demand TV 37
Watching On Demand TV 38
Non-Freesat Channels 39
Tuning in non-Freesat channels 39
Watching non-Freesat channels 40
Pausing and recording non-Freesat channels 41
Appendix A Safety 42
Appendix B Troubleshooting 44
Appendix C Specifications 46
5
In The Box

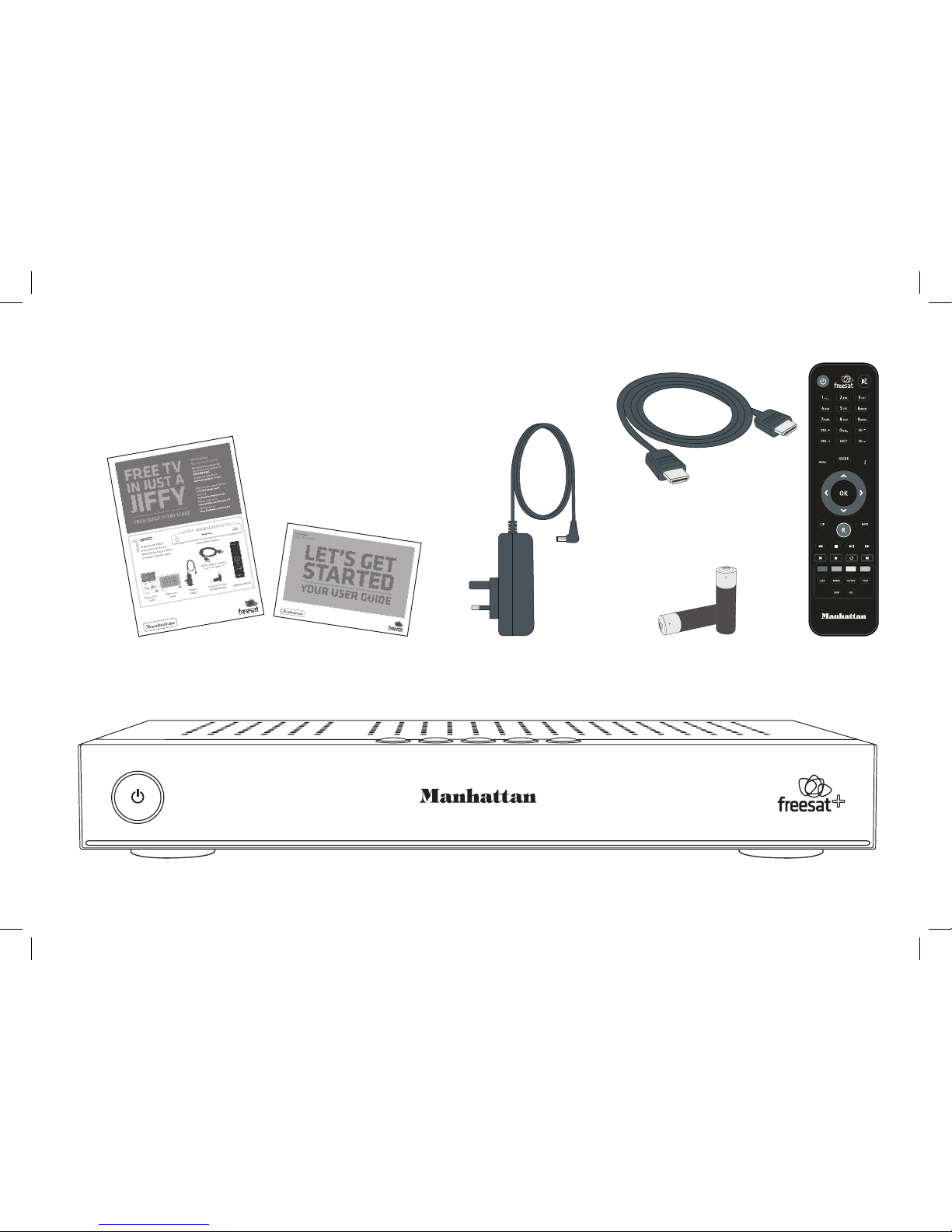

In your Plaza HDR•S Freesat+ receiver pack you should
find the following items:
1
Plaza HDR•S receiver
Power supply Remote control
Batteries for the
remote control
HDMI cable to connect to
an HD-ready TV
Quick Start Guide Main User Guide
6
YOUR RECEIVER

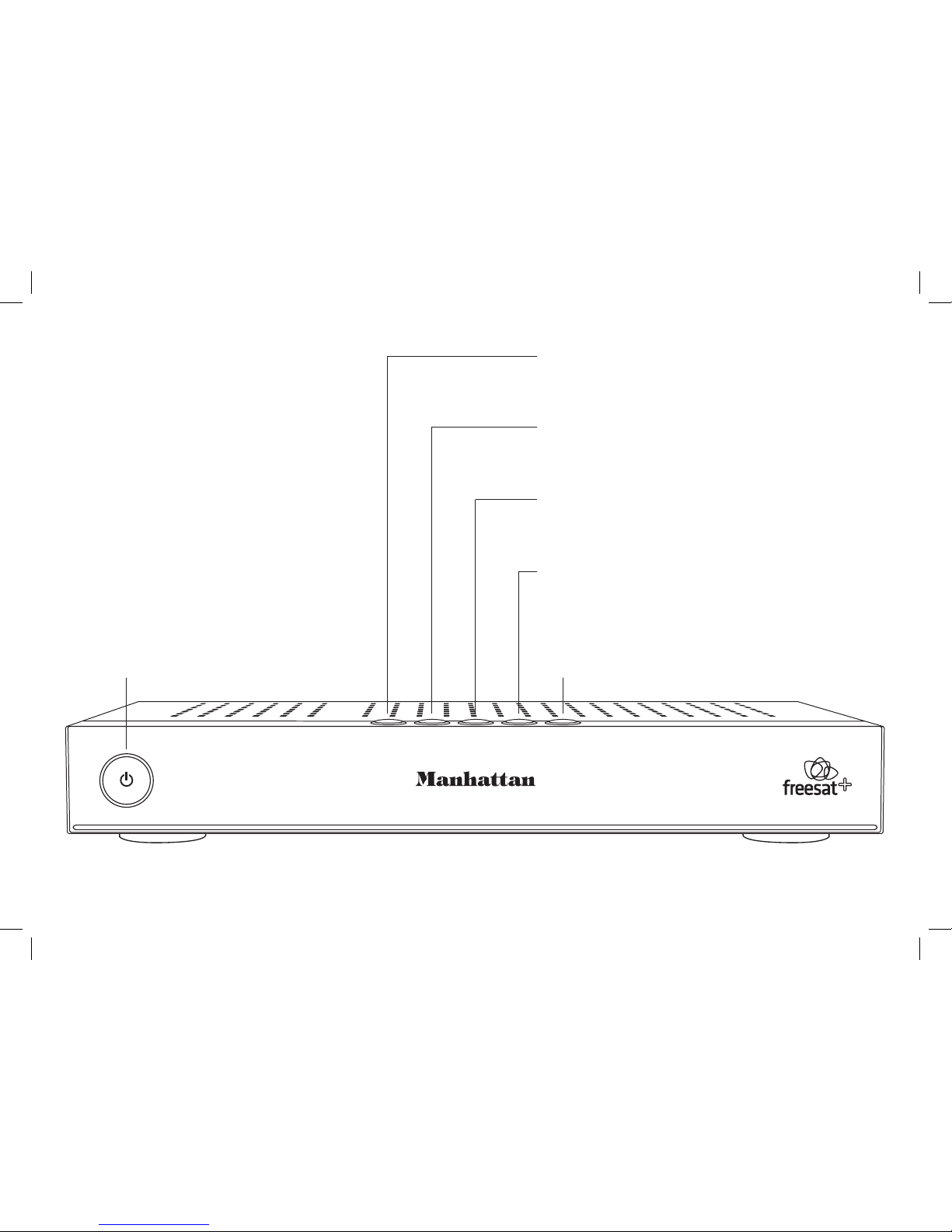

Manhattan Plaza HDR•S
Front
POWER
Switch the receiver on and off.
Power indicator light
RW
Winds backwards through a recording or upto 2
hours of live TV (if buffered)
STOP
Stops playback of a recorded programme. Returns to
live TV from paused live TV
PLAY/PAUSE
Pauses live TV. Starts and pauses playback of a
recorded programme or paused live TV
FF
Winds forwards through a recording or a programme
in live pause mode
REC
Records the selected programme
7

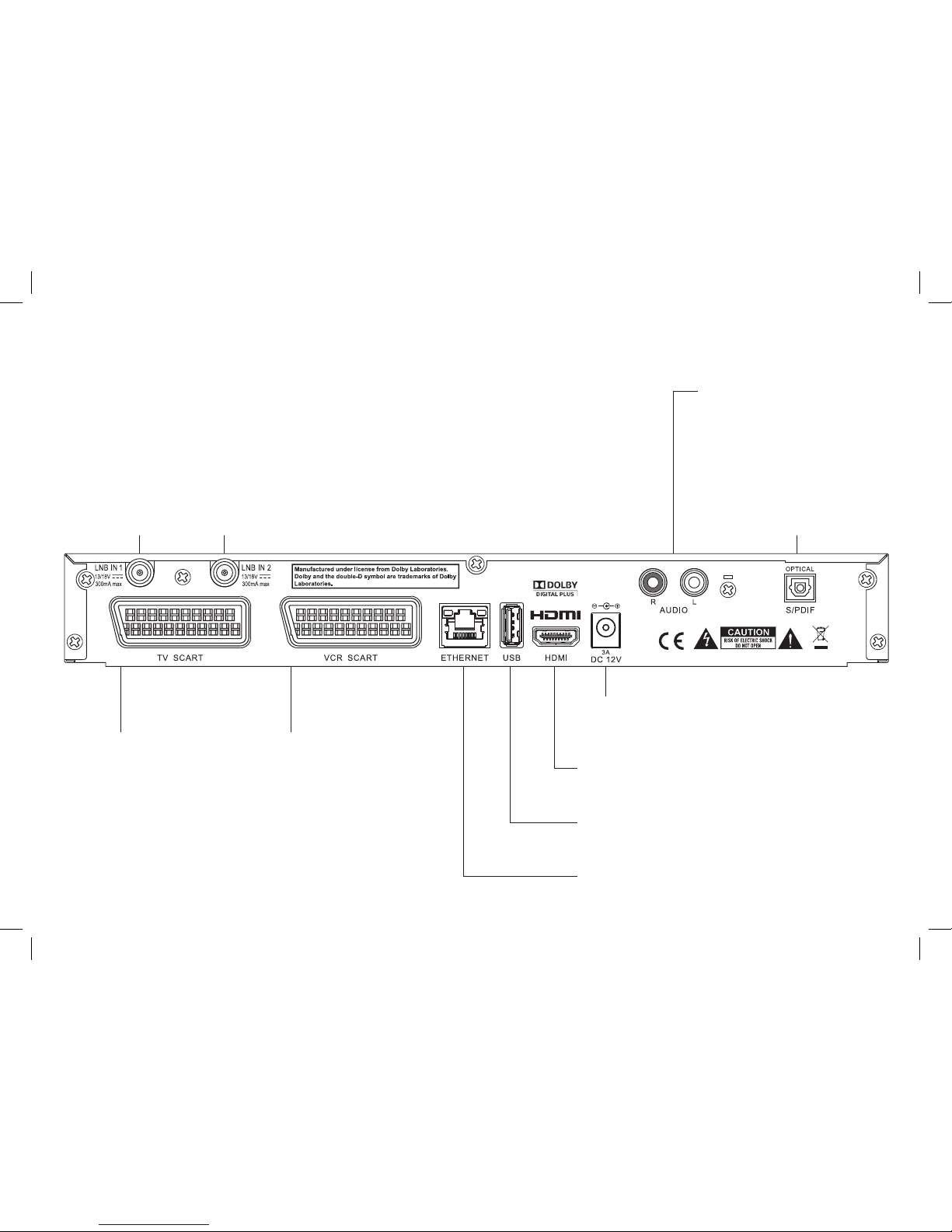

Manhattan Plaza HDR•S
Rear
LNB IN 1, LNB IN 2
Two inputs for connection to
the satellite dish
DC 12v
Connection for the power supply unit
HDMI
Output for connection to an HD-ready television
USB
Socket for upgrading the receiver’s software
ETHERNET
Network socket for connecting to the Internet
TV SCART
Output for connection to a
non-HD television
L and R AUDIO
Stereo audio output for
connection to an analogue
audio system
S/PDIF
Optical audio output for
connection to a digital audio
system
VCR SCART
Output/input for connection to
video recorder or DVD recorder
8
REMOTE CONTROL

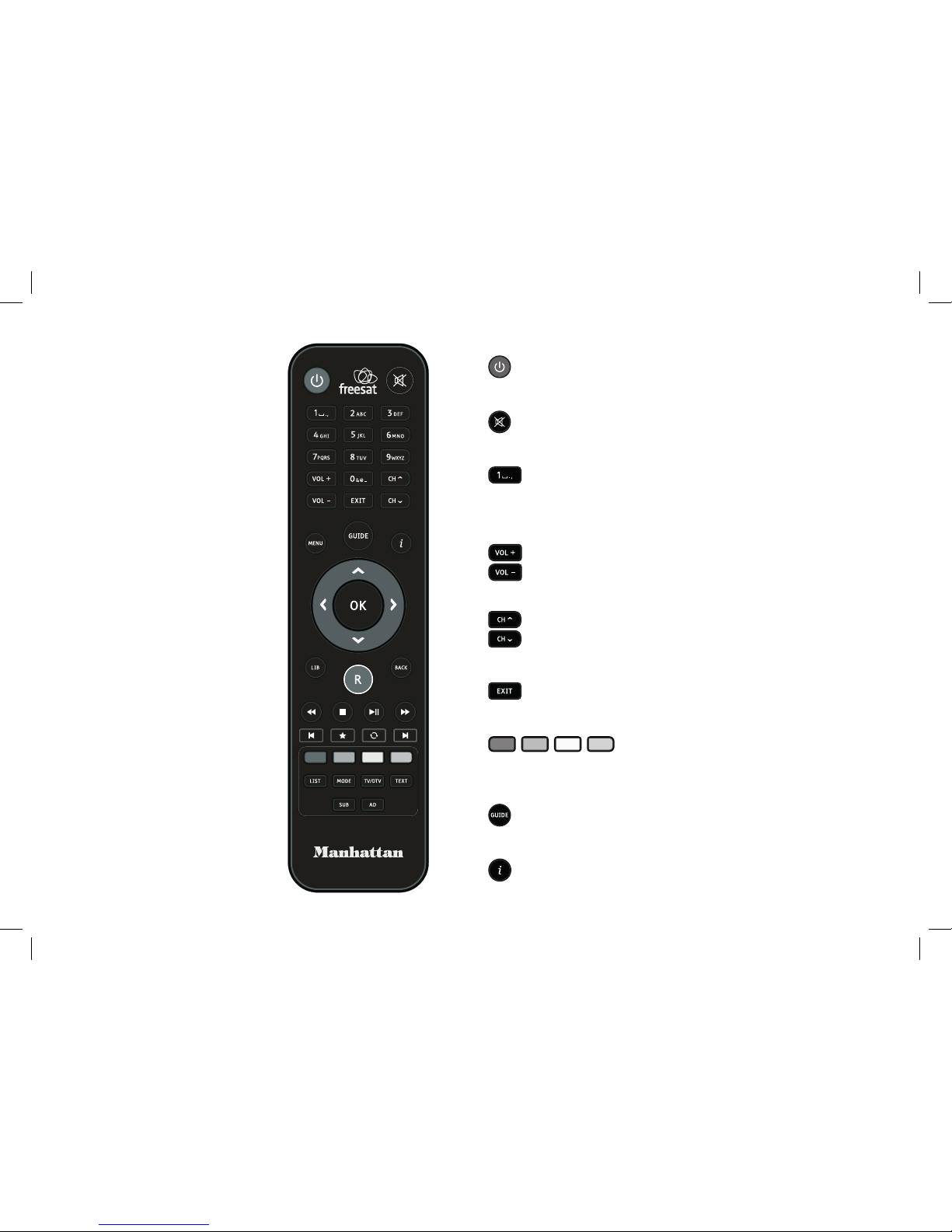

Manhattan Plaza HDR•S Power - switches the receiver on and off.
Mute - silences the receiver’s sound.
0, 1 … 9 - enter channel numbers, numeric values in the
set-up menus or a jump point in playback. Also enters your
postcode during the installation process.
Turns the volume up and down.
Switches to the next or previous channel. Moves one page
up or down in the channel list and programme guide.
Exits a menu and returns to normal TV viewing.
Red, green, yellow, blue –Chooses options
within menus.
Displays the programme guide.
Displays channel and programme information.
Use the remote control within
a maximum distance from the
front of the receiver of 5m and
within an angle of 60°. Ensure
there is a clear line of sight
between the remote control
and the receiver. The operating
distance may vary depending
on the brightness of the room.
9

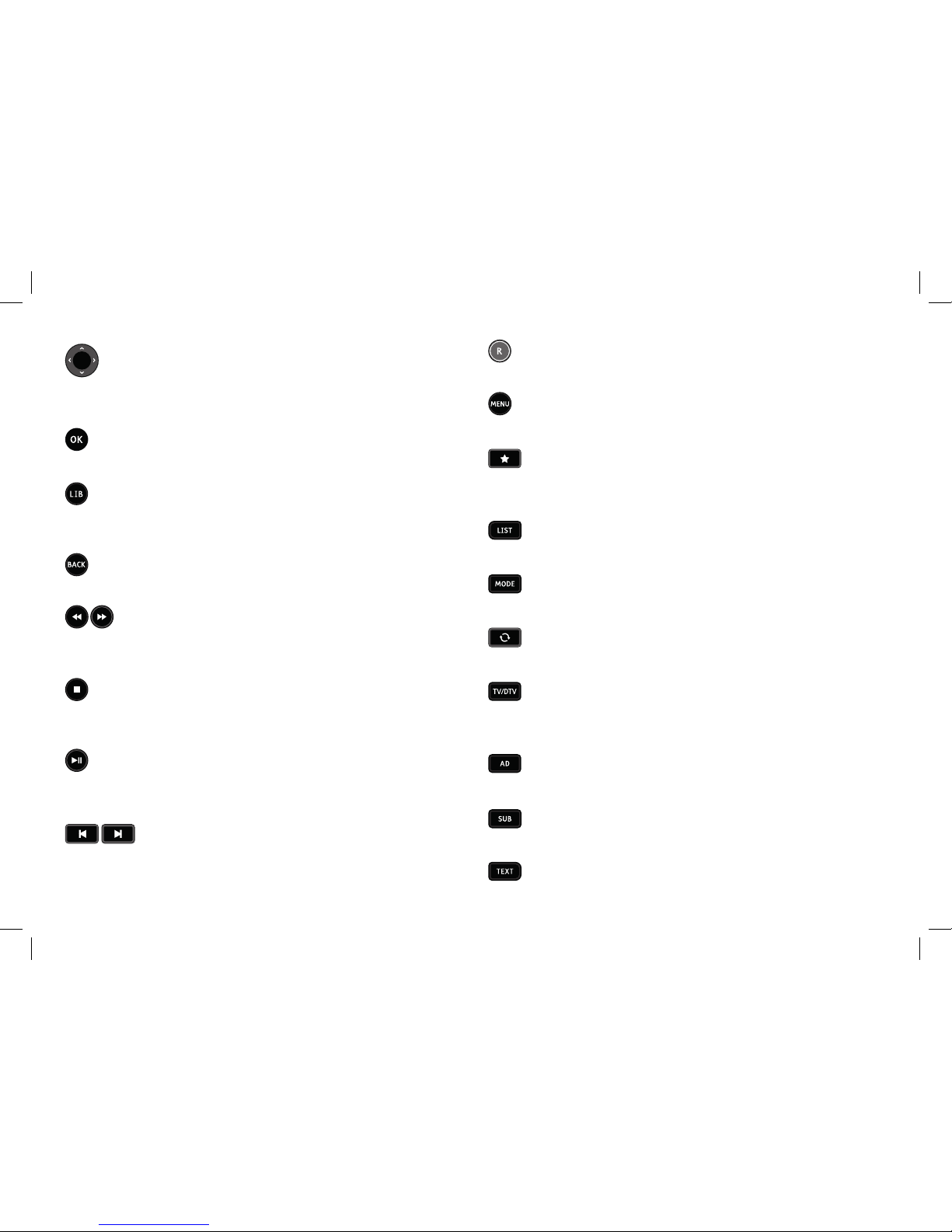

Up, down, left, right - move the highlight bar in menus
and in the programme guide, and allow you to browse the
channels and programmes.
Selects the highlighted option in a menu.
Displays the list of programmes already recorded and set to
be recorded.
Exits a menu and returns to the previous menu.
Winds backwards or forwards through a recording being
played. Moves through the programme guide in 2 hour steps.
Stops playback of a recorded programme. Returns to live TV
from paused live TV.
Pauses live TV. Starts and stops playback of a recorded
programme or paused live TV.
Jumps backwards or forwards through a recording
being played. Moves through the programme guide in 24 hour
steps.
Records the selected programme.
Displays the main menu screen.
Selects favourite channels sequentially whilst watching TV
and adds favourite channels to the channel list.
Displays the channel list.
Switches between available screen display modes.
Switches back to the last channel watched.
Switches the TV SCART output between Freesat and the
TV’s tuner.
Displays the available audio menu used to change between
different soundtracks ( such as languages and audio description ).
Displays the subtitles menu used to select subtitles.
Displays interactive and digital text services (where available).
10
Preparation
This section explains how to set up your Plaza HDR•S
to receive Freesat channels.
2
To receive Freesat, you must connect your Plaza HDR•S receiver
to an appropriate satellite dish, fixed in position and accurately
pointed at the 28.2° East satellite position.
For safety reasons and to provide reliable reception, we strongly
recommend that you have your dish installed by a professional.
You may be able to use a satellite dish already installed at your
home. If you have any questions about the dish, please consult
your installer.
THE SATELLITE DISH

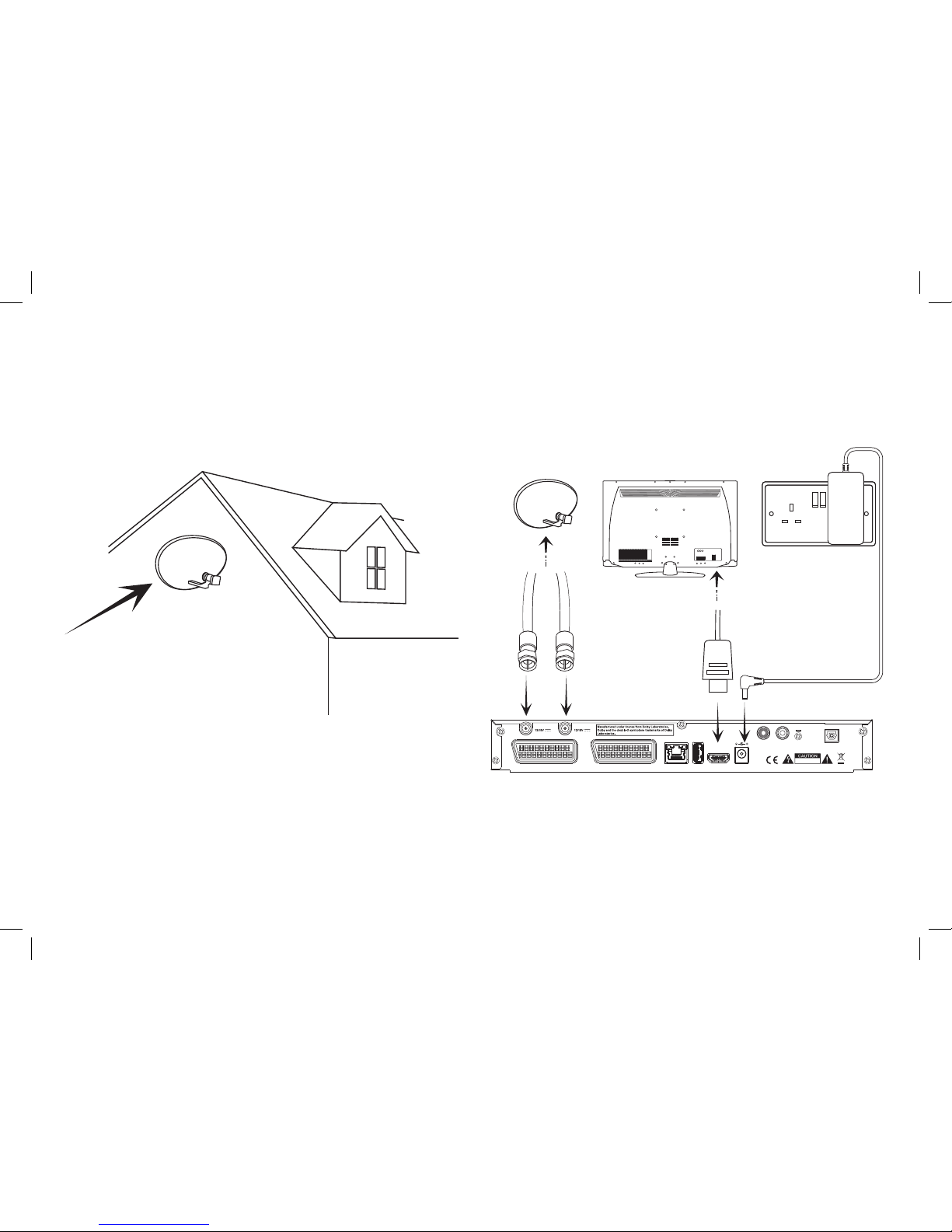

CONNECTING YOUR RECEIVER
Place your Plaza HDR•S receiver on a firm, level surface close to
the television, a mains electricity socket, and the cables from the
dish. (See Appendix A – Safety.)
Connect the two cables (or one double cable) from your dish to the
LNB IN 1 and LNB IN 2 sockets at the back of the receiver (if the dish
cables are fitted with a wall socket inside your home, you will need
connecting cables, which you can get from your installer). It does
not matter which of the two cables from the dish is connected to
which LNB IN socket.
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DC 13V
3A
TV SCAR T VC R SCART ETHERNET USB HDM I
300mA max
LNB IN 2
300mA max
LNB IN 1
AUDIO
R L
S/PD IF
OPTICAL
