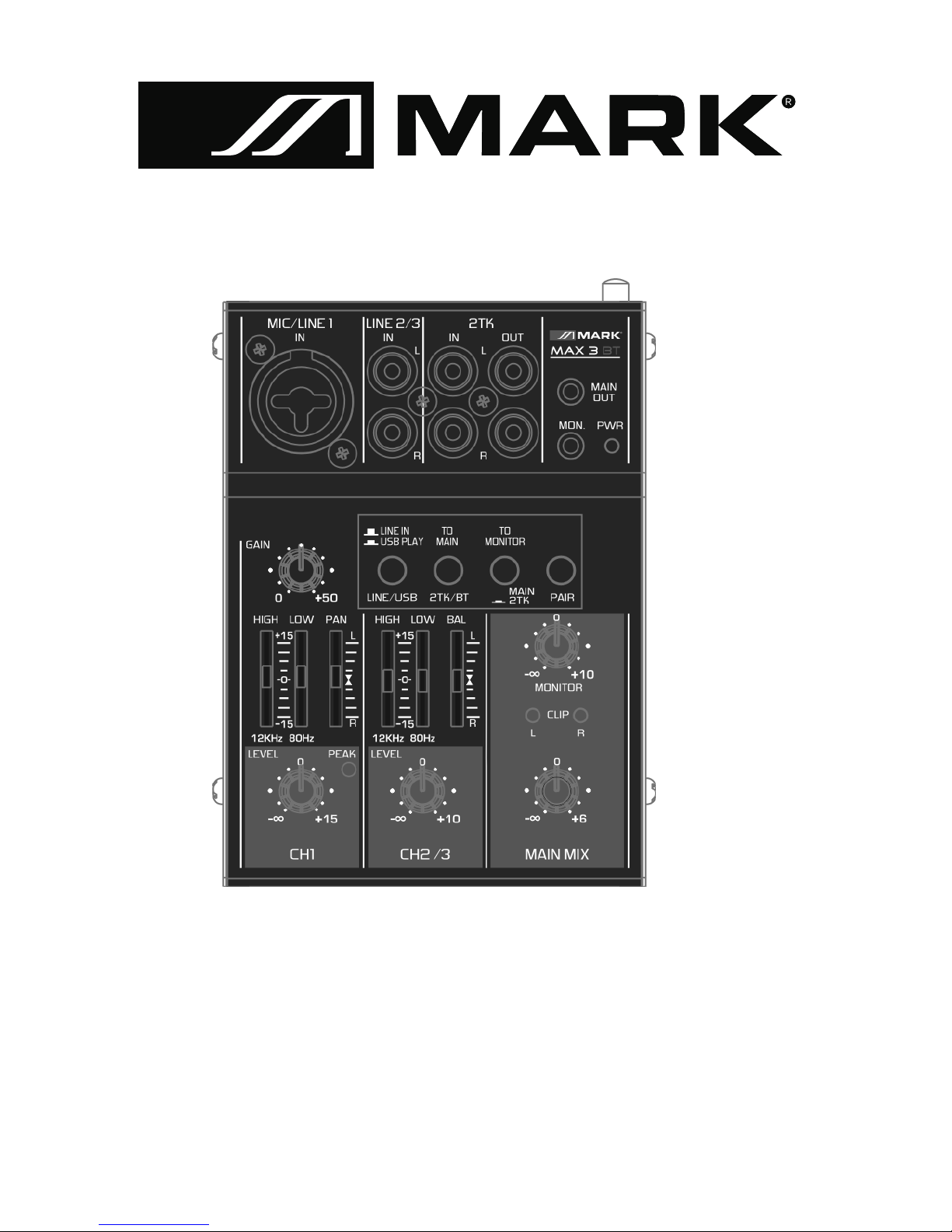

Mark MAX 3 BT Bedienungsanleitung
User Manual / Instrucciones de Usuario
MAX 3 BT
Rev 16.05.02
EN
MAX 3 BT - 1 - User Manual / Manual de uso
The mains plug or an appliance coupler is used
as the disconnect device, the disconnect device
shall remain readily operable.
EN
MAX 3 BT - 2 - User Manual / Manual de uso
INTRODUCTION.................................................................3
FEATURES..........................................................................3
INSTRUCTION....................................................................3
CONTROL ELEMENTS.......................................................4
CONNECTING DIAGRAMS................................................8
WIRING CONNECTION......................................................9
BLOCK DIAGRAM.............................................................10
TECHNICAL SPECIFICATIONS........................................11
EN
MAX 3 BT - 3 - User Manual / Manual de uso
Thank you for purchasing the compact portable mixer. MAX 3 BT
MAX 3 BT mixer features super mini size but equipped with
powerful functions.
Please carefully read this manual before installation and operation.
* 1 mic input channels with XLR and balanced line input.
* 1 stereo input channels with RCA jack.
* Ultra-low noise discrete Mic Preamps with +20V Phantom Power .
* 2-band EQ (Warm, natural) in mono and stereo channels.
* 1 Gain control in mono channel.
* Peak LED in mono channel & master.
* 2RCA-Track inputs & 2RCA-Track outputs
* 2RCA-Track inputs assign to Main Mix & Monitor outputs.
* Main Mix & Monitor outputs use 3.5mm stereo jack.
* Built-in stereo USB/Audio interface
* Either USB bus-powered or external adaptor
* Bluetooth player function
Make sure MAX 3 BT mixer is used in the area of ventilation. Do not install
or use this product near any direct hear source(such as amplifier or
heater).
Computer USB power or external voltage converter can also supply
power to mixer.MAX 3 BT
Note: when using computer USB as power supply, please make sure
the USB port of the computer must comply with the standards of
USB 2.0(5V 500mA)
EN
MAX 3 BT - 4 - User Manual / Manual de uso
EN
MAX 3 BT - 5 - User Manual / Manual de uso
1- USB PORT
This Type B USB port can be used to connect the computer via Type
B to A connector.
2- POWER SWITCH
To turn on/off the unit.
3- POWER LED
This LED will light up when the unit is powered on.
4- MIC/LINE IN JACK
This combined jack can be used to connect mono signal, such as XLR
microphone or 1/4" line level.
*Note: Please choose balanced cable and MIC to connect. Do not
use the unbalanced ones. When the unit is powered on, remember
not to connect the high level signal to XLR MIC IN, which may damage
the unit.
5- LINE IN JACK
This RCA jack is used for connecting stereo line in signal source.
6- 2TK IN JACK
This RCA jack is used for connecting stereo line in signal source.
7- 2TK OUT JACK
This RCA jack is used for connecting stereo tape recorder.
8- MAIN OUT JACK
This 3.5mm stereo jack is used to connect the active stereo speaker.
9- MONITOR OUT JACK
This 3.5mm stereo jack is used to connect the stereo headphone.
10- GAIN CONTROL
It is used for adjust the level of mono input.
11- HIGH
This treble control can be used to reduce the HF noise or boost the
sound of percussion.
12- LOW
This bass control can be used to boost male or effect of drum & bass.
EN
MAX 3 BT - 6 - User Manual / Manual de uso
13- PAN/BAL
This is the panorama control or balanced control. This control is used
for stereo effect field of the signal. Set this control in middle position,
signal levels of Channel L & R will be same. When the control is set to
top stop, only Channel L receives the signal, Channel R can not.
Vice versa.
14- PEAK LED
This is clip LED indicator of mono level. When this LED illuminates, it
means that PFL mono level is clipped.
15- LEVEL CONTROL
This is channel level control, which is used for adjusting the level of
corresponding channels.
16- LINE IN/USB PLAY
This is path control of the stereo sound source. When this control is
engaged, the signal of channel 2/3 comes from USB PLAY(computer);
when the control is disengaged, the signal will be from R CA jacks of
channel 2/3.
17- 2TK/BT TO MAIN
This the assignment control of 2TK input and Bluetooth input. When
this control is engaged ,the signal of 2TK/BT will be assigned to
MAIN MIX OUT. When the control Is disengaged, the assignment will
be disconnected.
This is the assignment control of 2TK iuput. When this control is
engaged ,the signal of 2TK input will be assigned to MONITOR
OUT(The signal of BT input will not be assigned to MONITOR OUT).
When the control is disengaged, the signal of MAIN MAX OUT will
be assigned to MONITOR OUT.
18- 2TK TO MONITOR
EN
MAX 3 BT - 7 - User Manual / Manual de uso
The buttom is used to control the Bluetooth player, and the LED is to
display the working status of the Bluetooth player.
A. After power on the mixer ,Bluetooth player enters standby mode, LED
display: flashes twice every two seconds.
B. Press and hold the PAIR button for 3 seconds the Bluetooth player
into the Search mode and the LED continuous flashing. In this mode,
you can connect Bluetooth devices with your Bluetooth mobile phone
or computer (Note: connect Bluetooth devices below BT2.1 version,
you need to enter a matching password "0000").
C. when connected Bluetooth device, the LED is lit.
a) if the connected Bluetooth devices too far of distance and disconnected,
the Bluetooth player will automatically find it and connected the devices
in 60 seconds, or enter standby mode;
b) if the connected Bluetooth devices Active disconnected, the Bluetooth
player automatically enters standby mode;
c) Press and hold the PAIR button for 3 seconds, Bluetooth player will
clears the connected Bluetooth device, and enter the search mode.
21- MAIN MIX
This is main mix control used for adjusting the main mix output level.
22- CLIP LED(L&R)
This is main mix level clip LED. When this LED lights up, main mix
level will be clipped.
19- PAIR AND DISPLAY LED
20- MONITOR
This is monitor control used for adjusting the monitor output level.
EN
MAX 3 BT - 8 - User Manual / Manual de uso
