Marshall Electronics

Model No. 3D-241-HDSDI

24” Full Resolution Stereoscopic 3D Monitor

Operating Instructions

This page intentionally left blank

Table of Contents

Product Overview .........................................................................................................................4

Features .......................................................................................................................................4

Installation and Accessories.........................................................................................................5

Monitor Front................................................................................................................................6

Monitor Rear.................................................................................................................................7

Compatible Input Formats ............................................................................................................8

2D / 3D Multi-View Layouts ..........................................................................................................9

Menu and Navigation..................................................................................................................11

Using the RotoMenu knob..........................................................................................................11

3D Configuration Submenu ........................................................................................................13

Video Configuration Submenu....................................................................................................14

DVI Configuration Submenu.......................................................................................................16

Color Configuration Submenu ....................................................................................................17

System Configuration Submenu.................................................................................................17

OSD Configuration Submenu.....................................................................................................18

IMD Configuration Submenu ......................................................................................................21

IMD Fixed Configuration Submenu.............................................................................................23

Service Submenu .......................................................................................................................24

Specifications .............................................................................................................................25

Dimensions.................................................................................................................................26

Maintenance...............................................................................................................................27

Warranty.....................................................................................................................................27

Product Overview

Marshall's 3D-241-HDSDI is a 24-inch 1920 x 1200 LCD monitor designed for professional Stereoscopic 3D (S3D)

applications. This monitor is only 2-1/4 inches (57mm) deep and uses advanced engineering to deliver natural,

flicker-free 3D images by utilizing a circular polarizing filter method when used with battery-free (passive) glasses.

The circular polarizing system used employs a 3D Arisawa Xpol® optical filter applied to the surface of the display.

The 3D-241-HDSDI also has 4 HDSDI inputs which provide the ability to monitor two S3D (right eye / left eye)

HDSDI signals. By using circular polarized glasses, the user can simultaneously view multiple 3D monitors in a

production or controlroom environment. This monitor also supports IMD (In-Monitor Display) and Tally functions

through RS-422/RS-485 connections.

Features

■1920 x 1200 Full Resolution 24”

The 3D-241-HDSDI features an all-digital TFT-

MegaPixel active matrix LCD system with

1920x1200 native resolution. The LCD panel

features a brightness of 400 cd/m2and a 1000:1

contrast ratio making it ideal in a variety of

environments and lighting conditions.

■Stereoscopic 3D (S3D) Viewing Modes

- Full-Screen, Full resolution S3D Viewing.

- Simultaneous S3D viewing of 2 Stereo Inputs.

- Special Tri-View mode shows separate Left and

Right Cameras, along with Stereo View.

- 50/50 Blend

- Luminance Difference Mode (Emboss)

■Quad-Viewer

Ability to view 2 Left/Right (4) inputs on the screen

at once. Each input source is scaled and

positioned in real-time so that all 4 can be seen.

DVI-I input can replace HD/SD Ch. B in this mode.

There are various Screen-Layouts from which to

choose.

■In-Monitor Display

In-Monitor Display allows on-screen text and tally

indication, controlled locally or remotely via a

variety of industry standard protocols.

■OSD Features (On Screen Display)

Embedded time code and an embedded audio

presence indicator can be displayed on the screen

in a variety of configurations. Closed Caption

presence indication is also provided for 608/708

captions.

■Advanced Features

Color temperature adjustment, aspect ratio

settings, blue-only mode, and monochrome mode

are a few of the advanced features allowing the

3D-241-HDSDI to be at home in any broadcast

environment. Pixel-to-Pixel mode also allows

native display of any incoming image format.

■User-Definable Function Buttons

Four user-definable function buttons allow quick

access to numerous settings and features including

3D mode, aspect ratio, monochrome mode, color

temperature, and more.

Installation and Accessories

Unpacking

Carefully unpack the 3D-241-HDSDI monitor and verify that the following items are included:

• 3D-241-HDSDI Monitor

• V-PS24-7.5 Power Supply with 4-Pin XLR Connector

• Operating Instructions

• GL-C45 3D Glasses (2 Pair)

• Desktop Stand (V-ST23-32)

Accessories

The 3D-241-HDSDI comes with a desktop stand (V-ST23-32).

The 3D-241-HDSDI supports VESA standard 75mm and 200mm devices. Marshall Electronics offers a

VESA stand with Pivot capabilities (VP-LCD171H-ST-01).

Also included are 2 pairs of 3D Glasses. These are special Circular Polarized Passive glasses, designed to work

specifically with this monitor. Use of other passive glasses may not offer the same performance as the ones

provided.

Monitor Front

POWER (Stand-by)

Turn the monitor backlight off or on by pressing

the power button. The LED on the power button

is at full illumination when the monitor is OFF.

INPUT SELECT Ch. A – Ch. B

This monitor has two input pairs (A and B). Each

pair supports separate Left and Right inputs.

In 3D Modes: Press A or B to select which

Left/Right Pair for display.

In 2D Modes: When in 2D mode, the Ch. A

button toggles between A Left and A Right inputs

and the Ch. B button toggles between B Left and

B Right inputs. This also switches the monitor to

full screen mode from any multi-screen layout.

SCREEN LAYOUT SELECT

When in 2D mode, the Layout button switches

the monitor between Quad Mode and Side-by-

Side mode. When in 3D mode, the Layout button

switches the monitor to 3D full-screen mode, A

and B mode or 3D/2D combo-Tri-View mode.

3D Enable (ON – OFF)

Toggle the monitor between 2D mode and 3D

mode2. When 3D mode is enabled, the in-button

LED will illuminate.

FUNCTION KEY F1 , F2, F3, F4

Four user-definable function buttons can be used

for direct access to various settings. Functions

are assigned using the on-screen menu.

RotoMenu™

The RotoMenu™knob allows for accessing

and navigating the main menu, using only a

single knob.

IMAGE ADJUST: BRIGHT, COLOR

, CONTRAST

The BRIGHT, COLOR and CONTRAST knobs

function as Image Adjustment knobs. The status

of each image adjustment parameter is shown on

the top left of the screen, with values ranging

from 0 to 100. Pressing a knob once displays the

current value. Pressing a knob twice resets the

corresponding adjustment to the default setting.

Adjusting the knobs while in any of the multi-view

layouts will adjust the primary window channel.

Monitor Rear

VESA Mounts

VESA standard 75 mm and 200 mm hole

patterns are provided to accommodate a variety

of custom mounting options.

RS-422 / 485 Serial Interface

The RS-422/485 ports are used to remotely

control the 3D-241-HDSDI and IMD/Tally

functions using a variety of industry standard

protocols. Only one connection to either port is

needed to control the monitor. The second port

can be used to loop multiple IMD capable

monitors in the same bus. This connector is also

used for field firmware upgrades.

Service Connector

DO NOT USE. This is for factory use only.

Connecting any device to this port may damage

the unit.

Tally

The OSD tally can be activated via the HD-15

connector by connecting the corresponding pin to

ground. A variety of external devices can be

used to perform the contact closure. No

additional power should be supplied to the HD-15

port.

Power Input

Connect the 24 VDC output to the XLR power

input connector. Power can be supplied from the

included power supply or from a variety of DC

sources supplying at least 6.0 Amps at 24 Volts.

Important: If using a power source other than

the included power supply, be sure that the

polarity of the DC output is correct.

Pin 1: Ground

Pin 2: N/C

Pin 3: N/C

Pin 4: +24 VDC

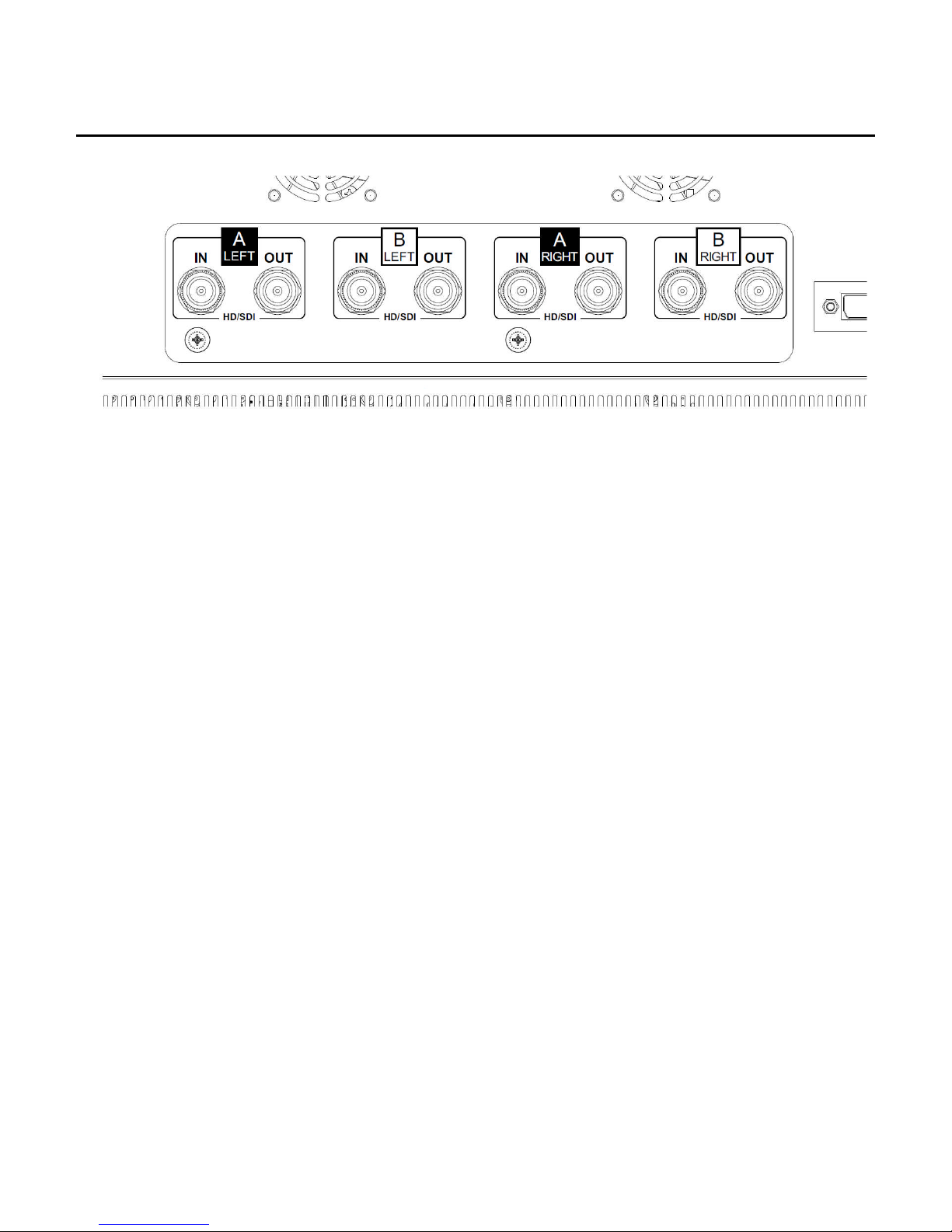

HDSDI Inputs and Output

Connector

The 3D-241-HDSDI has four HDSDI inputs and

four active loop-through outputs.

Inputs are arranged as:

A – Left and Right

B – Left and Right

DVI-I Input Connector

Integrated DVI Digital and Analog input. Includes

EDID and HDCP for connection to Computers,

DVD Players, Rasterizers, etc.

* NOTE* DVI input does NOT support Consumer

3D Formats (HDMI 1.4)

Compatible Input Formats

The following SDI standards are supported by the 3D-241-HDSDI:

525i, 625i

1035i/60, 1035i/59.94

1080i/60, 1080i/59.94, 1080i/50

1080psF/24, 1080psF/23.98

1080p23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30

720p/60, 720p/59.94, 720p/50

720p/23.98, 720p/24, 720p/25, 720p/29.97, 720p/30

The following VESA standards are supported by the 3D-241-HDSDI (DVI-I input):

640x480 @60Hz

800x600 @60Hz

1280x1024 @60Hz

1600x1200 @60Hz

The following DVI-Video standards are supported by the 3D-241-HDSDI (DVI input):

525i, 625i

480p/59.94, 576p/50

1035i/60, 1035i/59.94

1080i/60, 1080i/59.94, 1080i/50

1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30

720p/60, 720p/59.94, 720p/50

Stereoscopic 3D (S3D) Input Formats Supported:

HDSDI:

Dual-Stream (Separate Left and Right using 2 cables)

Side-by-Side (Both Left and Right images squeezed on 1 cable) *

DVI:

Line Interleaved 1920x1080 (As output by some S3D Processors)

NOT SUPPORTED:

Image Flip/Flop

Side-by-Side on DVI input

Other Consumer 3D formats (checkerboard, frame sequential, top-over-bottom)

*NOTE* For Side-by-Side: Use BNC Jumper from Left-Out – connect to Right-IN. Then Select Side-by-

Side in 3D Menu

2D / 3D Multi-View Layouts

The 3D-241-HDSDI can display the two Stereo 3D input channels in a variety of ways. Each source is scaled and

positioned to fit the desired layout. There are a total of 4 different layouts illustrated below. Each press of the

[Layout] Button will change the current layout to the next available layout. 3D Layouts are only available when the

3D button is illuminated (3D Mode ON).

Inhaltsverzeichnis

Andere Marshall Electronics Monitor Handbücher

Marshall Electronics

Marshall Electronics V-R151DP-AFSD Bedienungsanleitung

Marshall Electronics

Marshall Electronics Dual 10.4-inch LCD Rack Mounted Monitor... Bedienungsanleitung

Marshall Electronics

Marshall Electronics Lynx LCD Monitor Bedienungsanleitung

Marshall Electronics

Marshall Electronics M-LYNX-503 Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD8P-02 Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-MD171X Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R902DLW Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-MD1012 Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R842DP-DVI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R241-IMD-3G Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R84DP-2C Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R104DP-HDA Bedienungsanleitung

Marshall Electronics

Marshall Electronics LCD Rack Mounted Monitor V-R151P Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD90MD Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R84DP-HDA Bedienungsanleitung

Marshall Electronics

Marshall Electronics M-CT6 Bedienungsanleitung

Marshall Electronics

Marshall Electronics M-LYNX-10W Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R842DP-AFHD Bedienungsanleitung

Marshall Electronics

Marshall Electronics orchid OR-901-XDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R63P-SDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics M-LCD7-HDMI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R82DP-2SDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R72P-2C Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD70W-SH Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
