Marshall Electronics V-LCD70-AFHD Bedienungsanleitung

Model V-LCD70-AFHD

Operating Instructions

This page intentionally left blank

Table of Contents

Top and Front Panel Features ............................................................................................................................6

Rear Panel Features............................................................................................................................................7

Compatible Input Formats..................................................................................................................................8

MAIN MENU AND NAVIGATION .........................................................................................................................9

Using the Menu buttons ..................................................................................................................................................................9

Picture Submenu ..............................................................................................................................................................................9

Video & Audio Submenu ................................................................................................................................................................10

Setting Submenu ............................................................................................................................................................................11

OSD Submenu.................................................................................................................................................................................12

Specifications....................................................................................................................................................13

Maintenance.....................................................................................................................................................14

Warranty...........................................................................................................................................................14

■Included Accessories

Carefully unpack the V-LCD70-AFHD monitor and verify that the following items are included:

• V-LCD70-AFHD Monitor

• 12V 1.5A XLR Power Supply

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately

contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-

0606.

■Connections, Power-On and Initial Setup

Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor.

Connect the required cables for video signal input and output. (Power must be applied to the V-LCD70-AFHD for the active loop-

though output to be activated). Press the power switch on the front of the unit. Video will automatically be detected and

displayed on the screen after selecting the proper input.

Top and Front Panel Features

Power Switch

This power switch controls power to the monitor from the DC

Power Connector or the custom Battery Adaptor. The monitor

will always attempt to draw power from the DC connector first

if both the DC Power Connector and a Battery are installed

simultaneously. This switch turns the panel on or off.

Function Buttons

Two user-definable function buttons can be used for direct

access to various settings. Functions are assigned using the on-

screen menu.

Input Select Button

Use the Input select button to switch between the different

available video inputs.

Menu Navigation Buttons

Use the Menu, ↑, ↓, ,buttons to display and navigate

the on-screen menu.

Stereo Headphone Jack

The 1/8” Headphone jack on monitor’s side takes two

channels of embedded (or analog) audio and provides audio

to connected headphones.

Tally LED

The Tally LED is illuminated, either Green, Red or Yellow, by

connecting the appropriate pin on the tally connector to

Ground.

Rear Panel Features

Power Connector (XLR)

Insert the included XLR Power Supply end here. Power can be

supplied from the included power supply or from a variety of

DC sources supplying the appropriate voltage.

Power Connector (Coax)

Additional connector for Coaxial Power Supplies. Insert the

coax end here, and tighten the locking nut for additional

protection from the cord being accidentally unplugged. If

using a third party power supply, it should have a 5.5mm OD x

2.0mm ID.

HDMI Input

The V-LCD70-AFHD has one HDMI input that is HDCP

compliant. See Compatible Input Formats for details on

accepted formats.

Component (YPbPr) Input / Output

The V-LCD70-AFHD has one Component video input and one

loop through output.

Composite (Video) Input / Output

The V-LCD70-AFHD has one Composite video input and one

loop through ouput.

Stereo Audio Output

The V-LCD70-AFHD has Left and Right Analog outputs. Access

these via the RCA connector inputs.

SDI (3G/SDI) Input / Output

The V-LCD70-AFHD has one SDI input (up to 3G SDI formats)

and one loop through output.

Tally connector

Use the Tally connector, with associated pinout diagram, to

illuminate the front Tally LED.

USB Program

The USB Program connector is for Upgrade and Factory use

only. Do NOT plug a USB cable into this connector without

first calling Marshall Electronics.

Compatible Input Formats

Composite (Video)

NTSC

PAL

Component (YPbPr)

720p/50, 59.94, 60

1080p/23.98, 24, 25, 29.97, 30

1080i/50,59.94,60

HDMI

720p/50,59.94,60

1080p/23.98, 24, 25, 29.97, 30

1080i/50,59.94,60

1080p/50,59.94,60

3G-SDI

480i, 576i

720p/50,59.94,60

1080p/23.98, 24, 25, 29.97, 30

1080i/50,59.94,60

1080p/50,59.94,60 (3G Level A)

MAIN MENU AND NAVIGATION

Access and navigate the main menu using the Menu button on the keypad:

Using the Menu buttons

• Press the MENU button to enter the main menu.

• Use the and buttons to scroll through the main menu or each submenu.

• Press the and button to enter a submenu or choose a setting.

• Press the MENU button to exit the main menu, or return to the main menu from a submenu.

Picture Submenu

Contrast (0-100, 50 = default)

Brightness (0-100, 50 = default)

Saturation (0-100, 50 = default)

Tint (0-100, 50 = default)

Sharpness (0-100, 0 = default)

Color Temp (6500K = default)

6500K

7300K

9300K

User (0-255, 128 = Default)

Color TempR

Color TempG

Color TempB

Picture Mode

Standard (Contrast, Brightness, Saturation and Tint = 50)

Soft (Contrast = 40, Brightness, Saturation = 45)

User (User Defined settings)

Vivid (Contrast = 60, Brightness = 55, Saturation = 75)

Aspect Ratio

Full Screen (Image is scaled across the entire screen)

4:3 (Image is displayed in a 4:3 aspect ratio)

16:9 (Image is displayed in a 16:9 aspect ratio)

14:9 (Image is displayed in a 14:9 aspect ratio)

Zoom1 (Scale 45% of the image across the entire screen)

Zoom2 (Scale 50% of the image across the entire screen)

Video & Audio Submenu

Peaking (Superimpose red highlight over parts of the image that are in focus)

Mode1 (red highlight over parts of the image in focus)

Mode2 (red highlight over parts of the monochrome image in focus)

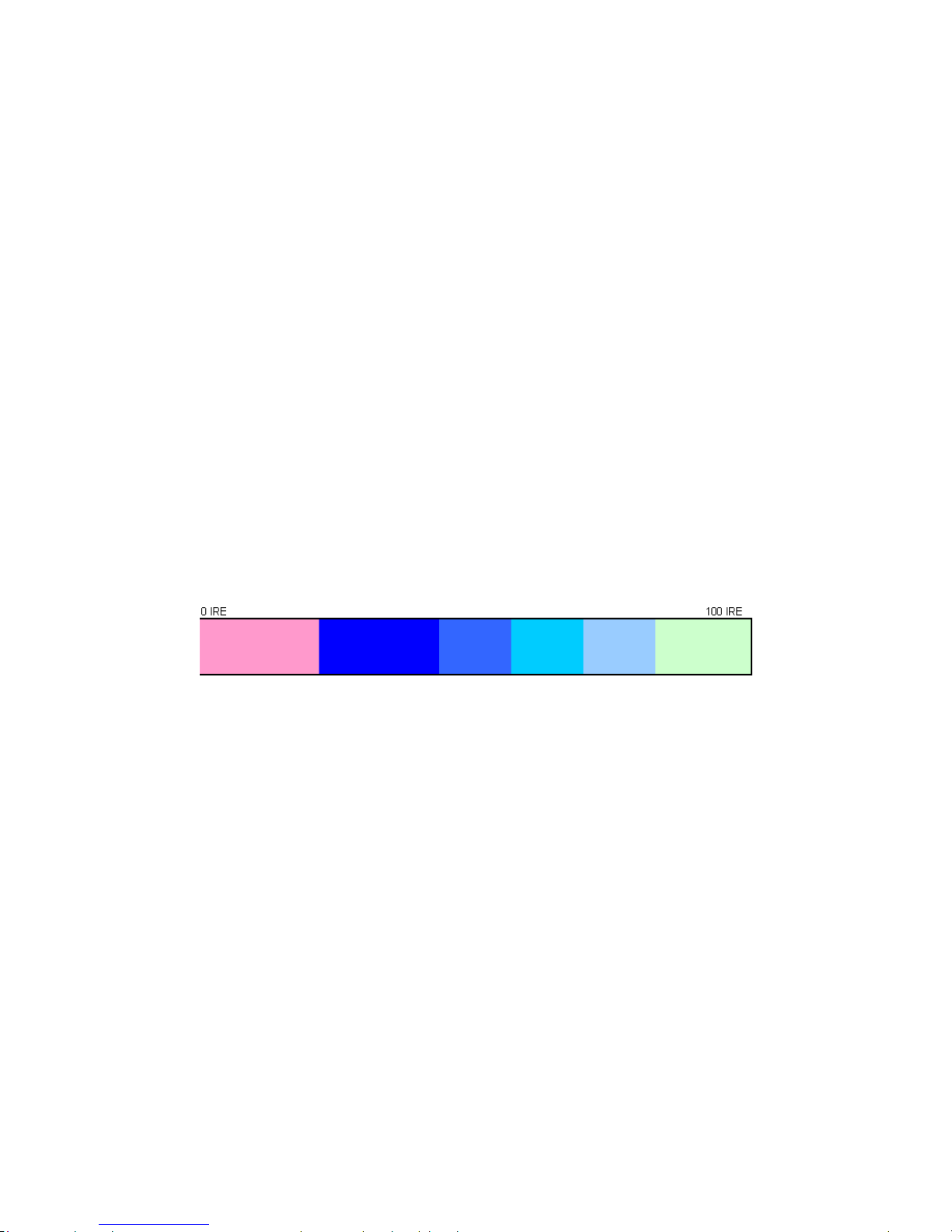

False Colors (Adds visual filtering to determine IRE levels in the image according to the chart below)

Exposure (Adds red-striped overlay to areas of the image that may be overexposed)

Histogram (Display a histogram on the bottom right corner of the display)

Squared Segmentation (OFF = default)

Screen Markers (OFF = Default)

OFF

96%

93%

90%

85%

80%

Center Marker (Places cross-hairs at the center of the display)

Check Field

OFF (Contrast, Brightness, Saturation and Tint = 50)

Mono (Images displayed in monochrome)

Red (Only red colors in image are seen)

Green (Only green colors in image are seen)

Blue (Only blue colors in image are seen)

H/V Delay (Picture is shifted horizontally and vertically to check for ancillary data, HANC and VANC in SDI

signals)

Scan Mode
