Model No. V-LCD70XHB-HDA

Model No.V-LCD70XHB-HDMIPT

Model No.V-LCD70XHB-3GSDI

7” Portable Field / Camera-Top Monitor

Operating Instructions

Maintenance

■Screen Cleaning

Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-

fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels.

Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the

surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the

screen to avoid damaging the LCD.

■Faceplate Dusting

Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface,

attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.

Warranty

Marshall Electronics warranties to the first consumer that this V-LCD70XHB series LCD monitor will, under normal use,

be free from defects in workmanship and materials, when received in its original container, for a period of one year from

the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the

warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to

honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not

apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or

construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the

periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel

failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any

other person is authorized to make any warranties other than those described above, or to extend the duration of any

warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve

products and product features, specifications may change without notice.

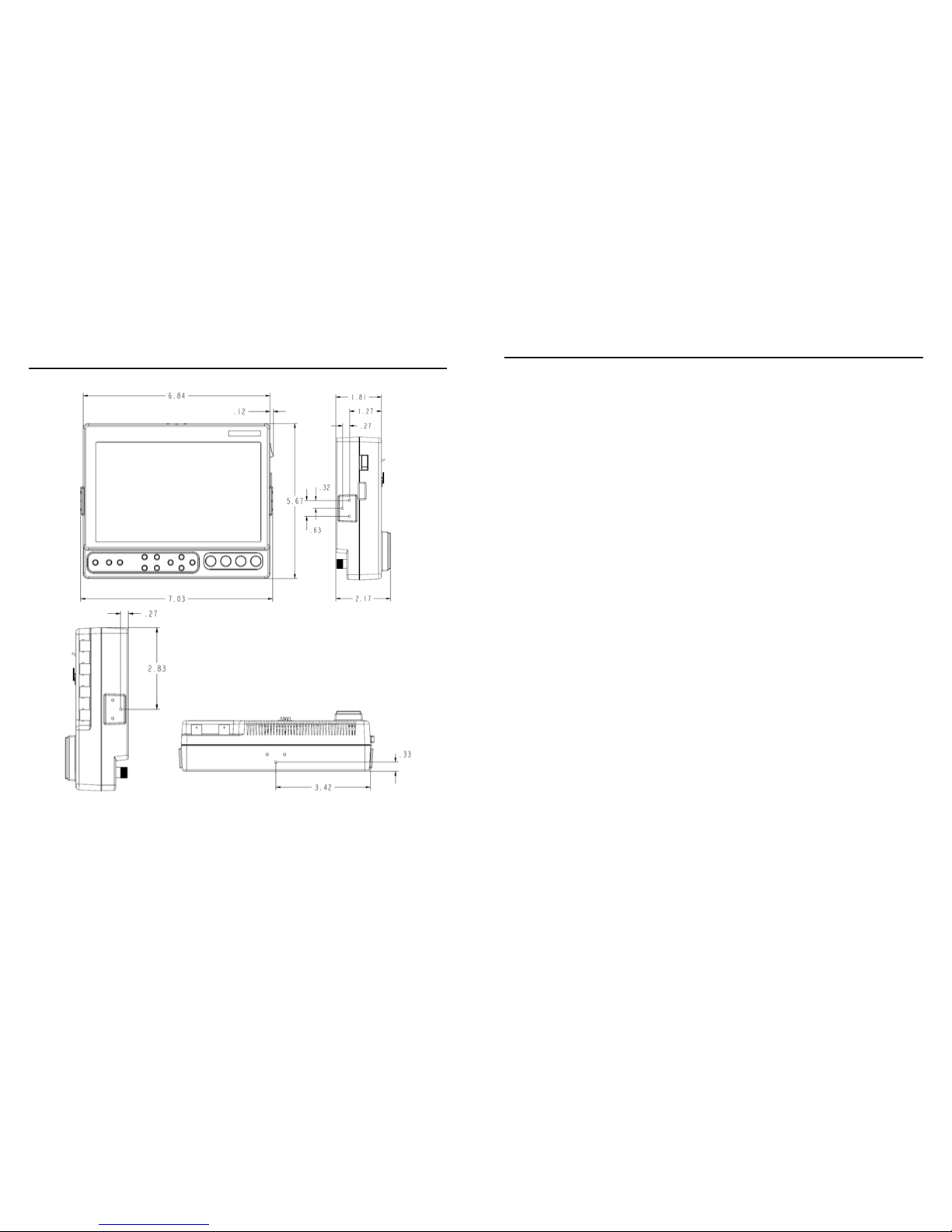

Dimensions

Contents

Installation and Initial Setup ................................................................................................................................................4

Front and Side Monitor Features.........................................................................................................................................6

Rear Monitor Features..........................................................................................................................................................7

Compatible Input Formats....................................................................................................................................................8

Menu Overview......................................................................................................................................................................9

Main Menu and Navigation.................................................................................................................................................11

Video Configuration Submenu......................................................................................................................................11

Marker Configuration Submenu....................................................................................................................................16

Filter Configuration Submenu.......................................................................................................................................19

System Configuration Submenu...................................................................................................................................20

Function Presets Submenu ...........................................................................................................................................23

System Information Submenu.......................................................................................................................................24

Specifications......................................................................................................................................................................25

Dimensions..........................................................................................................................................................................26

Maintenance.........................................................................................................................................................................27

Warranty...............................................................................................................................................................................27

Installation and Initial Setup

■Unpacking

Carefully unpack the V-LCD70XHB monitor and verify that the following items are included:

• V-LCD70XHB Monitor

• V-PS12-5V-XLR Power Supply with 4-Pin Female XLR Connector

• Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage,

immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the continental

United States, call +1 (310) 333-0606.

Specifications

■PANEL

Screen Size 7.0” Diagonal

Display Area (h x v) 152.4 x 91.44 mm

Aspect Ratio 15:9 (16:9 / 4:3 Selectable)

Pixels 800 x 480

Color Depth 6-bit (262,114 Colors)

Viewing Angle (h x v) 170°x 170°

Brightness 800 cd/m

Contrast Ratio 600:1

Pixel Pitch (h x v) 0.1905 x 0.1905 mm

■CONNECTORS

Video Input

Video 1 x BNC Female (75 Ω)

3 x BNC Female (75 Ω)

HDMI Input

HDMI 1 x HDMI (Type A) Female

3G-SDI Video Input

1 x BNC Female (75 Ω)

HDMI Output

HDMI 1 x HDMI (Type A) Female

3G-SDI Video Output

1 x BNC Female (75 Ω)

Note: The HDMIPT module will NOT pass through HDCP

protected content.

Also, the HDMIPT module will NOT pass through EDID

information.

Video Output (Active Loop-Through)

Video 1 x BNC Female (75 Ω)

3 x BNC Female (75 Ω)

3G-SDI 1 x BNC Female (75 Ω)

Power Input

4-Pin Male XLR

Pin 1: GND

Pin 2: N/C

Pin 3: N/C

Pin 4: +12VDC

■ELECTRICAL

Power Consumption 1.20 Amp @ 12VDC (14W Max)

Voltage Requirement 12V DC (7.5V DC-18V DC)

V-PS12-5V-XLR Power Supply:

Input 100V-240V, 1.5A, 50-60Hz

Output 12VDC, 5A, 60W Max

■BATTERY ADAPTER

Field-Interchangeable Battery Adapter Options

(Sold Separately):

Marshall

Adapter Battery

Type Battery

Voltage Recommended

Battery

CM Canon 7.4 V Canon BP-970G

PM Panasonic 7.2 V Panasonic CGA-D54

JM JVC 7.2 V JVC BN-V438U

SB Sony BP 14.4 V Sony BP-460

SM Sony NP-Q 7.2 V Sony NP-QM91

SL Sony NP-F 7.2 V Sony NP-F970

IDX V-Mount 14.4 V IDX E7S

AB Anton Bauer 14.4 V Anton Bauer Hytron

■MECHANICAL

Dimensions (w x h x d): 7.03” x 5.67” x 2.17”

Additional Mounting: ¼”-20 Mounting Bracket

Weight (Monitor Only): 1.60 lbs

Operating Temperature 32°F to 95°F (0°C to 35° C)

Storage Temperature -14°F to140°F (-10°C to 60° C)

RoHs Do not dispose. Return to

Manufacturer or Authorized

Recycle Facility

System Information Submenu

System Information

System

Keypad

Module (3GSDI)

V3.xx

vx.xx

■System

This shows the System firmware version of your monitor.

■Keypad

This shows the Keypad firmware version of your monitor.

■Module

This shows your module version (HDMIPT or 3GSDI) and the firmware version of your module.

System Information Submenu

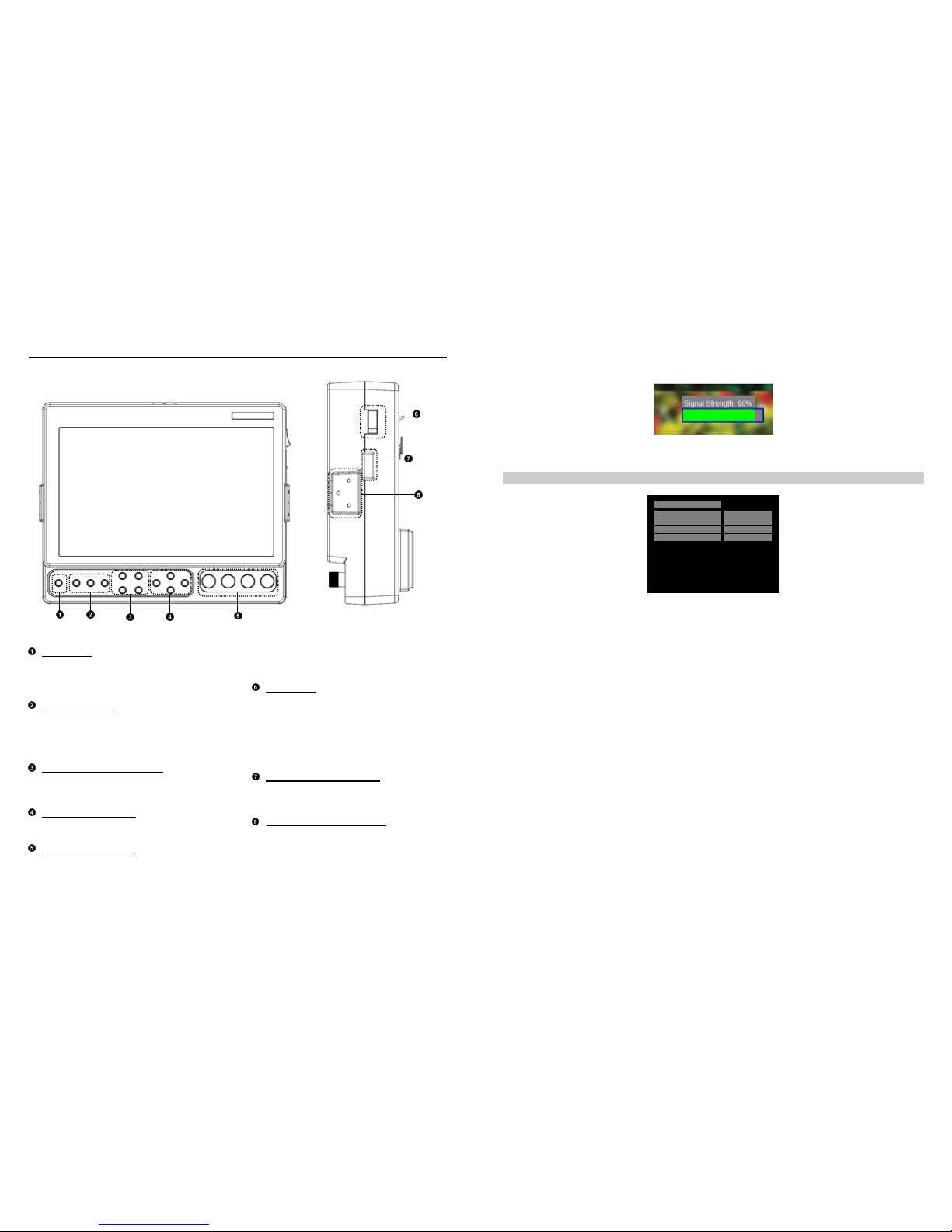

Front and Side Monitor Features

Power Button

Use the power button to toggle between ON and

STANDBY modes. In the STANDBY state, the LED

on the button will illuminate bright green. In the ON

state, the LED will dimly illuminate green.

Input Select Buttons

Use the Input select buttons to select VIDEO,

YPbPr, and HDMI or 3GSDI inputs. In the case of

the V-LCD70XHB-HDA monitor, the third button will

not be available. Video standards and formats

(NTSC/PAL, etc.) are automatically detected.

User-Definable Function Buttons

Four user-definable function buttons can be used for

direct access to various settings. Functions are

assigned using the on-screen menu.

Menu Navigation Buttons

Use the Menu, ▲, ▼, and Select buttons to display

and navigate the on-screen menu.

Image Adjustment Knobs

Use the image adjustment knobs to adjust

brightness, color saturation, and contrast of the

image. The status of each image adjustment

parameter is shown on the bottom left of the screen,

with values ranging from 0 to 100. Default value is

50. Tint will adjust the hue of Composite inputs only.

Power Switch

Use the hard power switch to supply power to the

monitor, and choose the input from which the

monitor draws power. The upper switch position

uses the battery adapter, the lower switch position

uses the 4-Pin XLR input, and the center position is

OFF. Battery life can be preserved by setting this

switch to the OFF position when the monitor is not in

use.

Accessory / Service Connector

This connector is for Marshall Electronics’ line of V-

LCD accessories and for monitor service. Please

contact Marshall Electronics for more information.

Mounting Plate Attachment Area

Use the Mounting Plate Attachment area to attach

mounting brackets with ¼-20 mounting holes. This

attachment area is available on the top and sides of

the monitor as well.

■SDI Signal Strength (V-LCD70XHB-3GSDI Model Only with 3GSDI-CLI module)

Use this setting to enable an on screen indicator of your current SDI signal strength. Although this is not meant to be an

absolute measurement of your SDI Signal Strength, this feature can be useful in determining the stability of the digital

data along your cable run.

Function Presets Submenu

Function Presets

Function on F1

Function on F2

Function on F3

Function on F4

Ratio

Center Marker

Pixel-to-Pixel

Aspect Markers

■User-Definable Function Buttons

Use the Function on F1, F2, F3 and F4 menu items to define each function button on the front panel of the monitor.

The following options are available for each button:

•Ratio

•Check Field

•HDMI DSL Ratio

•Horizon Indicator*

•Image Flip

•Mosquito Filter

•Peaking Filter

•False Colors

•Freeze Input

•Aspect Markers

•Center Marker

•Marker Enable

•Underscan

•H/V Delay

•Pixel-to-Pixel

Function Presets Submenu

Use the 16:9 option to scale the HDMI DSLR video output to fit the 16:9 portion of the screen. This will also remove the

portion of the on screen video that is NOT recorded by the DSLR camera due to sensor crop.

Use the Full Screen to

Rear Monitor Features

Component and Composite Input and Output

The V-LCD70XHB has HD component (YPbPr),

composite as well as active loop-through outputs for

each analog input. See page 8 for supported video

formats. The BNC inputs are internally terminated

with 75 ohms.

Module Slot

This area is intended for the Marshall Electronics’ V-

LCD70XHB modules, which are factory installed.

Power Input

Connect 12VDC to the 4-Pin XLR power input

connector. Power can be supplied from the included

power supply, or from a variety of DC sources

supplying at least 1 Amp at 12 Volts.

IMPORTANT: If using a power source other than the

included power supply, be sure that the polarity of

the DC input is correct:

Pin 1: GND

Pin 2: N/C

Pin 3: N/C

Pin 4: +12VDC

Battery Adapter

The V-LCD70XHB can be powered from a variety of

batteries. Several user-interchangeable battery

adapters are available.

¼-20 Mounting Hole

Use the ¼-20 mounting hole to attach the monitor to

a camera or variety of mounting devices.

V-LCD70XHB-3GSDI

V-LCD70XHB-HDMIPT

Compatible Input Formats

The following standards are supported by the V-LCD70XHB monitors:

Composite (CVBS)

NTSC, PAL

Component (YPbPr)

480i60, 576i50

720p (30, 29.97, 25)

720p ( 60 / 59.94 / 50)

1080p (30, 29.97, 25, 24, 24 sF, 23.98, 23.98 sF)

1080i (60 / 59.94 / 50)

3GSDI and HDMIPT Inputs

V-LCD70XHB-3GSDI – V-LCD70XHB monitor with Triple-Rate SDI Input / Output

SD-SDI –

480i 59.94, 576i 50

HD-SDI –

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

3G-SDI – YCbCr (4:2:2) 10 Bit – Level A and B

1080p (60 / 59.94 / 50)

YCbCr/RGB (4:4:4) 10 Bit – Level A and B

1080i (60 / 59.94 / 50)

1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)

YCbCr+A / RGB+A (4:4:4) 10 Bit

1080i (60 / 59.94 / 50)

1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)

V-LCD70XHB-HDMIPT – V-LCD70XHB monitor with HDMI Input and Pass Through

HDMI Video–

480p 59.94 , 576p 50

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

VESA –

640 x 480 (60 Hz / 72 Hz / 75 Hz)

800 x 600 (56 Hz / 60 Hz / 72 Hz/ 75 Hz)

1024 x 768 (60 Hz / 70 Hz / 75 Hz)

1280 x 1024 (60 Hz / 75 Hz)

Note: The HDMIPT module will NOT pass through HDCP protected content.

Also, the HDMIPT module will NOT pass through EDID information.

■Contrast / Backlight

Use this feature to choose between controlling the Contrast of the image or the intensity of the panel’s Backlight with

the CONTRAST knob on your monitor. Note: While the Contrast control moves up and down at intervals of 1, the

Backlight control will move up and down at intervals of 2, from 0-100.

■Freeze Input

Use the Freeze function to “freeze” the current image on the screen. Select this menu item again (Unfreeze) to return

to the real-time video input.

■Image Flip

Use the Image Flip function to turn the monitor’s display 180°. Note: Both the image and all menus and On Screen

Display text will be flipped.

■Manufacturer Default

Select this menu item to reset all adjustments and menu settings to the factory default configuration.

■HDMI Color Space (HDMIPT Model Only)

Use this setting to automatically detect (Auto) or select the color space (RGB or YCrCb) of incoming HDMI video. This

should match the color space of the video output settings on your playback device. Note that this option is disabled

when viewing VESA (Computer) formats.

■HDMI Aspect Ratio ( HDMIPT Model Only)

Use this setting to automatically detect (Auto) the proper Aspect Ratio settings of incoming HDMI video. Most HD

signals will display in the 16:9 aspect ratio. SD signals (480P/576P) will display in the 4:3 aspect ratio.

■HDMI DSLR Ratio (HDMIPT Model Only)

During video recording, the most popular DSLR cameras place “pillar” boxes around the image when outputting to an

external HDMI video sink. The HDMI DSLR Ratio option allows you to size the scale of the image so that you can see

only video in the appropriate aspect ratio or only video that is being captured by the camera’s sensor.

The HDMI DSLR Ratio provides you with 3 options: 3:2, 16:9 and Full Screen.

Use the 3:2 option to scale the HDMI DSLR video output to fit the screen vertically.

“Pillar” Box

DSLR Video

DSLR HDMI Video output

during recording

Sensor Cropped


■Peaking Filter (Focus assist)

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all

color will be removed from the display and a black-and-white image will remain. The internal processor will display

RED color on the screen where sharp edges appear. When the camera operator adjusts (racks) the focus control (on

the camera lens), different parts of the image will have RED colored edges. This indicates that the portion of the image

is sharp – or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired

portion of the image has RED colored edges. Please note that this feature is most effective when the subject is

properly exposed and contains enough contrast to be processed.

■Mosquito Filter

Use this setting to filter out “Mosquito Noise” – an artifact that appears as specs around edges of objects. This artifact

is the result of video that has been compressed at some point. Video sources from DVD-Players, PDA’s, Digital Cable

Boxes, Camcorders, etc. often have this artifact.

System Configuration Submenu

■Input Format OSD

Use this option to enable on-screen display of input/format status in the upper-left corner of the screen.

■Curtain Color

Use this option to change the curtain color on the monitor. This curtain color is what you see when there is no signal

input to the monitor.

■Splash Screen

Use this option to enable or disable the Marshall Electronics Inc. splash screen seen when the monitor is first powered

on.

Menu Overview

v3.51

Color

Temperature

User, Linear, D55, D65, D93

Gamma

Correction

1.6, 1.8, 2.0, 2.2, 2.

RGB Bias and

Gain

R,G,B Bias (0-100) / R,G,B Gain

(0-100)

Check Field

Off, Mono, Blue, Green, Red

Ratio

Full Screen, :3, 16:9

Pixel to Pixel

Off, Centered, User

H/V Delay

Off, H & V Delay, V Delay, H

Delay

Underscan

Off, On

Video Configuration

NTSC Black Level 1

0 IRE, 7.5 IRE

Marker Enable

Off, On

Center Marker

Off, On

16: 9 Markers

Off, :3, 13:9, 1 :9, 1.85:1,

2.35:1, 95% Safe, 93% Safe,

90% Safe, 88% Safe, 85% Safe,

80% Safe, User

Full Screen

Markers

Off, 95% Safe, 93% Safe, 90%

Safe, 88% Safe, 85% Safe, 80%

Safe, User

Marker Configuration

:3 Markers

Off, 95% Safe, 93% Safe, 90%

Safe, 88% Safe, 85% Safe, 80%

Safe, User

False Colors

Off, On

Peaking Filter

Off, On

Filter Configuration 2

Mosquito Filter

Off, On

Feature enabled in Composite NTSC Video only

The False Color and Peaking Filter cannot be activated simultaneously

Input Format

OSD

On, Off, 5 sec

Curtain Color

Blue, Green, Black

Splash Screen

On, Off

Contrast/Backlight

Contrast, Backlight

Freeze Input

Off, On

Image Flip

Off, On

Manufacturer

Default

HDMI Color Space 3

Auto, YCbCr, RGB

HDMI Aspect

Ratio

Auto, Manual

HDMI DSLR Ratio 3

Off, 3:2, 16:9, Full Screen

System Configuration

SDI Signal

Strength

Off, 5 sec, On

Function on F1

Ratio, Check Field, HDMI DSLR

Ratio, Horizon Indicator, Image

Flip, Mosquito Filter, Peaking

Filter, False Colors, Freeze Input,

Aspect Markers, Center Marker,

Marker Enable, Underscan, H/V

Delay, Pixel-to-Pixel

Function on F2

Ratio, Check Field, HDMI DSLR

Ratio, Horizon Indicator, Image

Flip, Mosquito Filter, Peaking

Filter, False Colors, Freeze Input,

Aspect Markers, Center Marker,

Marker Enable, Underscan, H/V

Delay, Pixel-to-Pixel

Function on F3

Ratio, Check Field, HDMI DSLR

Ratio, Horizon Indicator, Image

Flip, Mosquito Filter, Peaking

Filter, False Colors, Freeze Input,

Aspect Markers, Center Marker,

Marker Enable, Underscan, H/V

Delay, Pixel-to-Pixel

Function Presets 5

Function on F

Ratio, Check Field, HDMI DSLR

Ratio, Horizon Indicator, Image

Flip, Mosquito Filter, Peaking

Filter, False Colors, Freeze Input,

Aspect Markers, Center Marker,

Marker Enable, Underscan, H/V

Delay, Pixel-to-Pixel

Feature enabled for HDMIPT models only

Feature enabled for 3GSDI model only

Horizon Indicator option is only applicable when you have the V-LCD-HI accessory connected to your monitor 19

Filter Configuration Submenu

■False Colors

The V-LCD70XHB has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted,

elements of the image will change color based on the luminance or brightness values. This enables proper exposure to

be achieved without the use of costly, complicated external equipment. To best utilize this feature, you must

understand the color chart below and have a basic understanding of camera exposure. Normally, when shooting

subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The

false color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the

IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Over

exposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show

as DEEP-BLUE to DARK–BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is

used to indicate elements of the image that are approximately 45 IRE. This represents a ‘neutral’ or ‘mid-level’

exposure commonly used for objects (not people).

False Color Key

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Marshall Electronics Monitor Handbücher

Marshall Electronics

Marshall Electronics M-CT710 Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R563P Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R82SB-AFHD Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R653SB-IMD Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R82DP-2C Bedienungsanleitung

Marshall Electronics

Marshall Electronics Dual 10.4-inch LCD Rack Mounted Monitor... Bedienungsanleitung

Marshall Electronics

Marshall Electronics Rack Mountable Unit V-R53P-SDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics TFT-MegaPixel Monitor V-R70P-SD Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R84DP-2SDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R82DP-HDSDI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R1042DP-AFHD Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD70XP-HDA Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R70P-HDA Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-MD503 Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R102DP-2C Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD17HR Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R44P-DVI Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R70DP Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R53P Bedienungsanleitung

Marshall Electronics

Marshall Electronics QVW-1708-3G Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-R84DP-HDA Bedienungsanleitung

Marshall Electronics

Marshall Electronics V-LCD171MD Bedienungsanleitung

Marshall Electronics

Marshall Electronics Orchid OR-702 Bedienungsanleitung

Marshall Electronics

Marshall Electronics orchid OR-901-XDI Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung
