Marson MR12 Bedienungsanleitung

MR12 User’s Manual V1.0

MR12

Wearable BT UHF Reader

User’s Manual

MR12 User’s Manual V1.0

Table of Content

Chapter 1 Product intro.................................................................................................. 3

Intro............................................................................................................................... 3

Appearance................................................................................................................... 4

LED Indication............................................................................................................... 4

Precaution before using battery..................................................................................... 5

Charger......................................................................................................................... 6

Notes ............................................................................................................................ 7

Chapter 2 Installation instructions ................................................................................ 8

Charging the battery...................................................................................................... 8

Installing wrist band and MR12 ..................................................................................... 9

Removing the battery .................................................................................................. 12

Chapter 3 Demo Test.................................................................................................... 13

Install demo-uhf-bt (1.0.8) ........................................................................................... 13

Pairing Device ............................................................................................................. 14

UHF Scan Function..................................................................................................... 16

UHF Configuration ...................................................................................................... 17

UHF Tag Reading and Writing .................................................................................... 18

UHF Tag Lock and Kill ................................................................................................ 19

Barcode Scan Test...................................................................................................... 21

Chapter 4 Device characteristic................................................................................... 22

Declaration.................................................................................................................... 23

MR12 User’s Manual V1.0

Chapter 1 Product intro

Intro

MR12 is a newly-developed wearable UHF reader that enables read

distance of 9m. Connected with wristband by magnetic buckle, it

features removable battery, performs data transmission via Type C

USB, and enables user information interaction via Bluetooth

coordinated with APP or SDK. And it also can be paired with

Android/IOS device to expand RFID capability. This RFID reader can

be suitable for warehousing, power inspection,asset management,

retail, etc., which provides users with more flexibility to efficiently

finish their tasks at hand.

MR12 User’s Manual V1.0

UHF Signal Area

Appearance

MR12 reader has 1 power button and 1 Type-C port, 1 SCANbutton.

LED Indication

Indicator LEDs Description

Power

Red LED lights up constantly (charging status)

Green LED lights up constantly (battery fully charged)

Blue LED lights up constantly (battery level higher than

20%)

Blue LED flashing (battery level lower than 20%)

Bluetooth

Constant light up (Bluetooth connected)

RFID

Flash when read UHF tags

SCAN

Button

Power

Button

Type-C

Port

MR12 User’s Manual V1.0

Precaution before using battery

Do not leave battery unused for long time, no matter it is in

device or inventory. If battery has been used for 6 months

already, it should be check for charging function or it should be

disposed correctly.

The lifespan of Li-ion battery is around 2 to 3 years, it can be

circularly charged for 300 to 500 times. (One full battery charge

period means completely charged and completely discharged.)

When Li-ion battery is not in used, it will continue discharge

slowly. Therefore, battery charging status should be checked

frequently and take reference of the related battery charging

information on the manuals.

Observe and record the information of a new unused and non-

fully charged battery. On the basis of operating time of new

battery and compare with a battery that has been used for long

time. According to product configuration and application

program, the operating time of battery would be different.

Check battery charging status at regular intervals.

When battery operating time drops below about 80%, charging

time will be increased remarkably.

If a battery is stored or otherwise unused for an extended

period, be sure to follow the storage instructions in this

document. If you do not follow the instructions, and the battery

has no charge remaining when you check it, consider it to be

damaged. Do not attempt to recharge it or to use it. Replace it

with a new battery.

Store the battery at temperatures between 5 °C and 20 °C

(41 °F and 68 °F).

MR12 User’s Manual V1.0

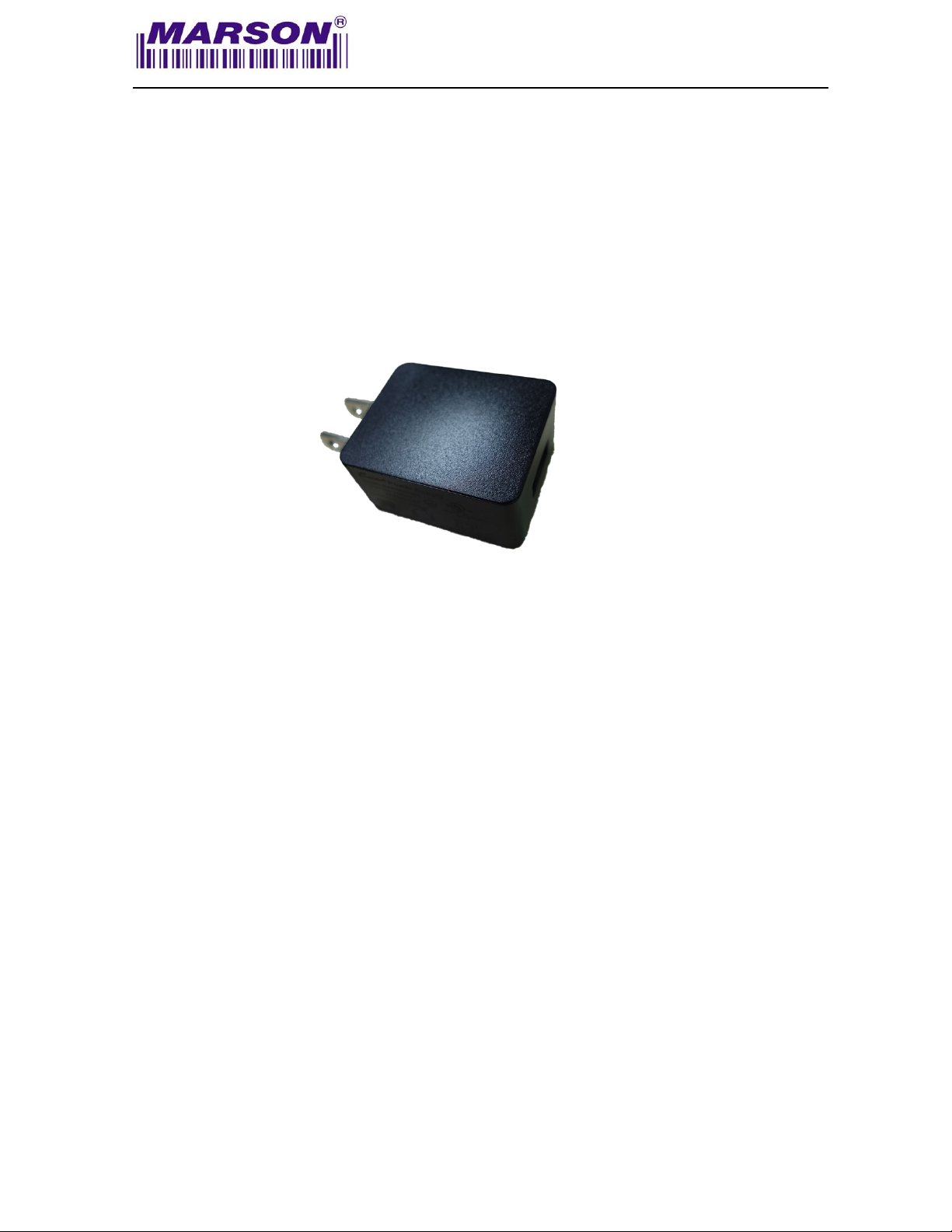

Charger

The charger type is GME10D-050200FGu, output voltage/current

is 5V DC/2A. The plug considered as disconnect device of adapter.

MR12 User’s Manual V1.0

Note:

Using the incorrect type battery has danger of explosion.

Please dispose the used battery according to instructions.

Note:

Due to the used enclosure material, the product shall only be

connected to a USB Interface of version 2.0 or higher. The

connection to so called power USB is prohibited.

Note:

The adapter shall be installed near the equipment and shall be

easily accessible.

Note:

The suitable temperature for the product and accessories is 0-10℃

to 50℃.

Note:

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY

AN INCORRECT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS.

Notes

MR12 User’s Manual V1.0

Chapter 2 Installation instructions

Charging the battery

With Type C USB cable, the original adaptor should be used for

charging the device. Make sure not to use other adaptors to charge

the device.

Remove USB cap

gently to avoid

breaking it

MR12 User’s Manual V1.0

Installing wrist band and MR12

1. Align MR12 with the silicone holder of wrist band.

2. Fit MR12 into the silicone holder and adjust it to make sure MR12 is

properly fastened.

MR12 User’s Manual V1.0

3. Place wrist band around your wrist.

4. Pull the Velcro strap through the ring of wrist band.

Pull through
