Mastech MS6252A Bedienungsanleitung

MS6252A

Digital Anemometer

Operation Manual

MS6252A

Digital Anemometer

1. SAFETY INFORMATION...........................1

CONTENTS CONTENTS

2. DESCRIPTION..........................................3

2.1 Part name..........................................3

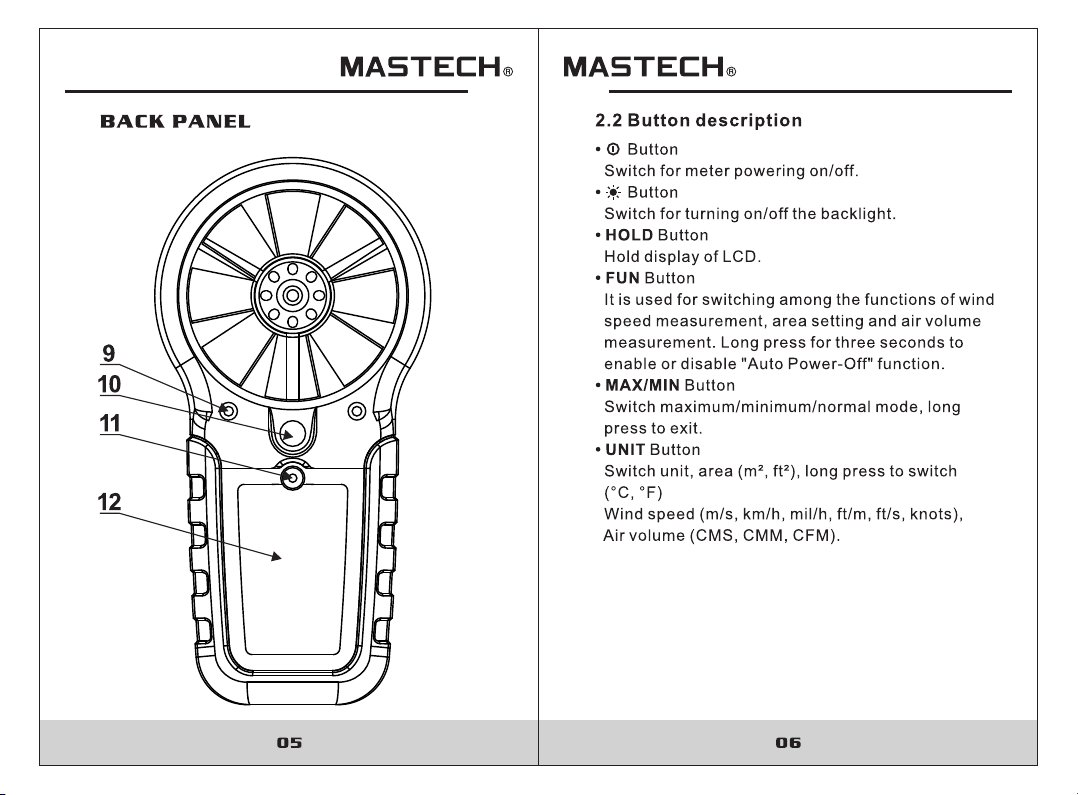

2.2 Button description..............................6

2.3 Sign definition....................................7

3. SPECIFICATION.......................................8

4. OPERATING GUIDANCE........................11

4.1 Power On/Off...................................11

4.2 Reading hold ...................................11

4.3 Backlight function.............................11

4.4 Wind speed measurement................12

4.5 Wind speed unit selection.................12

4.6 Area setting......................................12

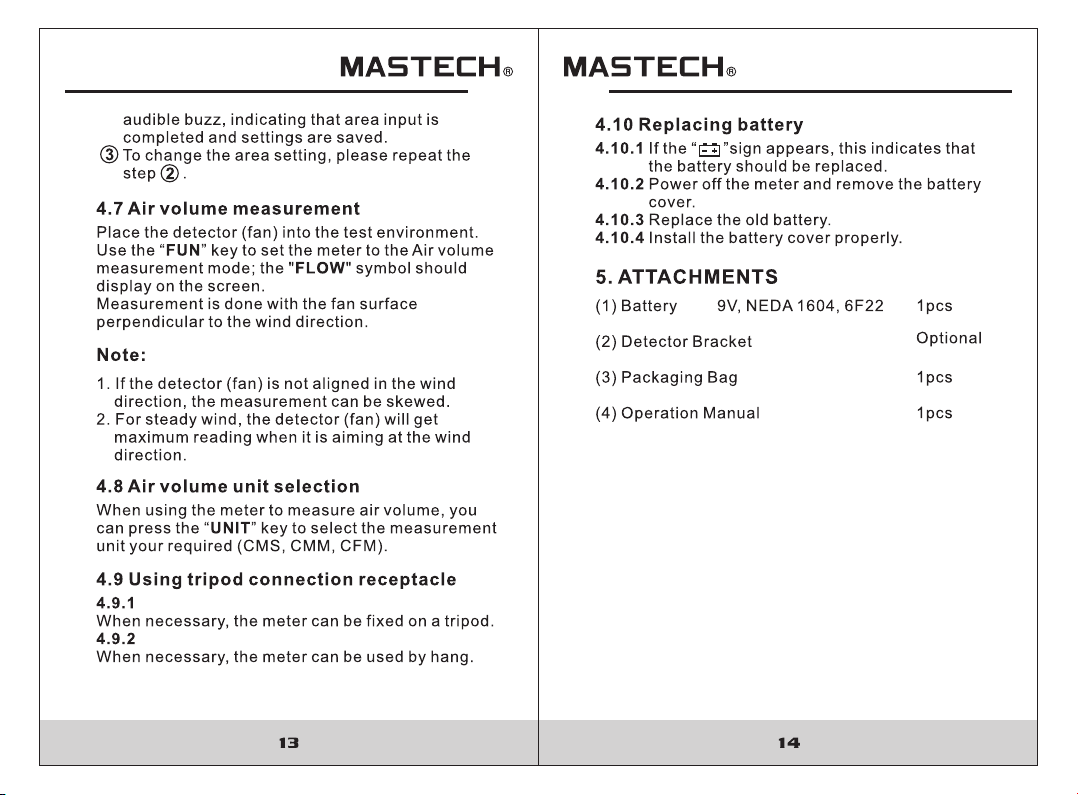

4.7 Air volume measurement..................13

4.8 Air volume unit selection...................13

4.9 Use tripod connection receptacle......13

4.10 Replace battery..............................14

5. ATTACHMENTS......................................14

1.2 Usage................................................1

1.4 Maintenance......................................2

1.1 Preparation........................................1

1.3 Marking..............................................1

3.1 General .............................................8

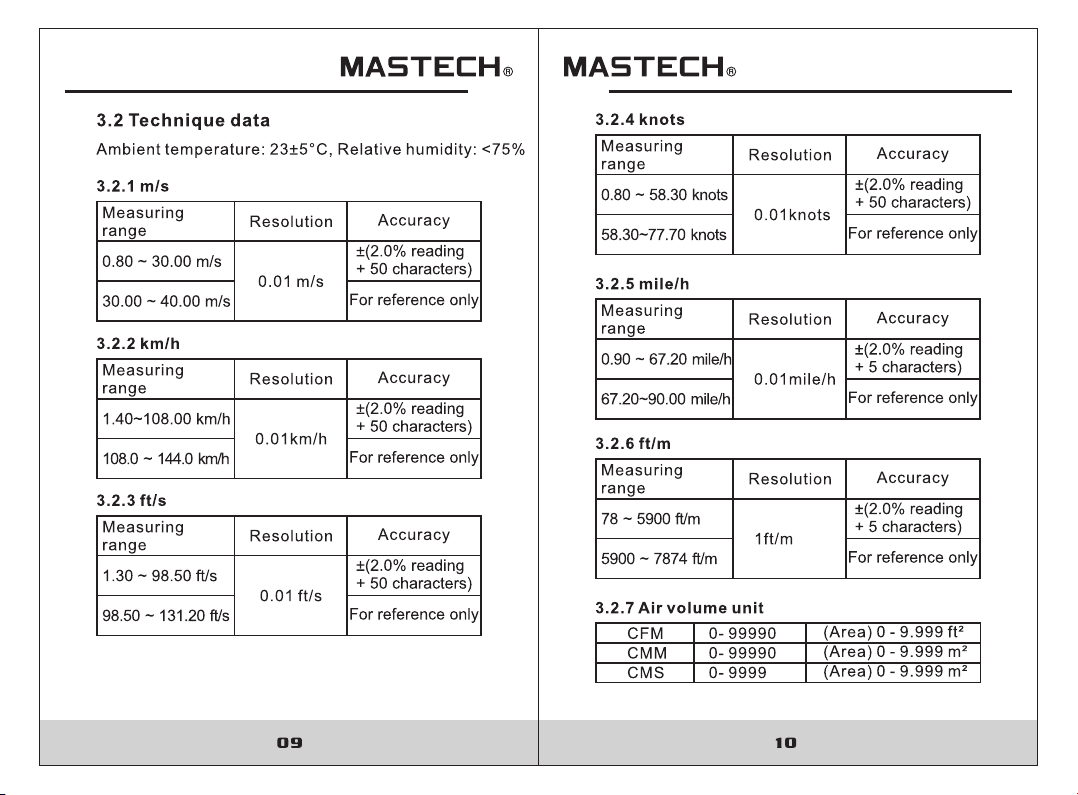

3.2 Technique data...................................9

03 04

2. DESCRIPTION

-This meter is a digital anemometer for measuring

the ambient temperature, humidity, dew point

temperature, wet bulb temperature, wind speed,

and air volume.

-This meter is a portable, professional measuring

instrument with large-screen LCD and backlight,

multi-unit switching functions.

-This meter can be used for hand-held or fixed

measurement.

-This meter has the functions of reading hold,

maximum, minimum, etc.

-It has a low battery indicator and USB real time

data uploading functions.

2.1 Part name

(1) Fan

(2) LCD

(3) “FUN” — Function switching button

(4) “ ”— Power switch

(5) “UNIT” — Unit switching button

(6) Maximum/Minimum button

(7) “HOLD” hold display

(8) “ ” — Backlight Button

(9) Fan retaining bolt hole

(10) Connection hole for fixing measurement bracket

(11) Battery housing cover retaining bolt hole

(12) Battery cover

FRONT PANEL

MS6252A

Digital Anemometer

07 08

3. SPECIFICATION

The meter should be recalibrated under the condition

of 18°C~28°C, relative humidity <75% every year.

3.1 General

3.1.1 Work height: Maximum 2000m

3.1.2 Work mode:

Frequency of wind speed conversion

3.1.3 Display: LCD

3.1.4 Maximum show value: 9999

3.1.5 Sampling time: About 0.4s/time.

3.1.6 Low battery indicator: sign displays on LCD.

3.1.7 Work power: 1×9V 6F22 battery.

3.1.8 Operation environment:

Relative humidity–0~85%RH,

no moisture condensation

Temperature–0°C~40°C,

no moisture condensation

3.1.9 Detector (fan) operation environment:

Relative humidity– 0~95%RH,

no moisture condensation.

Temperature–-20°C~80°C,

no moisture condensation.

3.1.10 Storage environment:

Relative humidity– 0~80%RH,

no moisture condensation

Temperature–-10°C~50°C,

no moisture condensation

3.1.11 Dimension: Meter –165LX85 WX38Hmm.

3.1.12 Weight: About 200g

2.3 Sign definition

 Indicates Auto Power-Off status

HOLD Reading hold state

VEL Wind speed measurement state

FLOW Air volume measurement state

AREA Area setting required by air volume

SLOW Indicates current wind-speed <5m/s

FAST Indicates current wind-speed >5m/s

MAX Displays maximum after entering

maximum/minimum mode

MIN Displays minimum after entering

maximum/minimum mode

m² Indicates that the current area setting unit

is square meter

ft² Indicates that the current area setting unit

is square foot

CMM Cubic meters per minute

CMS Cubic meters per second

CFM Cubic meters per minute

knots Nautical miles per hour, 1850 meters per hour

ft/s Feet per second

ft/m Feet per minute

m/s Meters per second

Km/h Kilometers per hour

mil/h Nautical miles per hour

Low battery indicator

HYS006692
