Mastech MS6252B Bedienungsanleitung

MS6252B

Digital Anemometer

Operation Manual

MS6252B

Digital Anemometer

FUNC HOLE

MODE

UNIT

MAX

MIN USB

MAX MIN VEL FLOW AREA USB

°C

°F % RH

ft2

x10

ft/m

ml/h

ft/s

km/h

knots

m/s

FPM CMM

CFM CMS

1. Safety Information...........................1

1.1 Preparation........................................1

1.2 Usage................................................1

1.3 Marking.............................................1

1.4 Maintenance......................................2

CONTENTS CONTENTS

2. Description..........................................3

2.1 Part name..........................................3

2.2 Button description..............................6

2.3 Sign definition....................................7

3. Specification......................................8

3.1 General.............................................8

3.2 Technique data.................................9

4. Operating Guidance.........................11

4.1 Power On/Off...................................11

4.2 Reading hold ...................................11

4.3 Backlight function.............................12

4.4 Wind speed measurement................12

4.5 Wind speed unit selection.................13

4.6 Area setting......................................13

4.7 Air volume measurement..................13

4.8 Air volume unit selection...................14

4.9 Temperature unit selection................14

4.10 Temperature mode selection...........14

4.11 USB real time data uploading..........14

4.12 Use tripod connection receptacle.....15

4.13 Replace battery...............................16

5. Attachments............................................16

03 04

2. DESCRIPTION

-This meter is a digital anemometer for measuring

the ambient temperature, humidity, dew point

temperature, wet bulb temperature, wind speed,

and air volume.

-This meter is a portable, professional measuring

instrument with large-screen LCD and backlight,

multi-unit switching functions.

-This meter can be used for hand-held or fixed

measurement.

-This meter has the functions of reading hold,

maximum, minimum, etc.

-It has a low battery indicator and USB real time

data uploading functions.

2.1 Part name

(1) Fan

(2) LCD

(3) “FUN” — Function switching button

(4) “ ”— Power switch

(5) “UNIT” — Unit switching button

(6) Maximum/Minimum button

(7) “HOLD/MODE” hold display, switch temperature mode

(8) “ /USB” — Backlight/USB real time data

uploading functions

(9) Fan retaining bolt hole

(10) Connection hole for fixing measurement bracket

(11) Battery housing cover retaining bolt hole

(12) Battery cover

FRONT PANEL

MS6252B

Digital Anemometer

FUNC HOLE

MODE

UNIT

MAX

MIN USB

MAX MIN VEL FLOW AREA USB

°C

°F % RH

ft2

x10

ft/m

ml/h

ft/s

km/h

knots

m/s

FPM CMM

CFM CMS

07 08

3. SPECIFICATION

The meter should be recalibrated under the condition

of 18°C~28°C, relative humidity <75% every year.

3.1 General

3.1.1 Work height: Maximum 2000m

3.1.2 Work mode:

Frequency of wind speed conversion

3.1.3 Display: LCD

3.1.4 Maximum show value: 9999

3.1.5 Sampling time: About 0.4s/time.

3.1.6 Low battery indicator: sign displays on LCD.

3.1.7 Work power: 1×9V 6F22 battery.

3.1.8 Operation environment:

Relative humidity–0~85%RH,

no moisture condensation

Temperature–0°C~40°C,

no moisture condensation

3.1.9 Detector (fan) operation environment:

Relative humidity– 0~95%RH,

no moisture condensation.

Temperature–-20°C~80°C,

no moisture condensation.

3.1.10 Storage environment:

Relative humidity– 0~80%RH,

no moisture condensation

Temperature–-10°C~50°C,

no moisture condensation

3.1.11 Dimension: Meter –165LX85 WX38Hmm.

3.1.12 Weight: About 200g

2.3 Sign definition

Indicates Auto Power-Off status

H Reading hold state

VEL Wind speed measurement state

FLOW Air volume measurement state

AREA Area setting required by air volume

DP Indicates that the current mode is dew point

temperature mode

WB Indicates that the current mode is wet bulb

temperature mode

°C, °F Temperature unit

%RH Relative humidity sign

USB Indicates that USB real time data uploading

is enabled

MAX Displays maximum after entering

maximum/minimum mode

MIN Displays minimum after entering

maximum/minimum mode

m² Indicates that the current area setting unit

is square meter

ft² Indicates that the current area setting unit

is square foot

CMM Cubic meters per minute

CMS Cubic meters per second

CFM Cubic meters per minute

knots Nautical miles per hour, 1850 meters per hour

ft/s Feet per second

ft/m Feet per minute

m/s Meters per second

Km/h Kilometers per hour

mil/h Nautical miles per hour

Low battery indicator

(1) Battery 9V, NEDA 1604, 6F22

(2) Detector Bracket

(3) Packaging Bag

(4) Operation Manual

(5) CD

4.13 Replacing battery

4.13.1 If the “ ”sign appears, this indicates that

the battery should be replaced.

4.13.2 Power off the meter and remove the battery

cover.

4.13.3 Replace the old battery.

4.13.4 Install the battery cover properly.

5. ATTACHMENTS

1pc

Optional

1pc

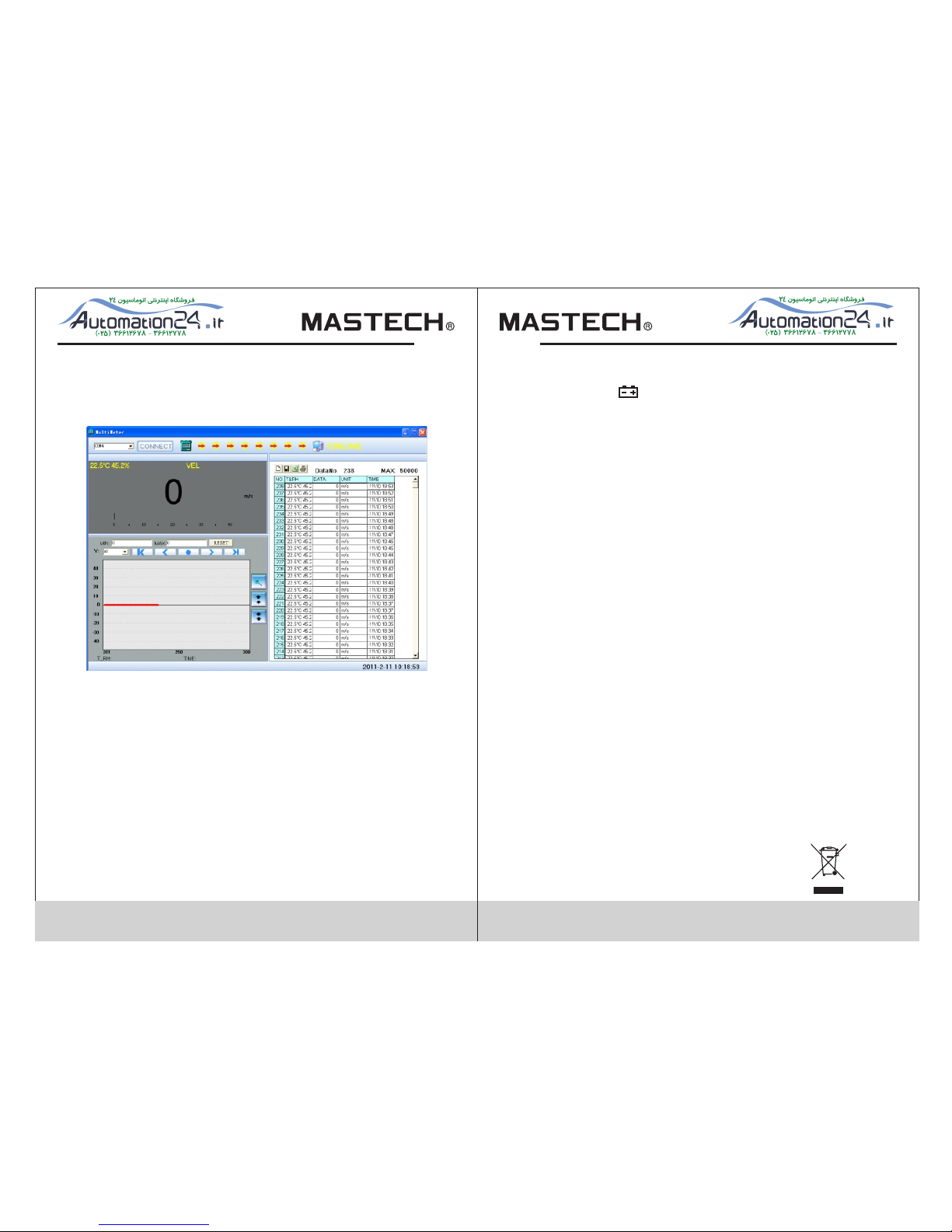

enable the USB function of the meter.

5.The PC software displays data and diagrams.

6. Save or print data.

4.12 Using tripod connection receptacle

4.12.1 When necessary, the meter can be fixed on

a tripod.

4.12.2 When necessary, the meter can be used by

hang.
