GRILL TURISMO™

2BURNER PROPANE BARBECUE WITH

CONVERTIBLE VALVE SYSTEM

Assembly Manual

085-0044-4 (G36403)

1 YEAR LIMITED WARRANTY

ANSI Z21.58-2015 / CSA 1.6-2015

ANSI Z21.58-2015 / CSA 1.6-2015 ANSI Z21.58-2015 / CSA 1.6-2015

ANSI Z21.58-2015 / CSA 1.6-2015

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

Manual Revision #: 10.21.2021 WZ

Master No. 211648

DANGER

1. If you smell gas:

a. Shut oﬀ gas to the appliance.

b. Extinguish any open ﬂame.

c. Open lid.

d. If odour continues, keep away from

the appliance and immediately

call your gas supplier or your

ﬁre department.

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the manufacturer’s

instructions could result in hazardous ﬁres,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ﬂammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BARBECUE ’S STAINLESS STEEL

AND PAINTED STEEL PARTS CAN

BECOME VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your barbecue.

THIS BARBECUE IS FOR OUTDOOR USE ONLY.

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING.

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the barbecue

at all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To order non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

HARDWARE PACK

1/4’’-20UNCx13 Screw

x 24

NO.10-24UNCx10 Screw

x 2

1/4’’-20UNC Nut

x 4

1/4’’-20UNC Screw

x 4

ST4.2x10 Tapping Screw

x 8

Castor Pin

x 1

1 3

5 6

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4’’-20UNCx13 Screw 20120-13013-036 24

2 1/4’’-20UNC Screw G361-0002-9091 4

3 NO.10-24UNCx10 Screw 20124-10010-036 2

4 1/4’’-20UNC Nut 31220-13000-036 4

5 ST4.2x10 Tapping Screw 24200-42010-136 8

6 Castor Pin G350-0026-9000 1

7 AAA Battery G434-0070-9000 1

TOOLS NEEDED FOR ASSEMBLY

• #2 Star-head screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

For correct hardware assembly, always position

the lock washer between the screw and the at

washer.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a flat, clean surface. Grill is heavy; two people are recommended

to complete assembly.

AAA Battery

x 1

Lock Washer

Flat Washer

Screw

PARTS LIST FOR 085-0044-4 (G36403)

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top Lid Assembly G364-2700-01

AB1 1 Lid Handle G364-0016-01

AB2 2 Lid Handle Bezel G453-00A7-01O

AC1 1 Thermometer G364-0004-02

AC2 1 Thermometer Bezel G364-0017-01O

AD 2 Screw for Top Lid G309-0008-03

AE 2 Lid Bumper, Front G527-0002-01

AF 2 Lid Bumper, Rear G303-0038-01

BA 1 Burner Box Assembly G309-0D00-01

BB 2 Main Burners G364-2200-01

BC 1 Carryover Assembly G309-0C02-01

BD 2 Flame Tamer G458-0018-01

BE 2 Cooking Grate G309-0019-01

BF 1 Warming Rack G309-0003-01

BG 1 Match Holder G608-0019-02

CA 1 Manifold Assembly G364-5000-01

CB 1 Regulator G513-0017-01

CC1 1 Electronic Ignition Assembly F401-0012-01

CC2 1 Electronic Ignition Button G432-0026-01

CD 1 Electrode Set, Main Burner G362-0023-01

CE 2 Control Knob G364-3600-01

CF 2 Bezel, Control Knob G453-0092-01O

CG 1 Control Panel G364-0600-01

CH 1 Door Support Rail G364-3400-01

CI 1 Upper Back Brace G364-0026-01

CJ 1 Grease Cup Hook G305-0043-01

CK 1 Grease Cup G430-0033-02

CL 1 Heat Shield G309-5102-01

DA 2 Side Shelf Support Bracket A G364-0019-01

DB 2 Side Shelf Support Bracket B G364-0020-01

DC 2 Shelf Support A G364-0021-01

DD 2 Shelf Support B G364-0022-01

DE 2 Side Shelf G364-0009-02

EA 1 Cart Side Panel, Left G364-0012-02

EB 1 Cart Side Panel, Right G364-0023-01

EC 1 Grommet G501-0039-01

ED 1 Door Assembly G364-3300-01

EE 1 Door Handle G453-0099-01

EF 1 Bottom Shelf G364-3200-01

EG 2 Locking Castor G350-0023-01

EH 2 Castor G350-0024-01

EI 2 Door Magnet Assembly G213-0022-01

F1 1 Hardware Pack G364-B002-01

F2 1 Assembly Manual G364-M003-01

F3 1 Safe Use and Care Manual G453-M023-02

F4 1 Tank Screw G430-C001-01

AB2

AC1

CC2

CC1

CF CE

AC2

AB1

EXPLODED DIAGRAM FOR 085-0044-4 (G36403)

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

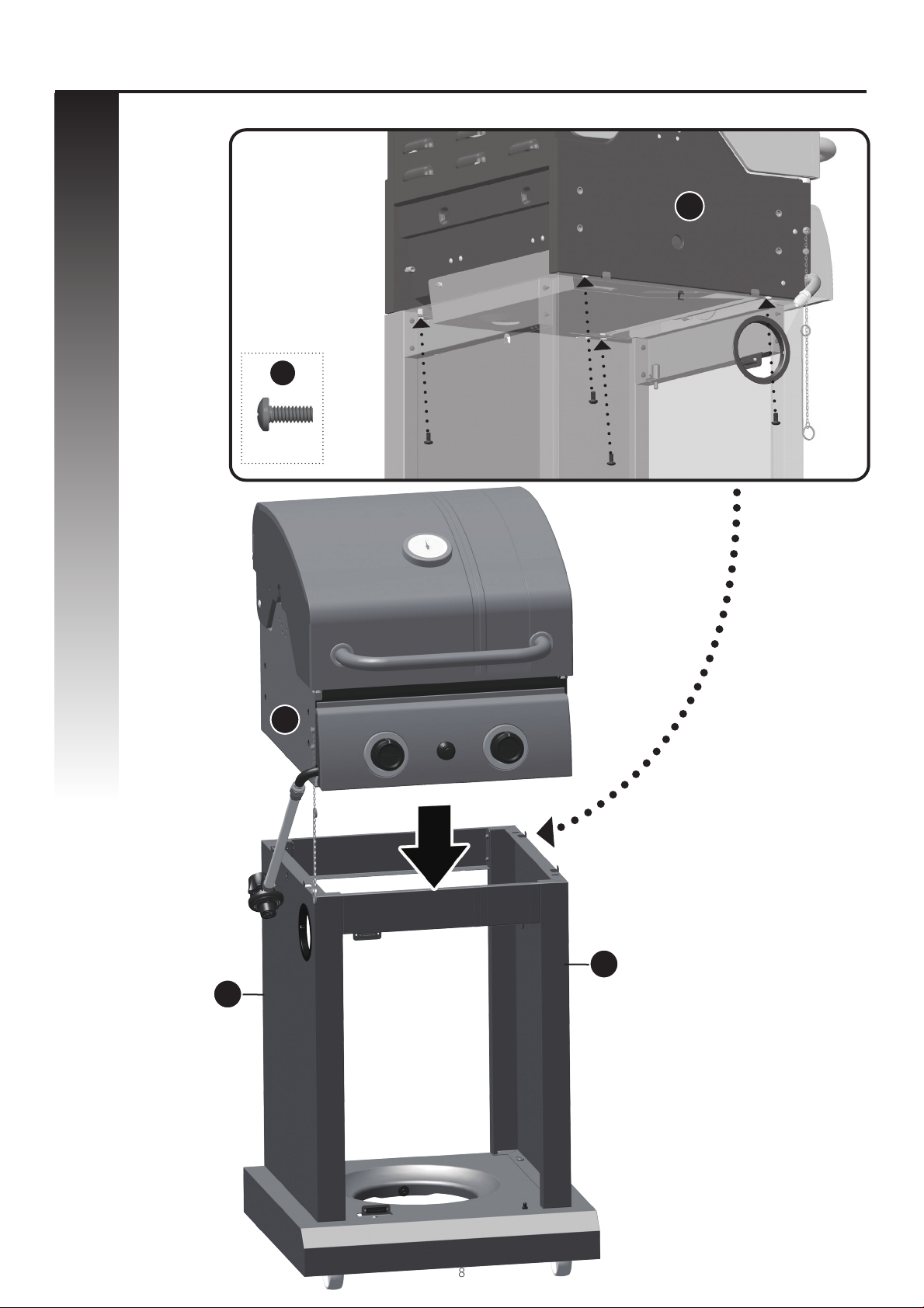

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

x 1

NOTE

Use this pin as a tool to lock all 4 casters during

assembly.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

x 4

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

x 4

BACK OF CART

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

x 4

FRONT OF CART

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

x 4
