MasterChef S380 Bedienungsanleitung

S380 Barbecue

Assembly Manual

199-9558-8 (G31216) Propane

1 YEAR LIMITED WARRANTY

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

If pre-assembled, leave this manual with unit for

consumer’s future reference.

For product inquiries, parts, warranty and

troubleshooting support, please call 1-855-453-2150.

Manual Revision #: 11212013 PD

ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012 ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BBQ’S STAINLESS STEEL AND

PAINTED STEEL PARTS CAN BECOME

VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

HEAVY ARTICLE NEEDS 2 TO LIFT

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

For correct hardware assembly, always position

the lock washer between the screw and the at

washer.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

HARDWARE PACK

Hitch Pin

X 1

Washer (Wheel)

X 3

2 3

KEY # DESCRIPTION PART NUMBER QUANTITY

1 NO.10-24UNCx13 Screw G312-1702-9091 12

2 1/4”-20UNCx13 Screw 20120-13013-036 4

3 #8x3/8” Self Tapping Screw 24200-42008-136 3

4 Washer (Wheel) G312-0014-9088 3

5 Hitch Pin G306-0005-9088 1

NO.10-24UNCx13 Screw

X 12

¼”-20UNCx13 Screw

X 4

#8x⁄” Self Tapping Screw

X 3

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended

to complete assembly.

Lock Washer

Flat Washer

Screw

PARTS LIST PROPANE FOR 19995588 G31216

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top lid assembly G312-9000-01

AB 2 Lid handle brackets G352-0015-01

AC 1 Top lid handle G451-0063-01

AD 2 Lid bumpers-back G303-0038-01

AE 2 Lid bumpers-front G430-00B8-01

AF 2 Screws for lid G430-0024-01

BA 1 Burner box assembly G312-9200-01

BB 1 Side Heat shield G312-2201-01

BC 3 Burner G312-0D00-01

BD 1 Electrode G311-0005-01

BE 2 Carryover assembly G312-0012-01

BF 3 Flame tamer G312-0205-01

BG 2 Cooking grate G312-2102-01

BH 1 Warming rack G312-0010-01

CA 1 Control panel G312-0006-01

CB 1 Manifold assembly G312-9800-01

CC 1 Regulator G511-0031-01

CD 3 Control knob G432-0090-01

CE 1 Ignitor G206-0701-01

CF 1 Grease cup hook G305-0043-01

CG 1 Grease cup G307-0025-01

CH 1 Heat shield (tank) G312-0408-01

DA 1 Lower cart frame, right G312-0F00-01

DB 1 Upper cart frame, right G312-0H00-01

DC 1 Lower cart frame, left G312-0E00-01

DD 1 Upper cart frame, left G312-0G00-01

DE 2 Upper cart brace G312-AF00-01

DF 1 Upper back brace G312-0406-01

DG 1 Lower back brace G312-0407-01

DH 1 Upper front panel G312-0007-01

DI 1 Lower front panel G312-0008-01

DJ 2 End caps G312-0013-01

DK 2 Wheel G211-0016-01

DL 1 Wheel axle G430-0007-01

DM 1 Match holder G401-0079-01

DN 3 Tank exclusion G312-9601-01

EA 2 Side shelf table G312-9100-01

F1 1 Hardware pack G312-B016-01

F2 1 Assembly instructions G312-M016-01

F3 1 Safe use and care manual G451-M018-02

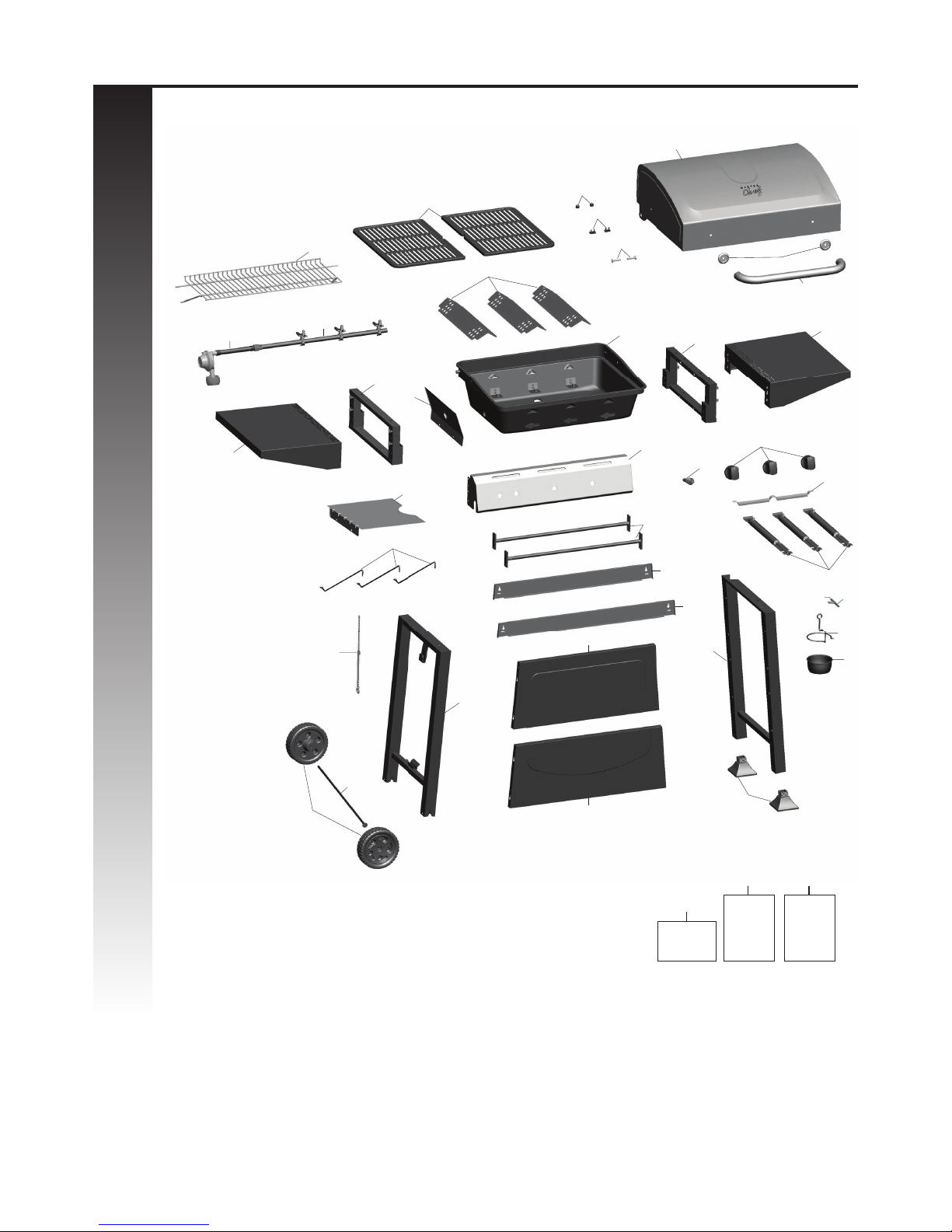

EXPLODED DIAGRAM PROPANE FOR 19995588 G31216

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

a. Assemble hardware half way into the lower

left and right cart frames (DC and DA).

Do not tighten.

ASSEMBLY INSTRUCTIONS

Close Up

YOU WILL NEED:

X 8

b. Position the upper front panel (DH) and lower

front panel (DI) onto the screws attached to

the left and right lower cart frames (DC and

DA) as shown in gure B & C.

c. Tighten screws.

ASSEMBLY INSTRUCTIONS

Close Up

ASSEMBLY INSTRUCTIONS

b. Position the upper back brace (DF) and

lower back brace (DG) onto the screws you

assembled in 2A.

c. Tighten screws.

Close Up

a. To assemble the upper and lower back brace

(DF and DG) to the left and right cart frames

(DA and DC) rst partially assemble screws

half way into the back of the parts (DA & DC)

as shown in gure A. Do not tighten.

DA YOU WILL NEED:

X 4

Close Up

ASSEMBLY INSTRUCTIONS

Insert end caps (DJ) into the lower cart frame,

right (DA).

Back view

Close Up

ASSEMBLY INSTRUCTIONS

b. With the cart assembly in the upside down

position, rmly push the wheel assembly (DL

and DK) into the opening at the bottom of the

left lower cart frame (DC). Make sure that the

inside wheel spacers are positioned on the

outside of the left cart legs.

a. Place one wheel (DK) on the wheel axel (DL)

followed by 2 wheel washers (#4). Complete

assembly by adding the second wheel (DK), a

third wheel washer (#4), and secure with the

hitch pin (#5).

YOU WILL NEED:

4 5

X 3 X 1

Close Up, correct

assembly

Close Up, correct

assembly, back view

Close Up
