MAVEN RF SERIES

Thank you for purchasing a Maven™ RF Series Laser Rangefinder. With this purchase you

have told the world that quality, performance, and personality mean more to you than

big-brand marketing. Included here are instructions for getting your rangefinder ready for

your first adventure. Rig it up, get out there and have some fun, then let us know all about

your journey. We love hearing your stories as much we love making great products. Keep us

in the loop at [email protected].

A. POWER / FIRE Button

B. Twist-up Eyecup

C. Ocular Lens

D. Diopter Focus

E. Laser Emission Aperture

F. Laser Receiving Aperture

G. Menu Dial

H. Field / Forest Lever

I. MENU / ENTER Button

J. Battery Compartment

K. Tripod Mount

L. Lanyard Lug

PARTS OF THE RANGEFINDER:

Your RF.1 rangefinder comes with a battery already installed.

Before using:

1. Open the battery cap by lifting the battery door tab and

twisting the door counter clock-wise.

2. Remove and discard the plastic insert sitting on top of the

battery.

3. The CR2 battery is already in place.

4. Reinstall battery cap and thread on by twisting clockwise.

POWERING UP:

Once the battery is installed and the 4 steps are completed, press and release the

POWER button. The display will light up to show the unit is on and ready for ranging.

The laser will power down automatically after 10 seconds of non-use.

FIRING THE LASER:

To fire the laser, simply look through the ocular lens, press and release the POWER

button once to turn it on, align the reticle over the object you want distance to, and

press again to fire. Within the display is a “Firing Indicator” letting you know the laser

is firing. At extended distances holding FIRE button might be required.

FOCUS:

Adjust the diopter focus until the image is sharp.

GETTING STARTED:

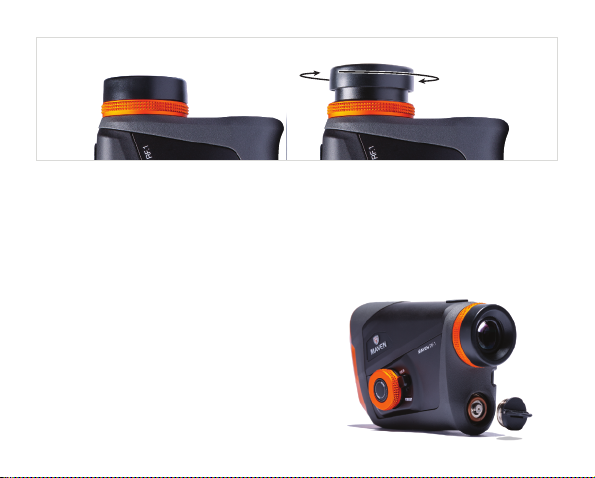

ADJUSTING THE EYECUP:

The eyecup on the RF.1 twists in and out so any user can see the full field of view and

enjoy comfortable viewing and ranging with or without glasses. For best viewing without

glasses we recommend twisting the eyecup such that it is fully extended. For best

viewing with glasses, twist the eyecup down.

REPLACING BATTERY:

To replace the battery, remove the battery cap by

lifting the battery tab. Twist counter clock-wise to

open the battery compartment and insert CR2

battery with positive end facing outwards. Once

installed, reinstall battery cap and ensure it is

threaded tightly.

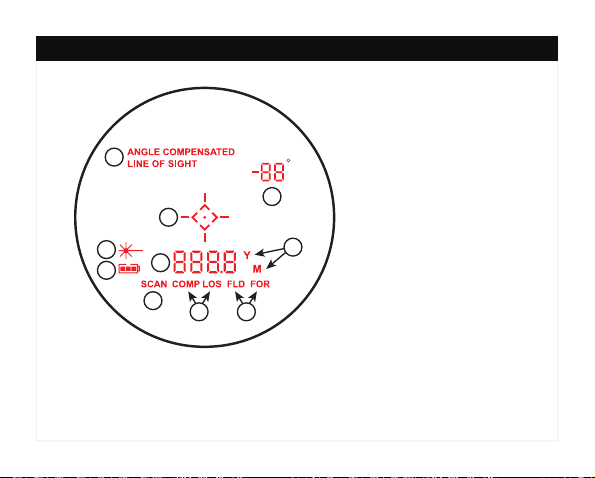

A. Angle Compensated/Line

of Sight Indicator

(Menu only)

B. Angle Compensated/Line

of Sight Indicator (Display)

C. Degree of Angle (LOS only)

D. Aiming Reticle

E. Unit of Measure Indicator

F. Field/Forest Indicator

G. Scan Indicator

H. Battery Life Indicator

I. Firing Indicator

J. Distance Display

B F

Maximum Range (Reﬂective) 4500 yds*

Accuracy up to 0.5 yds to 300 yds**

*Highly reflective targets will be acquired more quickly while less reflective targets may take longer to acquire

**Accuracy validation completed to a 2ft x 2ft white target at a distance of 300 YDS

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.

RF.1 DISPLAY

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.
