Maverick MK2 Wash Bedienungsanleitung

Quick Reference Guide

English EN

Español ES

Français FR

Nederlands NL

Maverick MK2 Wash QRG EN

About This

Guide

The Maverick MK2 Wash Quick Reference Guide (QRG) has basic product

information such as connection, mounting, menu options, and DMX values.

Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change

without notice.

Safety Notes

•DO NOT open this product. It contains no user-serviceable parts.

•DO NOT look at the light source when the product is on.

•To eliminate unnecessary wear and improve its lifespan, during periods of non-

use completely disconnect the product from power via breaker or by unplugging

it.

•CAUTION: When transferring product from extreme temperature

environments, (e.g., cold truck to warm humid ballroom) condensation may

form on the internal electronics of the product. To avoid causing a failure, allow

product to fully acclimate to the surrounding environment before connecting it

to power.

•CAUTION: This product’s housing may be hot when lights are operating.

•Mount this product in a location with adequate ventilation, at least

20 in (50 cm) from adjacent surfaces.

•DO NOT leave any flammable material within 50 cm of this product while

operating or connected to power.

•USE a safety cable when mounting this product overhead.

•DO NOT operate this product outdoors or in any location where dust, excessive

heat, water, or humidity may affect it. (IP20)

•DO NOT operate this product if the housing, lenses, or cables appear damaged.

•DO NOT connect this product to a dimmer or rheostat.

•ONLY connect this product to a grounded and protected circuit.

•ONLY use the mounting brackets or the handles to carry this product. Do not

carry by the moving head.

•In the event of a serious operating problem, stop using immediately.

•The maximum ambient temperature is 113 °F (45 °C). Do not operate this

product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your

distributor to request support or return a product. From the U.S.,

UK, Ireland,

Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What Is

Included

•Maverick MK2 Wash

•Seetronic Powerkon power cord

•2 Omega brackets with mounting hardware

•Warranty Card

•Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage

range of 100–240 VAC, 50/60 Hz.

To eliminate unnecessary wear and improve its lifespan, during periods of non-

use completely disconnect the product from

power via breaker or by

unplugging it.

Power Linking

You can link up to 2 Maverick MK2 Wash products at 120 V, 4 products at 208 V,

or 5

products at 230 V. Never exceed this number. Power linking cords can be

purchased separately.

AC Plug

Connection

Wire (U.S.)

Wire (Europe)

Screw Color

AC Live

Black

Brown

Yellow/Brass

AC Neutral

White

Blue

Silver

AC Ground

Green/Yellow

Green

Maverick MK2 Wash QRG EN

Replacing The

Fuse

1. Disconnect this product from power.

2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.

3. Remove blown fuse and replace with a good fuse of the same type and rating.

4. Screw the fuse holder cap back in place and reconnect power.

Signal

Connections

You can link the Maverick MK2 Wash to a controller or controller software using a

DMX connection, an Ethernet connection, or both. If using other Art-Net™, sACN

or Kling-Net -compatible products with the Maverick MK2 Wash

, you can control

each individually on a single network. See the User Manual for information about

how to connect and configure the product for these signals.

Control

Personalities

The Maverick MK2 Wash uses DMX, Art-Net™, sACN, WDMX, and Kling-Net

for its control personalities:

Single Control

Dual Control Movement

Dual Control Pixel

Tour (146-channel)

Advanced (122-channel)

Advanced (26-channel)

Advanced (96-channel)

Standard (68-channel)

Standard (20-channel)

Standard (48-channel)

Basic (20-channel)

Basic (8-channel)

Basic (36-channel)

Uses DMX, Art-Net™,

sACN, or WDMX

Uses DMX, Art-Net™, or

sACN

Uses DMX, Art-Net™,

sACN, or Kling-Net

DMX Connection

The Maverick MK2 Wash will work with a DMX controller using a 3- or 5-pin

DMX data connection. A DMX Primer is available from

www.chauvetprofessional.com.

Art-Net™

Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount

of DMX512 data using a

Neutrik® etherCON® RJ45 connection over a large

network. An Art-

Net™ protocol document is available from

www.chauvetprofessional.com.

Chauvet Professional recommends using unicast

Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the

layering and formatting of Architecture for Control Networks to transport DMX512

data over IP or any other ACN compatible network. ACN is maintained by the

Professional Lighting and Sound Association (PLASA).

Kling-Net

Connection

Kling-Net is a network protocol that allows auto configuration of display devices

using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos

software manual for detailed instructions on programming this product.

For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000

Mbps) Ethernet card and network router.

ArKaos Kling-Net will only run Standard Pixel or Basic Pixel modes.

Maverick MK2 Wash QRG EN

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting

points

per product. Make sure the mounting clamps are capable of supporting the

weight of the product. For our Chauvet line of mounting clamps, g

o to

http://trusst.com/products/.

Product

Mounting

Diagram

Touchscreen

Control Panel

The Maverick MK2 Wash has a touchscreen display as well as 6 control buttons.

The touchscreen can be locked and calibrated through the Setup

options in the

menu.

Control Panel

Description

Button

Function

Navigates upwards through the menu list or increases the

numeric value when in a function

Exits from the current menu or function

Navigates downwards through the menu list or decreases the

numeric value when in a function

Navigates leftwards through the menu list

Enables the currently displayed menu or sets the currently

selected value into the selected function

Navigates rightwards through the menu list

In Dual Control mode, the movement protocol and the pixel protocol cannot be the same.

Overhead Mounting

Floor Mounting

Mounting

Clamp

Safety Cable

Omega Bracket

< >

Maverick MK2 Wash QRG EN

Menu Map

Programming Levels

Description

Control Settings

Control Settings Main Level

Control Settings

Single

Control

DMX Personality

Basic

Sets the DMX personality, from

Basic (20CH), Standard (68CH),

Advanced (122CH) or Tour (146CH)

Standard

Advanced

Tour

Start Address

001–512

Sets the DMX starting address

ArtNet Personality

Basic

Sets the Art-Net™ personality, from

Basic (20CH), Standard (68CH),

Advanced (122CH) or Tour (146CH)

Standard

Advanced

Tour

Start Address

001–512

Sets the Art-Net™ starting address

Universe

0–254

Sets the Art-Net™ universe

sACN Personality

Basic

Sets the sACN personality, from

Basic (20CH), Standard (68CH),

Advanced (122CH) or Tour (146CH)

Standard

Advanced

Tour

Start Address

001–512

Sets the sACN starting address

Universe

0–255

Sets the sACN universe

WDMX Personality

Basic

Sets the WDMX personality, from

Basic (20CH), Standard (68CH),

Advanced (122CH) or Tour (146CH)

Standard

Advanced

Tour

Start Address

001–512

Sets the WDMX starting address

Dual

Control

Movement

DMX Personality

Basic

Sets the DMX personality, from

Basic (8CH), Standard (20CH),

Advanced (26CH) or Tour (146CH)

Standard

Advanced

Tour

Start

Address

001–512 Sets the DMX starting address

ArtNet

Personality

Basic

Sets the Art-Net™ personality, from

Basic (8CH), Standard (20CH),

Advanced (26CH) or Tour (146CH)

Standard

Advanced

Tour

Start

Address

001–512 Sets the Art-Net™ starting address

Universe

0–254

Sets the Art-Net™ universe

sACN

Personality

Basic

Sets the sACN personality, from

Basic (8CH), Standard (20CH),

Advanced (26CH) or Tour (146CH)

Standard

Advanced

Tour

Start

Address

001–512 Sets the sACN starting address

Universe

0–255

Sets the sACN universe

Pixels

DMX Personality

Basic

Sets the DMX personality, from

Basic (36CH), Standard (48CH),

Advanced (96CH) or Tour (146CH)

Standard

Advanced

Tour

Start

Address

001–512 Sets the DMX starting address

ArtNet Personality

Basic

Sets the Art-Net™ personality, from

Basic (36CH), Standard (48CH),

Advanced (96CH) or Tour (146CH)

Standard

Advanced

Tour

Maverick MK2 Wash QRG EN

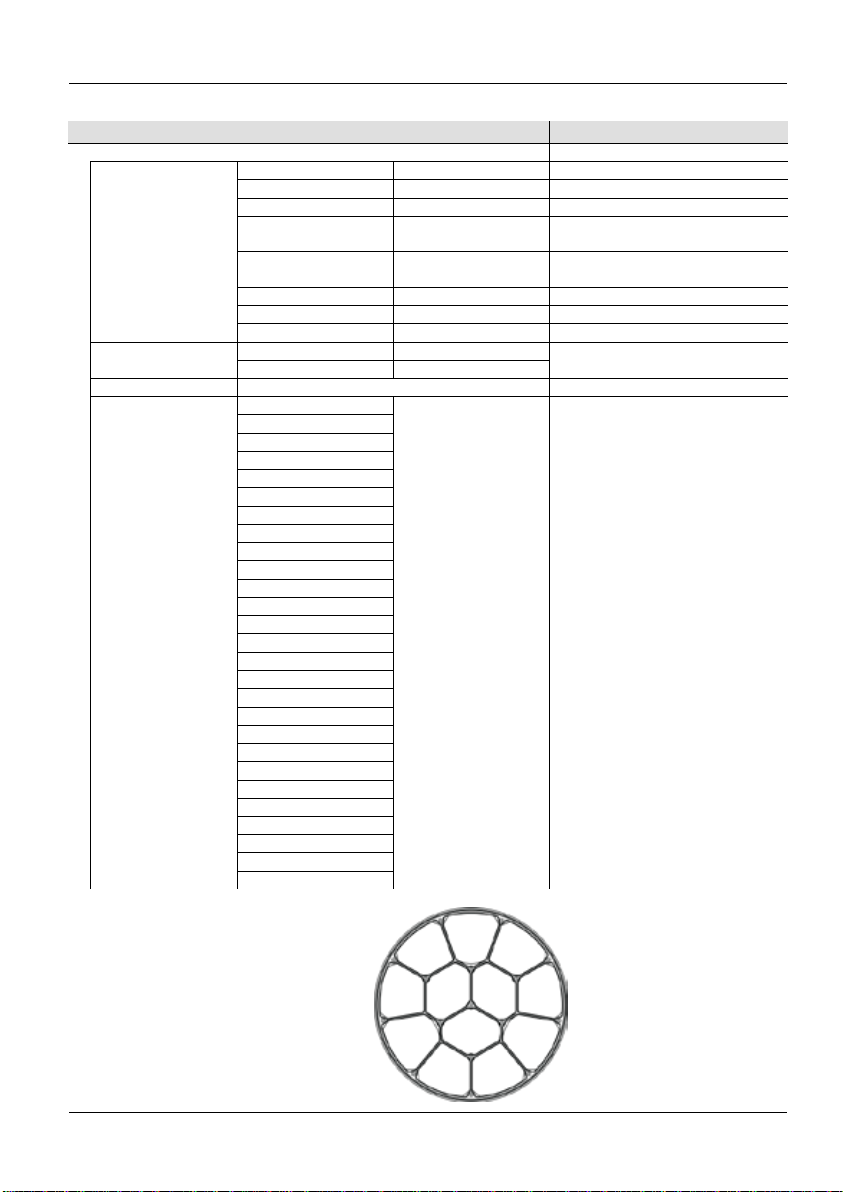

Menu Map (cont.)

Programming Levels

Description

Control Settings

Dual

Control

(cont.)

Pixels

(cont.)

ArtNet

(cont.)

Start

Address

001–512 Sets the Art-Net™ starting address

Universe

0–254

Sets the Art-Net™ universe

sACN

Personality

Basic

Sets the sACN personality, from

Basic (36CH), Standard (48CH),

Advanced (96CH) or Tour (146CH)

Standard

Tour

Advanced

Start

Address

001–512 Sets the sACN starting address

Universe

0–255

Sets the sACN universe

KlingNet Personality

Basic

Sets the Kling-Net personality, from

Basic (36CH) or Standard (48CH)

Standard

Test Mode

Test Mode Main Level

Test Mode

Auto test

Auto test all functions

Manual test

Pan

000–255 Manually control and test all

settings through the control panel

Tilt

P/T Speed

Red

Green

Blue

White

CTC

Color

Pattern

LED Macro

LED Ma. Speed

LED Ma. Fade

Background

Background Dim.

Dimmer

Shutter

Function

Zoom

Setup

Setup Main Level

Setup

Network Settings

Ethernet To DMX

Do not convert ethernet in to DMX

YES

Convert ethernet in to DMX out

IP Mode

Manual

Manually set IP address

DHCP

Network sets IP address

Static

Product sets IP address

xxx.xxx.xxx.xxx

Set IP address in Manual mode

SubMask

xxx.xxx.xxx.xxx

Set Subnet Mask in Manual mode

Pan Reverse

Normal pan

YES

Reversed pan

Tilt Reverse

Normal tilt

YES

Reversed tilt

Zoom Reverse

Normal Zoom

YES

Reversed Zoom

Screen Reverse

Normal display

YES

Inverted display

AUTO

Automatic display orientation

Pan Angle

540

540° pan range

360

360° pan range

180

180° pan range

Maverick MK2 Wash QRG EN

Menu Map (cont.)

Programming Levels

Description

Setup (cont.)

Setup Main Level (cont.)

Setup (cont.)

Tilt Angle

540

540° tilt range

270

270° tilt range

180

180° tilt range

BL. O. P/T Move

Do not black out while pan/tilt

YES

Blackout while pan/tilt

Calibration

Keep current settings

YES

Calibrate touchscreen

Touchscreen Lock

Display responds to touch

YES

Display does not respond to touch

Lock Screen

Lock the buttons and touch screen

Passcode: 0920

YES

Swap XY

Do not swap pan and tilt

YES

Pan controls tilt, tilt controls pan

XY Mode

Slow

Slow pan and tilt

Fast

Fast pan and tilt

WDMX Reset

Do not reset WDMX

YES

Reset WDMX

Backlight Timer

30S

Display turns off after 30 seconds

Display turns off after 1 minute

Display turns off after 5 minutes

Display stays on

Loss of Data

Hold

Holds last signal received

Blacks out fixture

Fans Auto

Fan speed according to product

temperature

Full

Fan speed set on high

ECO

Quiet mode

C Mixing Mode

RGBW

Additive color mixing (0–100%)

CMY

Subtractive color mixing (100%–0)

Dimmer Curve

Linear

Set the dimmer curve

Square

I Squa

SCurve

Dimmer Speed

Smooth

Change the dimmer speed

Fast

Color Balance

Red

100–255

Sets red LED maximum value

Green

Sets green LED maximum value

Blue

Sets blue LED maximum value

White

Sets white LED maximum value

Reset Function

Pan

Reset individual functions or all

functions from start-up

YES

Tilt

YES

All

YES

Factory Settings

Reset to factory default settings

YES

Maverick MK2 Wash QRG EN

Menu Map (cont.)

Programming Levels

Description

Sys Info

Sys Info Main Level

Sys Info

Fixture Information

Ver

Shows firmware version

Running Mode

Xxx

Shows current running mode

Address

xxx

Shows current starting address

Temperature xx

Shows current product

temperature in °C

Fixture Hours xxxxx

Shows number of hours product

has been powered on

xxx.xxx.xxx.xxx

Shows current IP address

SubMask

xxx.xxx.xxx.xxx

Shows current Subnet Mask

MAC

xx.xx.xx.xx.xx.xx

Shows current MAC address

Fan Information

Head Fan1 Speed

xxxx

Shows speed of head fans in rpm

Head Fan2 Speed

xxxx

Error Information

No Error!*

Shows any errors, or No Error!

Channel

Information

Frequency

xxx Shows all current values from

input signals, 000–255

Pan

Pan Fine

Tilt

Tilt Fine

CTC

Color

Pattern

LED Macro

LED Ma. Speed

LED Ma. Fade

Background

Background Dim.

Bg. Dim. Fine

Dimmer

Dimmer Fine

Shutter

Zoom

Function

Red (all, 1–12)

Red Fine (all, 1–12)

Green (all, 1–12)

Green Fine (all, 1–12)

Blue (all, 1–12)

Blue Fine (all, 1–12)

White (all, 1–12)

White Fine (all, 1–12)

Zones For

Pixel

Control

Maverick MK2 Wash QRG EN

Single Control Values

Tour Mode

(Advanced)

(146CH)

Channel

Function

Value

Percent/Setting

Pan

000ó255

0–100%

Pan Fine

000ó255

0–100%

Tilt

000ó255

0–100%

Tilt Fine

000ó255

0–100%

5 CTC

000

No Function

001ó255

Color Temperature 19000K – 2700K

6 Color

000

No Function

001ó255

Color Macros

7 On/Off Preset

000ó009

No function

010ó255

On/Off presets (Indexed)

8 LED Macro /

Auto Program

000ó015

No function

016ó135

LED macros

136ó255

Auto programs

9 LED Macro / Auto

Program Speed

000ó127

Fast to slow

128

Hold

129ó255

Slow to fast

LED built-in delay

000ó255

Fast to slow

11 Background Color

000

No function

001ó002

white 2700K(R=156

，

G=118

，

B=0

，

W=63)

003

004

white 3200K(R=156

，

G=141

，

B=5

，

W=89)

005ó006

white 4200K(R=156

，

G=141

，

B=14

，

W=255)

007

008

white 5600K(R=156

，

G=207

，

B=54

，

W=255)

009ó010

white 8000K(R=130

，

G=255

，

B=96

，

W=255)

011

blue

（

R=0

，

G=0

，

B=255

，

W=0

）

012

048

R=0

，

G+

，

B=255

，

W=0

049

cyan

（

R=0

，

G=255

，

B=255

，

W=0

）

050

086

R=0

，

G=255

，

B-

，

W=0

087

green

（

R=0

，

G=255

，

B=0

，

W=0

）

088

124

R+

，

G=255

，

B=0

，

W=0

125

yellow

（

R=255

，

G=255

，

B=0

，

W=0

）

126

162

R=255

，

G-

，

B=0

，

W=0

163

red

（

R=255

，

G=0

，

B=0

，

W=0

）

164ó200

R=255

，

G=0

，

B+

，

W=0

201

magenta

（

R=255

，

G=0

，

B=255

，

W=0

）

202ó238

R+

，

G=0

，

B=255

，

W=0

239

blue

（

R=0

，

G=0

，

B=255

，

W=0

）

240ó247

Color change, fast to slow

248ó255

Color jump, fast to slow

BC Dimmer

000ó255

0–100%

BC Fine Dimmer

000ó255

0–100%

Main Dimmer

000ó255

0–100%

Fine Main Dimmer

000ó255

0–100%

16 Shutter

000ó019

Off

020ó024

025ó064

Strobe 1, fast to slow

065ó069

070ó084

Strobe 2 (Fast on, slow off) fast to slow

085ó089

Maverick MK2 Wash QRG EN

Tour Mode

Channel

Function

Value

Percent/Setting

090ó104

Strobe 3 (Slow on, fast off) fast to slow

105ó109

110ó124

Strobe 4 (Random) fast to slow

125ó129

130ó144

Strobe 5 (Random fast on, slow off) fast to slow

145ó149

150ó164

Strobe 6 (Random slow on, fast off) fast to slow

165ó169

170ó184

Strobe 7 (Pulse) fast to slow

185ó189

190ó204

Strobe 8 (Random pulse) fast to slow

205ó209

210ó224

Strobe 9 (Fade in, fade out) fast to slow

225ó229

230ó244

Strobe 10 (Random pulse) fast to slow

245ó255

Zoom

000ó255

Narrow to wide

18 Control

000ó009

No function

010ó014

Pan/tilt blackout

015ó019

No function (reserved for future use)

020ó024

RGBW color mixing mode (additive)

025ó029

CMY color mixing mode (subtractive)

030ó049

No function (reserved for future use)

050ó054

Pan reset

055ó059

Tilt reset

060ó064

Zoom reset

065ó069

No function (reserved for future use)

070ó074

Reset all

075ó109

No function (reserved for future use)

110ó114

Pan/tilt speed fast

115ó119

Pan/tilt speed slow

120ó124

Fan mode slow

125ó129

Fan mode full

130ó134

Fan mode auto

135ó139

Dimmer mode fast

140ó144

Dimmer mode slow

145ó255

No function (reserved for future use)

R (C) Main

000ó255

0–100%

R (C) Main Fine

000ó255

0–100%

G (M) Main

000ó255

0–100%

G (M) Main Fine

000ó255

0–100%

B (Y) Main

000ó255

0–100%

B (Y)Main Fine

000ó255

0–100%

W Main

000ó255

0–100%

W Main Fine

000ó255

0–100%

Dimmer 1

000ó255

0–100%

Dimmer 1 Fine

000ó255

0–100%

R (C) 1

000ó255

0–100%

R (C) 1 Fine

000ó255

0–100%

G (M) 1

000ó255

0–100%

G (M) 1 Fine

000ó255

0–100%

B (Y) 1

000ó255

0–100%

Andere Handbücher für MK2 Wash

Inhaltsverzeichnis

Sprachen:

Andere Maverick Wohnraumbeleuchtung Handbücher

Maverick

Maverick MK2 Spot Bedienungsanleitung

Beliebte Wohnraumbeleuchtung Handbücher anderer Marken

JONATHAN Y

JONATHAN Y JYL5019A Bedienungsanleitung

JONATHAN Y

JONATHAN Y JYL6007A Bedienungsanleitung

Philips

Philips Ledino 31606/11/16 Bedienungsanleitung

Salus

Salus UG600 Bedienungsanleitung

Safavieh Lighting

Safavieh Lighting CANDRI TBL4427A Bedienungsanleitung

Hunter

Hunter Bullet Spotlight Kit Gebrauchsanweisung

Philips

Philips Ledino 16811/87/16 Bedienungsanleitung

Philips

Philips 405441213 Bedienungsanleitung

Philips

Philips Halogen Light Bedienungsanleitung

Pentair

Pentair GLOBRITE Bedienungsanleitung

Philips

Philips 55592-30-16 Bedienungsanleitung

Livoo

Livoo Night light Bedienungsanleitung

Schwaiger

Schwaiger NFL45 Bedienungsanleitung

FRITZ HANSEN

FRITZ HANSEN AQ01 PLUG-IN Bedienungsanleitung

MOOD

MOOD CORSIN JY-16 Bedienungsanleitung

Safavieh Lighting

Safavieh Lighting KREMP TBL4409A Bedienungsanleitung

JONATHAN Y

JONATHAN Y JYL8019 Bedienungsanleitung

XTRASUN

XTRASUN XTDEOKT1 Bedienungsanleitung
