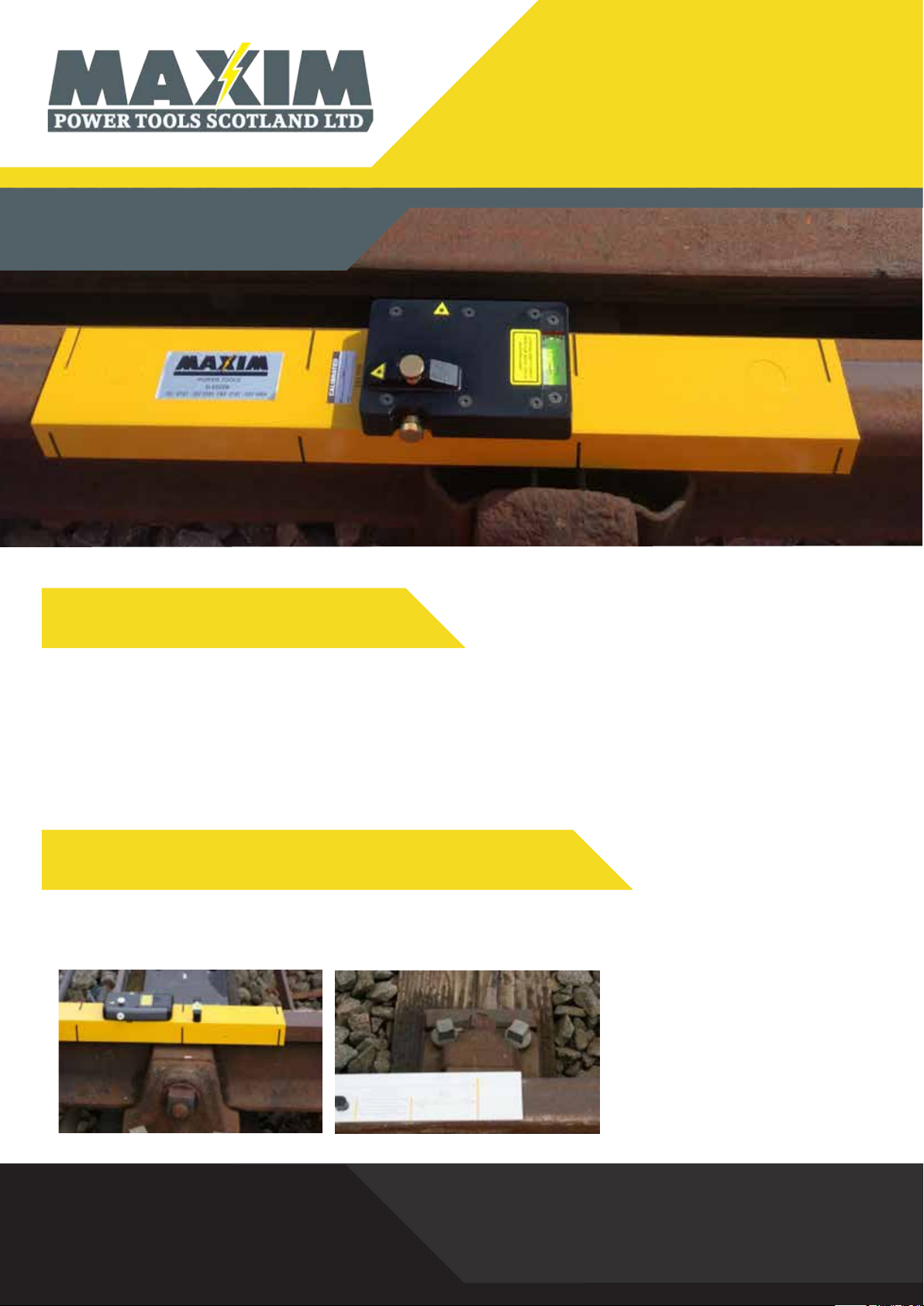

Lase-Align Kit
Rail Alignment Gauge
www.maximpower.co.uk
+44 (0) 141 552 5591
enquiries@maximpower.co.uk
40 Couper St, Glasgow, G4 0DL
Switch tip alignment
1. Place Lase-Align onto rail head aligning the relevant datum line (90mm or 255mm) with bearer one (toe) stock rail bolt. The
integral magnets will hold the Lase-Align in place against the field stock rail face.
2. Switch on the laser.
3. Place Small Target 039/127031 on opposing rail with the relevant datum line with bearer one (toe) stock rail bolt.
4. Adjust Lase-Align on rail head until red laser dot shows on the opposing Small Target
indicating the point exactly opposite.
Correct positioning of Drill holes
Fix Lase Align Unit over first hole centre line. Turn on laser and the red dot will indicate exactly where on the opposite rail
hole should be drilled. Mark rail accordingly.
Applications
Applications
User Instructions

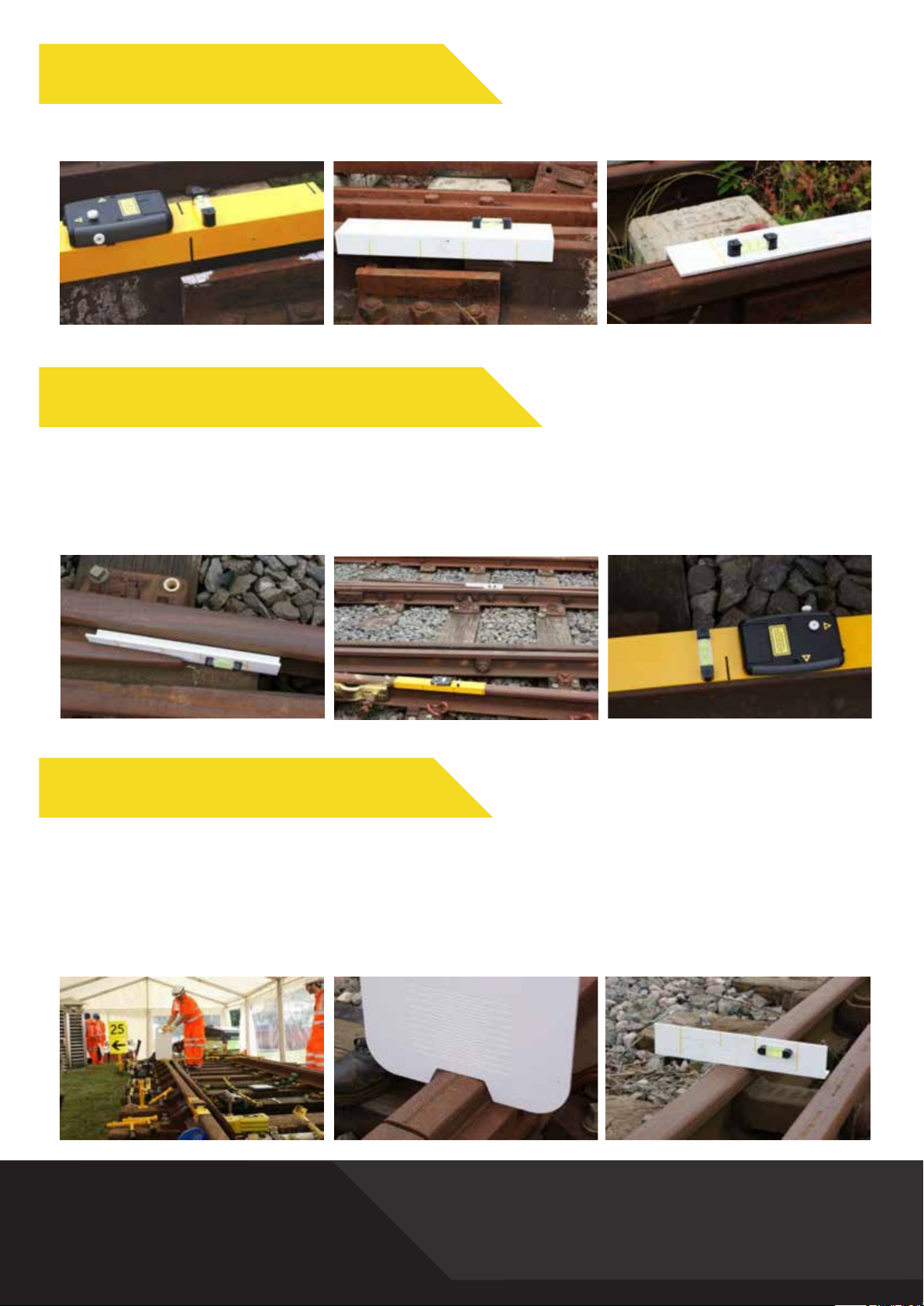

Adjustment of Switches
Place Lase-Align on track with the datum in line with adjustment switch tip. Place Small Target over opposite switch tip
Crossing Nose Alignment
Measure nose to nose measurement from the switching in accordance with NR/L2/TRK/2049 and mark the rail head using
Small Target 039/127031.
Place Small Target in flange way of adjacent crossing with the centre mark directly in line behind the nose.
The dot should be on the centreline of the Small Target.
www.maximpower.co.uk
+44 (0) 141 552 5591
enquiries@maximpower.co.uk
40 Couper St, Glasgow, G4 0DL
Rail Dip Measurement
Select the two datum points and place the Lase Align on first high point, use Large Target 039/127032 on the next high point,
adjust the dot using one of the adjusting screws to position it on lowest line of Large Target, on the vertical centre line.
Ensure Lase-Align base and target are both horizontal using levels fitted.
Move the Large Target towards the Lase-Align and keep it level. The dot on target will show the low points relative to datum
line.
The Small Target will perform the same function as the Large Target if preferred
Applications
Applications
Applications
www.maximpower.co.uk
+44 (0) 141 552 5591
enquiries@maximpower.co.uk
40 Couper St, Glasgow, G4 0DL

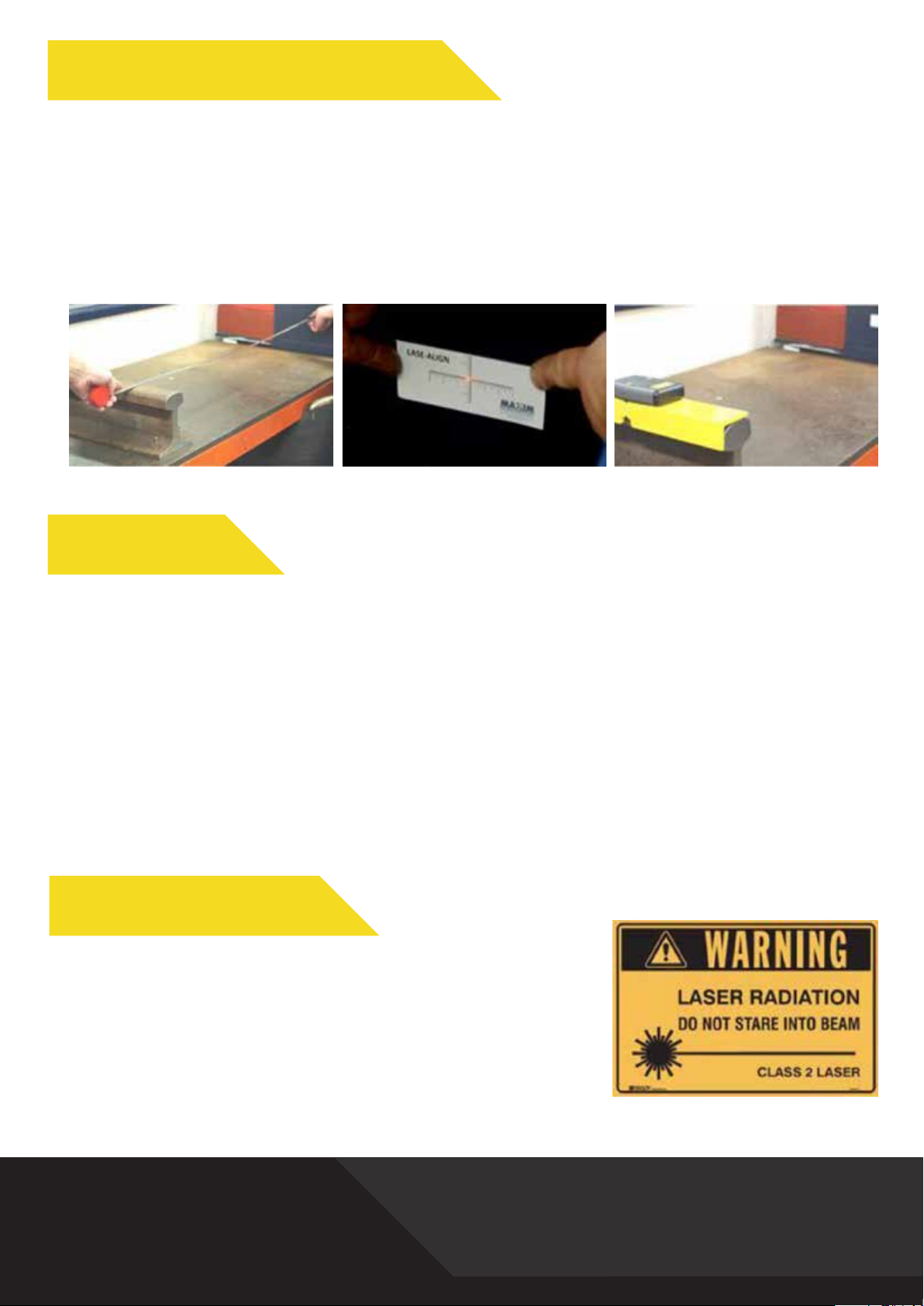

Lase-Align Calibration
Securely fix a short piece of new rail to the floor or fixed bench parallel to and 1435mm away from a vertical face such as a
wall.
Make a vertical permanent mark or cut on the side of the rail head which is facing the wall at its centre.
Place Lase-Align on rail, aligning the notch with the mark on the rail head and switch on the laser pointing towards the wall.
Fix the self-adhesive target supplied to the wall with the red dot positioned exactly on the centre cross of the target.
Before use, the gauge can be checked for accuracyon the calibration rail. Check fixed laser to ensure that it is within the
required field of accuracy.
Safety
NEVER look directly at the laser beam
NEVER shine the laser at anything other than the rail faces and
particularly not towards another person.
NEVER point the laser towards oncoming trains or vehicles as the
light can obscure the drivers vision.
ALWAYS switch off the lasers when not in use
ALWAYS return the gauge to its protective case when not in use
Part Numbers
Lase-Align Kit 039 / 127033
Lase-Align 039 / 127030
Small Target 039 / 127031
Large Target 039 / 127032
