Maxxus SpeedBike S1 Montageanleitung
SpeedBike
S1
ENG
INSTALLATION & OPERATING MANUAL
2
Index
Safety Instructions 3
Overall View of the Device 4
Scope of Delivery 5 – 6
Assembly 6 – 11
Transport 12
Location & Storage 12
Cleaning & Maintenance 12
Adjusting the Sitting Position 13 – 15
Adjusting the Braking Resistance 16
Emergency Stop 16
Cockpit 17 – 19
Pulse & Heart Rate 20 – 21
Training Recommendations 22 – 23
Technical Details 24
Disposal 24
FAQ 25
Recommended Accessories 25
Exploded Drawing 26
Spare Parts List 27 – 29
Warranty 30
Service Contract 31
© 2022 MAXXUS Group GmbH & Co. KG
All rights reserved / All rights reserved
This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.
Errors, colour and technical modication subject to change, reproduction as well as electronic duplication only with written permission of MAXX-
US Group GmbH & Co. KG.
3
ENG
Safety Instructions
Before you start exercising, be sure to read the entire user guide, especially the safety information, the maintenance & cleaning in-
formation and the training information. Take care too that everyone who uses this training device is also familiar with this information
and observes it.
Be sure to carefully follow the maintenance and safety instructions in this manual.
This training device may only be used for its specic purpose. Improper use may present a risk of accidents, damage to health or
damage to the exercise device. No liability whatsoever is accepted by the distributor for injury or damage caused by improper use.
Power connection (only applies to devices with an external electrical connection)
−A mains voltage of 220-230V is required for the operation of the device.
−The exerciser may only be connected to a professionally installed, earthed, 16 A, fused single socket with the mains cable
supplied.
− The training device is switched on and o only using the ON / OFF switch.
−Always disconnect the power plug from the power outlet when moving the exerciser.
−Before carrying out any cleaning, maintenance or other work, always disconnect the mains plug from the socket.
−When connecting the mains plug, do not use socket strips or cable reels.
−If an extension cable is required, then it must comply with DIN standards, VDE regulations and guidelines, technical rules
issued by other European Union member states or other states which are party to the Agreement on the European Economic
Area.
−Always lay the power cord in such a way that it can neither be damaged nor is a tripping hazard.
−In operating or standby mode, electrical devices such as mobile phones, PCs, Televisions (LCD, plasma, tube, etc.), game con-
soles etc. will emit electro-magnetic radiation. For this reason, all these types of devices should be kept away from your training
device as they could lead to malfunction, disturbances or false outputs being shown in heart rate measurements.
Training environment
−Select a suitable space for your training device to provide an optimum amount of free space and highest level of safety. You
should leave a free space of at least 100 cm in front of and behind the device and a minimum of 100 cm to each side of the
training device.
−Ensure good ventilation and that optimal oxygen is available during exercise.Avoid draughts.
−Your exercise equipment is not suitable for outdoor use, so storage and training is only possible in temperate, clean dry rooms.
−Do not operate or store your training device in wet areas, such as swimming pools, saunas, etc.
−Make sure that your exercise equipment is always mounted on a level clean surface is. Unevenness in the ground must be
removed or compensated.
− To protect delicate oors, such as wood, lamina, tiles, etc. and from damage such as scratches, it is recommended to put a oor
protection (carpet piece, mat, etc.) permanently under the device. Make sure that the pad is secured against slipping.
−Do not place the exerciser on pale or white carpets, as the feet of the appliance may cause marks.
−Make sure that your exercise equipment, including the power cord, does not come into contact with hot objects and there is a
sucient safety distance from any heat source, such as radiators, stoves, open replaces, etc.
Personal safety instructions for training
−Remove the batteries or mains cable (if present) when the training device is not in use to avoid inappropriate or uncontrolled
use by any other third party, e.g. children
− You should make a health check with your doctor before your rst workout.
−If you feel any physical discomfort or experience breathing problems, stop training immediately.- Always start your workouts
with a light load and increase it during the course of your workout evenly and gently. Reduce the load towards the end of your
training session.
−Be sure to wear suitable sportswear and sports shoes during exercise. Note that loose clothing can get caught in the running
belt or rollers during exercise.
−Your exercise equipment can only be used by one person at a time.
−Check whether your device is in perfect condition before every training session. Never use your exerciser if it has any faults or
defects.
−Independent repair work can only be done after agreement and approval from our service department has been received. Only
original spare parts may be used.
−Your exercise equipment must be cleaned after each use. In particular, remove all residues caused by body perspiration or
other liquids.
−Always make sure that liquids (drinks, body sweats, etc.) never enter the vibrating plate or penetrate the cockpit, as this leads to
corrosion and damage to the mechanical and electronic components.
−Your exercise equipment is not suitable for use by children.
− During training, third parties - especially children and animals - must have a sucient safety zone.
−Before any training, check whether there are objects under your training device and remove them. Never exercise with your
exerciser when there are objects underneath.
−Always make sure that your exerciser is not misused by children as a toy or climbing equipment.
−Make sure that you and third parties never bring body parts close to moving mechanisms.
The construction of this training device is based on state-of-the-art technology and highest modern technical safety standards. This
training device is to be used by adults only! Extreme misuse and/or unplanned training can cause damage to your health!
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
4

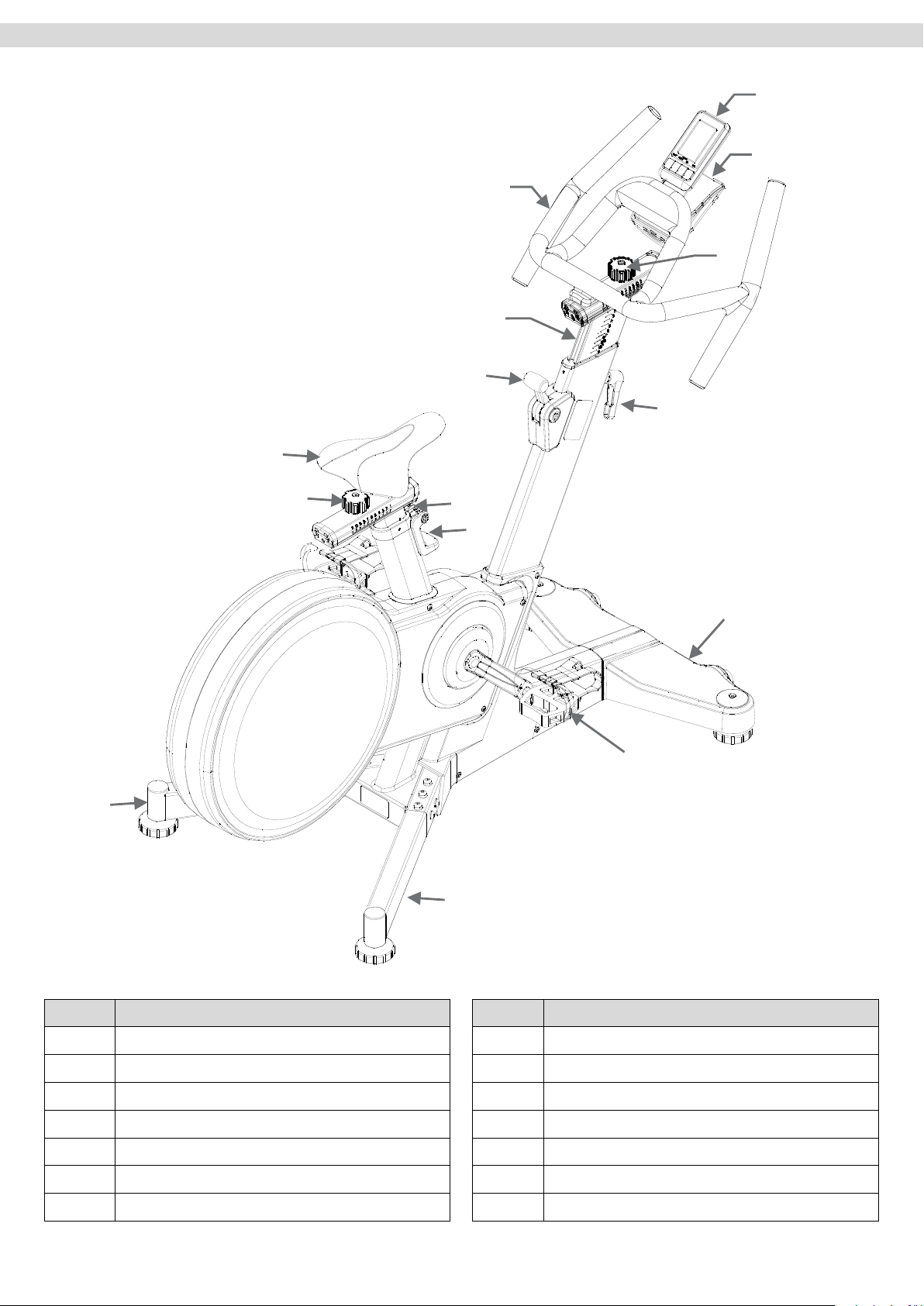

No. Description
1 Cockpit
2 Handle to adjust the position of the handlebars
3 Handlebars
4Handlebar Tube
5 Emergency Stop Lever
6 Bottle Holder
7 Lever to adjust the height of the handlebars
No. Description
8 Stand with transport rollers
9 Pedal
10 Stand, rear
11 Lever to adjust the height of the seat
12 Seat tube
13 Knob to adjust the seat backwards and forwards.
14 Seat
Overall View of the Device
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
1 4 5 6
41L/R 47 48 53
59 73 118 119
5
ENG

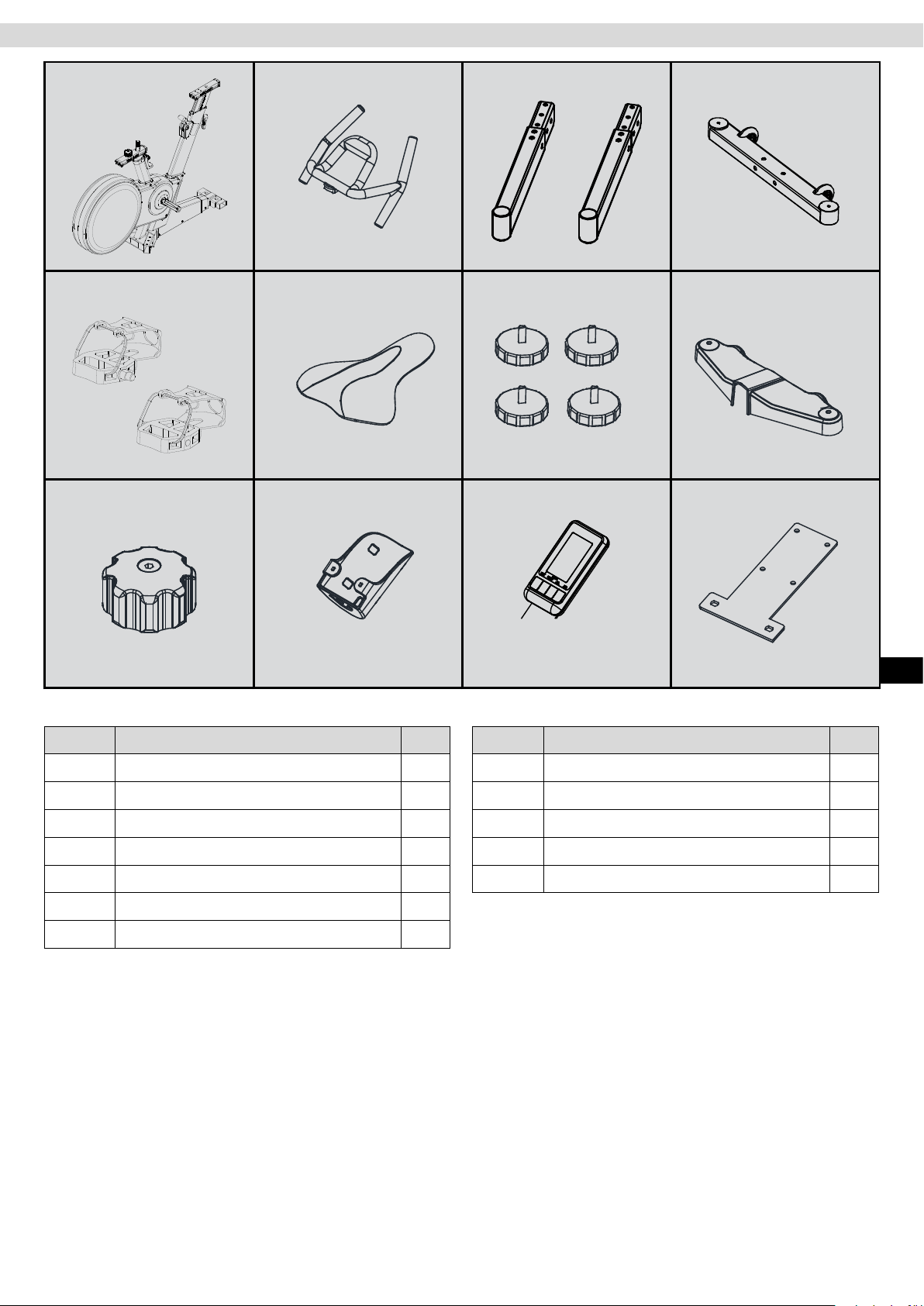

No. Description Qty.
1. Base Frame 1
4 Handlebars 1
5 Stand, rear 2
6 Stand, front 1
41 Pedal L (left)/ Pedal R (right) 2
47 Seat 1
48 Stand feet 4
No. Description Qty.
53 Cover stand, front 1
59 Knob 1
73 Holder 1
118 Cockpit 1
119 Cockpit Bracket 1
Scope of Delivery
81 94 97 102 103
109 110 111 120 121
112 113 114 115 117
6
Scope of Delivery
Assembly

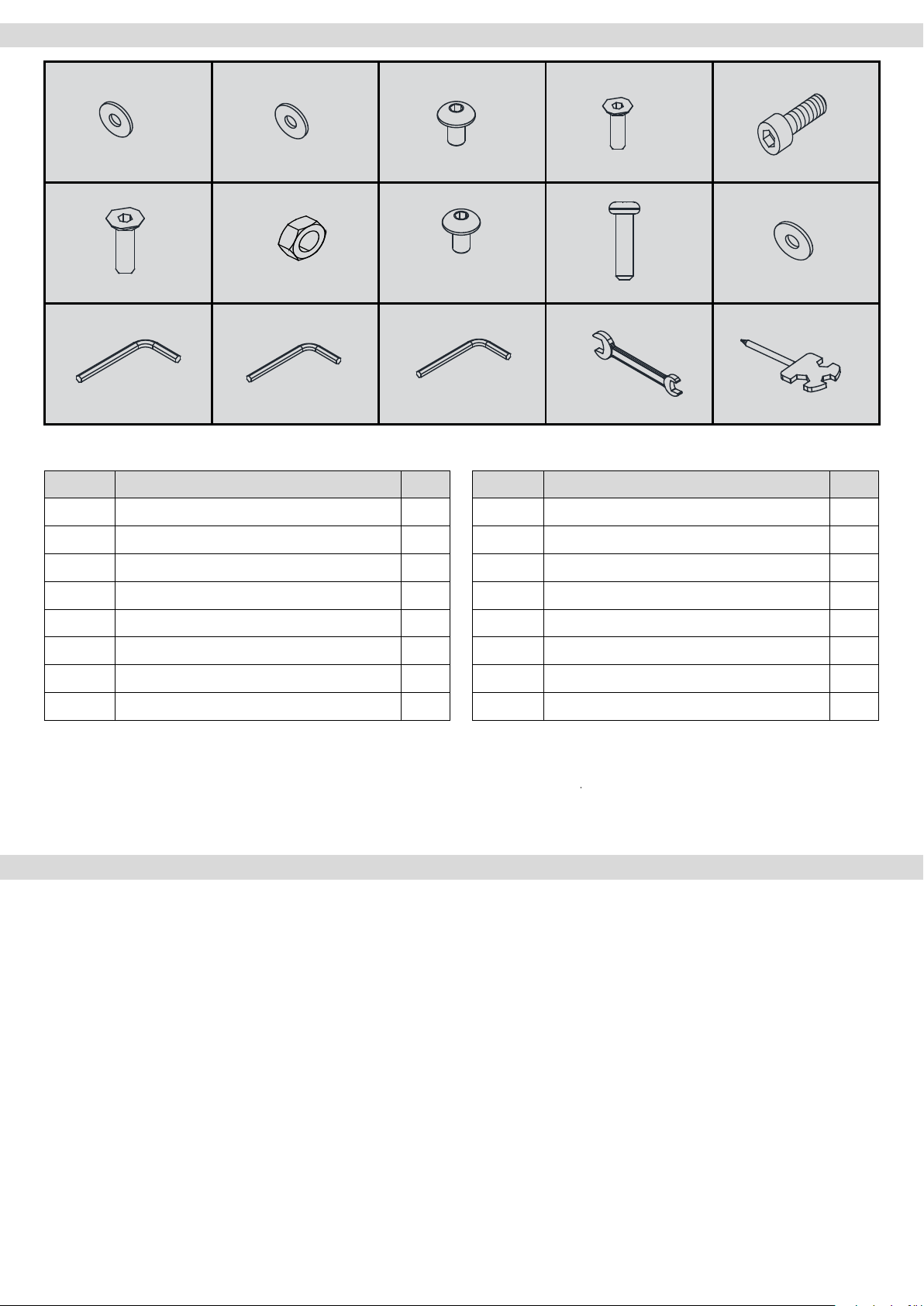

No. Description Qty.
81 Washer Ø6xØ16x1,6T 2
94 Washer Ø9xØ161,6T 10
97 Allen screw M8x12 10
102 Allen screw M6x20 2
103 Allen screw M6x12 4
109 Allen screw M10x30 2
110 Nut M10 4
111 Allen screw M6x15 2
No. Description Qty.
120 Allen screw M4x12 4
121 Washer Ø4,3xØ12x0,8T 4
112 Allen key 6mm 4
113 Allen key 5mm 1
114 Allen key 4mm 1
115 Spanner 13 / 15 1
117 Phillips screwdriver - combi 1
Carefully unpack all of the delivered items. Two people are required as some parts of your exercise equipment
are bulky and heavy. Check that all of the fastening material (screws, nuts, etc.) and components are there
before starting assembly.
Carefully carry out the installation as damage that has arisen due to assembly errors are not covered by the
warranty or guarantee. Read the instructions carefully before starting, follow the sequence of installation steps
exactly and follow the instructions for each individual step. Pay particular attention to your personal safety dur-
ing pay attention to your personal safety. Wear suitable work gloves, have a second person help you with heavy
and and bulky components and secure moving components so that no parts of the body can be trapped during
assembly.
Installation of the device must be carried out by competent adults. Perform the assembly in a location that is
level, clean and free from obstructions. Carry out the assembly with two people. Only start training after fully
completing the installation.
6
7
ENG

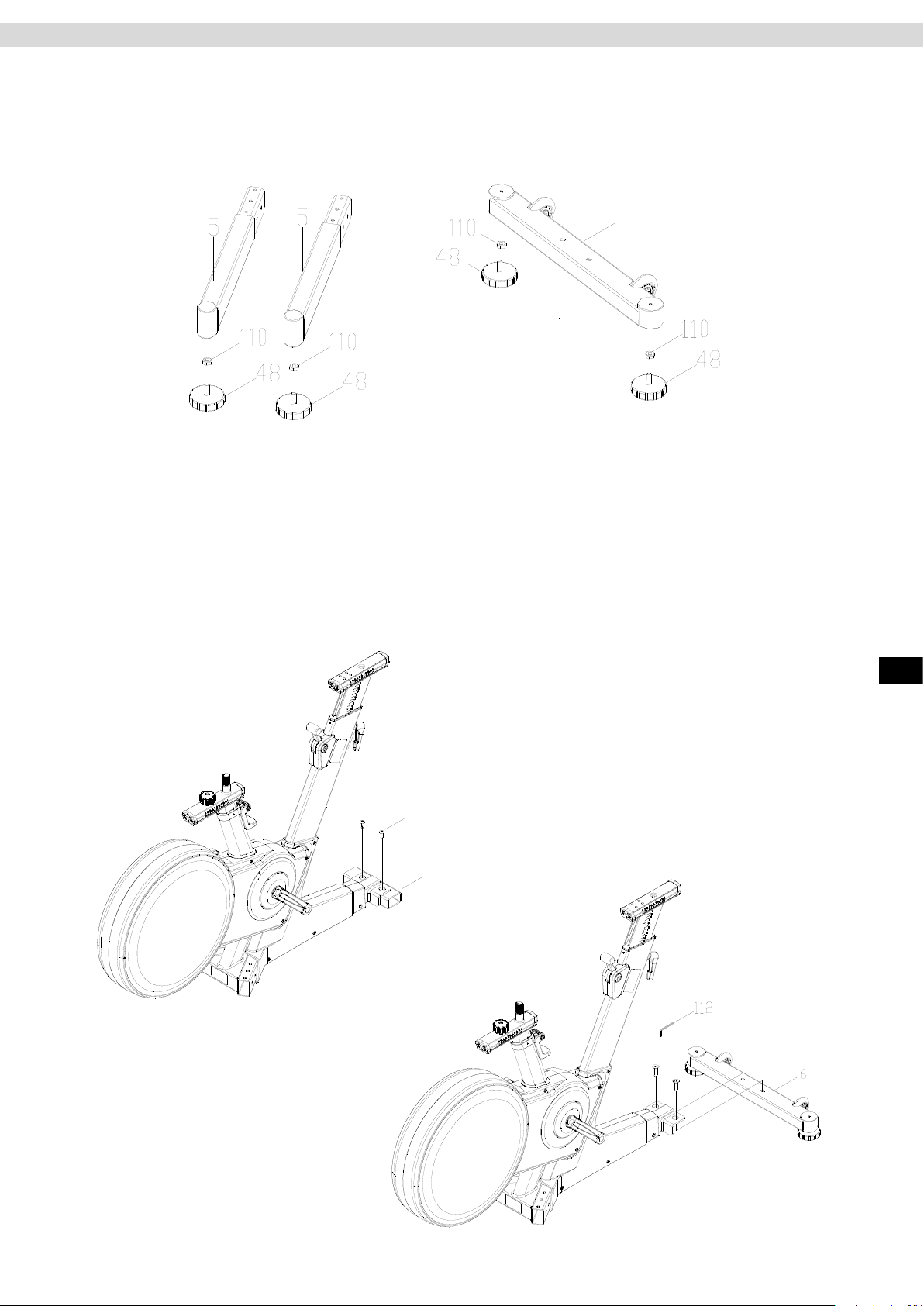

Step 1: Assembly of the Stand Feet
Screw a nut M10 (110) on each of the four stand feet (48)
Now insert a stand foot to the underside of each of the rear stands (5) and the other two stand feet to the under-
side of the front stand (6).
Step 2: Assembly of the Front Stand
Loosen and remove the pre-assembled screws M10x20 and then remove the transport lock.
Now x the front stand (6) using two washers Ø9xØ161,6T (94) and two Allen screws M8x12 (97).
Assembly
Allen screw M10x20
Transport lock
8
Assembly
Step 3: Assembly of the Rear Stands
Insert the two rear stands (5) into the mounts on the base frame and x them from above using three washers
Ø9xØ161,6T (94) and three Allen screws M8x12 (97) on each stand.
Step 4: Assembly of the Seat
Place the seat (47) onto the seat stem and x it on using the spanner (115).
22
9
ENG
Assembly

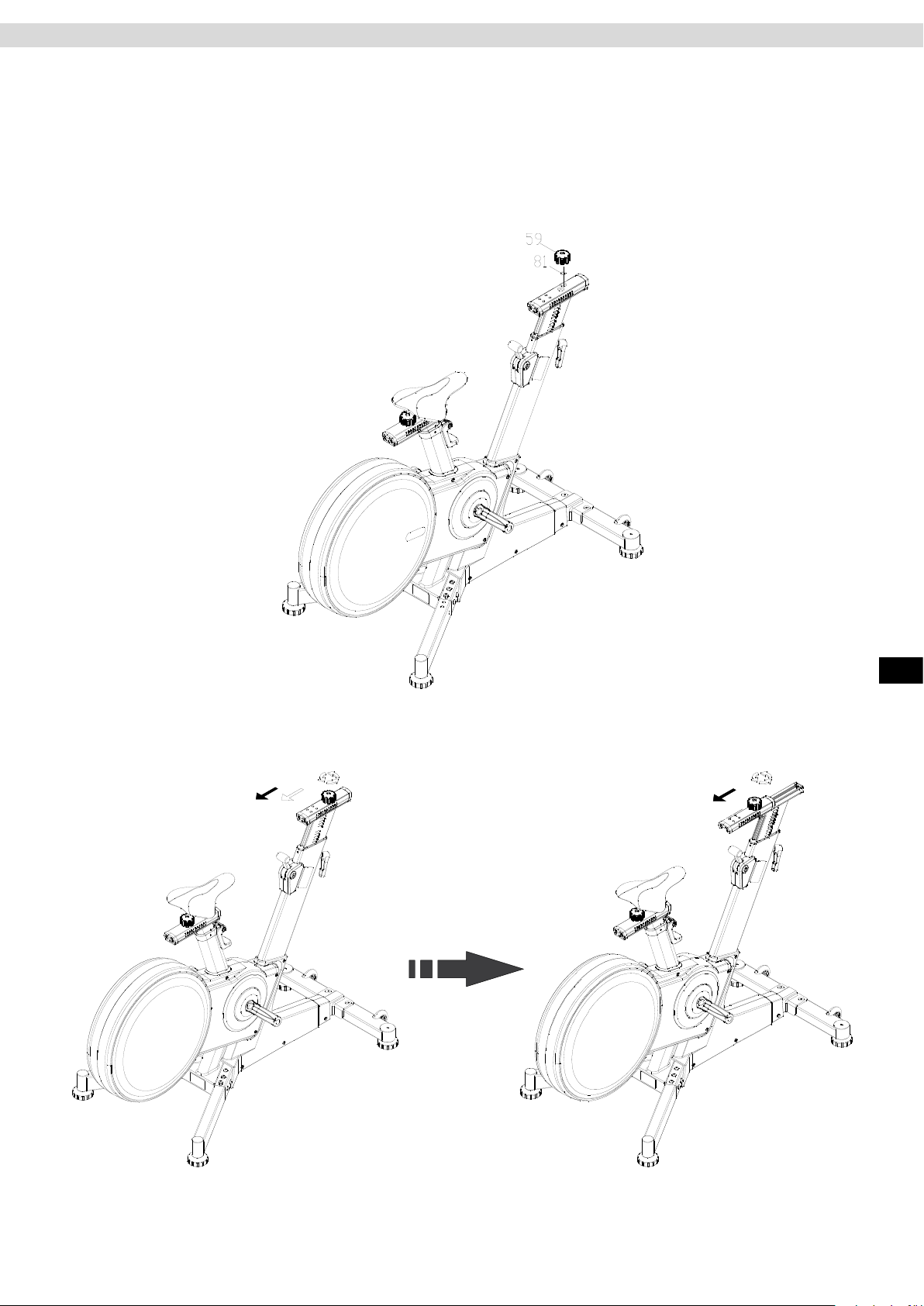

Step 5: Assembly of the Handlebars
Step 5.1:
Insert the knob (59) with a washer Ø6xØ16x1.6T (81) from above into the handlebar shaft
Step 5.2:
Loosen knob (59) and slide the carriage of the horizontal handlebar to adjustment backwards towards the seat
(Fig. 2 & 3).
Fig. 2
Fig. 3
Fig. 1
10
Assembly

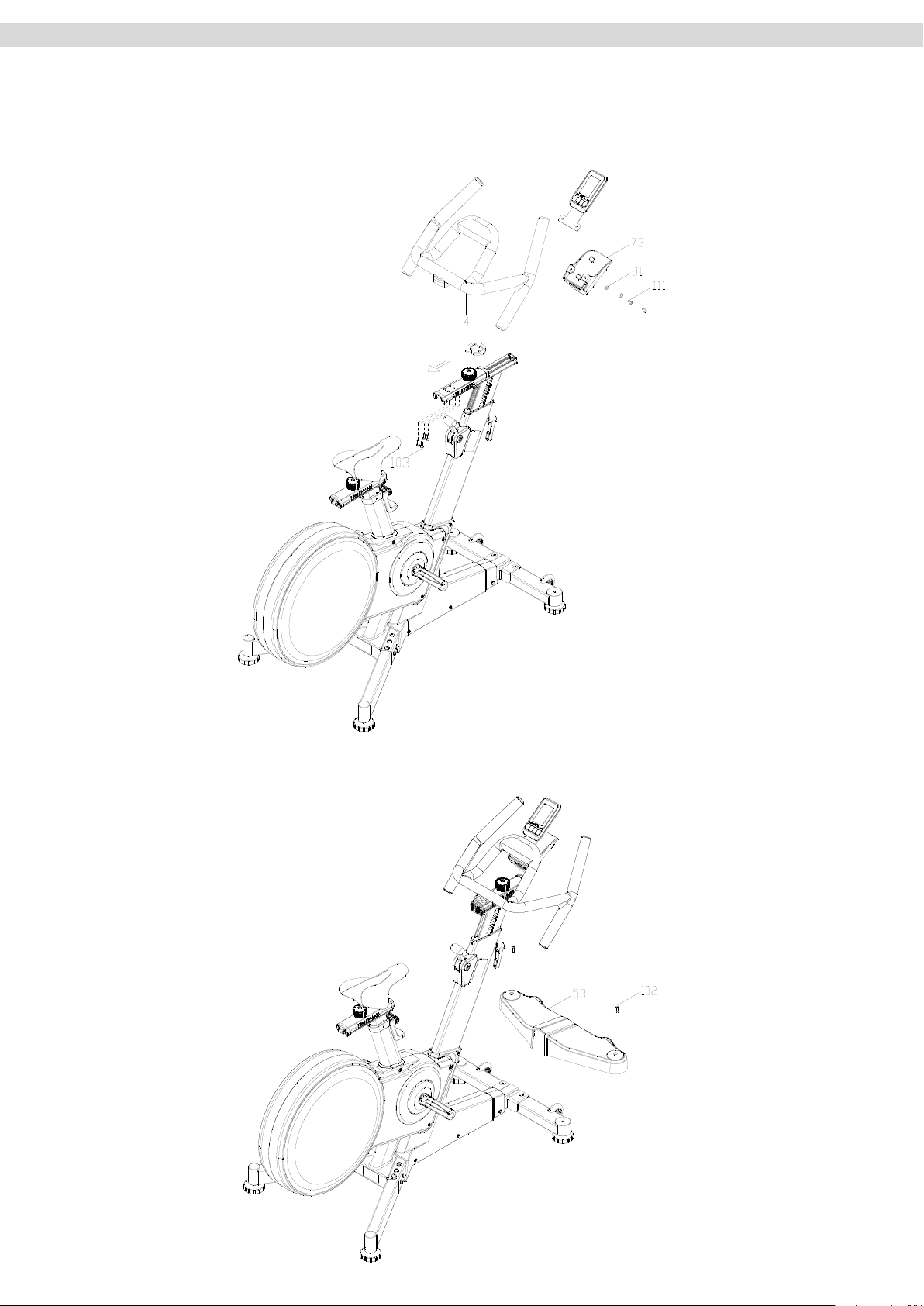

Step 5.3:
Slot on and x the handlebars onto the horizontal handlebar adjustment slide using four Allen screws M6x15
(103). Now attach the holder (73) and the cockpit (118) to the handlebars. To do this use two Allen screws
M6x15 (111) and two washers (81).
Step 6: Assembly of the Front Cover
Fix the front cover (53) using two Allen screws M6x20 (102) to the front stand of the base frame.
