SkyBox by Maytag

Personal Beverage Vendor

Model # MBV1976AA

The bragging rights are aft yours. Congratulations on your purchase

of the SkyBox T" by Maytag TÈpersonal beverage vendor. It's time to

assemble your SkyBox _personal beverage vendor, stock it with your

favorite cans or bottles, and give your buddies a call. Don't be

surprised ff they spend more time checking out the SkyBox _

personal beverage vendor than they do the instant replays!

Table of Contents

Important Safety Instructions ........................................1-2

Product Overview ....................................................................3

Assembly ...............................................................................4-9

Operation ..........................................................................10-11

Features ...................................................................................12

Maintenance ..........................................................................13

Before You Call For Service ..............................................14

Warranty/Customer Service .............................................15

Fran(_ais .....................................................................................16

Espagnol .....................................................................................32

Form No. C/02/10/0h Part No. 381-90-0001 O0 www.skyboxbymaytag.com

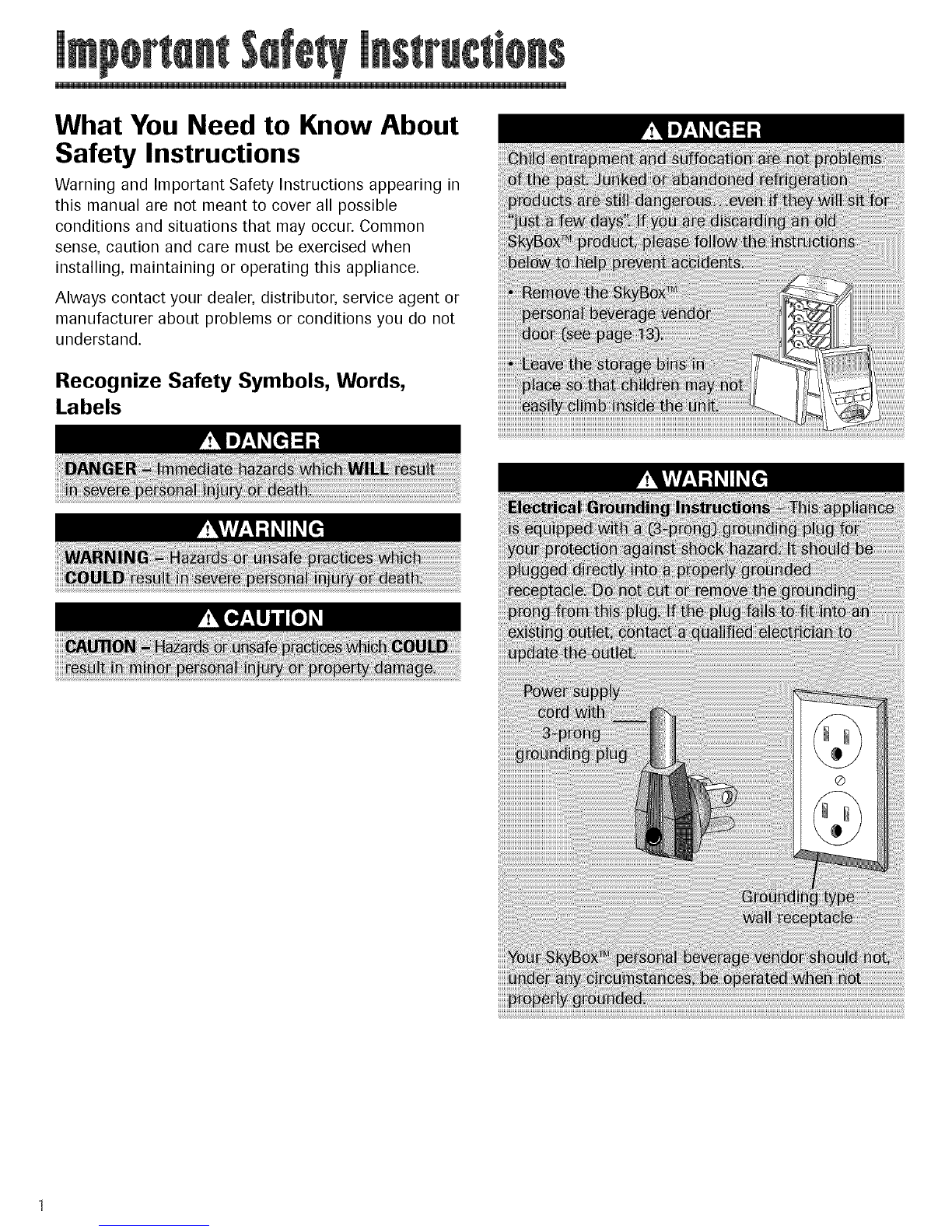

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating this appliance.

Always contact your dealer, distributor, service agent or

manufacturer about problems or conditions you do not

understand.

Recognize Safety Symbols, Words,

Labels

Important Safeguards

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

ProductOverview

/SkyBox TM by Maytag Personal

Beverage Vendor -Refrigerated unit

with front door. Opens for easy access to

four beverage storage bins. Fully stocked,

the unit will hold 64 12-ounce cans or

32 12-ounce bottles.

Front Display Graphic -

Packaged with the SkyBox TM

personal beverage vendor.

Beverage Cards - Your

SkyBox TM personal beverage

vendor comes with a set

of commonly requested

beverage cards that can be

used to label the beverage

selection buttons. To

purchase additional

beverage cards, visit

www.skyboxbymaytag.com.

Display Panels - Panels

slide into the front and

sides of the main unit.

Your SkyBox TM personal

beverage vendor comes with

a standard front panel. To

purchase customized, inter-

changeable front and side

panels that feature your

favorite sports team, visit

www.skyboxbymaytag.com.

SkyBase TM Stand (optionalJ -A sturdy, level stand that

is able to support approximately 200 pounds of weight

and will safely accommodate your fully stocked personal

beverage vendor. SkyBox TM personal beverage vendor

securely mounts to the SkyBase TM stand. To purchase, visit

your local retailer or www.skyboxbymaytag.com.

Once assembled, the Skybox TM (main unit mounted on

stand) has the following dimensions: [

33.5"

[851 ram)

58.5"

(1486 ram)

22.12"

(562 ram)

25"

(635 ram)

(635 mm)

Use caution when installing the unit on vinyl or

hardwood floors so as not to mark or otherwise

damage the flooring. A piece of plywood, a rug or

other material should be used to protect the floor

while positioning the unit.

Once assembled and loaded with beverages, the

SkyBox TM personal beverage vendor with SkyBase TM

stand weighs up to 300 pounds (136 kg), so select a

location that will not require frequent moving.

Moving the loaded SkyBox TM personal beverage

vendor may cause damage to the unit.

installation Location

SkyBox TM personal beverage vendor is designed for

indoor use only with room temperatures between

50°-80 °F(IO °-27 °C].

Allow a minimum of 5" (127 ram) clearance from the

door hinges to a side wall to allow the door to swing

open. Allow 3" (77 ram) of clearance behind the

SkyBox TM personal beverage vendor and 1" [26 ram)

clearance on all other sides for ease of installation.

Additional space is required above the main unit to

change the front or side display panels.

Assembly

Stand Assembmy

Carefully unpack the stand parts (see below) from the

packaging.

ToomsNeeded:

, #2 phillips head screw driver

Adjustable Wrench , Level

Parts

A EndFrame.......................................................................................................2

B LongSupportRail.......................................................................................4

CRearLevelingLegs(attachedto endframes]..............................2

D Shelves..............................................................................................................2

E Pan-HeadSc{ews.....................................................................................24

F LeftSidePanel(with hinge holes].....................................................1

G RightSidePanel(witI_no hinge holes]...........................................1

H BackPanel......................................................................................................1

I Door....................................................................................................................1

J Hinges(attachedto thedooO..............................................................2

K FrontFoot.........................................................................................................2

LM5 x 16Hex-PhillipsHeadCapScrew- _" (16mini long....6

M FrontFootLevelingHead........................................................................2

N FiatHeadScrews.........................................................................................6

FF M5 x20 Hex-PhillipsHeadCapScrew- 3/4"(20ram]long__2

STEP 1 - Assemble Frame of Stand

• Connect one long support rail (:B) to one of the end

frames I:A) by inserting the tabs on the support rail

into the slots of the end frame and pressing

downward. The support rails will temporarily lock into

place when pressed downward.

• Connect the other end of support rail to a second

end frame I:A) by inserting the tabs on the support

rail into the slots of the end frame and pressing

downward.

• Repeat procedure for remaining 3 rails, creating a

basic frame for the cabinet. DO NOT INSTALL ANY

SCREWS I:E) DURING THIS STEP!

STEP 2 - Level the Stand

CWM

Lx3

• Attach the two front feet (K) to the bottom of the

two corner posts using three M5 x 16, 5/8"(16 ram]

long, Hex-Phillips head cap screws I:L) for each foot.

NOTE: The threaded bolt on the front foot must

extend outward away from the frame (see figure).

• Attach the front foot leveling head I:M) to the

threaded bolt on each front foot I:K).

• Carefully place the partially assembled stand on the

floor where it will be displayed. Adjust the front foot

leveling heads I:M) down so that the front foot roller

is just off the floor. Using a level and an adjustable

wrench, adjust the two rear leveling legs I:C) so the

unit sits squarely on the floor.

STEP 3- Install Shelves

• Place bottom shelf (D) on top of lower support rails.

Align screw holes and install four pan-head screws

(E).

• Repeat procedure for center shelf I:D) which mounts

on the four tabs welded to the end frame.

ST[P 4-Assemble [×ter[or Pane_s

•Lower the top lip of the left side panel (F) over the

top of end frame, aligning screw holes in side panel

with holes in the corner post. Make sure panel is

positioned to accommodate hinges for door on front

left side. Attach panel by installing three pan-head

screws (E) down the front of the unit and two pan-

head screws (E) along the top rail.

• Position the right side panel (G) over frame of

cabinet, aligning screw holes in side panel with holes

in corner post. Attach panel by installing

three pan-head screws (E) down the front of each

side panel and two pan-head screws (E) along the

top rail.

STEP 5 - Attach Door to

SkyBase TM Stand

• Position door (I) on the front of the stand by aligning

screw holes in the hinges (J) with hinge holes in the

left side panel on the front of the stand.

• Attach door hinges I[J) to the left side panel (F)

using three flat-head screws (N) in each hinge.

Place back panel (H) over frame and side panels by

aligning screw holes on the back of the unit. Attach

back panel using six pan-head screws (E). During

this process, the screws will also secure the back of

the left and right side panels.

SkyBo×TM Personal Beverage

Vendor Top and Door

Assembmy (Select Packaging OnlyJ

Carefully unpack the SkyBox TM personal beverage

vendor from the packaging.

If needed, follow these instructions for attaching the

door to the main unit of your SkyBox TM personal

beverage vendor.

Parts

Top Cover .........................................1

Main Unit .........................................1

Door ...................................................1

Door Wire Harness .......................1

STEP 1 - Attach Top Cover

,Slide hooks at front of top panel into slots at front of

main unit.

Press top cover down in back so 3 tabs snap

securely into place onto back of main unit.

STEP 2 -Attach Door

Align hinges of door to hinge

posts on the main unit. Hold

door at an angle (greater

than 90°J from the main unit

opening. (Note: For your safety,

the door will not attach or

detach at a 90° angle.)

Slide hinges down onto hinge

posts. Door will slide on easily.

DO NOT FORCE.

STEP 3 - Attach Door Wire Harness

Main

Unit Wire

Harness

Attach one end of door wire harness to plug-in on

lower left corner of main unit opening, aligning plug

with small tab facing up to fit plugqn. Note: plug will

only fit one direction. DO NOT FORCE.

Attach other end of door wire harness to plug-in on

lower right corner of door, aligning plug with small

tab facing up to fit plug-in. Note: plug will only fit

one direction. DO NOT FORCE.

Assembly

SkyBo× TM Personal Beverage

Vendor Main Assembly

Tools Needed:

Phillips head screw driver

Parts

AA Graphic Access Cover ...........................1

BB Front Display Graphic ............................1

CO Clear Panel .................................................1

DD Lightbulbs..................................................2

EE Beverage Cards ........................................4

FF Connecting Bolts:M5 x 20

Hex-PhiIIipsHead Cap

Screws -3/4"(20 ram) long ...................2

STEP 1 - Install Light Bulbs

• Make sure SkyBox TM personal

beverage vendor is OFF and AA

the power cord is unplugged.

• Flip up the graphic access

cover (AA), exposing a screw

and the top edge of the front

graphics panel.

• Remove the screw.

• Slide the front display graphic

(BB-see page 3) up and out

of the personal beverage

vendor.

• Lift the clear panel (CO) up

and out of the unit, exposing

the sockets for the light bulbs.

• Reinsert the screw.

• Flip the graphic access cover (AA) back down into

place.

STEP 2 -Install Beverage Cards

•Bend beverage cards (EE) back at score line, so

small fold is away from printed side.

• Gently pull out the bottom edge of the beverage

buttons toward you and slide the beverage cards

(EE) into the buttons, sandwiching them in the small

slit between the clear plastic.

STEP 3 - Attach SkyBox TM Personal

Beverage Vendor to

SkyBase TM Stand

•Remove the two 18" fluorescent light bulbs, type

F15T8 15 watt (DD) from their packaging and install

by sliding them into the light sockets and rotating

away from you until they click into place.

• Replace the clear panel (CO) and slide the front

display graphic (BB) back into place in front of the

clear panel, behind the lower edge of the frame

opening.

Place the SkyBox TM personal beverage vendor on the

SkyBase TM stand.

IMPORTANT: Line up holes on bottom of SkyBox TM

personal beverage vendor with holes in top of

SkyBase TM stand. Carefully thread a connecting bolt

(FF-see illustration) into each hole up through the

inside of the stand and into the hole in the SkyBox TM

personal beverage vendor. Secure firmly.

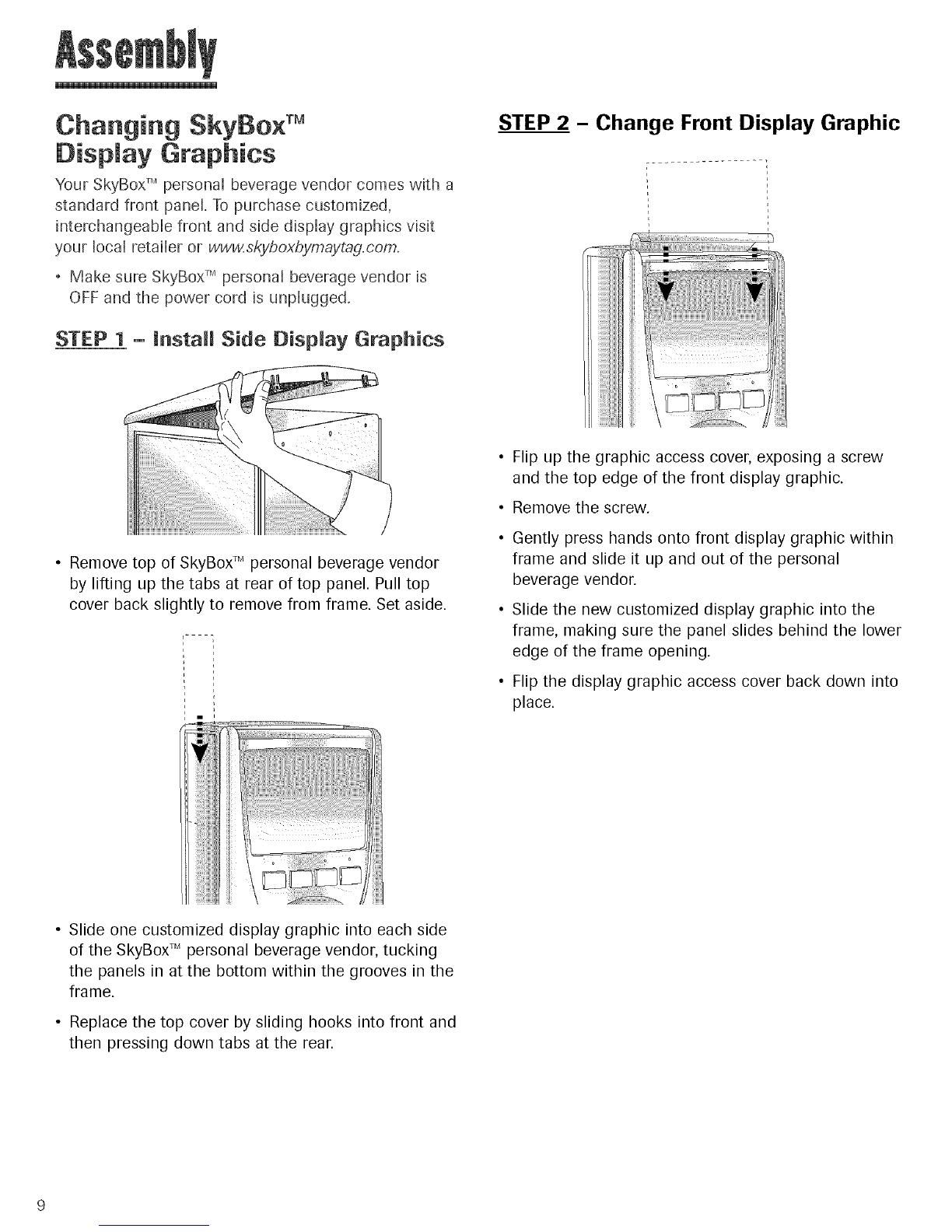

Changing SkyBo× TM

Dispmay Graphics

Your SkyBox TM personal beverage vendor comes with a

standard front panel. To purchase customized,

interchangeable front and side display graphics visit

your local retailer or ww_skyboxbymaytag=com.

Make sure SkyBox TM personal beverage vendor is

OFF and the power cord is unplugged.

STEP 1 - Install Side Display Graphics

STEP 2 -Change Front Display Graphic

• Remove top of SkyBox TM personal beverage vendor

by lifting up the tabs at rear of top panel. Pull top

cover back slightly to remove from frame. Set aside.

]

Flip up the graphic access cover, exposing a screw

and the top edge of the front display graphic.

Remove the screw.

Gently press hands onto front display graphic within

frame and slide it up and out of the personal

beverage vendor.

Slide the new customized display graphic into the

frame, making sure the panel slides behind the lower

edge of the frame opening.

Flip the display graphic access cover back down into

place.

• Slide one customized display graphic into each side

of the SkyBox TM personal beverage vendor, tucking

the panels in at the bottom within the grooves in the

frame.

• Replace the top cover by sliding hooks into front and

then pressing down tabs at the rear.

Andere Handbücher für SkyBox MBV1976AA

Inhaltsverzeichnis

Sprachen:

Andere Maytag Getränkespender Handbücher

Maytag

Maytag SkyBox MBV1976AA Bedienungsanleitung

Beliebte Getränkespender Handbücher anderer Marken

PEGAS

PEGAS Evolution Bedienungsanleitung

Ugolini

Ugolini MT micro Bedienungsanleitung

Bunn

Bunn SLCA-7 Montageanleitung

Gekkeikan

Gekkeikan Sake Machine Bedienungsanleitung

Olympia

Olympia DH709 Bedienungsanleitung

Marco

Marco ECOSMART PB10 Bedienungsanleitung

Marvel

Marvel ML24BN Series Handbuch

Cecilware

Cecilware 2K-GB-LD Handbuch

Sure Vend

Sure Vend 673 Bedienungsanleitung

Cornelius

Cornelius 2 Flavor Post-Mix Cold Coffee Dispenser Quest... Bedienungsanleitung

Nostalgia Electrics

Nostalgia Electrics KEG7000SS Bedienungsanleitung

Bunn

Bunn LCR-3 HV Fehlerbehebungshandbuch

Servend

Servend SV-200 Bedienungsanleitung

EdgeStar

EdgeStar VBR440 Bedienungsanleitung

Cornelius

Cornelius A.B.S. Unit Bedienungsanleitung

CDS AUTOMATEN

CDS AUTOMATEN ML-16C2-C Bedienungsanleitung

Siemens

Siemens GA 3000 Gebrauchsanweisung

Cornelius

Cornelius FCB V4 Technische Daten
