Maytag MEDE900VJ1 Bedienungsanleitung

TOP AND CONSOLE PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

5−09 Printed in U.S.A. (L.T)(bay) Part No. W10273484 Rev. A

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10239302

Use & Care Guide

W10258376

Tech Sheet

W10255468

Installation,

Instruction

2 Top

3980634 White

W10164743

Oxide

W10111068

Harness, Main

4 Panel, Console

W10246752

White

W10246753

Oxide

(Includes Buttons

& Control Board

Item. 11)

5 3394427 Clip, Harness

W10215656

Bracket, Console

(Includes Items:

17.)

7 94614 Terminal

8 3936144 Plug, Terminal

9 3390647 Screw, 8−18 x 1/2

W10242907

Harness,

Communication

User Interface

W10177245

Medallion

12 3395683 Connector,

(Motor)

13 98139 Screw, 8−32 x 1/32

W10164576

Knob, Assembly

W10170293

Guide, Light

Cycle Internal

W10171504

Foil−Display

W10112267

Foam−Seal

W10214555

Plug,

Connector Frame

W10171502

Fram−Light

(Guide Display)

W10164578

Guide, Light

(3−Way Digital)

W10170295

Frame−Light Guide

W10164567

Cycle, Light Guide

W10172298

Bushing, Knob

W10246788

User−Interface

25 8572039 Seal,

User Interface

26 8540513 Screw

27 8540282 Screw

W10215674

Shield,

Console Bracket

W10216201

Plug−Hole,1/4"(2)

W10216202

Plug−Hole,5/16"(1)

31 693995 Screw, Ground

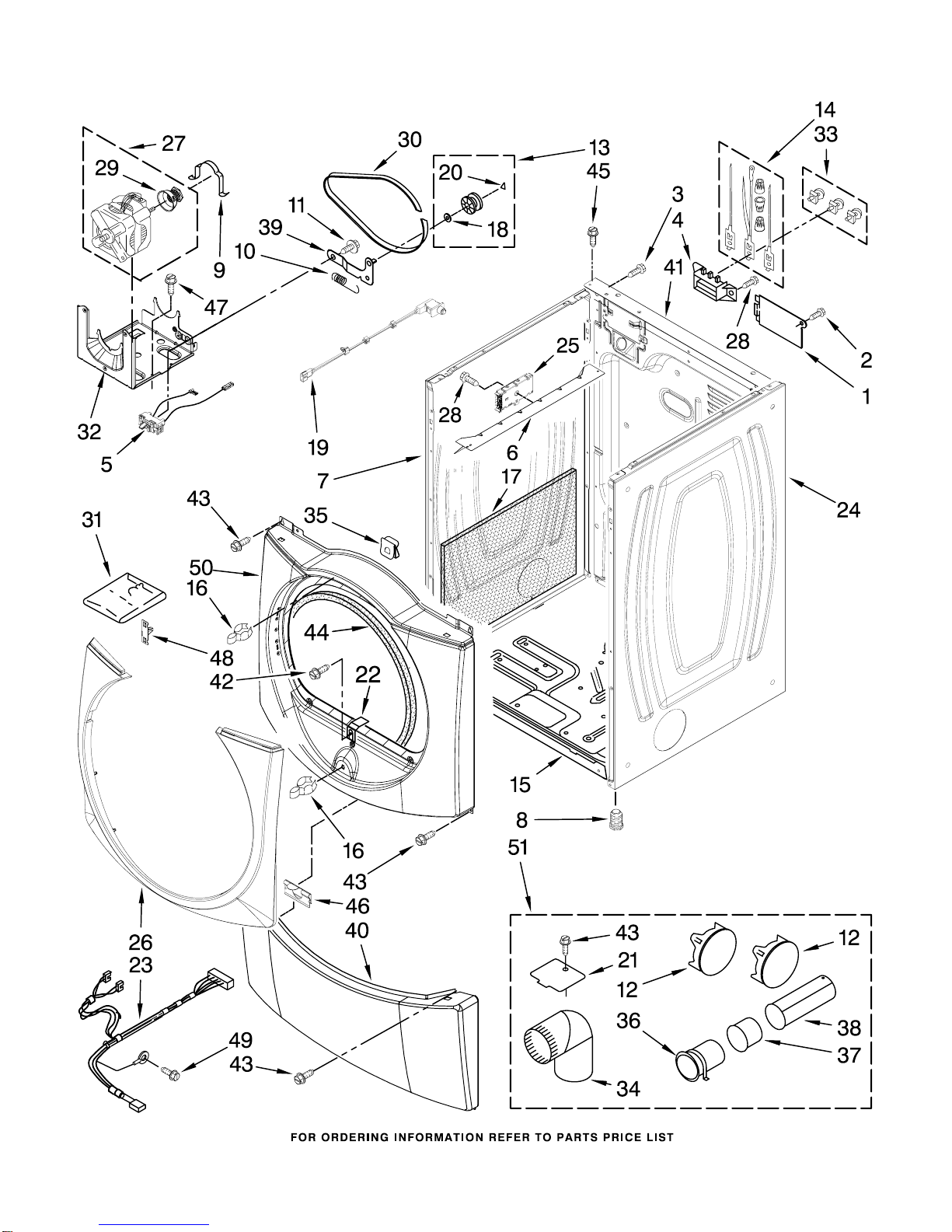

CABINET PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

CABINET PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

4 3397659 Block, Terminal

W10246525

Switch, Broken

Belt

6 8563727 Bracket, Control

7 Panel, Side (L.H.)

W10192435

White

W10193956

Oxide

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

W10121316

Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

49252 White

W10151499

Midnight Grey

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

W10239098

Base, Cabinet

16 696144 Strike, Door (2)

W10123956

Sound Panel

W10121334

Washer

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

W10242904

Harness,

Digital Interface

24 Panel, Side (R.H.)

W10192446

White

W10193959

Oxide

W10174746

Control Board

26 Trim−Ring

Assembly

W10221445

White

W10221447

Oxide

(Includes

Item. 48 )

27 8538263 Motor, Assembly

60 HZ.

28 90767 Screw, 8−18 x 3/8

29 8578220 Pulley 60 HZ.

W10112954

Belt, Drive

31 8541503 Kit,

Stack Assembly

W10242878

Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 62825 Clip, S−Type (3)

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 Panel, Toe

W10246269

White

W10246285

Oxide

W10247569

Panel, Rear

42 3357011 Screw, 10−16 x 1/2

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 343641 Screw, 10−16 x 1/2

W10129065

Trim−Clip

Metal

49 693995 Screw, Ground

50 Front Panel

W10153275

White

W10164915

Oxide

(Includes Illus. 44)

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

51 279818 White

W10186596

Midnight Grey

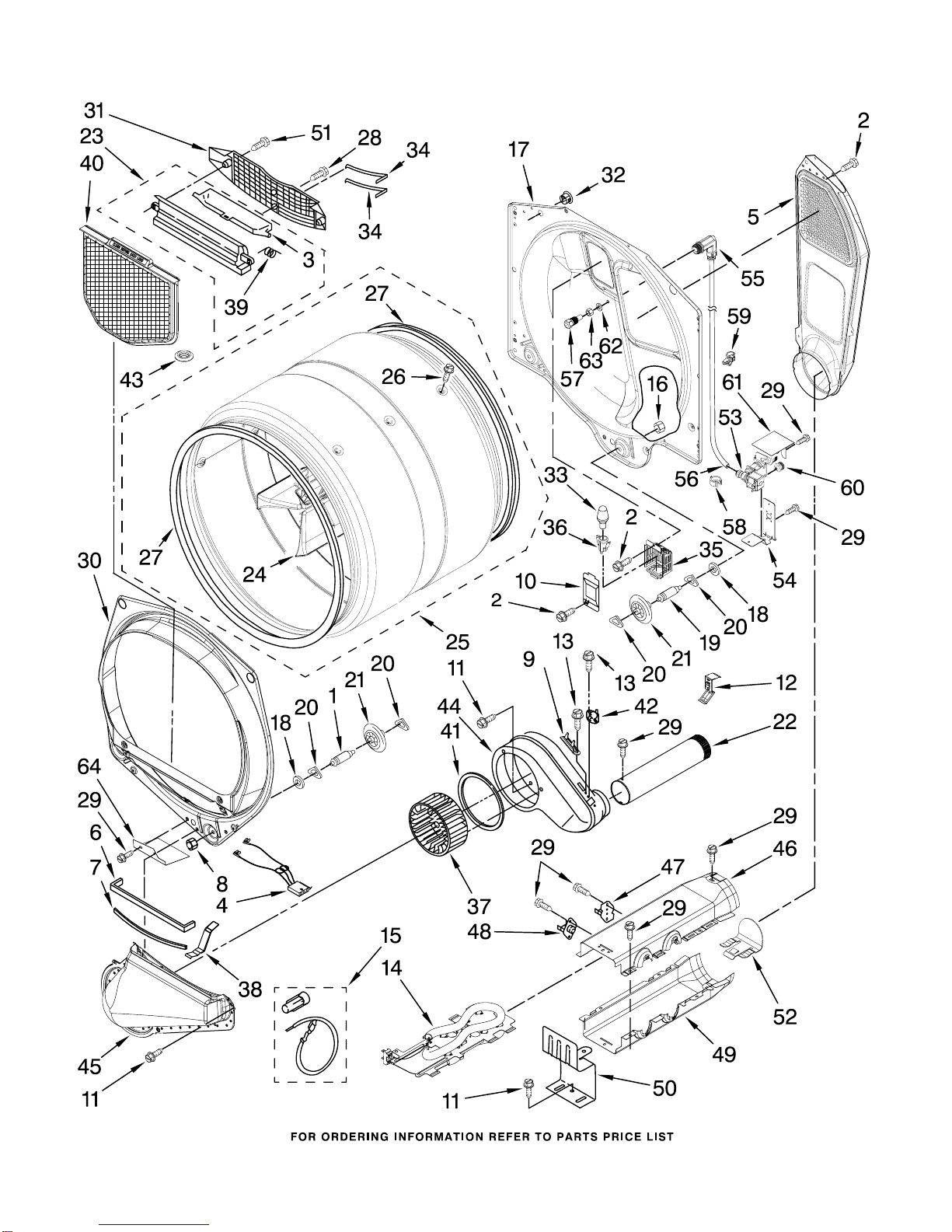

BULKHEAD PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

BULKHEAD PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 3392519 Thermal − Fuse

(91 C)

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 5/8

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10124071

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8066224 Exhaust Pipe

W10153423

Housing, Outlet

24 697693 Baffle, Drum

W10181467

Complete Drum

Assembly

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

W10252304

Bulkhead, Front

W10153412

Grille, Outlet

32 8529007 Plug−Rear Bulkhead

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10214261

Socket Assembly

37 697772 Wheel, Blower

38 8066208 Clip, Spring

39 3394986 Spring, Lint

Screen Door

W10049370

Lint Screen

41 697770 Seal, Cover Plate

42 8577274 Thermistor

W10128544

Caplug

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing−Slot

Heater Box

47 8318314 Thermal Cut−Off

(Includes Illus.

No. 48)

48 3391914 Thermostat 295 F

(215 C)

High Limit

49 8544770 Housing−Tab

Heater Box

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8544776 Flange,

Heater Box

W10044596

Valve, Water Inlet

(Includes Items,

29, 54, 60 & 61)

W10044597

Bracket, Valve

W10044606

Nozzle & Hose

Assembly

(Includes Items,

57, 59, 62 & 63)

W10044598

Hose,

(Not Servicable)

Includes With

Item 55.)

W10044629

Nozzle & Screen

Assembly

W10044615

Clip,

Push−To−Connect

59 3391018 Cable, Tie

W10044605

Coupling, Hose

W10184825

Cover, Inlet Valve

W10044579

Washer, Nozzle

W10044628

Nut, Brass

W10128629

Shield, Blower

Housing

(Includes,

Item 29 ).

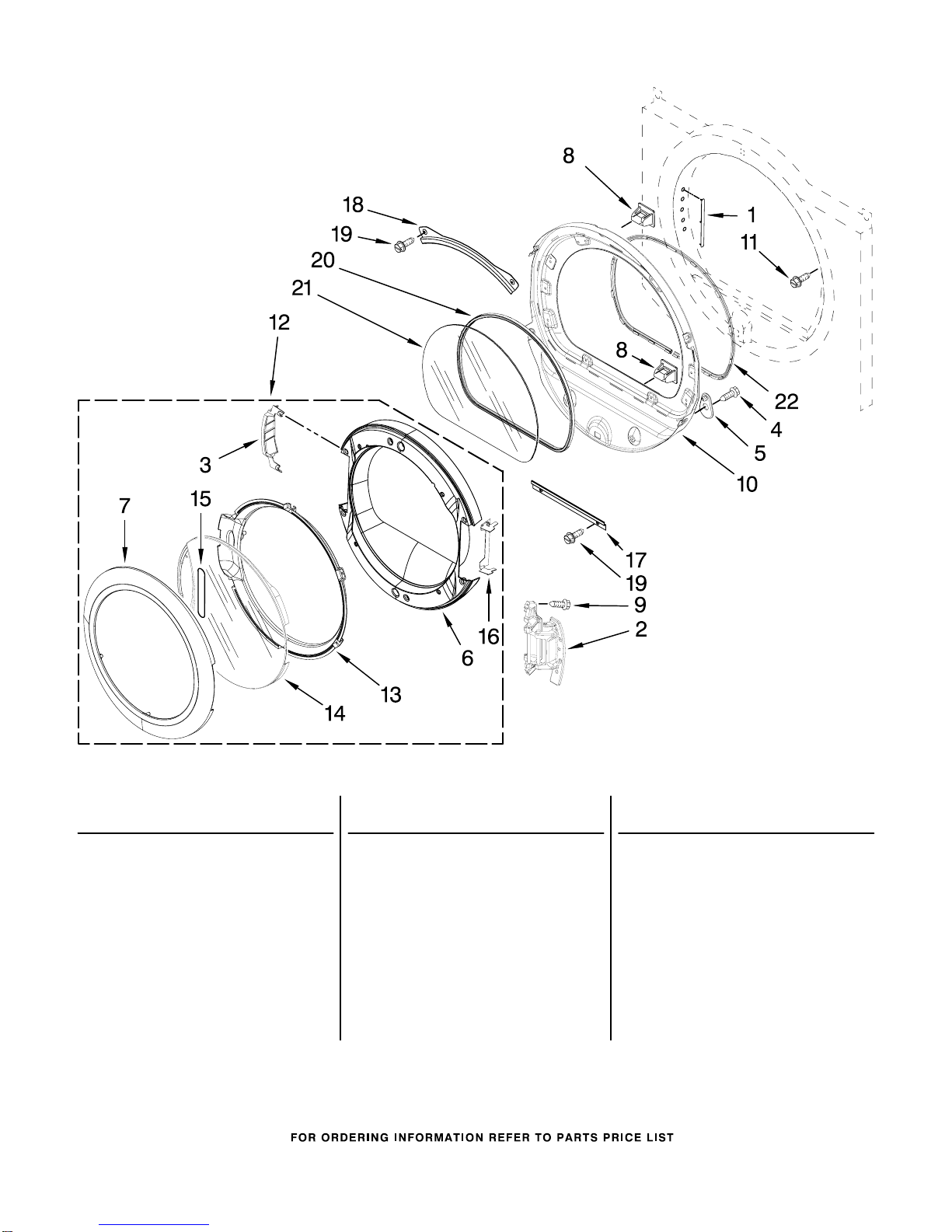

DOOR PARTS

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085210

Label,

Hinge Hole

W10139920

Door Hinge

Assembly

W10180119

Cover,

Door Hinge

4 9742177 Screw, 8−18 x 5/8

W10048910

Screw−Plug

W10180118

Door−Intermediate

W10193522

Handle Ring

8 690081 Door Catch

Assembly (Lower)

W10159996

Screw,

10−24 x 3/64

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 8 )

11 355515 Screw,

8−18 x 11/16

W10193530

Door, Outer

Assembly

W10180117

Door Mask

W10171571

Screen, Door

W10153281

Pad−Foam Frame

W10180120

Door−Shield

17 8519354 Retainer−Window

Lower

18 8519356 Retainer−Window

Upper

19 3393258 Screw,

20 8579662 Seal−Window

21 8566254 Glass−Window

W10139457

Seal−Door

OPTIONAL PARTS (NOT INCLUDED)

For Models: MEDE900VW1,MEDE900VJ1

(White) (Oxide)

W10273484

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10202939

Oxide Metallic

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

8579666A Kit,

Door Reversing

Miscellaneous Parts Bag

W10206708

Bag Assembly

(Contains The

Following)

89503 (Hose Inlet)

5’ Hose

350027 (Hose Inlet)

2’ Hose

W10194033

Washer

W10044604

Connector, Hose

ACCESSORY PARTS

The following power cord can be

ordered.

Important: Check local wiring code

requirements to see if one of these

meets your needs.

PT220L 4’ 30 Amp 3 Wire

Dryer Cord

PT400L 4’ 30 Amp 4 Wire

Dryer Cord

PT600L 6’ 30 Amp 4 Wire

Dryer Cord
