Maytag RST2400EAE Handbuch

Repair

Parts

List

MODEL NUMBER

RST2400EAE

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

REFRIGERATOR

Section: UNIT COMPARTMENT & SYSTEM

A51-69

Model: RST2400EAE

UNIT COMPARTMENT & SYSTEM

No. Part No. Description

Section:

Series Qty

- 61001017 WIRE HARNESS, COMPRESSOR 10 1

1 12000059 KIT, COMPRESSOR Note: COMPRESSOR 10 1

2 17245-4 GROMMET, COMPRESSOR 10 4

3 65275-9 SCREW, COMPRESSOR MOUNTING Note: SCREW, COMPRESSOR 10 4

4 68857-2 RELAY, START Note: RELAY, START 10 1

5 69105-3 OVERLOAD Note: OVERLOAD 10 1

- 400017-1 SCREW Note: SCREW, RUN CAPACITOR 10 1

6 65889-4 CAPACITOR, RUN Note: CAPACITOR, RUN 10 1

7 69754-1 COVER, TERMINAL 10 1

8 59596-1 CLIP, TERMINAL COVER Note: CLIP, TERMINAL COVER 10 1

9 52890-3 CORD, POWER 10 1

- 60408-2 U-NUT, CONDENSER Note: U-NUT, CONDENSER 10 4

10 N 64998-1 CONDENSER 10 1

- 414001-1 SCREW Note: SCREW, CONDENSER 10 3

11 N 53351-1 GROMMET, CONDENSER TUBING Note: GROMMET, CONDENSER TUBING 10 1

12 N 61001533 BAFFLE, AIR DIVIDER 10 1

- 9986-45 SCREW Note: SCREW, BAFFLE 10 1

- 65275-33 SCREW Note: SCREW, MOTOR 10 3

13 Y61001016 MOTOR, CONDENSER FAN Note: MOTOR, CONDENSER FAN 10 1

14 69958-2 BLADE, CONDENSER FAN 10 1

15 61001686 WASHER, FAN BLADE 10 1

16 Y19914 CLIP, FAN BLADE 10 1

17 69181-1 BRACKET, FAN MOTOR 10 3

18 56933-1 GROMMET, BRACKET Note: GROMMET, BRACKET 10 3

- 400017-1 SCREW Note: SCREW, COVER 10 12

19 N 66381-1 COVER Note: COVER, WIRE HARNESS 10 1

- 70266-1 WIRE HARNESS, MAIN 10 1

20 61001140 HEATER, DEFROST 10 1

21 52067-1 CLIP, DEFROST HEATER Note: CLIP, DEFROST HEATER 10 4

22 68236-1 PAN, DRAIN 10 1

23 53523-2 TROUGH, DRAIN 10 1

24 N 26911-25 HOSE, DRAIN 10 1

25 9602-3 CLAMP, DRAIN HOSE 10 1

26 53516-5 CLAMP, DRAIN HOSE 10 2

- 65275-5 SCREW Note: SCREW, COVER 10 1

27 61001228 COVER, UNIT COMPARTMENT Note: COVER, UNIT COMPARTMENT 10 1

- N 26088-23 SLEEVE Note: COVER, HEAT EXCHANGER 10 1

28 61001039 HEAT EXCHANGER Note: HEAT EXCHANGER 10 1

- 66223-1 WIRETIE 10 1

29 13900-1 DRIER 10 1

30 52085-29 THERMOSTAT, DEFROST 10 1

31 52551-22 EVAPORATOR Note: EVAPORATOR 10 1

32 N 68834-2 HOUSING, EVAPORATOR Note: HOUSING, EVAPORATOR 10 1

33 55878-1 BOARD, TERMINAL 10 1

34 N 66325-18 SEAL Note: SEAL, HOUSING 10 1

35 N 65063-1 SEAL, STYROFOAM-(LEFT) Note: SEAL, STYROFOAM (LT) 10 1

36 N 65064-1 SEAL, STYROFOAM-(RIGHT) Note: SEAL, STYROFOAM (RT) 10 1

37 29915-13 SHIELD, DEFROST HEATER Note: SHEILD, DEFROST HEATER 10 2

- 400017-1 SCREW Note: SCREW, SHIELD 10 6

38 N 52561-1 BRACKET, HEATER SHIELD Note: BRACKET, HEATER SHIELD 10 2

- 61001570 MANUAL, USE & CARE 10 1

- N 16000327 GUIDE, QUICK REF. - MAYTAG 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: ICE BIN

A56-61

Model: RST2400EAE

ICE BIN

No. Part No. Description

Section:

Series Qty

1 70027-2 RING, DRIVE Note: RING, DRIVE 10 1

2 67826-1 BIN Note: BIN, ICE 10 1

3 67833-1 AUGER 10 1

4 N 67172-2 BEARING Note: BEARING, AUGER 10 1

5 67829-1 ICE DAM Note: DAM, ICE 10 1

6 67834-2 WASHER, THRUST 10 1

7 492007-703 PIN, COTTER 10 2

- 415013-35 SCREW Note: SCREW, FRONT & ICE DAM 10 8

8 69612-1 FRONT, ICE BIN Note: FRONT, ICE BIN 10 1

9 63052-2 YOKE, ICE DISPENSER Note: YOKE 10 1

10 65186-1 MOTOR, AUGER 10 1

- 69048-1 WIRE HARNESS, AUGER MOTOR 10 1

- 406026-103 SCREW Note: SCREW, AUGER MOTOR 10 4

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

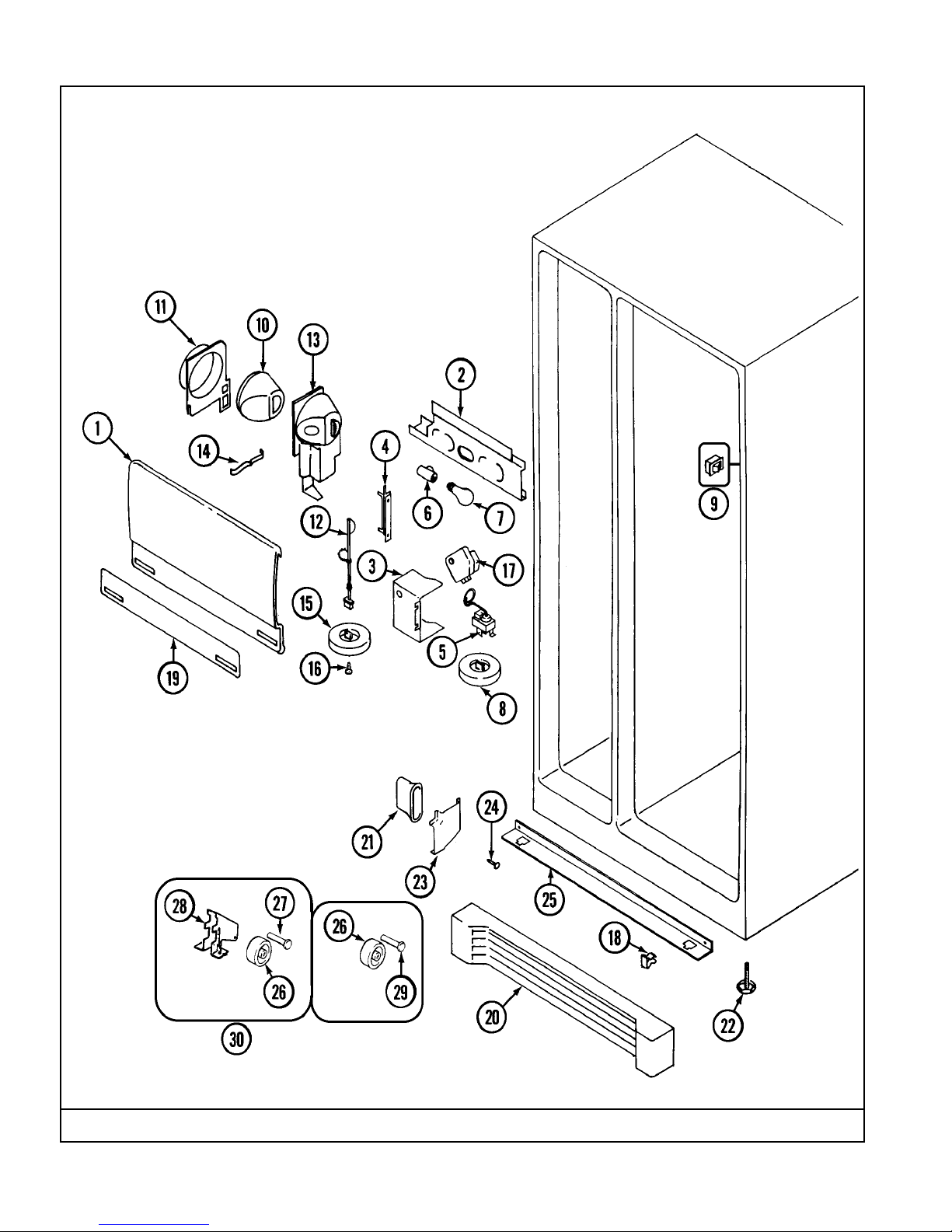

Section: FRESH FOOD COMPARTMENT

A52-174

Model: RST2400EAE

FRESH FOOD COMPARTMENT

No. Part No. Description

Section:

Series Qty

1 N 67113-4 SHIELD, LIGHT Note: SHIELD, LIGHT 10 1

2 N 69193-2 HOUSING, LITE & WIRE Note: HOUSING, RECEPTACLE & WIRE 10 1

- 400017-1 SCREW Note: SCREW, HOUSING 10 3

3 70178-1 HOUSING, TEMPERATURE CONTROL Note: HOUSING, TEMP. CONTROL 10 1

- 400017-1 SCREW Note: SCREW, HOUSING 10 2

4 N 67125-1 SUPPORT, LIGHT SHIELD 10 1

5 69694-3 CONTROL, TEMPERATURE 10 1

- 401024-1 SCREW Note: SCREW, CONTROL 10 2

6 68974-3 RECEPTACLE, BULB Note: RECEPTACLE, BULB 10 1

7 55771-2 BULB, LIGHT (60W) Note: BULB, LIGHT 10 1

8 67145-5 KNOB, CONTROL Note: KNOB, TEMP. CONTROL 10 1

9 66987-1 SWITCH, LIGHT 10 1

10 N 58767-1 INSULATION, HOUSING 10 1

11 61001230 ORIFICE, FRZ. CONTROL (INLET) 10 1

12 67609-1 DAMPER, FRZ. CONTROL 10 1

13 67354-1 HOUSING, FRZ. CONTROL 10 1

- 415017-1 SCREW Note: SCREW, HOUSING 10 4

14 52648-1 SPRING, BAFFLE Note: SPRING, DAMPER 10 1

15 67145-6 KNOB, CONTROL Note: KNOB, FRZ. CONTROL 10 1

16 400001-1 SCREW Note: SCREW, FRZ. KNOB 10 1

- 405007-1 SCREW Note: SCREW, DEFROST TIMER 10 2

17 68233-3 TIMER, DEFROST 10 1

18 70285-1 CLIP, KICKPLATE 10 2

19 N 67476-10 INSERT, LIGHT SHIELD Note: INSERT, LIGHT SHIELD 10 1

20 70288-9 KICKPLATE W/CLIPS (WHT) Note: (WHT) 10 1

21 67684-1 TUNNEL, AIR RETURN 10 1

22 68664-1 LEG, LEVELING Note: LEG, LEVELING 10 2

23 N 69982-1 COVER, AIR RETURN Note: COVER, AIR RETURN 10 1

24 28013-2 RIVET, AIR TUNNEL Note: RIVET, RETURN COVER 10 2

- 65275-42 SCREW Note: SCREW, RAIL 10 4

25 61001032 RAIL, HORIZONTAL SUPPORT 10 1

26 69812-1 WHEEL 10 4

27 N 64965-1 PIN, WHEEL Note: PIN, WHEEL (FRT.) 10 2

- 400062-1 SCREW Note: SCREW, BRACKET 10 4

28 52846-1 BRACKET Note: BRACKET, WHEEL 10 2

29 64965-3 PIN, WHEEL (REAR) 10 2

30 72019-1 WHEEL ASSY. (FRONT) Note: WHEEL ASSY. (FRT.) 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

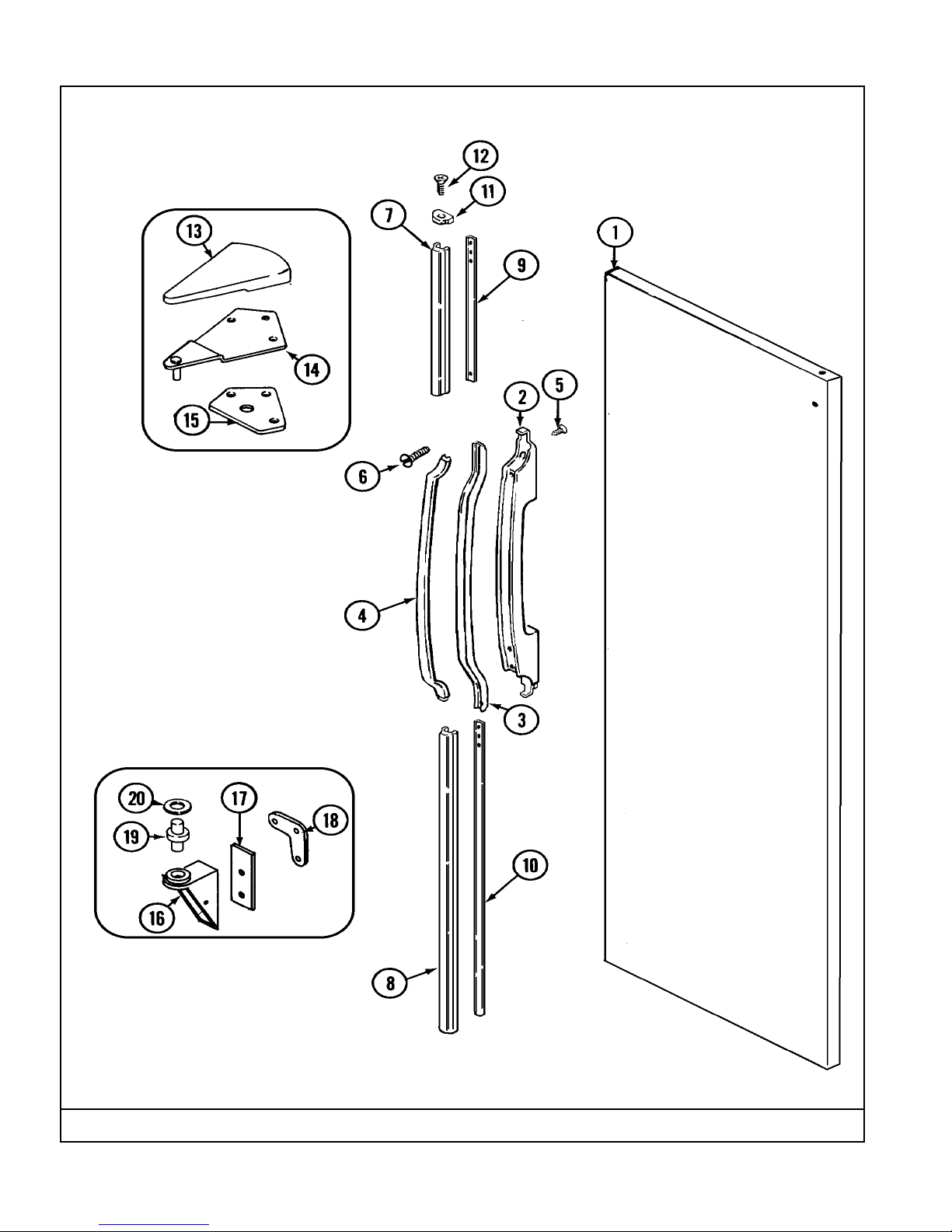

Section: FRESH FOOD OUTER DOOR

A54-335

Model: RST2400EAE

FRESH FOOD OUTER DOOR

No. Part No. Description

Section:

Series Qty

1 N 72341-2-WW PANEL, F.F. DOOR (WHT) Note: (WHT) 10 1

- 495034-900 PLUG BUTTON, DOOR 10 1

2 67922-1 HANDLE Note: HANDLE, F.F. DOOR 10 1

3 67920-1 FRAME,HANDLE Note: FRAME, HANDLE 10 1

4 67924-2 INSERT, HANDLE (WHT) Note: (WHT) 10 1

5 65275-44 SCREW Note: SCREW, HANDLE TO INSERT 10 4

6 65275-80 SCREW Note: SCREW, HANDLE & TRIM 10 5

7 N 67932-8 TRIM, EXTENSION (UPR - WHT) Note: (UPPER-WHT) 10 1

8 67932-9 TRIM, EXTENSION (LWR - WHT) Note: (LOWER-WHT) 10 1

9 67926-1 SHIM, TRIM LOCK (UPR) Note: SHIM, TRIM LOCK (UPPER) 10 1

10 67926-2 SHIM, TRIM LOCK (LWR) Note: SHIM, TRIM LOCK (LOWER) 10 1

11 67928-2 ENDCAP, HANDLE Note: END CAP, EXT. TRIM 10 2

12 414004-35 SCREW Note: SCREW, END CAP 10 2

13 70121-4 COVER, UPPER HINGE (WHT) Note: (WHT) 10 1

14 53709-28 HINGE, UPPER Note: HINGE, UPPER 10 1

- 65275-86 SCREW, UPPER HINGE 10 3

15 65031-1 SHIM, UPPER HINGE 10 1

- 65275-51 SCREW, LOWER HINGE 10 2

16 N 69516-2 HINGE, LOWER (BLK) Note: HINGE, LOWER (BLK) 10 1

17 69510-1 SHIM, LOWER HINGE 10 1

18 67874-1 TAPPING PLATE, LOWER HINGE 10 1

- 65275-59 SCREW Note: SCREW, TAPPING PLATE 10 1

19 69845-1 PIN, LOWER HINGE 10 1

20 67483-2 WASHER, LOWER HINGE 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: FREEZER OUTER DOOR

A55-278

Model: RST2400EAE
