Maytag MFW9700SB1 Bedienungsanleitung

TOP AND CABINET PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

10−07 Printed in U.S.A. (drd) Part No. W10133064 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8182969 Use & Care Guide

8182658 Quick Start Guide

8182677 Tech Sheet

2 Top

8181641 White

8183061 Black

3 Cabinet

8182609 White

8183060 Black

4 Panel, Front

8182605 White

8183062 Black

5 Toe Panel

8181643 White

8183063 Black

6 8181636 Foot, Leveling

7 8181763 Bracket, Spring

8 8181695 Switch, Pressure

9 8181739 Hose, Pressure

Switch

10 8181635 Pan, Bottom

11 8182661 Brace, Transport

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182698 Panel, Rear

14 8183009 Cord, Power

15 8181690 Strain Relief

16 8182607 Brace, Rear

17 8182701 Clip, Drain Hose

18 8181737 Hose, Drain

(Outer)

19 8181738 Connector,

Drain Hose

20 8181752 Clamp, Hose

21 8181632 Brace, Top

22 8183019 Filter,

Interference

23 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

24 8183030 Grid, Ventilation

25 8181691 Screw

26 8182700 Cover, Transport

27 8181768 Storage, Hose

28 8181828 Screw

29 8183086 Microswitch (2)

30 8182699 Grommet,

Cord Support (2)

31 8182201 Screw, 3 x 8 mm

32 8182702 Clip, Outer Hose

Holder

Following Parts Not Illustrated

8182109 Harness Channel

DOOR AND LATCH PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

DOOR AND LATCH PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8182634 Lock, Door

4 8181760 Screw

5 8182211 Clamp, Bellow

To Front Panel

6 8181758 Screw

7 8181651 Hook, Door

8 8181661 Screw

9 8181660 Screw

10 8182628 Frame, Door

Back Support

W10128586

Clamp,

Glass Support

12 8181650 Clamp, Glass (2)

13 8181655 Glass, Door

14 8181843 Hinge, Door

15 Frame, Door

Front Assembly

8182151 Aluminum

8183070 Tuscan Silver

16 8182779 Clip, Trim

17 Trim, Upper Left

8182592 White

8183065 Black

18 Cover, Hinge

(Outer)

8182595 White

8183067 Black

19 Cover, Hinge

(Inner)

8182596 White

8183068 Black

20 Trim, Lower

8182594 White

8183066 Black

21 Handle, Door

8182591 White

8183069 Black

22 Trim, Upper Right

8182593 White

8183064 Black

23 8182153 Foam, Door Handle

24 8181759 Screw

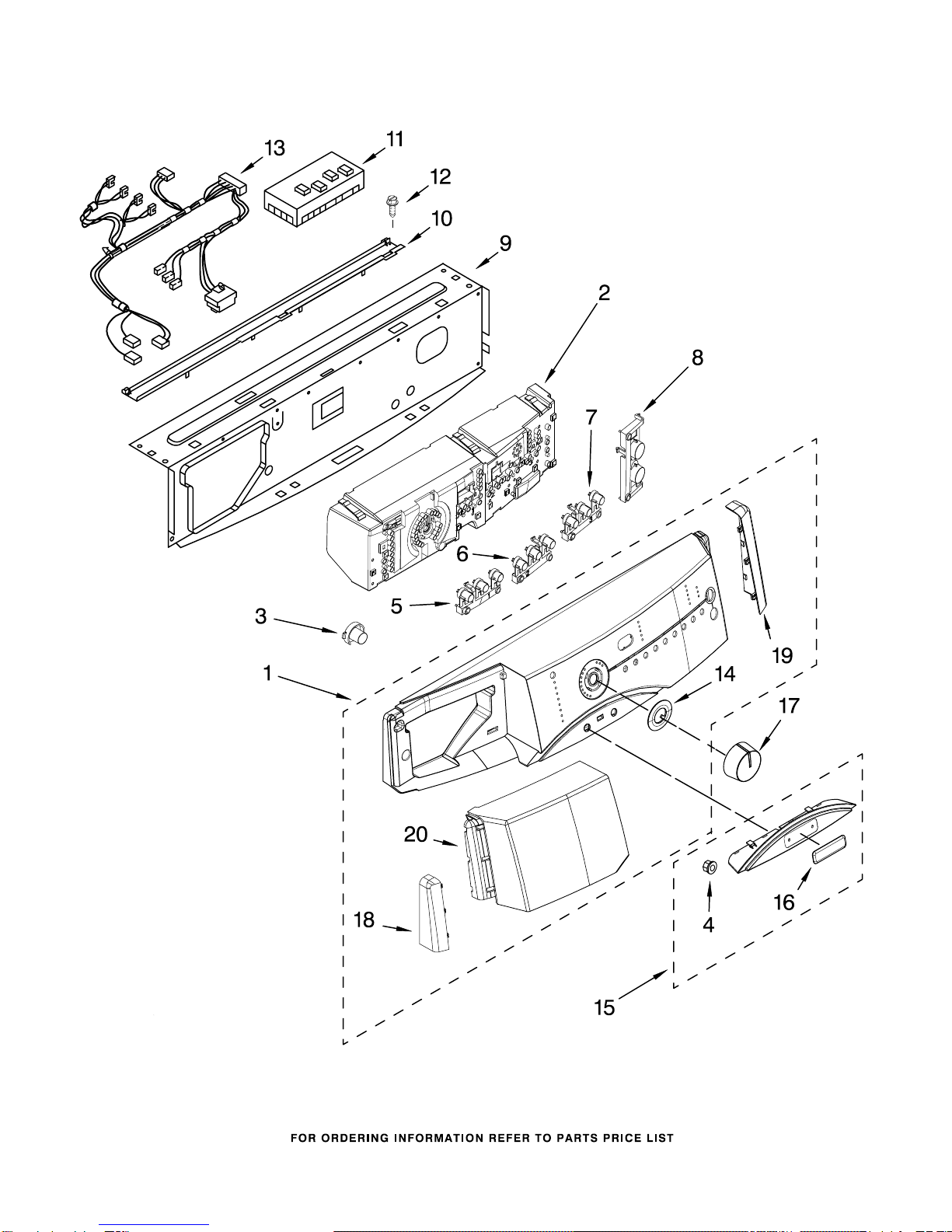

CONTROL PANEL PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

CONTROL PANEL PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8183056 White

8183071 Black

2 8182150 User Interface

3 8183077 Button, Power

4 8182183 Pal−nut

5 Button Set,

Left

8182604 White

8183080 Silver

6 Button Set,

Middle

8182603 White

8183079 Silver

7 Button Set,

Right

8182602 White

8183078 Silver

8 8183081 Button Set,

Start

9 8182224 Brace, Front Top

10 8181640 Channel, Water

W10137702

Microcomputer,

Machine Control

12 8181756 Screw

13 8182212 Harness, Wiring

(Main)

14 8182171 Bezel, Knob

15 Overlay, Door

8183058 Aluminum

8183075 Tuscan Silver

16 8183059 Medallion

17 8183076 Knob, Control

18 Endcap, Left

8182599 White

8183073 Black

19 Endcap, Right

8182600 White

8183074 Black

20 Handle, Drawer

(Includes Item 18)

8183057 White

8183072 Black

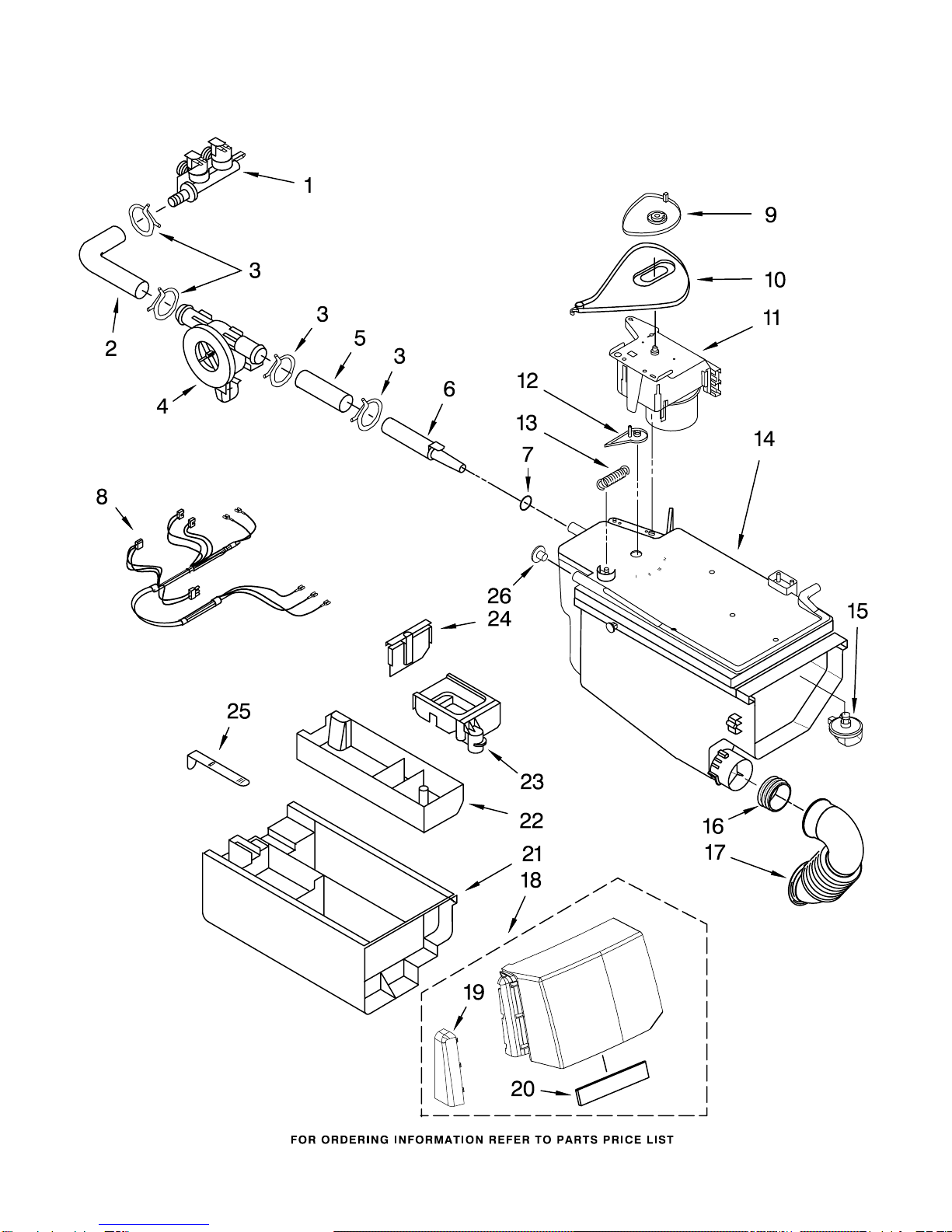

DISPENSER PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

DISPENSER PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

Illus. Part

No. No. DESCRIPTION

1 8182862 Valve, Inlet

2 8181710 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp, Hose

4 8181696 Flowmeter

5 8181708 Hose, Flowmeter

6 8183010 Nozzle, Inlet

7 8181714 O−Ring

8 8183022 Harness, Wiring

(Inlet Valve)

9 8181726 Cam, Actuator

10 8181725 Lever, Water

Distribution

11 8181723 Actuator

12 8181724 Connection, Lever

13 8181727 Spring, Lever

14 Dispenser

8183032 White

8183033 Meteorite

15 8181712 Nozzle,

Distribution

16 8181747 Seal

17 8181718 Tube, Dispenser

To Bellow

18 Handle, Drawer

8183057 White

8183072 Black

19 Endcap

8182599 White

8183073 Black

20 8182173 Cushion, Handle

21 Drawer,

Detergent

8181720 White

8182160 Meteorite

22 Container,

Detergent

8181722 White

8182184 Meteorite

23 Siphon,

Bleach/Softener

8182665 White

8182161 Meteorite

24 Separator

8181730 White

8182162 Meteorite

25 8181721 Hook, Drawer

26 8182123 Cap

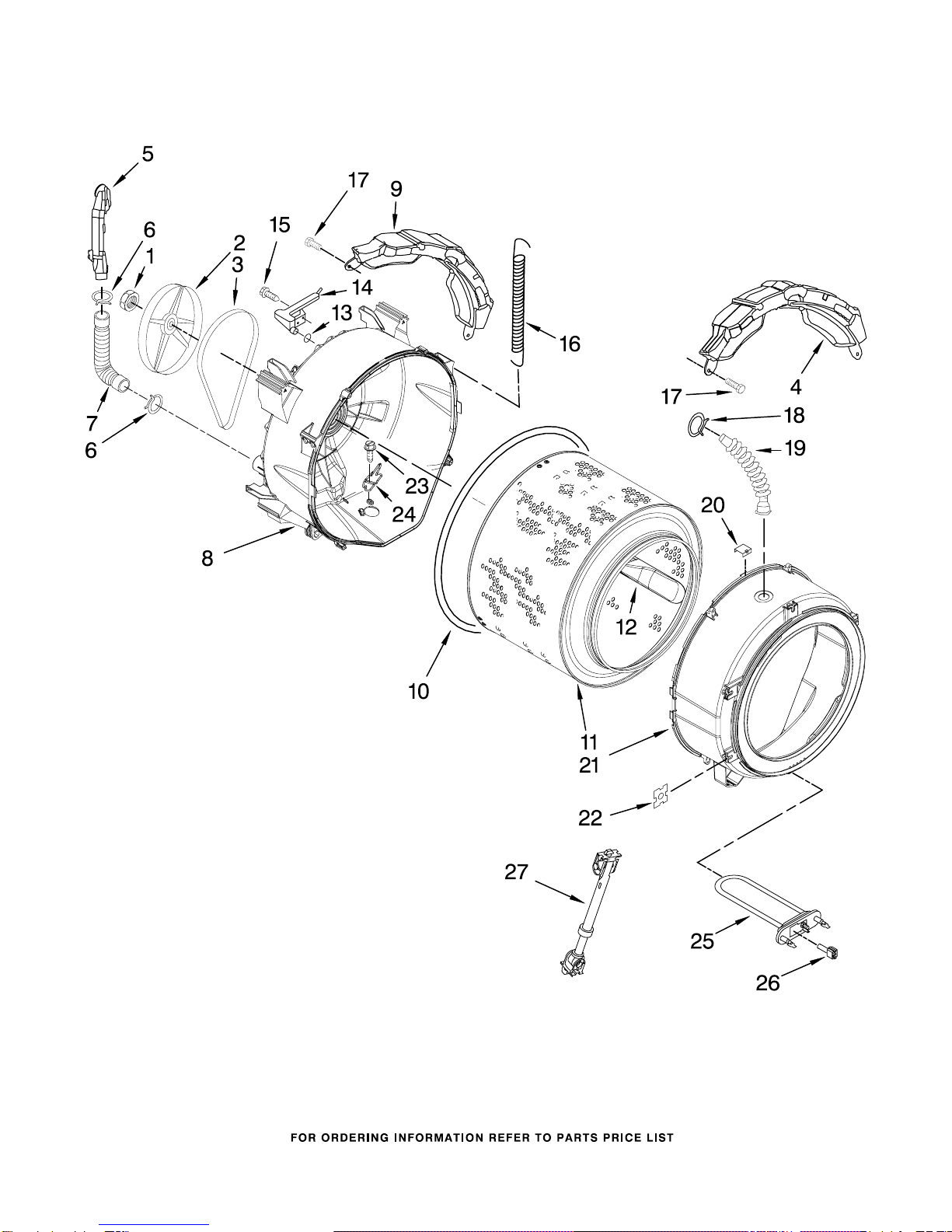

TUB AND BASKET PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

TUB AND BASKET PARTS

For Models: MFW9700SQ1, MFW9700SB1

(White) (Black)

W10133064

Illus. Part

No. No. DESCRIPTION

1 8182132 Nut, Pulley

2 8182650 Pulley

3 8183269 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

8 8181666 Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181644 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182247 Basket

12 8182233 Baffle, Basket

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

19 8181794 Hose, Tub to

Dispenser

20 8181667 Clamp, Tub

21 8181665 Tub, Front

(Includes Items

10 & 22)

22 8181648 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber

Following Parts Not Illustrated

8182126 Screw, Baffle

Mounting
