USER’S MANUAL

6224

Measurement Computing

10 Commerce Way

Norton, MA 02766

(508) 946-5100

Fax: (508) 946-9500

[email protected]

www.mccdaq.com

High-speed, Strain Gauge Input Module

12 Channel 24-Bit Half/Full-Bridge Analog Input Ethernet

*372738C-01*

372738C-01 Rev 1.2

Warranty Information

Contact Measurement Computing by phone, fax, or e-mail in regard to warranty-related issues:

Phone: (508) 946-5100, fax: (508) 946-9500, e-mail: [email protected]

Limitation of Liability

Measurement Computing cannot be held liable for any damages resulting from the use or misuse of this product.

this product may be copied, reproduced or transmitted by any mechanical, photographic, electronic, or other method

without Measurement Computing’s prior written consent. IOtech product names are trademarked; other product names, as

applicable, are trademarks of their respective holders. All supplied IOtech software (including miscellaneous support

files, drivers, and sample programs) may only be used on one installation. You may make archival backup copies.

CE Notice

Many Measurement Computing products carry the CE marker indicating they comply with the safety and emissions

standards of the European Community. When applicable these products have a Declaration of Conformity stating which

specifications and operating conditions apply. You can view the Declarations of Conformity at

www.mccdaq.com/legal.aspx (CE Information page).

Warnings, Cautions, Notes, and Tips

Refer all service to qualified personnel. This caution symbol warns of possible personal injury or equipment damage

under noted conditions. Follow all safety standards of professional practice and the recommendations in this manual.

Using this equipment in ways other than described in this manual can present serious safety hazards or cause equipment

damage.

This warning symbol is used in this manual or on the equipment to warn of possible injury or death from electrical

shock under noted conditions.

This ESD caution symbol urges proper handling of equipment or components sensitive to damage from electrostatic

discharge. Proper handling guidelines include the use of grounded anti-static mats and wrist straps, ESD-protective bags

and cartons, and related procedures.

This symbol indicates the message is important, but is not of a Warning or Caution category. These notes can be of great

benefit to the user, and should be read.

In this manual, the book symbol always precedes the words “Reference Note.” This type of note identifies the location

of additional information that may prove helpful. References may be made to other chapters or other documentation.

Tips provide advice that may save time during a procedure, or help to clarify an issue. Tips may include additional

reference.

Specifications and Calibration

Specifications are subject to change without notice. Significant changes will be addressed in an addendum or revision to

the manual. As applicable, the hardware is calibrated to published specifications. Periodic hardware calibration is not

covered under the warranty and must be performed by qualified personnel as specified in this manual. Improper

calibration procedures may void the warranty.

CAUTION

Using this equipment in ways other than described in this manual can cause

personal injury or equipment damage. Before setting up and using your

equipment, you should read all documentation that covers your system.

Pay special attention to Warnings and Cautions.

Note:

During software installation, Adobe®PDF versions of user manuals will automatically

install onto your hard drive as a part of product support. The default location is in the

Programs group, which can be accessed from the Windows Desktop. Initial navigation

is as follows:

Start [on Desktop] All Programs IOtech …

Refer to the PDF documentation for information regarding hardware and software.

For detailed information regarding Encore software, refer to the Help information that

can be accessed directly from IOtech’s Encore application following its installation.

6224 User’s Manual vii

Table of Contents

Quick Start

Chapter 1 –General Information

Introduction …. 1-1

Front Panel …… 1-1

Rear Panel …… 1-2

Analog Circuitry …… 1-31

Synchronization …… 1-4

Stacking Plate and Handle Options …… 1-5

Quarter-Bridge Accessories(CN-269 & CN-270) …… 1-6

RJ50 12-Pin Screw Terminal Accessory (CN-268) …… 1-7

RJ50 Cables (CA-272-01) …… 1-7

Chapter 2 –Block Diagram

Chapter 3 –Pinouts and Connections

Strain Channels, RJ50 Pinout …… 3-1

Half-Bridge and Full-Bridge Connections …… 3-2

Connecting TEDS Channels…… 3-2

Remote Sensing …… 3-2

Shunt Calibration …… 3-3

Internal Excitation Voltage Sources …… 3-3

External Excitation Voltage Sources …… 3-4

Mounting and Securing Connections …… 3-5

Where to Find Additional Information …… 3-5

Chapter 4 –Counter Input

Counter Settings …… 4-1

Encoder Settings …… 4-2

Chapter 5 –CE Compliance and Noise Considerations

Overview …… 5-1

CE Standards and Directives …… 5-1

Safety Conditions …… 5-2

Emissions/Immunity Conditions …… 5-3

CE Rules of Thumb …… 5-3

Noise Considerations …… 5-4

Chapter 6 –Software, IOtech Encore

Chapter 7 –Strain and Pressure Force

Chapter 8 –Product Care and Customer Support

Electrostatic Discharge (ESD), Handling Notice…… 8-1

Product Care …… 8-1

The Readme Files and the Install CD-ROM …… 8-2

Customer Support …… 8-2

Chapter 9 –Specifications, IOtech 6224

1For information regarding digital circuitry, refer to the Digital I/O section of the Specifications chapter.

Rev 1.2 325130C-01

IOtech 6224 Quick Start

High-speed, Strain Gauge Input Module

Before you get started verify that you have the following items

and meet or exceed the minimum requirements listed.

IOtech 6224

TR-60U Power Supply and Cable

Ethernet Crossover Cable*

IOtech Encore Installation CD

PC: Minimum Requirements:

CPU: Intel®Pentium®4, 3.0 GHz or equivalent

RAM: 1 GB

Monitor: 1024 by 768 screen resolution

PC: Recommended:

CPU: Intel®CoreTM 2 Duo Family

RAM: 2+ GB

Monitor: 1024 by 768 screen resolution

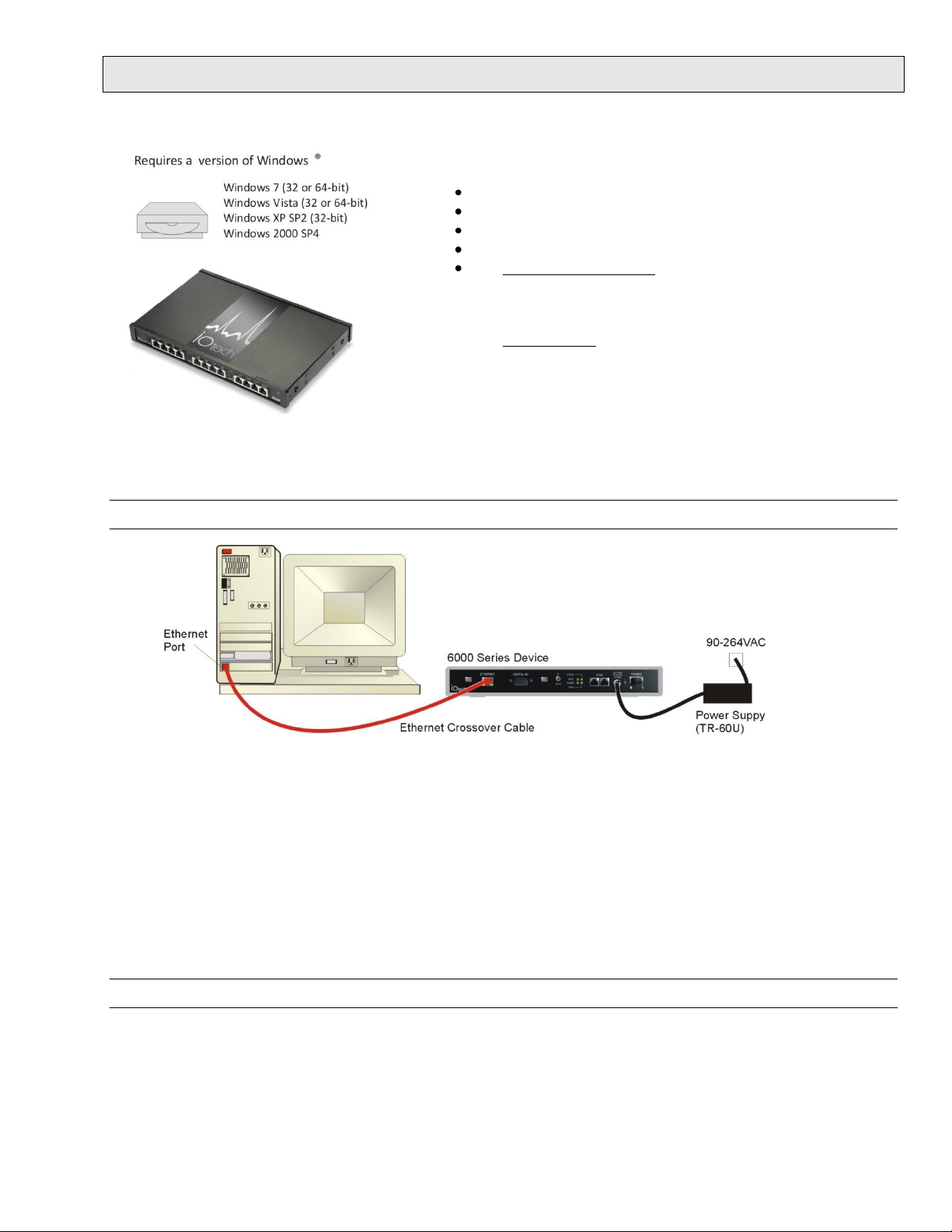

Step 1 - Connect the 6224 to the Ethernet and to the Power Supply

In this scenario the 6224 is connected directly to an Ethernet port on a host computer.

1. Connect the Ethernet cable to the Ethernet jack on the 6224. If connecting directly to the PC, as indicated

above (i.e., instead of connecting to a network hub) you must use an Ethernet crossover cable.

2. Connect the other end of the Ethernet cable to the Ethernet jack on the host computer or network hub.

3. Connect the power supply cable from the TR-60U Power Supply to the External Power connector on the 6224.

4. Connect the TR-60U to a standard AC outlet; and set the rear panel Power Switch to “I” to turn the unit on.

The 6224 Power LED will light up.

5. If Encore software is already installed, reboot the PC and skip to Step 3; otherwise proceed to Step 2, Install

Encore Software.

Step 2 –Install Encore Software

1. Close all running applications on the host PC.

2. Insert the Encore CD into your CD-ROM drive and wait for the CD to auto-run.

An Opening Screen will appear. If AutoRun is disabled: (a) right-click Windows Start menu,

(b) select Explore, (c) navigate to the CD ROM drive, and (d) double-click Autorun.exe

3. Follow the screen prompts.

*An Ethernet crossover cable (provided) should only be used when connecting a 6000

Series device directly to the PC. A standard Ethernet cable should be used when

connecting via a hub/switch. A Gigabit switch is recommended when connecting

multiple devices.

IMPORTANT: You must use a crossover cable if

connecting a 6000 Series device directly to the PC.

Printed in Hungary

Step 3 –Use Encore to Configure the 6224

1. Run the Encore software application (Start>>All Programs>>IOtech>>Encore).

2. In Encore’s main toolbar, click the Hardware Configuration button. The Hardware Configuration window will open.

3. Select your device from the Detected Devices panel.

4. Click the top arrow button to set your device as a Project Device.

5. In Encore’s Hardware Configuration window, look in the Device Information panel to verify that your 6224 has an

IP Address. Note the following points regarding common connection scenarios. Both points assume that you have not

changed the 6224 from its default setting of Obtain an IP Address Automatically.

oDirect Connect –When a 6000 Series device is connected directly (via crossover cable or hub/switch) to a host PC

with no fixed IP Address, you will need to reboot the PC and the device to allow a default IP Address to be set. This

setting of an IP Address is automatic. No other action is needed. (See note.)

oNetwork Connect (Common scenario using existing network with DHCP server) –A 6000 Series device will

automatically request and receive an IP Address. No user action is needed. (See note.)

Note - Encore will provide a message to indicate an IP Address problem if one exists. If you receive such a message,

consult your network administrator and also check Encore’s Comprehensive Help file (via the Help pull-down menu on

Encore’s main window). Look at the topic: Connection Scenarios and IP Addresses (under Configuring Hardware

>>Hardware Setup).

6. Click the Next button (at the bottom of the Hardware Configuration dialog) to access the Acquisition Setup tab.

7. Configure and enable channels as desired for your application. For detailed information refer to Encore’s Comprehensive

Help file (via the Help pull-down menu on Encore’s main window).

Make sure that each computer and each device on the dedicated network has a unique IP address.

Step 4 - Connect Signal Lines

CAUTION

Turn off power to the system devices and externally connected equipment before connecting

cables. Electric shock or damage to equipment can result even under low-voltage conditions.

Take ESD precautions (packaging, proper handling, grounded wrist strap, etc.)

The 6224 uses 10-pin RJ50 jacks for strain connection. Do not connect RJ45 plugs to these

RJ50 jacks. Using RJ45 plugs can cause permanent damage to RJ50 pins 1 and 10, thus

disabling shunt calibration.

The 6224 has 12 analog channel inputs (CH1 through CH12) via front panel RJ50 jacks and 8 digital I/O lines via

rear panel DB9 connector.

Prior to making signal connections review the Specifications chapter of your 6224 user’s manual to ensure that the input

signals do not exceed the specified limits. After you have installed Encore you can access the pdf manual by navigating

from the host PC’s Windows Start Menu as follows (location shown is the default):

Start>>All Programs>>IOtech>>6000 Series>>6224 User Manual

Reference Note: The Encore software application includes Context-sensitive Help, Comprehensive Help,

a Quick Start Video Tutorial, and a Getting Started pdf.

Measurement Computing 10 Commerce Way, Norton, MA 02766

Phone: (508) 946-5100, Fax: (508) 946-9500 E-mail: i[email protected]

Internet: www.mccdaq.com

*325130C-01*

325130C-01

6224 User’s Manual General Information 1-1

General Information 1

Introduction …… 1-1

Front Panel …… 1-1

Rear Panel …… 1-2

Analog Circuitry1 …… 1-3

Synchronization …… 1-4

Stacking Plate and Handle Options ….. 1-5

Quarter-Bridge Completion Accessories(CN-269 & CN-270) …… 1-6

RJ50 12-Pin Screw Terminal Accessory (CN-268)….. 1-7

RJ50 Cables (CN-272-01) …… 1-7

Introduction

The 6224 is a twelve-channel, 24-bit resolution strain measurement device that connects to a host PC‟s Ethernet

port. The device is used to measure half-bridge and full-bridge sensors and can be synchronized with other 6000

series devices.

The hardware provides the signal conditioning and acquisition engine, while the software defines the specific

configuration and analysis aspects of the system.

Note that the software includes both a context sensitive Help and a comprehensive Help file.

6224 Basic profile:

Model

Interface

Analog

Input

Channels

SYNC

Ports

Analog

Output

Channels

Digital

I/O

TEDS

Support

Supported Bridges

(Note 3)

6224

10/100BaseT

Ethernet

12 Strain

RJ50 Jacks

1 port/

8 lines

(Note 2)

Quarter-Bridge I

Quarter-Bridge II

Half-Bridge I

Half-Bridge II

Full-Bridge I

Full-Bridge II

Full-Bridge III

Front Panel

The front panel houses twelve channel signal input jacks and

three excitation voltage source connectors, one for each set of

four channels.

The input channel jacks are type RJ50 (10p10c) and are labeled

CH1 through CH12. The 10-connector pinout for the RJ50

connectors is included in chapter 3.

Optional external voltage source connectors are available. For

additional information see the External Excitation Voltage

Sources section of chapter 3.

Do not connect an RJ45 plug to an RJ50 jack. Using RJ45 plugs can cause

permanent damage to RJ50 pins 1 and 10, thus disabling shunt calibration.

1For information regarding digital circuitry, refer to the Digital I/O section of the Specifications chapter.

2TEDS is supported by the 6224, but only if TEDS is supported by the software application.

3For information regarding the various bridge types, refer to chapter 7.

1-2 General Information 6224 User’s Manual

Rear Panel

The following items reside on the rear panel; from

left to right: 1st cable tie mount, Ethernet jack,

DB9-Digital I/O port, 2nd cable tie mount, #6-32

chassis ground screw, four status LEDs, two

synchronization jacks, a power input jack, and a

power switch. A description of each follows.

CABLE TIE MOUNTS: Two cable tie mounts are present to provide for strain relief of cables.

ETHERNET: The 10/100BaseT Ethernet port can connect to the Ethernet port of the host PC, or to an Ethernet

network. The Ethernet connector has two built in LEDs that indicate traffic flow on the network.

Refer to Accessories in the Specifications chapter for Ethernet cables available from Measurement Computing.

When connecting the unit directly to a PC (i.e., when not connecting to a network hub) you

will need to use an Ethernet crossover cable.

Ethernet cable length must be <3 m (9.8 ft) in order for the system to be CE Compliant.

DIGITAL I/O: Eight digital I/O lines are accessible via a 9-pin, female DSub connector. For details, refer to the

Digital I/O section of the Specifications chapter.

GROUND (#6-32): Provides a connection point for Chassis Ground via use of a #6-32 machine screw.

STATUS LEDS:

Power

„ON‟ when the device is connected to a sufficient power source and the power switch is

in the „l‟ (On) position.

Boot

During initial power up, the Boot light will be On to signal the first stage boot process.

When this has completed successfully, the Boot light will remain Off. If an internal

error is detected during this first stage boot process, this light will be blinking. Contact

Measurement Computing to arrange repair service.

Active

During initial power up, the Active light will be Off during the boot process, including

network configuration. The process will complete with a fast Blink, and then steady On

condition. With both the Power and Active lights On, the device is in the Ready state.

After this, the Active light will signal communications with a host computer at a slower

blink rate.

Data

The Data light will be On any time the device is acquiring channel data that is available

to the host PC control software.

Note:

After turning on the device, it can take up to 2 minutes to reach ready state, depending on

network settings. This can be monitored by the LED sequence:

Power Light On Boot Light On then Off Active Light Off, then Blinking, then On.

SYNC: Two “synchronization ports” provide a means of synchronizing units regard to pre-trigger data and post-

trigger scanning. Note that each 6000 Series device is capable of being designated as a Master Unit, Slave Unit, or

Terminating Slave Unit. The assignment is made in Encore. Refer to the following section, Synchronization, for

details. Refer to Accessories in the Specifications chapter for SYNC cables available from Measurement Computing.

Up to nine units can be synchronized. The total combined length of the SYNC cables is not

to exceed 2.438m (8 ft).

POWER INPUT: +19 VDC to +30 VDC, through a connector on the chassis. Power is typically supplied to the

device via a TR-60U, 24VDC universal power supply.

POWER SWITCH: A switch with a “0” label for Power Off, and a “ ” for Power On.

6224 User’s Manual General Information 1-3

Analog Circuitry

The 6224 is isolated from earth ground. However, the individual channels, within their four-channel group, are not

isolated from each other. The EX+, EX–, and T–signals are common among the four channels in their group as

indicated by note 1 on page 3-1 and in the block diagram (page 2-1).

You can connect the 6224 to a device that is biased at any voltage within the unit‟s rejection range of earth ground.

The Specifications chapter includes additional information.

Filtering

Passband -

Stopband -

Alias-Free Bandwidth -

1-4 General Information 6224 User’s Manual

Synchronization

To synchronize from two to nine 6000 Series devices, link

them together with synchronization cables as indicated in the

example figure. Note that the first device (relative to the

circuit) will be the Master. The last device connected will be

the Terminating Slave. Thus the synchronized devices must

proceed sequentially from the Master to Terminating Slave, as

indicated in the figures. Note that channel-to-channel phase

relationships in a multi-device configuration are not

necessarily fixed. See notes below.

After physically linking the devices via the sync cables, they must still be configured as a “Synchronized Device

Group” in the Encore software. To do this, use the Synchronize Devices page of Encore‟s Hardware Setup tab.

Each Synchronized Group consists of one Master Device

and at least one Slave Device. By default, the first 6000

Series device added to the Synchronization Group will be

the Master and the last device added to the group will be the

Terminating Slave.

Encore‟s Synchronized Device Group Configuration

panel includes a pull-down list which allows you to select

the device that you want to have function as Master and the

one you want to function as Terminating Slave, should this

be different than the default settings.

Encore will display a Synchronization Error icon if it

detects that a necessary synch cable is missing or not

properly connected.

Up to nine units can be synchronized. The total combined length of the SYNC cables is not

to exceed 2.438m (8 ft).

Unplug sync cables from devices that are not intended to be part of a “Synchronized Device

Group.” Leaving a sync cable connected to an independent device can lead to errors.

Leaving an un-terminated sync cable on a synchronized device can lead to errors.

The sampled data phase relationship among channels between multiple devices is

dependent on the Channel Sync Skew specification for each device. When utilizing

different models in a multi-device system, any differences in the ADC filter delay

(“Input Delay”) should be added.

Reference Note: For detailed information refer to the Encore software‟s Comprehensive Help.

You can access the Help from within Encore. After doing so, navigate to the synchronization

related topic as follows from the Help‟s Contents panel:

Configuring Hardware>>Hardware Setup>>Synchronizing Devices.

TO ACQ

Inhaltsverzeichnis

Andere Measurement Computing Messgerät Handbücher

Measurement Computing

Measurement Computing BTH-1208LS Bedienungsanleitung

Measurement Computing

Measurement Computing USB-1608G Bedienungsanleitung

Measurement Computing

Measurement Computing USB-PDISO8/40 Bedienungsanleitung

Measurement Computing

Measurement Computing USB-5200 Series Bedienungsanleitung

Measurement Computing

Measurement Computing TC-32 Bedienungsanleitung

Measurement Computing

Measurement Computing PML 1000 Bedienungsanleitung

Measurement Computing

Measurement Computing 4623 Bedienungsanleitung

Measurement Computing

Measurement Computing 15200B Bedienungsanleitung

Measurement Computing

Measurement Computing DPG Series Bedienungsanleitung

Measurement Computing

Measurement Computing PCI-DAS6034 Bedienungsanleitung

Measurement Computing

Measurement Computing USB-5203 Bedienungsanleitung

Measurement Computing

Measurement Computing P-Series Bedienungsanleitung

Measurement Computing

Measurement Computing CIO-DAC08/16 Bedienungsanleitung

Measurement Computing

Measurement Computing ACCUTIRE MS-4021B Bedienungsanleitung

Measurement Computing

Measurement Computing USB-7202 Bedienungsanleitung

Measurement Computing

Measurement Computing CIO-DAS1601/12 Bedienungsanleitung

Measurement Computing

Measurement Computing USB-5200 Series Bedienungsanleitung

Measurement Computing

Measurement Computing USB-1096HFS Bedienungsanleitung

Measurement Computing

Measurement Computing WLS-TC Bedienungsanleitung

Measurement Computing

Measurement Computing CIO-DAS6402/12 Bedienungsanleitung

Measurement Computing

Measurement Computing USB-TC-AI Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
