Lever Action Bib Taps

DLT095 & DLV095

Installation Guide

Technical Specification

Operating Pressure

Min:

Max:

Operating Temperature

Hot:

Cold:

5.0 Bar

0.1 Bar

65⁰C

5⁰C

Inlet Connections

1/2” BSP

METHVEN UK LIMITED METHVEN

EXPERIENCE CENTRE 3/3A

STONE CROSS COURT YEW TREE

WAY

GOLBORNE

WARRINGTON

WA3 3JD

UNITED KINGDOM

INST-DLT095 & DLV095 -

26/04/2022

TEL: 0800 195 1602

FAX: 0844 406 8690

EMAIL: [email protected]

www.deva-uk.com

www.methven.com

Warranty Information

Proof of purchase will be required.

The guarantee does not cover faults or damage caused by incorrect

installation and/or maintenance, ordinary wear and tear, water

composition, etc.

*Please see www.deva-uk-com for full terms and conditions of warranty

Cleaning

Your product has a high-quality finish and should be treated with care

to preserve the visible surfaces. Never use abrasives or abrasive

cleaning agents to clean this product clean regularly with

contamination free warm water and a damp soft cloth. Do not use

products containing chlorine bleach or hydrochloric acid as these can

damage the product.

We have a policy of continuous improvement and reserve the right to

change specifications without notice.

Tap Installation Instructions

Please read all the instructions before installation.

General

Methven recommends this product is installed by a competent person in compliance with

all relevant regional regulations.

It is recommended that inlet pressures are as balanced as possible to provide optimum

performance from your product.

Before commencing installation, ensure that the system has been flushed to remove any

debris which can damage the product.

Always turn off or isolate the water supply before commencing installation.

After installation, all connections must be checked for leaks.

All outlets used primarily for personal hygiene shall deliver water at a safe temperature as

per regional regulations.

It is the responsibility of the installer to ensure a waterproof seal is achieved.

1) Prepare pipe work in desired location using either a flat face pipe, nut and

washer,compression nut and olive or pipe elbow, PTFE may be used.

NOTE: No wall fixing is provided with this product, one can be purchased if required,

the tap is held into position by the pipes, which should be fixed to give rigidity to the

tap.

2) To connect the water supply directly to the tap, either, fit washer into nut and

screw nut onto tap tail and tighten or fit nut and olive over pipe end, push pipe into

tap tail and screw nut onto tail and tighten.

3) The products can also be fitted to our bib tap pillars and extensions, one of the

extensions can be used as a wall fitting.

4) To connect the bib tap to these items simply insert a seal into the pillar or

extension and screw the tap on until a seal is formed, again PTFE can be used.

5) If using the wall fitting the wall fitting should be secured to the wall, then the tap

inserted and directed downwards (sealed by PTFE), then the supply pipe connected

to the compression fitting (nut and olive).

If using PTFE, do not over use on the threads, as to much may affect the connection of the nut

to the tap.

THIS PRODUCT MUST BE USED IN SUCH A WAY AS TO ENSURE ANY WATER FLOW IS DIRECTED

TOWARD A SUITABLE LOCATION AND CANNOT CAUSE WATER DAMAGE.

Line Drawing

DLT095 DLV095

Dieses Handbuch passt für folgende Modelle

Andere METHVEN Sanitärprodukte Handbücher

METHVEN

METHVEN KOHA Bedienungsanleitung

METHVEN

METHVEN Maku Bedienungsanleitung

METHVEN

METHVEN Deva NCT002 Bedienungsanleitung

METHVEN

METHVEN 03-9470M Bedienungsanleitung

METHVEN

METHVEN KEA MINI BASIN MIXER Bedienungsanleitung

METHVEN

METHVEN KOHA SHOWER MIXER WITH FASTFLOW II Bedienungsanleitung

METHVEN

METHVEN Ovalo 01-0646 Bedienungsanleitung

METHVEN

METHVEN Kaha 01-7003 Bedienungsanleitung

METHVEN

METHVEN MAKU Bedienungsanleitung

METHVEN

METHVEN Amio Shower Mixer Bedienungsanleitung

METHVEN

METHVEN Maku SatinJet Slide Rail Shower Bedienungsanleitung

METHVEN

METHVEN 01-6259 Bedienungsanleitung

METHVEN

METHVEN echo Basin Mixer Bedienungsanleitung

METHVEN

METHVEN Kiri 01-5436 Bedienungsanleitung

METHVEN

METHVEN SURFACE SHOWER MIXER WITH FASTFLOW II Bedienungsanleitung

METHVEN

METHVEN FLEXISPRAY Bedienungsanleitung

METHVEN

METHVEN Aroha 01-9342 Bedienungsanleitung

METHVEN

METHVEN KIRI SATINJET 13-7602 Bedienungsanleitung

METHVEN

METHVEN Kaha 01-7300 Bedienungsanleitung

METHVEN

METHVEN Kiri 01-5054 Bedienungsanleitung

METHVEN

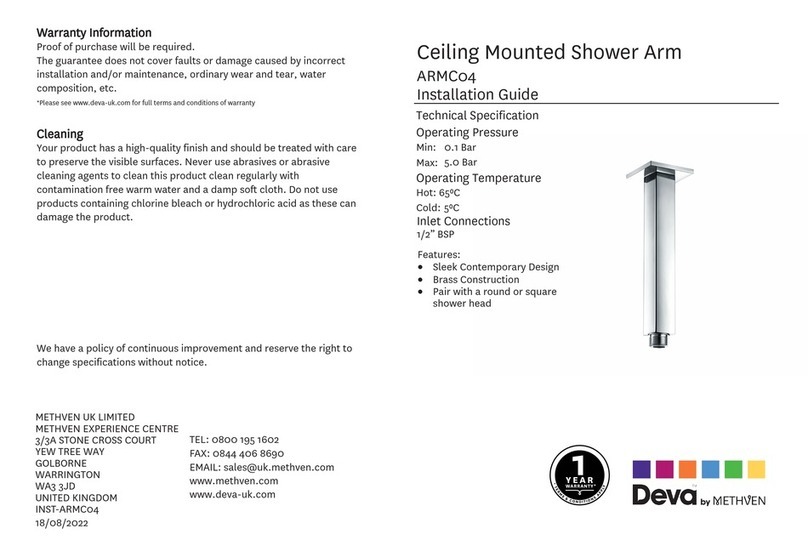

METHVEN Deva ARMC04 Bedienungsanleitung
