INSTALLATION INSTRUCTIONS FOR PART 99-6504

APPLICATIONS

REV. 9/18/2013 INST-99-6504

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

• ISO head unit provision with pocket

• A) Radio housing • B) ISO brackets

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1817 - Chrysler harness 1984-2006

(vehicle specific)

• 70-6502 - Chrysler harness 2002-up

(vehicle specific)

• 70-1818 - Chrysler amplifier integration harness

1984-up (vehicle specific)

• 70-6503 - Chrysler/Dodge amplifier integration

harness 2002-up (vehicle specific)

Antenna Adapter:

• 40-CR10 - Chrysler factory antenna to

aftermarket radio adapter cable 2002-up

Chrysler multi-kit 1998-2009

99-6504

See application list inside

• Phillips screwdriver • Torx #20 • Socket wrench • Small flat blade screwdriver

TOOLS REqUIREd

99-6504

Applications

Dash Disassembly

- Chrysler 300M 1999-2004 ................................... 3

- Chrysler Concorde 1998-2004 ............................. 3

- Chrysler LHS 1998-2001 ...................................... 3

- Chrysler PT Cruiser 2001-2005 ............................ 3

- Chrysler Sebring 2001-2006 ................................ 3

- Chrysler Town & Country 2001-2006 .................... 3

- Dodge Caravan 2001-2006 .................................. 3

- Dodge Dakota 2001-2004 .................................... 5

- Dodge Durango 2001-2003 .................................. 5

- Dodge Intrepid 1998-2004 ................................... 3

- Dodge Neon 2000-2006 ....................................... 4

- Dodge Ram 2002-2005 ........................................ 4

- Dodge Stratus 2001-2006 .................................... 3

- Dodge Viper 2003-2006 ....................................4-5

- Jeep Grand Cherokee 1999-2004 ........................ 5

- Jeep Liberty 2002-2006 ....................................... 5

- Jeep Wrangler 2003-2006 ................................... 6

- Plymouth Neon 2000-2001 .................................. 4

Kit Assembly

- ISO head unit provision with pocket ...................... 6

Chrysler

300M ...............................1999-2004

Concorde ......................... 1998-2004

LHS .................................1998-2001

PT Cruiser ........................2001-2005

Sebring ............................ 2001-2006

Town & Country ............... 2001-2006

Dodge

Caravan ........................... 2001-2006

Dakota ............................. 2001-2004

Durango........................... 2001-2003

Intrepid ............................ 1998-2004

Neon ................................2000-2006

Ram................................. 2002-2005

Stratus .............................2001-2006

Viper ................................ 2003-2006

Jeep

Grand Cherokee ............... 1999-2004

Liberty .............................2002-2006

Wrangler ..........................2003-2006

Plymouth

Neon ................................2000-2001

Table of Contents

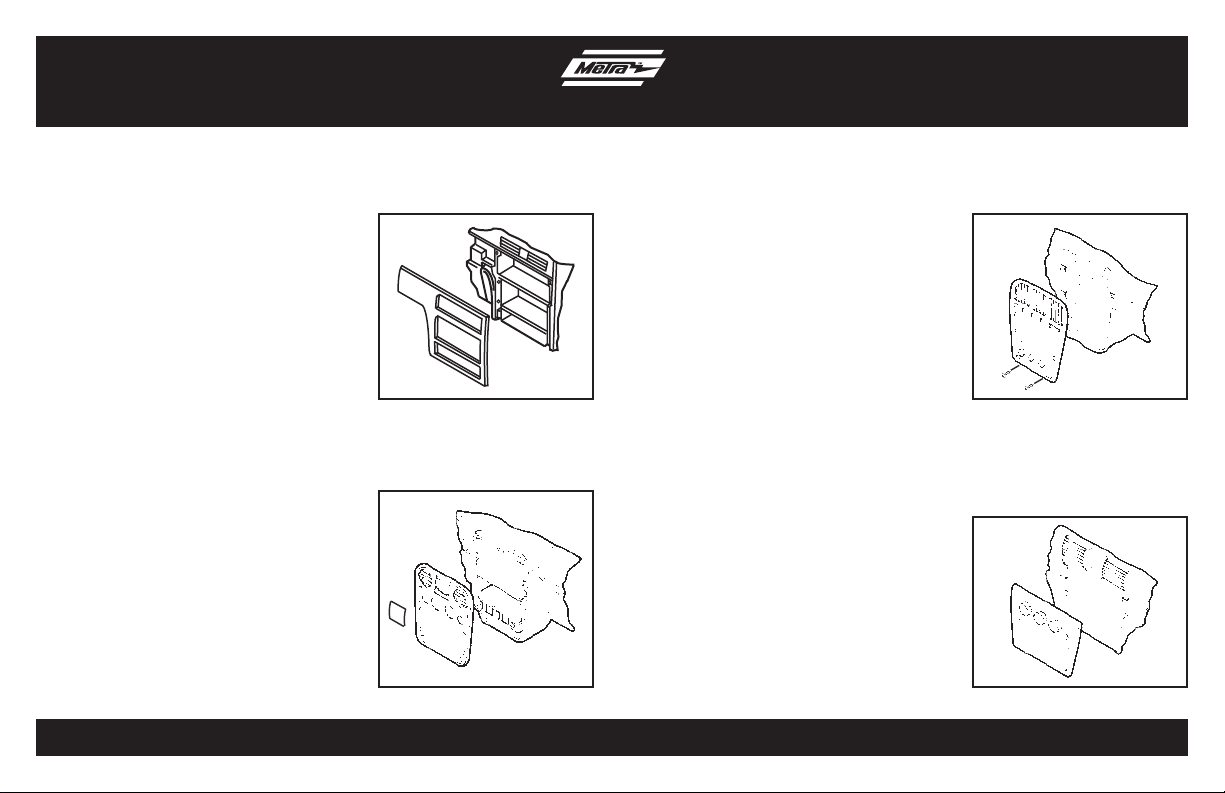

1. Remove the ashtray by pressing down on

the inner spring clip. (Concorde only)

2. Unclip gear shifter trim panel and slide trim

panel toward the rear of the vehicle.

3. Unclip dash trim panel and disconnect the

wire to the trim panel. (Figure A)

4. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

Chrysler 300M/Concorde 1998-2004/LHS

1998-2001, Dodge Intrepid 1998-2004

Dash Disassembly 99-6504

Chrysler PT Cruiser 2001-2005

1. Unclip power window control panel.

Disconnect and remove panel.

2. Pull off climate control knobs.

3. Unclip and remove the dash trim panel.

(Figure A)

4. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

(Figure A)

1. Remove (2) Phillips head screws from under

the climate controls. (Coupe only)

2. Unclip and remove radio trim panel.

(Figure A)

3. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

Chrysler Sebring/Dodge Stratus

2001-2006

(Figure A)

1. Open cup holder. Unclip and remove trim

above cup holder.

2. Remove (2) Phillips head screws from above

cup holder. (Figure A)

3. Unclip and remove the dash trim panel.

(Figure A)

4. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

Chrysler Town & Country/Dodge

Caravan 2001-2006

(Figure A)

Dash Disassembly 99-6504

1. Using a small flat blade screw

driver, pry up on center console

trim panel. Note, be careful not to

scratch the trim panel. (Figure A)

2. Loosen the shifter lock nut below

center console trim panel (Figure

A) and unscrew the shifter knob.

(Figure B)

3. Unplug electrical connectors and

remove center console trim panel.

(Figure C)

4. Remove (6) Allen screws from

radio/climate control trim panel

and (1) Phillips screw at the

bottom of the panel.

5. Unplug electrical connectors and

remove the panel. (Figure D)

6. Remove (4) screws securing

the radio. Disconnect and remove

the radio.

Continue to kit assembly

Dodge Viper 2003-2006

(Figure A)

(Figure B)

1. Pull off climate control knobs.

2. Unclip and remove A/C and heater vents.

(Figure A)

3. Remove (1) Phillips head screw from each

vent cavity.

4. Unclip and remove dash trim panel. (Figure A)

5. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

Dodge Neon 2000-2006/Plymouth

Neon 2000-2001

Dodge Ram 2002-2005

1. Unclip the top edge of the trim panel

below the steering column. Note, it is not

necessary to completely remove this panel.

2. Remove (1) Phillips head screw from below

right A/C and heater vent.

3. Unclip and remove dash trim panel. (Figure A)

4. Remove (4) Phillips head screws securing

the radio. Disconnect and remove the radio.

Continue to kit assembly

(Figure A)

Dash Disassembly 99-6504

Dodge Viper

2003-2006

(Figure D)

1. Remove (3) T-20 Torx

screws from the bottom

edge of the panel below

the steering column and

unsnap to remove panel.

(Figure A)

2. Remove (2) Phillips

screws from the

instrument cluster panel

above gauges. (Figure A)

3. Remove (3) T-20 Torx

screws from the bottom

of the steering column

shroud and unsnap and

remove the top half of

the shroud. (Figure A)

4. Unsnap and remove

entire panel surrounding

radio, A/C controls, and

instrument cluster.

5. Remove (4) Phillips

screws securing radio.

Disconnect and

remove radio.

Continue to kit assembly

Dodge Dakota 2001-2004

Durango 2001-2003

(Figure A)

Jeep Grand Cherokee

1999-2004

(Figure C)

1. Unclip and remove

radio trim panel.

(Figure A)

2. Remove (4) Phillips

head screws securing

the radio. Disconnect

and remove the radio.

Continue to kit

assembly (Figure A)

Jeep Liberty 2002-2006

1. Remove ashtray and

remove one Phillips screw

exposed. (Figure A)

2. Unclip and remove radio/

climate control panel.

3. Remove (4) Phillips screws

securing radio. Disconnect

and remove radio.

Continue to kit assembly (Figure A)

POWER

OUTLET

3 Screws

2 Screws

2 Screws 3 Screws

Dash Disassembly 99-6504

1. Unsnap and remove defroster grille

panel near windshield. (Figure A)

2. Remove (2) Phillips screws

exposed at the top of the center

dash panel and unsnap and

remove panel.

3. Remove glove box door to access

one 10 mm nut on back of radio.

4. Remove (4) Phillips screws

securing radio. Disconnect and

remove radio.

Continue to kit assembly

Jeep Wrangler

2003-2006

1. Attach the ISO brackets to the

radio housing by sliding the

bracket tabs into the housing slots.

(Figure A)

2. Slide the aftermarket head unit into

the radio housing.

3. Align the holes in the head unit

with the holes in the ISO brackets

and mount the head unit to the

brackets with (4) screws supplied

with the unit. (Figure B)

4. Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapter

from Metra or AXXESS. Re-connect

the negative battery terminal and

test the unit for proper operation.

5. Reassemble dash in reverse order

of disassembly.

ISO head unit provision

with pocket

(Figure A) (Figure A)

(Figure B)

Kit Assembly 99-6504

Notes

99-6504

INSTALLATION INSTRUCTIONS FOR PART 99-6504

REV. 9/18/2013 INST-99-6504

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians
