MITO-02
TOOLS REQUIRED FOR INSTALLATION
•Cutting Tool • Small Blade Screwdriver • Tape • Crimping Tool • Connectors
(I.E. butt-connectors, bell caps, etc…)
42
WIRING CONNECTIONS TO BE MADE ON THE VEHICLE
SIDE HARNESSES:
1. Connect the Yellow wire to the radio’s12 volt battery or memory wire.
2. Connect the Black wire to the radios ground wire.
3. Connect the Orange wire to the radios Illumination wire. If the radio does
not have an Illumination wire just tape up the wire.
4. Connect the Blue wire to the radios power antenna turn on wire.
WIRING CONNECTIONS TO BE MADE ON THE
14 PIN HARNESS WITH RCA’S
1. Connect the Blue/White wire to the radios amplifier turn on wire.
2. Connect the Red wire to the radio’s 12 volt accessory wire.
3. Connect the Brown wire to the radios mute wire. If the radio does not
have a Mute wire just tape up the wire.
4. Connect the White RCA to the radios left front rca output.
5. Connect the Gray RCAto the radios right front rca output.
6. Connect the Green RCA to the radios left rear rca output.
7. Connect the Purple RCA to the radios right rear rca output.
If the radio does not have rca outputs or only 1 pair we recommend the use
of the Axxess ALOC648 or ALOC608 line level convertor (sold separately).
The following wires are for radios that have navigation:
*Connect the Blue/Pink wire to the radios VSS or Speed Sense wire.
*Connect the Green wire to the radios Parking Brake wire.
*Connect the Green/Purple wire to the radios Reverse wire.
BEFORE WIRING UP THE MITO-02
*Important: Before beginning any of the following, disconnect the
negative battery terminal to prevent an accidental short circuit.
*IMPORTANT WARNING
THIS PRODUCT INCLUDES INSTRUCTIONS FOR INSTALLATION WHICH
MUST BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED
IN SUCH A MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE
OF COMPLETING THESE TYPE OF ELECTRONIC INSTALLATIONS. IF YOU
ARE UNCLEAR AS TO WHAT YOU ARE INSTRUCTED TO DO OR BELIEVE
THAT YOU DO NOT UNDERSTAND THE INSTRUCTIONS SO AS TO
PROPERLYAND SAFELY COMPLETE THE INSTALLATION YOU SHOULD
CONSULTA TECHNICIAN WHO DOES HAVE THIS KNOWLEDGE AND
UNDERSTANDING. FAILURE TO FOLLOW THESE INSTRUCTIONS
CAREFULLY AND TO INSTALL THE INTERFACE AS DESCRIBED COULD
CAUSE HARM TO THE VEHICLE OR TO SAFETY SYSTEMS ON THE
VEHICLE. INTERFERENCE WITH CERTAIN SAFETY SYSTEMS COULD
CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY QUESTIONS
IN THIS REGARD PLEASE CALL THE HELP LINE OR THE METRA AT
1-800-221-0932 FOR ASSISTANCE.
INSTALLING AND TESTING THE MITO-02
1. With all connections completed to the radio, plug the corresponding harnesses
into the MITO-02.
2. Cycle the key by turning the ignition on then back off, then back on again to
test the radio for proper operation.

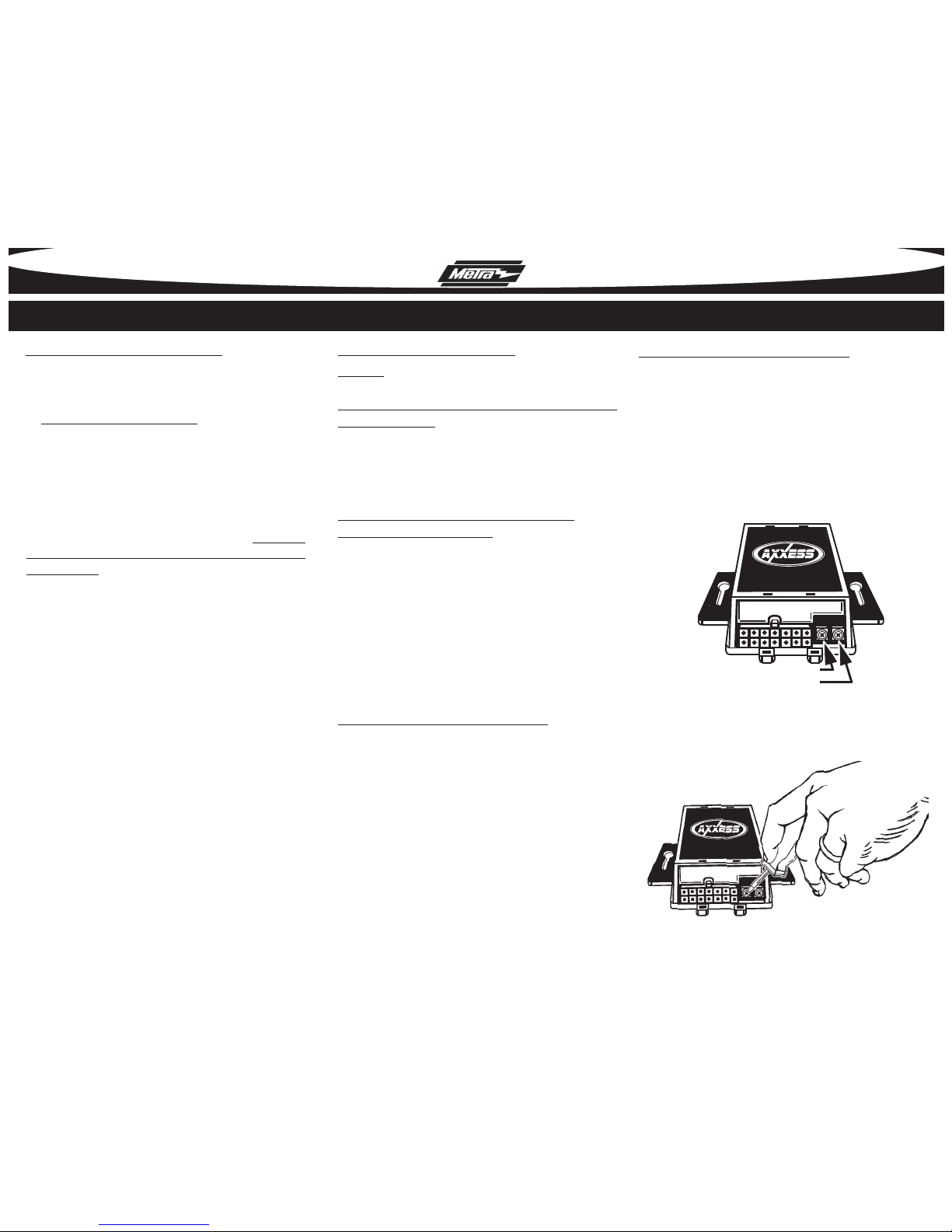

3. If the subwoofer or main speakers are too loud you can adjust the output by
following the steps below:
A. Locate the end of the MITO-02 with the 14 way Molex connector .
B. There are 2 potentiometers next to the Molex connector, the one closest to the
Molex connector is the subwoofer control and the other one is the Mid/High
speaker control.
C. Using a small blade screwdriver turn the potentiometer of the speaker you
want to adjust either clockwise to make it louder or counterclockwise to lower
the volume.
