IS421X ScanGlove®

Laser Bar Code Scanner

Installation and User’s Guide

MLPN 2187

Printed in USA

October 1998

Locations:

USA Corporate Headquarters Europe

Metrologic Instruments, Inc. Metrologic Instruments GmbH

90 Coles Road Dornierstrasse 2

Blackwood, NJ 08012 82178 Puchheim b.

Customer Service: 1-800-ID-METRO Munich, Germany

Tel: 609-228-8100 Tel: 49-89-89018-0

Fax: 609-228-6673 Fax: 49-89-89019-200

[email protected] [email protected]

www.metrologic.com

ASIA

South America Metrologic Asia (PTE) Ltd.

Metrologic Instruments 31, Kaki Bukit Road 3

Rua Flórida, 1.821-5°Andar-Brooklin #05-08 Techlink

CEP 04571-090, São Paulo-SP, Brasil Singapore 417818

Outside Brazil: Tel: 65-842-7155

Tel: 55-11-5505-6568 Fax: 65-842-7166

Fax: 55-11-5505-1681 [email protected]

[email protected]

In Brazil:

Tel: 55-11-5505-2396

Fax: 55-11-5507-2301

[email protected]

be reproduced, transmitted, or stored in any form or by any means without prior written

consent, except by reviewer, who may quote brief passages in a review, or provided for

in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their

respective companies.

iii

Table of Contents

Introduction ................................................... 1

Unpacking List ................................................. 1

Theory of Operation ............................................. 2

Connecting the IS4210 or IS4213 ScanGlove to a Decoder/Controller ..... 3

Parts of the ScanGlove Scanner ................................... 4

Audible Indications ............................................. 5

Visual Indications ............................................ 6-9

Labels ....................................................... 10

IR Sensor Activation ........................................... 11

Scan Field ................................................... 11

Depth of Field and Symbol Specification ........................... 12

Maintenance .................................................. 13

Appendix A

Specifications ......................................... 14

Appendix B

IS4210 and IS4213 Pin Assignments .................... 15, 16

IS4215 Pin Assignments ............................. 17, 18

Appendix C

Warranty and Disclaimer ............................. 19, 20

Appendix D

Notices ........................................... 21, 22

Appendix E

Patents ............................................... 23

Index .................................................... 24, 25

Introduction

The ScanGlove™ non-decode scanners interface directly into decode equipped

"keyboard wedges," controllers, or decode, they are designed distinctly to

accommodate many types of applications.

When using the ScanGlove™ with a decoder, scanner operation is dependent

upon your decoder. Since there are many decoders available, refer to the

decoder’s documentation concerning scanner requirements and operation.

Unpacking List

With the purchase of a ScanGlove scanner, the following will be in the

shipping carton:

!Installation and User’s Guide

!ScanGlove Laser Bar Code Scanner

!Glove

To order additional items, contact your dealer, distributor or call Metrologic’s

Customer Service Department.

Theory of Operation

When connected to a decoder/controller and to the signals as defined in the pin

assignment sections, the IS4210 and IS4213 scanners will operate as follows.

The scanning process initiates by an infrared (IR) device located behind the

window. The IR sensor is active as long as the power is applied to the unit.

When the IR sensor detects an object, the green LED will flash. When the

laser decodes a bar code, the scanner transmits the data to the host system and

then " beeps" to show the decoding is complete. The IR sensing range can be

programmed for two ranges.

Short Range Activation - The IR signal initiates the scan process if it senses

an object anywhere from the face of the window out to approximately 4" to 7".

Long Range Activation - The IR signal initiates the scan process if it senses

an object anywhere from the face of the window out to approximately 9" to

13".

If the object is removed from the field during the scanning process, the laser

turns off and the scanner reenters "standby" mode.

However, if the object stays in the field, the laser remains on for up to 2.5

seconds trying to detect another bar code. If the scanner does not detect a bar

code, the scanner reenters "standby" mode. To reactivate the scanning

sequence, remove the object and present another.

If the same symbol stays in the field after a successful scan, the laser stays on

for approximately 4 seconds and then turns off. This prevents uninten-tional

reads of the same bar code. To read the same symbol more than once, remove

the object from the scan field for approximately 1 second and then present the

symbol again.

Connecting the IS4210 or IS4213 ScanGlove to a

Decoder/Controller

Important Note: To maintain compliance with applicable standards, all

circuits connected to the scanner must meet the requirements for SELV (Safety

Extra Low Voltage) according to EN 60950.

Since each host system is unique, configure the decoder/controller to match

your host system requirements. Refer to the Installation and User’s Guide for

further information.

Since there are many different types of decoders, refer to your decoder’s

documentation to connect the decoder to your host system.

1. Make sure the host system is off and the ON/OFF toggle switch on the

controller is in the OFF (O) position.

2. Connect the 9-pin squeeze end of the scanner adaptor cable to the

decoder/ controller. Then, attach the 15-pin connector of the host’s

communication cable to the decoder/controller. Connect the other end

of the cable to the host device.

3. If the decoder/controller receives power from an external power supply,

check the AC input requirements of the transformer/power supply to

make sure the voltage matches an available AC outlet. Connect the

power supply to the decoder/controller. (The socket-outlet can be

installed near the equipment so it will be easily accessible.)

4. Supply power to the scanner and decoder/controller by plugging the

power supply into the AC outlet. Position the decoder ON/OFF switch

to the ON (1) position and then power up the host system.

Note: When the ScanGlove first receives power, it will immediately go

through a self diagnostic routine, then the red and green LED will

flash and the unit will beep once.

When positioning the ScanGlove, make sure to align the output

window flush with the knuckles of your hand. Also, avoid

obstructing the output window. Rings and fingers may prevent the

scanner from reading a bar code.

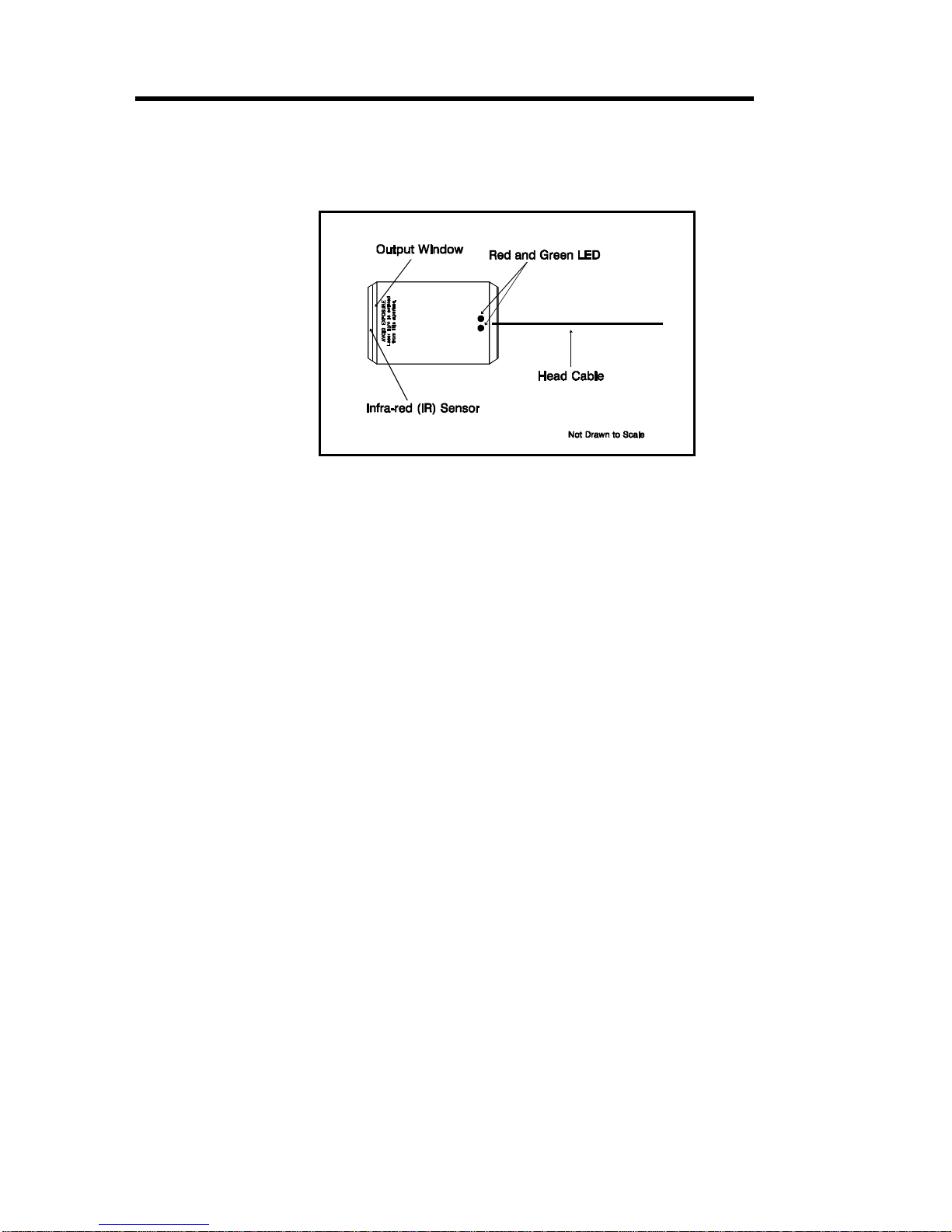

Figure 1

Parts of the ScanGlove Scanner

Becoming familiar with the features of the scanner will help when operating

the scanner. The following illustration and list explain the pertinent parts.

Green and Red LED When the red LED is on, this shows that the

laser is on. Depending upon your decoder,

when the green LED flashes on, this shows

that the scanner has read a bar code

successfully. When the green light turns off,

communication to the host is complete.

Output Window Sends and receives the IR signal and Laser

beam.

Infrared If a specified time has elapsed without any

Object Sensor scanning, the unit will enter a “standby”

mode. To reactivate the unit, point the

output window downwards or wave an

object in front of the IR (infrared) sensor.

When the red LED comes on, the scanner is

ready to scan.

Head Cable This cable terminates to the specifications of

each order.

Audible Indicators

Audible indicators show the status of the scanner. These indicators are

dependent upon the decoder being used. The function of these indications may

not work as described below if the decoder pinouts and software controls do

not match the pin out signals as defined in the pin assignment section of this

manual.

To change the volume (four settings are available) or turn the beeper off, refer

to the Programming Guide section: Beeper Tones.

One Beep When the scanner first receives power, the red LED will

blink, followed by the green LED, and then the scanner will

"beep." After the scanner performs this start-up sequence, the

scanner is ready to scan.

When the scanner successfully reads a bar code, the green

light will flash and "beep" once. If the scanner does not

"beep" or the green LED does not flash then the bar code

read is not successful.

Razzberry If, upon power up, the scanner emits a razzberry tone,

Tone then the scanner has failed diagnostics.

Note: The scanner can be programmed to emit a razzberry

tone when the timeout occurs during communica-

tion between the host and scanner. Refer to the Pro-

gramming Guide section: Audible Indicators for

Communication Timeouts.

Visual Indicators

There are visual indicators to show the status of the scanner. These indicators

are dependent upon the decoder being used. The function of these indicators

may not work as described below if the decoder pinouts and software controls

do not match the pin out signals as defined in the pin assignment section of this

manual.

There are a red LED and a green LED at the top of the scanner. When the

scanner is on, the flashing or steady activity of the LEDs indicates the status of

the scan and scanner.

No Red or Green Illumination of the LEDs will not occur if the scanner

has remained dormant for a specified time and the

scanner is not receiving power from the host. To

reactivate the unit, direct the output window up then

down toward the object.

Red Flash; When the scanner first receives power, the red LED

Green Flash; will flash, followed by the green LED, and then "beep"

Steady Red once. After the scanner performs this startup sequence,

the red LED will remain on for a specified time show-

ing that the scanner is ready to scan. If an object is not

presented to the scanner, the red light will turn off.

Steady Red When the laser is on, the red LED will be on. This

occurs when an object is in the scan field. If the scanner

cannot detect a bar code within approximately 2.5

seconds, the red LED will shut off indicating that the

laser is no longer on.

Steady Red; When the scanner successfully reads a the scanner does

Green Flash not bar code, the green LED will flash and "beep"

once. If "beep" or the green LED does not flash then

the bar code read is not successful.

Repetitive When the red LED flashes several times while it rests

Red Flashes upon a stationary surface, then an object is within the

scan field and is activating the IR sensor. To eliminate

this disturbance, direct the scan window toward a diff-

erent location.

Signaux optiques

Il existe des signaux optiques qui vous informent sur l'état du scanner. Ces signaux

dépendent du décodeur que vous utilisez. Il peut arriver que les fonctions de ces

signaux ne correspondent pas à celles qui suivent si vous utilisez un décodeur qui n'a

pas été construit par Metrologic.

Sur la partie supérieure du scanner se trouvent une diode LED rouge et une diode LED

verte. Les diodes rouge et verte clignotantes ou allumées vous informent sur l'état de

palpage et de scanner.

Ni la diode rouge, ni la diode verte n'est allumée

Il arrive fréquemment que les deux diodes ne s'allument pas. Pour deux raisons. Les

diodes ne s'allument pas quand le scanner ne reçoit de l'énergie ni de l'ordinateur

central, ni du transformateur. Quand le scanner reçoit de l'énergie et ne s'allume

cependant pas, le scanner est resté pendant une certaine période sansêtre utilisé et le

laser et le moteur sont désactivés.

Pour réactiver l'unité, déplacer un objet devantle palpeur infrarouge ou prendre le

scanner et diriger la fenêtre de palpage vers le bas.

Diode rouge clignotante; diode verte clignotante; diode rouge restant allumée

Quand le scanner reçoit pour la première fois de l'énergie, la diode rouge se met

d'abord à clignoter, puis la diode verte. Ensuite, le scanner émet un bip sonore unique.

Une fois cette séquence de démarrage effectuée, la diode rougereste allumée pendant

un certain temps indiquant que le laser est prêt à servir. Quand le scanner nedétecte

aucun objet, la diode rouge s'éteint.

Diode rouge restant allumée

Quand un objet se trouve devant la fenêtre de palpage, la diode rouge reste allumée et

indique que le scanner est prêt à servir.

Diode rouge restant allumée; diode verte clignotante

Après lecture avec succès d'un code barres par le scanner, la diode verte se met à

clignoter, suivie d'un bip sonore unique. Si la diode vertene clignote pas ou quand

aucun bip sonore n'est émis, cela signifie que le code barres n'a pas pu être lu avec

succès.

Clignotement répété de la diode rouge

Quand la diode rouge clignote plusieurs fois pendant que l'appareil repose sur une

surface non déplacée, un objet activant le palpeur infrarouge setrouve devant la fenêtre

de palpage. Ceci peut se produire même quand le scanner se trouve sur une table ou un

reposoir. Pour éliminer ce défaut, posi-

tionner le scanner de façon différente.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Metrologic Barcode-Lesegerät Handbücher

Metrologic

Metrologic Genesis MS7580 Bedienungsanleitung

Metrologic

Metrologic TECH 8 Bedienungsanleitung

Metrologic

Metrologic IS4220 ScanGlove Bedienungsanleitung

Metrologic

Metrologic MS1890 Focus Bedienungsanleitung

Metrologic

Metrologic MS6720 Bedienungsanleitung

Metrologic

Metrologic MS5100 Eclipse Series Bedienungsanleitung

Metrologic

Metrologic MS6720 Bedienungsanleitung

Metrologic

Metrologic TECH 7 Bedienungsanleitung

Metrologic

Metrologic MS7320 InVista Series Bedienungsanleitung

Metrologic

Metrologic MS700i Bedienungsanleitung

Metrologic

Metrologic 160 Benutzerhandbuch

Metrologic

Metrologic Genesis MS7580 Bedienungsanleitung

Metrologic

Metrologic IS1000 Series Bedienungsanleitung

Metrologic

Metrologic MS860 Bedienungsanleitung

Metrologic

Metrologic Hand-Held Scanner Bedienungsanleitung

Metrologic

Metrologic IS3480-00 Bedienungsanleitung

Metrologic

Metrologic MS7120 Orbit Bedienungsanleitung

Metrologic

Metrologic MS 1690 Focus Series Bedienungsanleitung

Metrologic

Metrologic MLPN 2168 Bedienungsanleitung

Metrologic

Metrologic MS7600 Bedienungsanleitung

Metrologic

Metrologic MS9500 Voyager Series Bedienungsanleitung

Metrologic

Metrologic ScanQuest IS4110 Bedienungsanleitung

Metrologic

Metrologic MK5145-31A38 Bedienungsanleitung

Metrologic

Metrologic MS7120 Orbit Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
