Microtek ArtixScan DI 2020 Bedienungsanleitung

Microtek

ArtixScan 2020

User's Manual

English

Allrightsreserved.

Trademarks

Microtek,ScanMaker, and ScanWizardProare trademarks of MicrotekInternational,Inc.IBM PC is the trademark of

InternationalBusinessMachinesCorporation.WindowsandMS-DOSaretrademarksofMicrosoftCorporation.Other

productor companynamesaretrademarks orregisteredtrademarksof theirrespectiveholders.

Important

Documentsthatyou scanmaybeprotectedundercopyrightlaw.Theunauthorized useofsuchdocumentscould bea

violationof therightsofthecopyright holder. Microtekbearsnoresponsibilityfor theunauthorizeduseofcopyrighted

materials.

Doc.No. I49-002815,A

Microtek Lab, Inc.

3715 Doolittle Drive

Redondo Beach, CA 90278-1226

Main: 310-297-5000

Sales: 800-654-4160

FAX: 310-297-5050

BBS: 310-297-5102

Technical Support: 310-297-5151

AutoTech fax back system: 310-297-5101

http://www.microtekusa.com

Federal Communications Commission (FCC) Statement

Thisequipment(Trade name:ArtixScan2020,Modelname: MRS-2000DL)hasbeentestedandfound tocomplywiththe

limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcan radiateradio

frequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycause harmfulinterferenceto

radiocommunications. However, thereisno guaranteethatinterferencewillnotoccurin aparticularinstallation.Ifthis

equipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbe determinedbyturningthe

equipmentoffandon,the user is encouraged totrytocorrectthe interference by one ormoreofthefollowing measures:

• Reorient/relocatethe receivingantenna.

• Increasetheseparation betweentheequipmentandreceiver.

• Connecttheequipment into an outlet onacircuit different from that towhichthe receiver is connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Note: A shielded interface cable with ferrite cord installed on scanner connector end must be used with this equipment.

CAUTION

Changesormodificationsnotexpressly approvedbythemanufacturerresponsibleforcompliancecouldvoidtheuser's

authority to operate the equipment.

Microtek Europe B.V.

Max Euwelaan 68

NL-3062 MA Rotterdam

The Netherlands

TEL: 31-10-2425688

FAX: 31-10-2425699

Microtek International, Inc.

6, Industry East Road 3

Science Based Industrial Park

Hsinchu, 30077, Taiwan, R.O.C.

TEL: 886-3-5772155

FAX: 886-3-5772598

iii

English

Contents

Introduction ........................................................................................................... 1

Before You Begin.................................................................................................... 1

1. Unpacking your scanner and checking components .......................................................... 1

2. Unlocking the scanner....................................................................................................... 1

Installation under Windows 95 .............................................................................. 2

1. Installing the interface card................................................................................................2

2. Checking interface card status ........................................................................................... 2

3. Installing software ............................................................................................................. 3

4. Resetting the scanner’s SCSI ID if necessary........................................................................ 5

5. Connecting the scanner ..................................................................................................... 5

6. Checking scanner status .................................................................................................... 6

7. Testing your scanner.......................................................................................................... 7

Troubleshooting for Windows 95 .......................................................................................... 8

Installation under Windows 98 ............................................................................ 10

Troubleshooting for Windows 98 ........................................................................................ 10

Installation under Windows NT 4.0...................................................................... 13

1. Resetting the scanner's SCSI ID if necessary ..................................................................... 13

2. Installing the interface card.............................................................................................. 13

3. Checking your Windows NT configuration...................................................................... 13

4. Installing software ........................................................................................................... 14

5. Connecting the scanner ................................................................................................... 14

6. Testing your scanner........................................................................................................ 15

Troubleshooting for Windows NT 4.0.................................................................................. 16

Installation under Macintosh................................................................................ 17

1. Resetting the scanner’s SCSI ID if necessary...................................................................... 17

2. Connecting the scanner ................................................................................................... 17

3. Installing software ........................................................................................................... 18

4. Scanning images ..............................................................................................................18

Operating the Scanner ......................................................................................... 19

Performing the power-on self-test ........................................................................................ 19

Positioning a document....................................................................................................... 19

A:Placingreflectivematerials........................................................................................ 19

B: Scanning thick documents........................................................................................ 21

C: Placing transparent films .......................................................................................... 21

English

1) Using the glass film holder ................................................................................ 22

2) Using the 35mm batch slide holder ................................................................... 23

3) Using the 35mm filmstrip holder....................................................................... 24

4) Using the 6 x 9 cm batch film holder................................................................. 25

5) Using the 4" x 5"batch film holder.................................................................... 26

Miscellaneous ...................................................................................................... 27

Returning your scanner for repair ........................................................................................ 27

Locking the carriage ............................................................................................................27

Lamp Replacement .............................................................................................................. 27

Components......................................................................................................... 29

Specifications ....................................................................................................... 31

Basic Requirements

For the PC

•Pentium or compatibles

•Microsoft Windows 95, 98, or NT

•CD-ROM drive (internal or external)

•16MB RAM (32MB recommended)

•At least 100MB available hard disk space

•Super VGA Color display with 256 colors or better

For the Macintosh

•Apple Power Mac or compatibles

•System 8.0 or higher

•CD-ROM drive (internal or external)

•16MB RAM (32MB recommended)

•At least 100MB available hard disk space

•Super VGA Color display with 256 colors or better

1. Unpacking your scanner and

checking components

Open your scanner package and check the

components as stated in your packing list (see page

29). If any component is missing, call Microtek

Sales.

2. Unlocking the scanner

Your scanner has a locking screw to protect the

scanner carriage mechanism during shipping.

Before operating the scanner, you need to

disengage the locking screw.

Using a coin or a screwdriver, turn the locking

screw counterclockwise to unlock it. When

successfully unlocked, the screw will push out a

little. You can check the lock’s status by pushing

on the screw cap. If the screw springs back, the

carriage is disengaged, and the scanner is ready to

scan.

Before You BeginIntroduction

An image scanner is a device that captures and

converts illustrations, graphics, photographs, or

text into electronic files that can be edited or

enhanced and then incorporated in printed

documents or multimedia presentations.

The single-pass, 36-bit, high-resolution ArtixScan

2020 has been specifically designed and

engineered for the discriminating scanner user,

who demands rich, detailed images suitable for any

prepress or multimedia need.

The ArtixScan 2020 color flatbed scanner scans

reflective originals, but also features internal media

trays for scanning positive or negative film in a

variety of industry-standard formats.

The ArtixScan 2020 includes 36-bit throughput

capability for delivering images with more image

data than 30- or 24-bit scanner are capable of

capturing, superior optics and hardware

components, as well as Microtek ScanWizard Pro

scanner controller software.

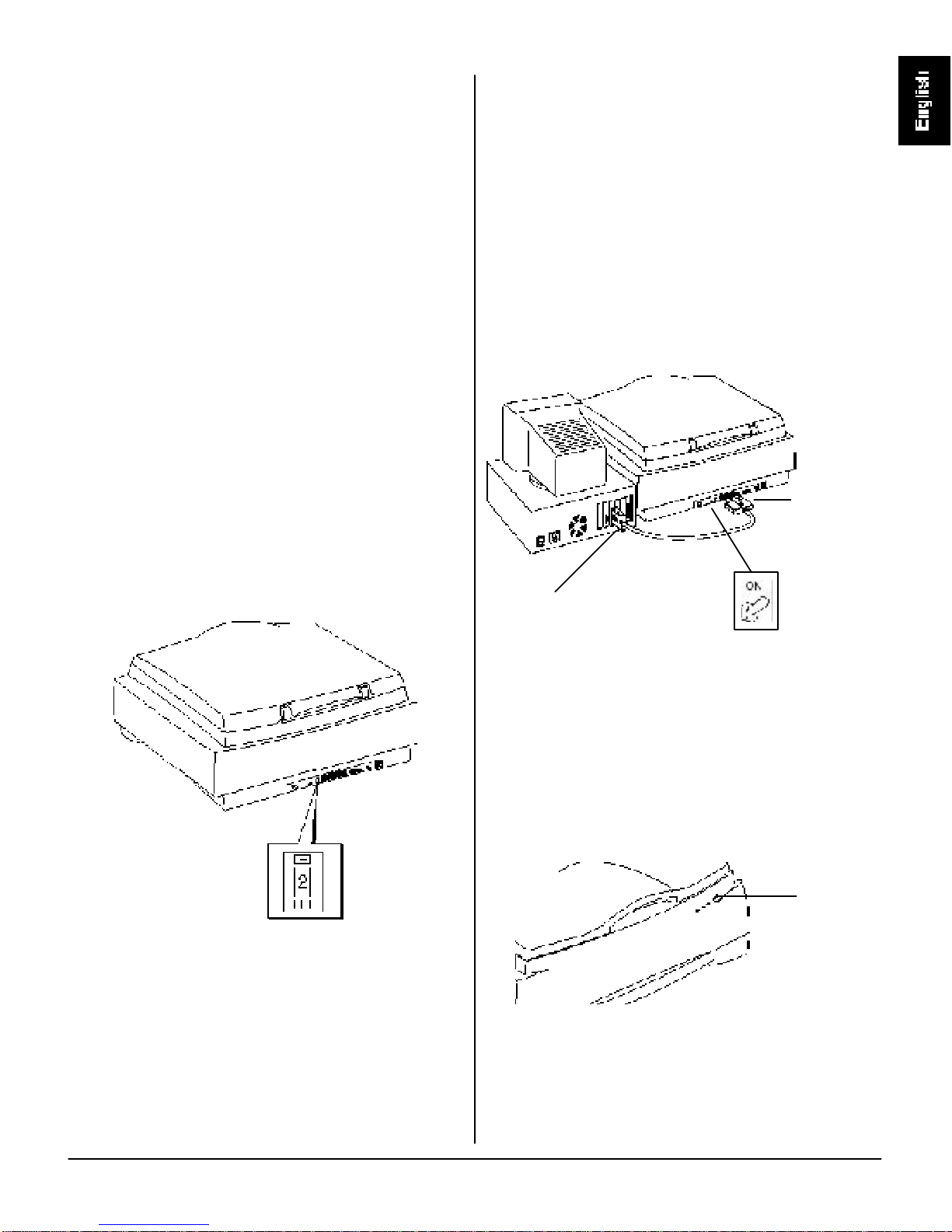

Turn locking screw

counterclockwisetodisengagethe

scannercarriage.

e_2815body.p65 11/9/00, 4:53 PM1

2. Checking interface card status

When you run Windows 95, the Adaptec AVA-

2903E SCSI adapter is detected and the driver is

automatically installed. Make your Windows 95

CD-ROM ready for use. Some computers may

prompt you to load Windows 95 software during

your installing AVA-2903E driver. Follow steps

below to check.

1. Turn on your computer, click Start, Settings,

and select Control Panel.

2. Double-click on the System icon in Control

Panel and select Device Manager from the top.

3. Double-click on “SCSI controllers” to display

the screen below.

The message “Adaptec AIC-7850 PCI SCSI

Controller” displays indicates that the driver is

installed and the AVA-2903E interface card

works properly.

If a conflict exists, either of the following will

occur:

•a yellow exclamation mark appears next to

the phrase:

Adaptec AIC-7850 PCI SCSI

Controller

- or -

•nothing is listed under “SCSI Controllers”.

In either case, refer to the Troubleshooting

section.

To install under Windows 95, take the steps below:

1. Install the interface card in your computer

2. Check the interface card status

3. Install software

4. Reset the scanner’s SCSI ID if necessary

5. Connect the scanner and computer

6. Check the scanner status

7. Test your scanner

1. Installing the interface card

Before installing the interface card supplied with

your scanner, make sure you turn off your computer

and peripherals. Then follow the steps below:

1. Shut down your computer and unplug the

power cord. Next, remove the cover from your

computer.

2. Look for an available PCI card slot (typically

white or ivory) in your computer. Remove the

slot cover, and insert the SCSI card into the

slot. Push the card in to make sure it's seated

all the way in the slot.

Thisisimportant,asanimpropercardconnection

willmakeyouunabletouseyourscanner,and

youwillthenhavetoremovethecomputercase

andrestartthecardalloveragain.

Note: In this manual, we use the Adaptec 2903 card as an

example. The SCSI card that came with your scanner may

be different, check your Microtek scanner dealer.

3. Replace the cover of the computer, then plug

the power cord back in.

The result of

the check is

displayedhere.

Installation under Windows 95

PCIexpansion

slots (typically

white or ivory)

e_2815body.p65 11/9/00, 4:53 PM2

3. Installing software

Insert the Microtek CD-ROM into your CD-ROM

drive. The Microtek Scanner Software installer

should come up automatically, and list the software

available for you. Click on each software program

in the order they appear on your screen to install

all of the components.

Note: If the Microtek Scanner Software is not

automatically displayed on the screen, click Start,

select Run and type d:\cdsetup (where d: is your CD-

ROM drive).

Step 1 Install Microtek ScanWizard Pro

Microtek ScanWizard Pro is the TWAIN driver

used for ArtixScan 2020 to communicate with

various applications. With the scanner connected,

you can run ScanWizard Pro independently or

acquire it by another application program.

1. Click Microtek ScanWizard Pro. The

ScanWizard Pro setup program should start

running.

2. When you have finished the above selections,

the installer program will copy the files to the

folder “Microtek ScanWizard Pro for

Windows” under Program file directory.

3. Next, you are prepared to install Microtek

Color Matching System (CMS) setup program.

Follow the screen instructions to do the

following:

•From the Display profiles selection, choose

the display profiles you want to install.

•From the RGB Output profiles selection,

choose the profiles you need to install.

Note: To add other CMS profiles provided by your

monitor or printer suppliers, refer to section

“Adding Third-party CMS profiles” on page 4.

•From the CMYK Output profiles selection,

choose the profiles you need to install.

4. The CMS will be installed according to your

selections, and then ask you to select the

default profile for your system. Choose a

default profile you want to install from the

different profile selections.

e_2815body.p65 11/9/00, 4:53 PM3

For example, from the Default Display profiles

selection, choose a default display profile you

want.

5. When you have finished the setup program,

click Finish to complete ScanWizard Pro

installation.

Adding Third-party CMS profiles

If you want to use other CMS profiles that came

with your device, take these steps to install either

the monitor, or the printer:

1. Launch ScanWizard Pro.

2. In the Preview window, choose Color

Matching Setup from the Preferences menu to

bring up the Color Matching Setup dialog box.

The dialog box displays the information on the

topic you have chosen.

3. Click on the Add Profiles button to add other

CMS profiles. Once the profiles have been

added, its names are listed.

Step 2 Install software application

The bundled image editing, OCR, and other

applications you receive depend on the scanner

model you purchase. Click each option on the

installer screen to install the software.

Step 3 Install documentation reader

Click Adobe Acrobat Reader, then follow screen

instructions until installation is complete. Acrobat

Reader is necessary for reading the manuals on

your CD-ROM.

Using the Manuals

Other documentations for your scanner are

provided on the Microtek CD-ROM. To read the

documents, you will be using the Adobe Acrobat

Reader program, which is automatically launched

when you open the file for the manuals.

To open the manuals: Go to Manuals folder, and

locate the manual that you wish to view. Double-

click on the file you want, and the manual is ready

to be viewed or printed.

e_2815body.p65 11/9/00, 4:53 PM4

5. Connecting the scanner

Before connecting the scanner to your computer,

make sure the scanner driver (ScanWizard Pro) is

installed. Take the following steps to connect.

1. Shut down your computer.

2. Connect the scanner to your interface card,

using the SCSI cable that provided in the

scanner package. Make sure your scanner and

computer are turned off when you perform the

connection.

3. Plug the power cord to the power connector at

the back panel of the scanner, and plug the

other end of the power cord to your AC power

source at wall outlet.

4. Turn on your scanner and wait for all the light

on the front panel to stop blinking.

5. Then power up your computer.

4. Resetting the scanner’s SCSI

ID if necessary

This procedure is provided as a reference. You may

or may not need to change the SCSI ID on your

scanner.

A SCSI ID is a number assigned to each SCSI

device in your daisy chain to differentiate one from

another. The SCSI ID for your Microtek scanner is

factory-set to 2.

You won't need to change the SCSI ID on your

scanner unless another SCSI device on your system

(such as external hard drive, additional scanner,

etc.) is using the same number.

Locate the SCSI ID switch, use a small pin (or a

small screwdriver) to press either of the small black

openings located above or below the SCSI ID.

Pressing the upper opening “-” decreases the SCSI

ID number; pressing the lower opening “+”

increases the number.

Valid SCSI ID numbers are 0 to 6. Do not use SCSI

ID #7, which is used to carry out a self-test for the

scanner and make the carriage move back and

forth. SCSI ID #8 and #9 are also not used.

Pressthe

powerswitch

toturnon/off

thescanner.

25-pinconnector

SCSIcable Terminator

switchshould

beinthe

“ON”

position.

50-pin

connector

e_2815body.p65 11/9/00, 4:53 PM5

6. Checking scanner status

When running Windows, ALWAYS turn on the

scanner before the computer. If you don't,

Windows will not be able to “see” your scanner.

1. Click Start, Settings, and select Control Panel.

2. Double-click on the System icon in Control

Panel and select Device Manager from the top.

3. The screen that appears displays the message

“Microtek Scanners”. Double-click it, the

scanner model you connected shows under it.

If your system can’t find your scanner, maybe SCSI

conflict happens between your scanner and other

SCSI device. To resolve the conflict, refer to

Troubleshooting for Windows 95 on page 8.

Terminator

You will definitely need a terminator if you are

hooking up your PC on a daisy chain with two or

more SCSI devices through the SCSI interface card.

ArtixScan 2020 has a internal terminator switch

located at the back panel of the scanner.

Terminator is preset depending on your daisy

chain. In this case, set the terminator switch to the

“OFF” position; the third-party terminator should

be connected on the last SCSI device.

Note: If your scanner is located at the last device, the

terminator switch should be in the “ON” position. In this

case, third-party terminator is not required.

Themessage

“Microtek

Scanners”

displays,

indicatingthe

scanneris

installed.

Terminator

switch

Third-partyterminator

Scanner SCSIdevice

SCSIcable(25-50pin)

SCSIcable(25-50pin) Set theterminator

switch to the “OFF” position.

e_2815body.p65 11/9/00, 4:53 PM6

Andere Handbücher für ArtixScan DI 2020

Inhaltsverzeichnis

Andere Microtek Scanner Handbücher

Microtek

Microtek ScanMaker 5950 Bedienungsanleitung

Microtek

Microtek ArtixScan DI 2020 Montageanleitung

Microtek

Microtek ArtixScan 1800f Handbuch

Microtek

Microtek ScanMaker i800 Handbuch

Microtek

Microtek SCAN-IN-DEX 1000 Bedienungsanleitung

Microtek

Microtek ArtixScanDI 8040c Bedienungsanleitung

Microtek

Microtek ArtixScan 4500t Bedienungsanleitung

Microtek

Microtek ArtixScanDI 7200S Bedienungsanleitung

Microtek

Microtek ArtixScanDI 2015c Bedienungsanleitung

Microtek

Microtek LS-3800 Bedienungsanleitung

Microtek

Microtek ScanMaker 3880 Bedienungsanleitung

Microtek

Microtek ScanMaker s430 Bedienungsanleitung

Microtek

Microtek Bio-5000 Plus Betriebsanleitung

Microtek

Microtek TMA 1600 Bedienungsanleitung

Microtek

Microtek ScanMaker i800 Bedienungsanleitung

Microtek

Microtek ArtixScanDI 6240S Bedienungsanleitung

Microtek

Microtek ArtixScanDI 5240 Bedienungsanleitung

Microtek

Microtek ScanMaker 8700 Pro Bedienungsanleitung

Microtek

Microtek ArtixScanDI 4020 Plus Bedienungsanleitung

Microtek

Microtek ScanMaker i800 Plus Bedienungsanleitung

Microtek

Microtek ScanMaker 3700 Bedienungsanleitung

Microtek

Microtek ScanMaker X12USL Bedienungsanleitung

Microtek

Microtek ScanMaker 3600 Bedienungsanleitung

Microtek

Microtek XT7000 HS Bedienungsanleitung

Beliebte Scanner Handbücher anderer Marken

Plustek

Plustek Scanner Bedienungsanleitung

Z/I Imaging

Z/I Imaging PhotoScan 2001 Bedienungsanleitung

Renkforce

Renkforce DS100-5M Bedienungsanleitung

Image Access

Image Access WideTEK A2 Bedienungsanleitung

Canon

Canon imageFORMULA CR-120N Bedienungsanleitung

Fujitsu

Fujitsu FI-4860C2 Bedienungsanleitung

GeoSlam

GeoSlam ZEB Horizon Montageanleitung

Kodak

Kodak i5800 Scanner Bedienungsanleitung

Kodak

Kodak i7300 Bedienungsanleitung

Revopoint

Revopoint POP Bedienungsanleitung

Fujitsu

Fujitsu fi-4860C Bedienungsanleitung

Eddyfi Technologies

Eddyfi Technologies Floormap X Bedienungsanleitung

Faselase

Faselase F6 Bedienungsanleitung

Fujitsu

Fujitsu CardMinder Bedienungsanleitung

Uniden

Uniden BC340CRS Bedienungsanleitung

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Bedienungsanleitung

Mustek

Mustek PageExpress 4800 Pro Bedienungsanleitung

Optex

Optex 750830 Bedienungsanleitung
