Microtek ObjectScan 1600 Bedienungsanleitung

Object Scanner

Quick Start Guide

2. Install Software

Important: You must install software before connecting your scanner. Always close

any open programs and turn off Antivirus utilities before installing software.

A. Place the Microtek Software DVD into a

drive, and follow the on-screen instructions

to install the scanner driver and software.

NOTE: If the Microtek Software Installer screen does

not come up automatically, double-click the following in

succession: “My Computer”; the DVD-ROM icon; then

Setup.exe to start the installer program.

B. Restart your computer at the end of all

software installation.

1. Unpack Contents

Unpack your scanner package and check for major

components.

A. Scanner

B. Upper scan bed

C. Hi-Speed USB 2.0 cable

D. Power cord

E. Software DVD

I49-005159 A1, November 2017

3. Unlock Scanner

Locked Unlocked

2) Turn counterclockwise

1) Push to the end with force

A. Remove the yellow sticker at the

middle of the right panel of the

scanner and locate the locking screw

under.

B. Usingaat-headscrewdriver,passthrougharoundcircleattheoutershellof

the scanner and insert a hollow side of the locking screw: 1) push to the end

with force, and 2) turn the locking screw counterclockwise 90 degrees to the

unlock position.

When successfully unlocked, the screw will push out a little, protruding slightly

from the side of the scanner.

NOTE: To lock the scanner (for shipping and other reasons), refer to the User's Manual in the Microtek

Software DVD.

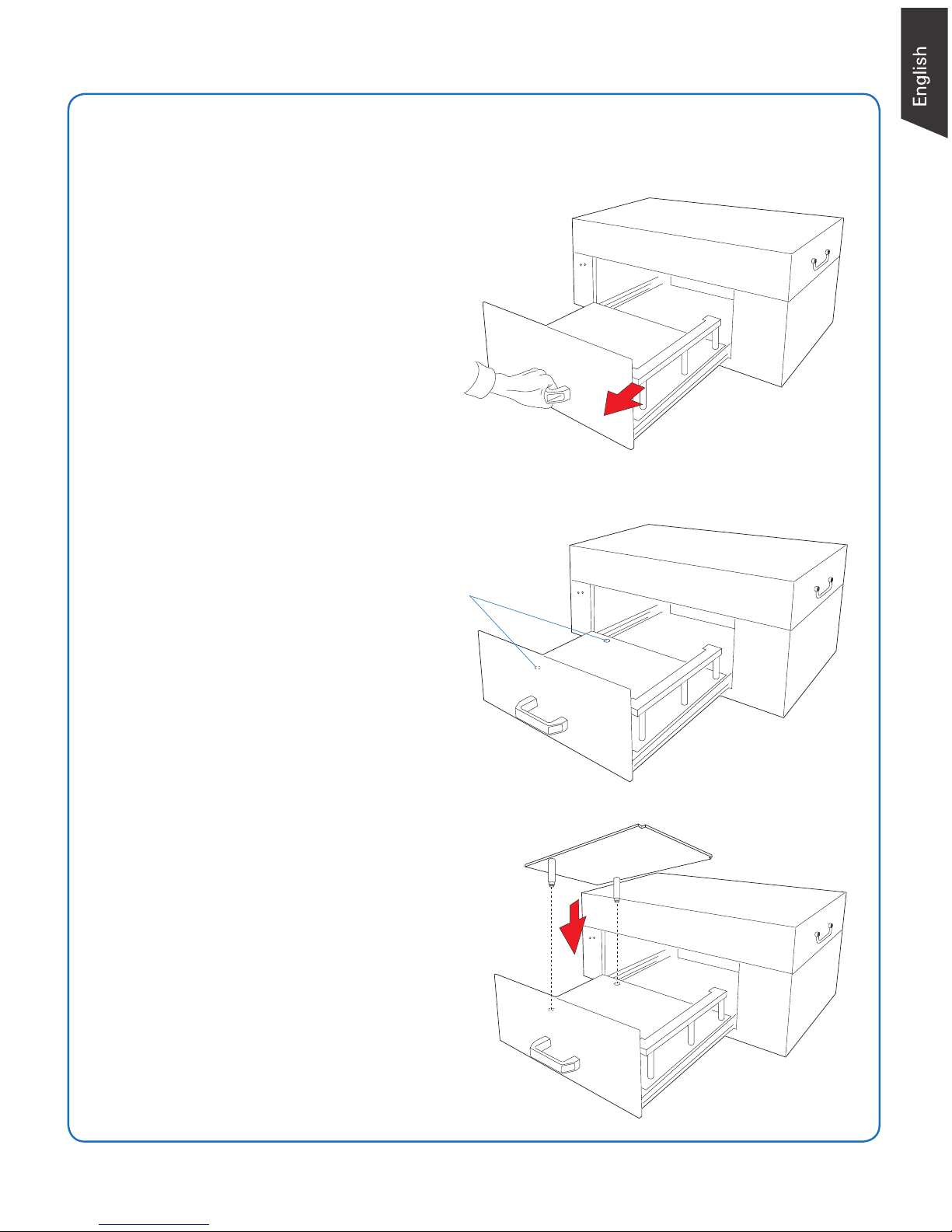

4. Install Upper Scan Bed

1. Locate a handle at the front panel

of the scanner. Grab it to pull out

the drawer of the scanner until

reaching the edge of end.

2. Locate two hollows at the left

side of the lower scan bed.

3. Insert the stools at bottom of the

upper scan bed into the hollows

on the lower scan bed. Make

sure the upper scan bed has been

assembledinthescannerrmly.

Hollows

5. Connect Scanner

To the power cord

A. Connect one end of the power cord to the back side of the scanner and plug the

other end into a power source.

To the Hi-Speed USB cable

B. Connect one end of the USB cable to your computer and connect the other end

to the scanner.

C. Switch the Power button at the back side of the scanner to ON, and wait for

the indicators light on the front panel to stay on steady.

The system will detect your scanner automatically.

LED indicators

ON OFF

Position Materials

A. Locate a handle at the front panel of the scanner. Grab it to pull out the drawer

of the scanner until reaching the edge of end.

B. If the height of a scanned object is less than 2.76" (7 cm), center the object to

be scanned facing up directly on the upper scan bed.

When placing the scanned object, do not block the calibration area.

Upper scan bed

The calibration area (white strip) is next to the

upper scan bed which is an independent and

unremovable entity located at the right side of the

drawer.

To ensure optimal image quality during scanning,

removetheprotectivelmfromthesurfaceofthe

calibartion area before using the scanner.

During placement of the object,

make sure that the calibration area

is kept clear and free of obstruction

at all times.

D. When done, grab the handle of the drawer and push it back into the scanner.

When "click" sound is heard, it means that the drawer has been closed properly.

Upper scan bed

C. If the height of a scanned object is larger than 2.76" (7 cm) (the maximum

height is 5.9" (15 cm)), take out the upper scan bed from the drawer; then,

center the object to be scanned facing up on the lower scan bed of the drawer.

When placing the scanned object, do not block the calibration area.

Lower scan bed

NOTE: The maximum loading weight for scan beds is 5.5 lbs (2.5 kg). Do not load any material heavier

than the loading limit.

During placement of the object,

make sure that the calibration area

is kept clear and free of obstruction

at all times.

Launch ScanWizard Graph

After the software and scanner have been successfully installed and

connected, double-click the ScanWizard Graph icon on the desktop to

launch ScanWizard Graph.

Refer to the User's Manual in the Microtek Software DVD toward how

to scan materials and how to use ScanWizard Graph software.

Problems ?

The LEDs on the front-left panel of the scanner

indicate the status of the scanner.

First, make sure that you have followed Steps 1 to 5 as described in this guide to

install your scanner. Then if your problem is listed here, try the suggested solution.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your computer and plugged into a power

source.

2. The Add/Remove Hardware Wizard appears on your screen.

Click the “Cancel” button and close the ScanWizard Graph scanning software.

Disconnect the Hi-Speed USB cable from your computer, and refer to the

installation instructions in this document.

3. When trying to scan, an error message appears on your screen that reads, “Can’t

Find Scanners”.

Make sure your scanner is unlocked (see step “3. Unlock Scanner” section).

Make sure your scanner is connected to your computer and plugged in to a

power source (see step “5. Connect Scanner” section).

Uninstall and reinstall the ScanWizard Graph software.

4. After clicking “Scan,” a blank screen appears.

Uninstall and reinstall the ScanWizard Graph software.

All On - The scanner is found and ready to scan

Green Flashing - Scanning

All Off - Scanner is off

LED indicators

are trademarks or registered trademarks of Microtek International, Inc. All other trademarks or

registeredtrademarksarethepropertyoftheirrespectiveholders.Specications,softwareand

hardware bundles are subject to change without notice. Delivery of technical support services

subject to change without notice. Not responsible for typographical errors.

Do You Need Assistance?

Manuals

If you have additional questions and need further instruction or information, we

provide electronic manuals for using your scanner and ScanWizard Graph software

in the Microtek Software DVD.

Missing Items

If your package is missing items, please call the Microtek Customer Service

Department.

Drivers & Software Upgrades

Afteryounishtheinstallationofsoftware,ifyoufoundthattheinstalleddrivers

and software cannot run your product or your computer system properly later,

please go to the Microtek Download Service site at www.microtek.com/service.

php to download and install any updates you may require.

For additional information about Microtek products, please visit our website at

www.microtek.com.
