Mikroe Codegrip Bedienungsanleitung

P A G E 1

C O D E G R I P U S E R M A N U A L

USER MANUAL

Thank you for choosing Mikroe!

We present you the ultimate debugger and programmer over USB/WiFi solution for embedded development.

Elegant on the surface, yet extremely powerful on the inside, we have designed it to inspire outstanding achievements.

And now, it’s all yours.

Enjoy premium.

Table of contents

Introduction 5

1. Installing CODEGRIP Suite 6

2. CODEGRIP 8

2.1 USB connectivity 9

2.2 WiFi connectivity 9

2.3 Target connector 10

2.4 CODEGRIP adapters 11

2.5 LED indicators 13

3. CODEGRIP Link structure 14

2.1 Link types 14

2.2 Link states 14

4. CODEGRIP Suite overview 16

4.1 Menu section 17

4.2 Menu item section 17

4.3 Shortcuts bar 17

4.4 Status bar section 18

5. CODEGRIP Suite explained 19

5.1 Target MCU 19

5.2 CODEGRIP 28

5.3 POWER 38

5.4 OPTIONS 38

5.5 HELP 40

Troubleshooting 42

CODEGRIP is a uniﬁed solution, designed to perform

programming and debugging tasks on a range of diﬀerent

microcontroller devices (MCUs) based on the ARM® Cortex®-M

architecture. By bridging diﬀerences between various MCUs,

it allows a huge number of MCUs from several diﬀerent

MCU vendors to be programmed and debugged. Although

the number of supported MCUs is absolutely huge, more

MCUs might be added in the future, along with some new

functionalities.

Thanks to some advanced and unique features such as

wireless connectivity and USB-C connector, the task of

programming of a huge number of various ARM® Cortex®-M

based microcontrollers becomes seamless and eﬀortless,

providing users with both the mobility and the complete

control over the microcontroller programming and debugging

process. The USB-C connector oﬀers improved performance

and reliability, compared to traditionally used USB Type A/B

connectors. Wireless connectivity redeﬁnes the way the

development board can be used.

The graphical user interface (GUI) of the CODEGRIP Suite is

clear, intuitive, and easy to learn, oﬀering a very pleasant user

experience. The embedded HELP system provides detailed

guidelines for every aspect of the CODEGRIP Suite.

P A G E 6

C O D E

G R I P U S E R M A N U A L

INSTALLATION

Select the

destination

folder

Start the

installation

1. Installing CODEGRIP Suite

The installation process is easy and straightforward.

Download CODEGRIP Suite software application from the link www.mikroe.com/setup/codegrip and follow the steps

below.

Select the

components

to install

License

agreement

P A G E 7

C O D E G R I P U S E R M A N U A L

Start the

installation

process

Select the

start menu

shortcuts

INSTALLATION

Installation

progress

Finish the

installation

process

P A G E 8

C O D E

G R I P U S E R M A N U A L

P A G E 8

C O D E

G R I P U S E R M A N U A L

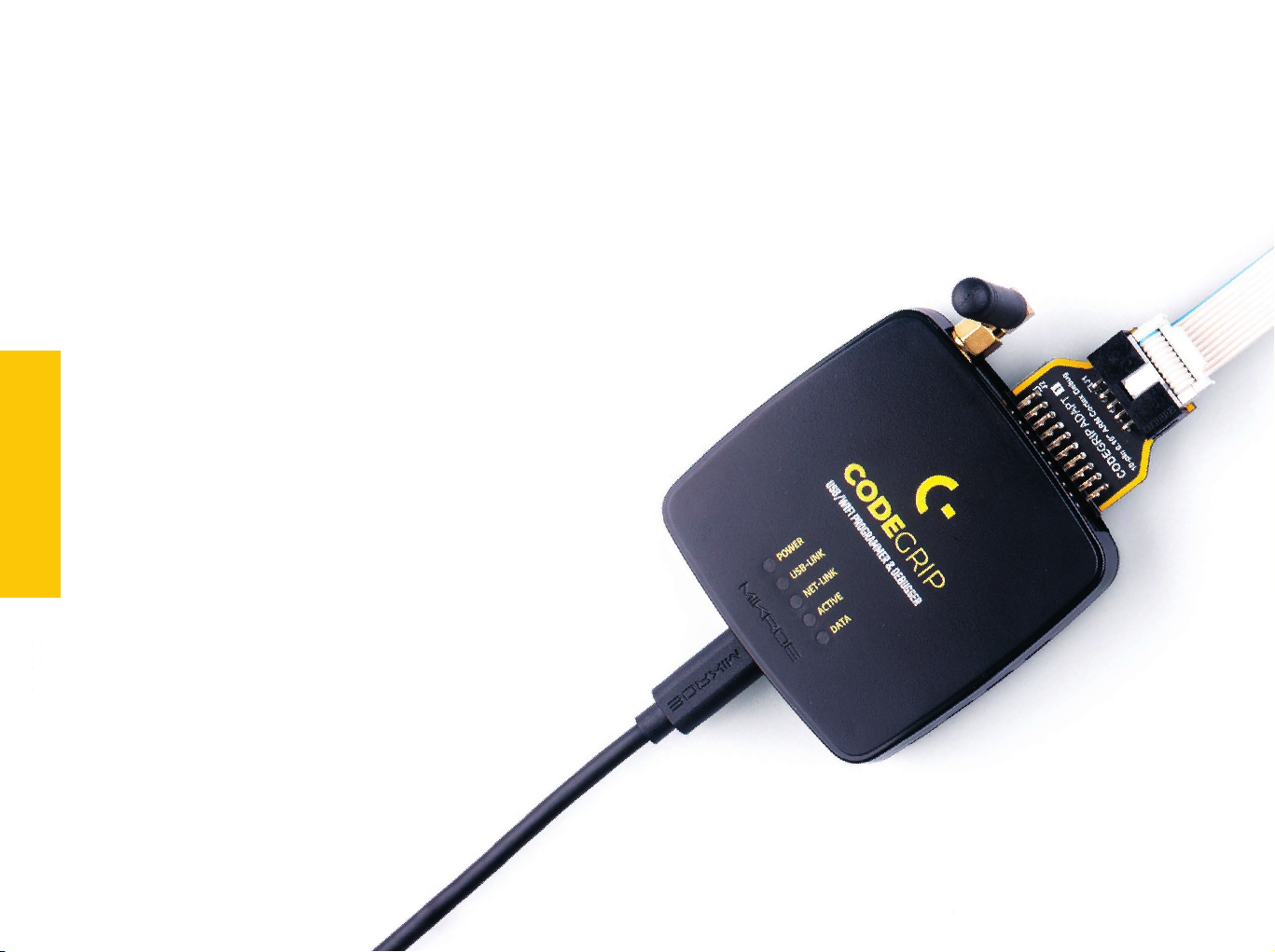

The CODEGRIP device oﬀers a set of unique and innovative

functionalities, some of which have never been used before

on a similar device. These functionalities include wireless

programming and debugging, power monitoring, advanced

debugging options with the SWO support, and more.

The CODEGRIP device comes in two diﬀerent types: as a

stand-alone device and an integrated on-board module. This

manual will be focused on the stand-alone CODEGRIP device.

In order to better understand how this device is operated, this

chapter will give you a brief overview of its basic hardware

functions.

2. CODEGRIP

P A G E 8 CODEGRIP

P A G E 9

C O D E G R I P U S E R M A N U A L

P A G E 9

C O D E

G R I P U S E R M A N U A L

2.1 USB connectivity

2.2 WiFi connectivity

The USB-C connector is the latest upgrade of the conventional USB A/B

type connectors, typically found on most personal computers today. The

USB-C connector has many advantages over the USB type A/B connector

such as the completely symmetrical design which reduces the possibility

of the connector misalignment and the damage it might cause, higher

current capability, and more. However, if there is not appropriate USB-C

connector on the host PC, a USB-C cable adapter can be used.

The CODEGRIP device can be linked with the CODEGRIP Suite over the WiFi

network, allowing it to program and debug the target MCU wirelessly. This

is a revolutionary new feature, which allows some unique usage scenarios,

currently not available on any other programming/debugging solution in

the world. The WiFi connectivity option oﬀers a complete autonomy of

the development system. Running a toxic gas sensor application while

debugging the ﬁrmware in real time, programming it with a new ﬁrmware

during exposure, having sensor responses collected and logged remotely

CODEGRIP

P A G E 9

N O T ETo use the WiFi functionality, a separate registration code is required. It

can be bought from the oﬃcial Mikroe online store www.mikroe.com

from several diﬀerent base points, debugging drone ﬁrmware while it is in

mid-air… This is just a simple example of what CODEGRIP can oﬀer.

The WiFi module on the CODEGRIP device has an integrated chip antenna,

which allows good WiFi reception. However, if a stronger WiFi signal is

required, the CODEGRIP device oﬀers an SMA connector for an external

WiFi antenna.

The WiFi link can be protected by a password, or by the MAC address

ﬁltering option.

2.3 Target connector

CODEGRIP ﬁrmware

The CODEGRIP device can be used with any hardware, equipped with the

standard JTAG/SWD programming header. Packed in a sturdy casing with

rubber feet, it can be used independently, bringing all the powerful features

to a third-party hardware.

The CODEGRIP device is based on the powerful 32-bit MCU, which utilizes a

complex ﬁrmware to provide all the required functionalities. The ﬁrmware

will be continuously improved so that additional optimizations, functions,

and support for new MCU families might be added in the future. Therefore,

the complete CODEGRIP programming environment is designed so that

the ﬁrmware upgrade process is eﬀortless and easy.

On the bottom of the CODEGRIP device there is the sticker which contains

additional information.

∫ Supported MCU family/architecture

∫ Unique serial number

∫ Unique WiFi MAC address

SWDIO/TMSVCC-TGT

SWDCLK/TCK

GND

SWO/TDO

GND

TDI

TGT-RESET

PROG MUX/GND

TRACECLK

GND

TRACEDATA-0

GND

TRACEDATA-1

GND

TRACEDATA-2

GND

TRACEDATA-3GND

The CODEGRIP device is equipped with the target MCU connector, which

contains JTAG/SWD and power supply pins. This connector is used to

interface the CODEGRIP device with the target MCU, allowing it to perform

programming and debugging operations, to provide the power supply for

the target MCU, and to be used as the power input when the CODEGRIP

device is powered from the connected development board.

N O T E When the connected host board provides power to the CODEGRIP

device, CODEGRIP input voltage must be in range 2.5V to 10V.
