MiLAN MIL-SME801GSX Bedienungsanleitung

8 Port 10/100BASE-TX

Plus One

100BASE-FX

1000BASE-X Port

Advanced Managed Switch

MIL-SME801P

MIL-SME801GSX

MIL-SME801GLX

USER GUIDE

Regulatory Approval

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)

issued by the Commission of the European Community Compliance with these directives imply conformity to the following

European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference

EN61000-X - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products,

and

all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

MiLAN Technology makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall MiLAN Technology be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. MiLAN Technology will in no case cover

damages arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the

United States and/or other countries.

To Contact MiLAN Technology

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach MiLAN Technology technical support at:

E-mail: [email protected]m

Telephone: +1.408.744.2751

Fax: +1.408.744.2771

MiLAN Technology

1329 Moffett Park Drive

Sunnyvale, CA 94089

United States of America

Telephone: +1.408.744.2775

Fax: +1.408.744.2793

http://www.milan.com

[email protected]

iii

Table of Contents

1. Introduction

Features

Intelligent Management Features

Package Contents

Management Methods

Console and Telnet Management

Web-based Management

2. Hardware Description

Front Panel

LED Indicators

Rear Panel

Desktop Installation

Power On

3. Network Application

Small Workgroup

Extended Workgroup

4. Console Management

Connecting a Terminal or PC to the Console Port

Console - Menu

4-1. Main Menu

4-2. Status and Counters

4-2-1. Port Status

4-2-2. Port Counters

4-2-3. System Information

4-3. Switch Static Configuration

4-3-1. Administration Configuration

4-3-1-1. Device Information

4-3-1-2. IP Configuration

4-3-1-3. Username Configuration

4-3-1-4. Password Configuration

4-3-2. Port Configuration

4-3-3. Trunk Configuration

4-3-4. Port Mirroring Configuration

4-3-5. VLAN Configuration

4-3-5-1. VLAN Configure

4-3-5-2. Create VLAN Group

4-3-5-3. Edit / Delete VLAN Group

4-3-5-4. Groups Sorted Mode

4-3-6. Priority Configuration

4-3-7. MAC Address Configuration

4-3-7-1. Static MAC Address

4-3-7-2. Filtering MAC Address

4-3-8. Miscellaneous Configuration

4-3-8-1. MAC Address Ageing Time

4-3-8-2. Broadcast Storm Filtering

4-3-8-3. Max Bridge Transmit Delay Bound

4-3-8-4. Collision Retry Forever

4-3-8-5. Hash Algorithm

4-3-8-6. IFG Compensation

4-4. Protocol Related Configuration

4-4-1. STP

4-4-1-1. STP Setup

4-4-1-2. System Configuration

4-4-1-3. STP Per Port Setting

4-4-2. SNMP

4-4-2-1. SNMP System Options

4-4-2-2. Community Strings

4-4-2-3. Trap Managers

4-4-3. LACP

4-4-3-1. Working Ports Setting

4-4-3-2. LACP State Activity

4-4-3-3. Group Status

4-4-4. IGMP/GVRP Configuration

4-4-5. 802.1X Configuration

4-4-5-1. 802.1x Setup

4-4-5-2. 802.1x System Configuration

4-4-5-3. 802.1x Per Port Configuration

4-4-5-4. 802.1x Miscellaneous Configuration

4-5. System Reset Configuration

4-5-1. Factory Default

4-5-2. System Reboot

4-5-3. TFTP Configuration

4-5-3-1. Update Firmware

4-5-3-2. TFTP Restore Configuration

4-5-3-3. TFTP Backup Configuration

4-6. Xmodem Upgrade

5. Web-Based Management

Preparing for Web Management

5-1. System Login

5-2. Port Status

5-3. Port Statistics

5-4. Administrator

5-4-1. IP Address

5-4-2. Switch Setting

5-4-2-1. Basic

5-4-2-2. Advanced Setting

5-4-2-3. Miscellaneous Setting

5-4-3. Console Port Information

5-4-4. Port Controls

5-4-5. Trunking

5-4-5-1. Aggregator Setting

5-4-5-2. Aggregator Information

5-4-5-3. State Activity

5-4-6. Forwarding and Filtering

5-4-6-1. IGMP Snooping

5-4-6-2. Static MAC Address

5-4-6-3. MAC Filtering

5-4-7. VLAN Configuration

5-4-7-1. Port-based VLAN

5-4-7-2. 802.1Q VLAN

5-4-8. Spanning Tree

5-4-8-1. System Configuration

5-4-8-2. Per Port Configuration

5-4-9. Port Mirroring

5-4-10. SNMP

5-4-11. Security Manager

5-4-12. 802.1x

5-4-12-1. System Configuration

5-4-12-2. Per Port Configuration

5-4-12-3. 802.1x Miscellaneous Configuration

5-4-13. TFTP Update Firmware

5-4-14. Configuration Backup

5-4-14-1. TFTP Restore Configuration

5-4-14-2. TFTP Backup Configuration

5-4-15. Factory Default

5-4-16. Reboot

6. Troubleshooting

Incorrect connections

Diagnostic LED Indicators

7. Technical Specifications

Introduction

The MIL-SME801P and MIL-SME801G advanced managed switch families are

multi-port switches that can be used to build high-performance workgroup

networks and as Customer Provider Edge (CPE) devices in Fiber-to-the-Home

(FTTH) networks.

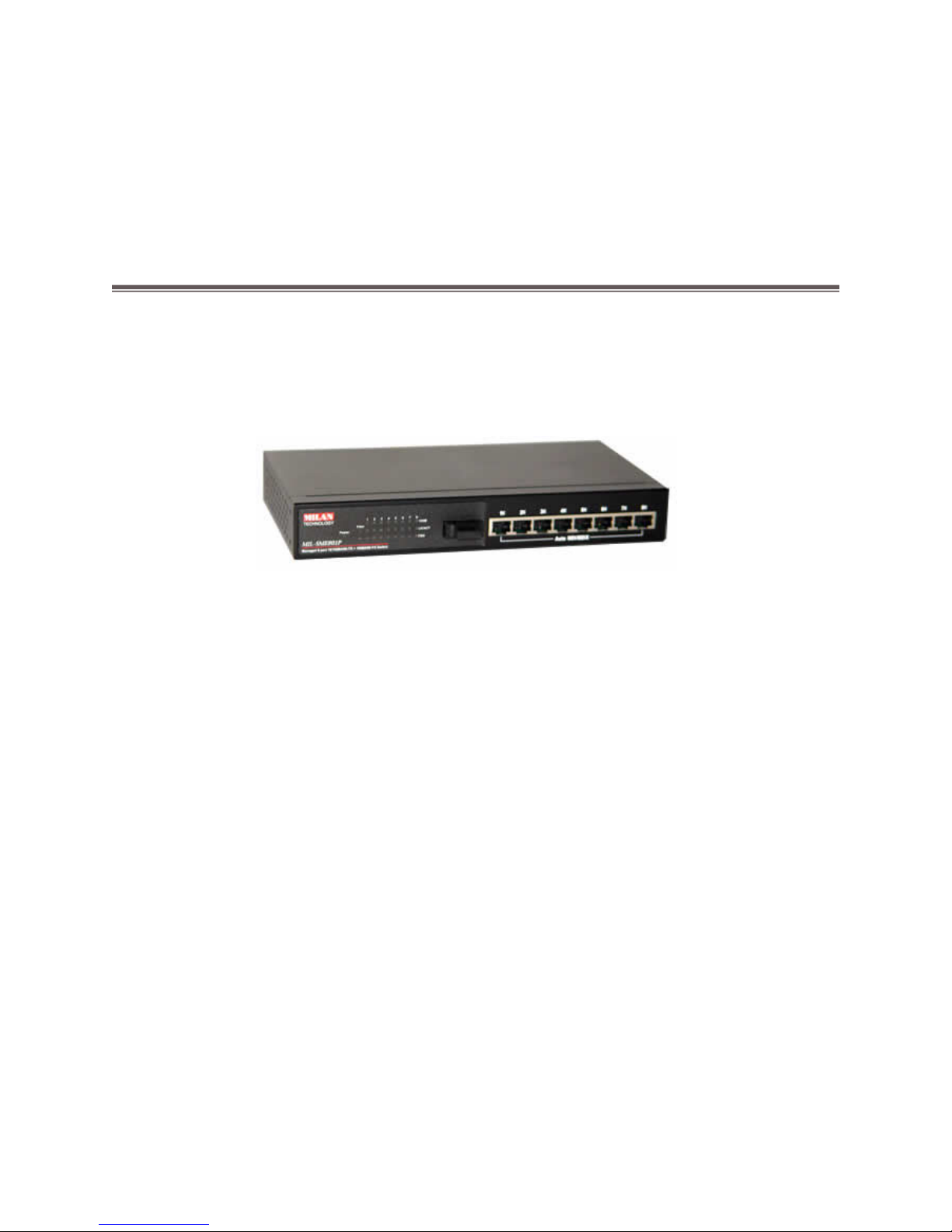

Figure 1-1. The MIL-SME801P switch

The MIL-SME801P switch has eight auto-sensing 10/100BASE-TX RJ-45 ports

plus one 100BASE-FX fiber port that enables long-distance connections. The

MIL-SME801G switch has eight auto-sensing 10/100BASE-TX RJ-45 ports plus one

1000BASE-X fiber port in either SX or LX optic types

. The switch features a

“store-and-forward “ switching scheme. This allows the switch to auto-learn

and store source address in a 6K-entry MAC address table.

An MDI (Medium Dependent Interface) Port is also called an “uplink” port.

This means that the wiring is configured to connect to a hub, switch or router.

An MDI-X Port swaps the transmit and receive pins so that it is able to

communicate with an MDI device. An auto MDI/MDI-X port senses how the

device it is connected to is configured and automatically configures it to work

with that device. So, if it receives data on pins 1 and 2, it knows it needs to

transmit on pins 3 and 4. This eliminates the need of having multiple patch

cable types.

In order to improve readability, for the remainder of this document the phrase

MIL-SME801P will be used to refer to both the Fast Ethernet and Gigabit Ethernet

fiber port versions of the product. Where the document refers to 100FX and you are

installing the MIL-SME801G, read this as 1000FX.

Features

Console and Telnet management

Conforms to IEEE803.u 10BASE-T, 802.3u 100BASE-TX/FX

8 auto-sensing 10/100Mbps Ethernet RJ-45 ports

One 100 FX fiber port

Switch fabric bandwidth up to 8.8 Gbps throughput

Full Layer 2 management function

Port mirroring

IGMP support for Multi media applications

Back-Pressure-Base flow control on Half-duplex link mode

Pause-Frame-Base flow control on Full-duplex link mode

Port Based VLAN /IEEE802 .1Q VLAN

Class of Service / Port trunking

Type of service for Quality of Service

Port Security

IEEE802.1d Spanning Tree Protocol

Per port bandwidth control

Full wire speed forwarding rate



6K-entry MAC address table



3Mbits for shared packet buffer

Intelligent Management Features

Management Telnet management, Web management, In-Band

Local Console (RS-232)

RFC Standard RFC 1157 SNMP, RFC 1213 MIB II, Bridge MIB,

RFC 1643 ETHERNET LIKE, RFC 1493 BRIDGE

MIB, RFC 1757 RMON 1, RFC 1215 Trap

Software

Upgrade

TFTP and console firmware upgrade

Port Trunk Supports IEEE802.3ad and IEEE802.1ad with

LACP function and provides 2 Trunk groups of 4

member ports within 10 ports.

Spanning Tree IEEE802.1d spanning Tree

VLAN Port based VLAN

IEEE802.1Q Tag VLAN and GVRP supported

IEEE802.1v Protocol VLAN (IP, IPX)

VLAN groups up to 256, VLAN ID up to 4095

QOS Policy Supports 8 priority levels ID for two priority queues

Class of Service Supports IEEE802.1p Priority. Supports First Come

First service, All High before Low, WRR for High or

Low weight.

Port Based

Priority

Supports 3 settings: Disable, Low and High priority.

When set to Disables, the incoming packet will

follow QoS policy. Otherwise, the packet will follow

port priority setting to High/Low queue.

IGMP IGMP Snooping for Multi-Media applications, IGMP

group supports 256 groups

Port Security MAC address filtering for ingress packets

Static MAC address lock for source address.

Port Mirror Global system supports 3 mirroring types: RX, TX

and Both. The maximum mirror entries is 8.

Bandwidth

Control

Per port bandwidth control support. Per level 100K.

802.1x Supports IEEE802.1x user authentication and can

report to Radius Server.

DHCP Supports DHCP Client
