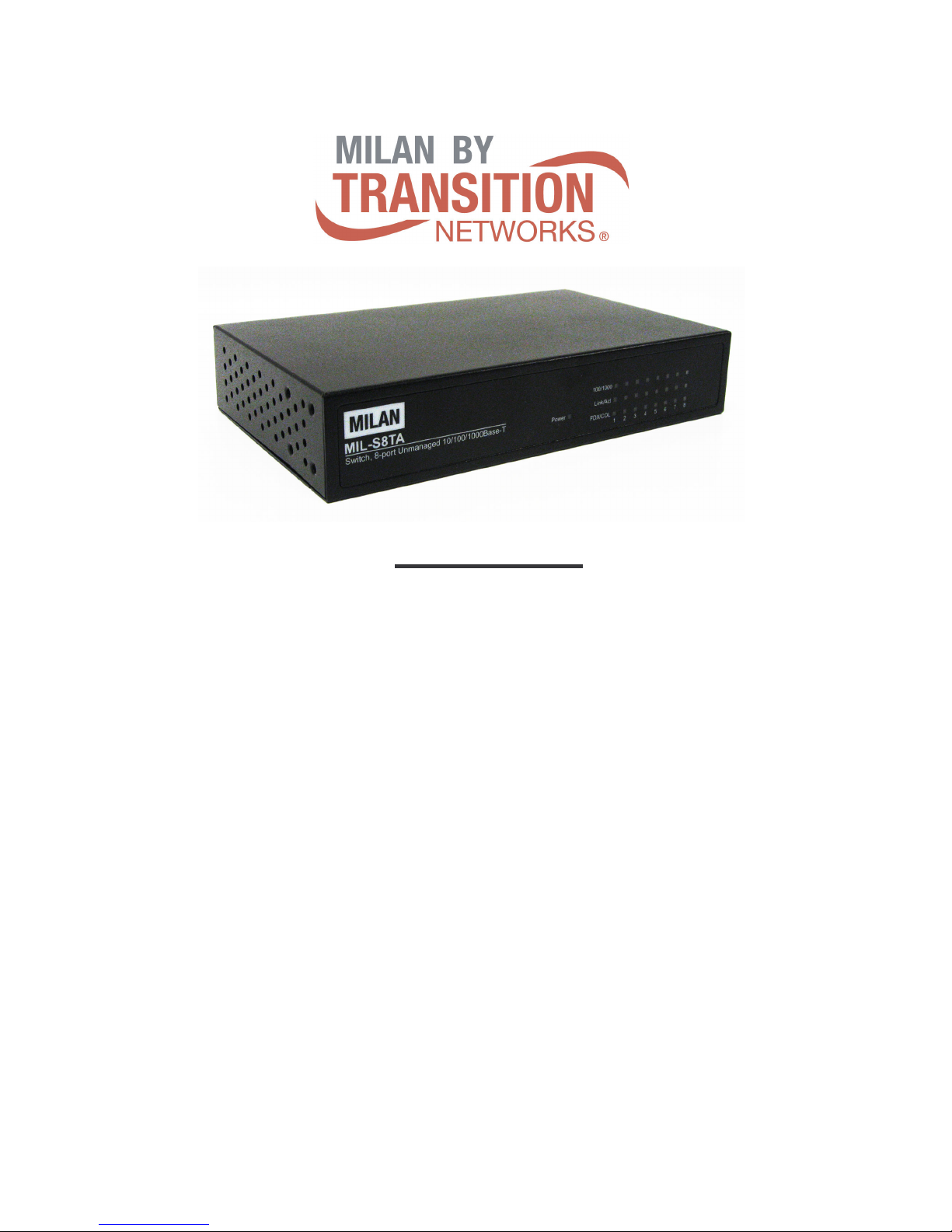

MiLAN MIL-S8TA Bedienungsanleitung
MIL-S8TA
8-Port 10/100/1000 BASE-T
Unmanaged Switch
User Guide
Rev. A1
2006-09-25
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du
Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European Community Compliance with these directives imply
conformity to the following European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
Transition Networks warrants to the original consumer or purchaser that each of it's products,
and all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to the original consumer or purchaser and is not assignable.
Transition Networks makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall Transition Networks be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. Transition Networks will in no case cover
damages arising out of the product being used in a negligent fashion or manner.
Trademarks
The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks in
the United States and/or other countries.
To Contact Transition Networks
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach Transition Networks technical support at:
Telephone: +1.800.260.1312 x 200
Fax: +1.952.941.2322
Transition Networks
6475 City West Parkway
Eden Prairie, MN 55344
United States of America
Telephone: +1.800.526.9267
Fax: : +1.952.941.2322
http://www.milan.com
info@ Transition.com
© Copyright 2006 Transition Networks
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
class A device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
commercial installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
instructions, may cause harmful interference on radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case, the user will be requires to correct the
interference at the user’s own expense.
Content
Introduction................................................................. 1
Features .....................................................................................................1
Package Contents ......................................................................................2
Hardware Description................................................. 3
Physical Dimensions ..................................................................................3
Front Panel.................................................................................................3
LEDs Indicators..........................................................................................3
Rear Panel .................................................................................................4
Installation................................................................... 6
Attaching Rubber Feet ...............................................................................6
Mounting on the Wall..................................................................................6
Power On ...................................................................................................7
Technical Specification.............................................. 8
1
Introduction
The 8-port 10/100/1000BASE-T Switch with Auto MDI/MDIX is an
unmanaged multi-port Switch that can be used to build high-performance
switched networks. This switch is a store-and-forward device that offers
low latency for high-speed networking. The Switch is designed for the core
of the network backbone computing environment to solve traffic block
problems at SME (small, medium enterprise) businesses.
The 8-port 10/100/1000BASE-T Switch features a “store-and-forward”
switching technology. This allows the switch to auto-learn and store source
addresses in an 8K-entry MAC address table.
Features
Conforms to IEEE 802.3, 802.3u, 802.3ab and 802.3x
8 Gigabit copper SOHO switch, compact size with universal internal
power
Auto-MDIX on all ports
16 Gbps back-plane
N-Way Auto-Negotiation
8K MAC address table
Back pressure half duplex
Flow control full duplex
Store-and-Forward switching architecture
144Kbytes memory buffer
True non-blocking switching
Support 8Kbytes Jumbo Frame
2
Package Contents
Unpack the contents of the switch and verify them against the checklist
below.
8-port Switch
Power Cord.
User Guide.
8-port Switch
Power Cord User manual
Package Content
Compare the contents of your switch package with the standard checklist
above. If any item is missing or damaged, please contact your local dealer
for service.
3
Hardware Description
Physical Dimensions
The physical dimensions of the Switch is 165mm x 100mm x 32.5 mm (L
x W x H)
Front Panel
The front panel of the 8-Port Gigabit switch consists of LED-indicators
(100/1000, Link/Activity, Full duplex/Collision) for each Gigabit port and
power LED-indicator for unit.
RJ-45 Ports (Auto MDI/MDIX): 8 10/100/1000 N-way auto-sensing for
10Base-T, 100Base-TX or 1000Base-T connections. (In general, MDI
means connecting to another Hub or Switch while MDIX means connecting
to a workstation or PC. Therefore, Auto MDI/MDIX allows you to connect
to another Switch or workstation without changing to non-crossover or
crossover cabling.)
LEDs Indicators
The LED Indicators gives real-time information of systematic operation
status. The following table provides descriptions of LED status and their
meaning.
4
LED Status Description
Green Power On
Power
Off Power is not connected
Green The port is operating at the speed of
1000Mbps.
Orange The port is operating at the speed of
100Mbps.
100/1000
Off No device attached or in 10Mbps mode
Green The port is connecting with the device.
Blinking The port is receiving or transmitting data.
LNK/ACT
Off No device attached.
Orange The port is operating in Full-duplex mode.
Blinking Packet collision occurred on this port.
FDX/COL
Off No device attached or in half-duplex
mode.
Rear Panel
The rear panel of the 8-port Gigabit Switch consists of 8 auto-negotiation
10/100/1000Mbps Ethernet RJ-45 connectors (support Automatic
5
MDI/MDIX function).
RJ-45 Ports (Auto MDI/MDIX): 8 port auto-negotiation 10/100/1000
Mbps Ethernet RJ-45 connectors
[Auto MDI/MDIX means that you can connect to another Switch or
workstation without changing non-crossover or crossover cabling.]
6
Installation
This section shows the installation procedures of the switch.
Set the Switch on a sufficiently large flat space with a power outlet nearby.
The surface where you put your Switch should be clean, smooth, level, and
sturdy. Make sure there is enough clearance around the Switch to allow
attachment of cables, power cord and air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the Switch is grease and
dust free.
B. Remove adhesive backing from your Rubber Feet.
C. Apply the Rubber Feet to each corner on the bottom of the Switch.
These footpads can prevent the Switch from shock/vibration.
Mounting on the Wall
The switch can be mounted on the wall. The switch has two wallmount
brackets included in the package.
Using the cross hook hole at the bottom
of the switch to mount the switch on the
wall
