Miller Electric Arc Welding Power Source Bedienungsanleitung

Quick

Specs

Upgraded circuitry gives you finer TIG output

adjustment with the remote foot or fingertip

control. If you need more output while using

the remote control, simply increase the

setting of the front panel amperage control.

Econotig®Arc Welding

Power Source

Issued April 2003 • Index No. AD/1.2

AC output for superior aluminum welding

and DC output for mild and stainless steel.

Four-position polarity

and range selector

switch offers two AC

current ranges, DC

electrode (–) for TIG,

and DC electrode (+)

for Stick.

Special arc starting

circuitry eliminates

high- frequency starts.

Built-in arc assist starter

for DC TIG.

Built-in arc assist stabilizer

for AC TIG on aluminum.

Process switch automatically

sets machine for TIG or Stick.

Unique “flow-through” shielding

gas TIG torch connection allows

removal of torch without tools.

The Power of Blue®

Power source is warranted for 3 years, parts and labor.

Original main power rectified parts are warranted for 5 years.

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

International Headquarters

Phone: 920-735-4505

USA FAX: 920-735-4134

Canadian FAX: 920-735-4169

International FAX: 920-735-4125

Light Industrial Applications

Farm

Ranch

Hobby

Processes

TIG (GTAW)

Stick (SMAW)

Input Power

1-Phase Power

Rated Output at 20% Duty Cycle

TIG: 150 A at 15 VDC, 150 A at 15 VAC

Stick: 130 A at 25 VDC, 150 A at 25 VAC

Amperage Range AC High AC Low DC

TIG: 50 –165 20–50 30–160

Stick: 35 –165 20–50 25–130

Max. Open-Circuit Voltage

Weight 140 lb (64 kg)

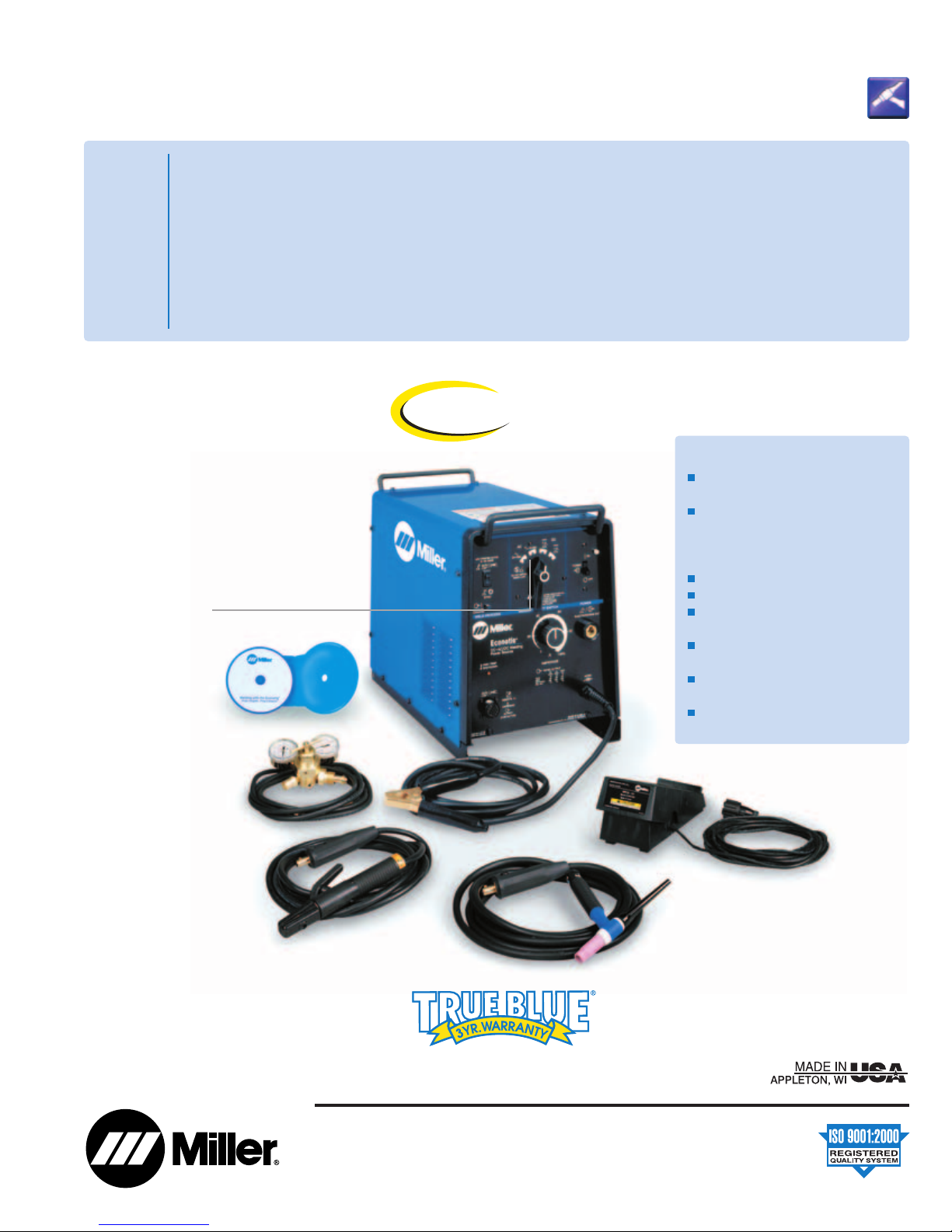

Comes Complete With:

Power source with primary cord

(plug provided on 230 V model)

DB1712RDI TIG torch with backcap,

ceramic gas cup, 3/32 in (2.4 mm)

collet and collet body, and 2%

thoriated tungsten

International-style quick-connect torch

12 ft (3.7 m) work cable and clamp

Stick electrode holder with 15 ft

(4.6 m) cable

RFCS-14 foot-operated remote

control with 20 ft (6 m) cord

Gas regulator, flowmeter and

12-1/2 ft (3.8 m) shielding gas hose

“How-To” DVD (in English and

Spanish)

Preset automatic postflow timer protects

tungsten tip, workpiece and torch.

Automatic high temperature shutdown.

Complete

Package!

Just supply Argon gas,

stick electrodes, filler rod,

gloves and helmet and

you are ready to weld!

200

150

100

15 20 25 30 40 50 7060 80 90 100

WELDING AMPERES

% DUTY CYCLE

DUTY CYCLE CHART

Control Panel Performance Data

Specifications (Subject to change without notice.)

1. Range/Polarity Switch

2. Process Switch

3. Amperage Control

4. High Temp Light

5. Remote Receptacle

6. Power Switch

7. International Flow-

Through Receptacle

Rated Output

at 20% Duty Cycle

TIG: 150 A at 15 VDC

150 A at 15 VAC

Stick:130 A at 25 VDC

150 A at 25 VAC

Welding Amperage Range

AC High AC Low DC

TIG Welding Range

50–165 20–50 30– 160

Stick Welding Range

35–165 20–50 25– 130

Max. Open-Circuit Voltage

Input Amps

at Rated Output

200 V 60 A

230 V 52 A

460 V 33 A

380 V 39 A

415 V 36 A

Dimensions

H: 18 in (457 mm)

W: 13 in (330 mm)

D: 25-1/2 in (648 mm)

Net Weight

140 lb (64 kg)

Process and Material Thickness Guide

Material and

Weld Output

22 ga

0.033 in

0.8 mm

Steel or

Stainless Steel

Aluminum

20 ga

0.036 in

0.9 mm

18 ga

0.048 in

1.2 mm

16 ga

0.06 in

1.5 mm

14 ga

0.07 in

1.8 mm

12 ga

0.1 in

2.5 mm

11 ga

0.125 in

3.2 mm

10 ga

0.14 in

3.6 mm

6 ga

0.186 in

4.8 mm

2 ga

0.25 in

6.3 mm

—

0.25+in

6.3+mm

Material Thickness

Electrode Negative

DCEN TIG (GTAW)

TIG

(GTAW)

Stick

(SMAW)

Not

Recommended

With

DCEP

Output

Difficult

TIG (GTAW)

Recommended

Genuine Miller Accessories

Universal Carrying Cart and Cylinder Rack

#042 934

This cart adds convenience to the Econotig

package. The power source mounts securely

to the top, and a cylinder rack supports the

argon cylinder. The bottom tray can hold

electrode leads or welding hood, gloves,

etc. Cylinder rack will accommodate 6 – 9 in

(152 – 228 mm) diameter, and 24 – 56 in

(610 –1422 mm) high cylinders. The cart

also supports five standard TIG filler metal

tubes and one Stick welding rod tube. Net

shipping weight is 69 lbs (31 kg).

RCC-14 Remote Contactor and Current

Control #151 086

Comes standard with 50 Hz units.

A fingertip control can be used instead of

the supplied remote foot control. Useful

when welding where a foot control cannot

be used.

Side-to-side rotary-motion fingertip control

fastens to TIG torch using two Velcro®

straps. Includes 28 ft (8.5 m) control cord.

Great for production or contractors that

need quick ramp-up.

RCCS-14 Remote Contactor and

Current Control #043 688

North and South rotary-motion fingertip

control fastens to TIG torch using two

Velcro®straps. Includes 28 ft (8.5 m)

control cord. Great for applications that

require a finer amperage control.

RHC-14 Hand Control #129 340

Miniature hand control for remote current

and contactor control. Dimensions: 4 in

(102 mm) x 4 in (102 mm) x 3-1/4 in

(82 mm). Includes 20 ft (6 m) cord and

14-pin plug.

RFCS-14 Foot Control #043 554

Comes standard with 60 Hz units.

Foot current and contactor control.

Includes 20 ft (6 m) cord and 14-pin plug.

Replacement Torches

Note: Torches are available through your local

welding distributor.

DB1712RDI

12 ft (3.7 m), 150 A air-cooled, flow thru

TIG torch

DI-917F #194 722

Flow thru connector

Torches are equipped with “quick-connect”

International-style connector. “Flow-through”

shielding gas TIG torch connection allows

complete removal of torch without using

any tools.

Litho in USA

Distributed by:

Power Source Stock No. Description Qty. Price

Econotig®#903 422 60 Hz, 200 V

#903 367 60 Hz, 230 V

#903 368 60 Hz, 460 V

#903 423 50 Hz, 380 V, CE

#902 424 50 Hz, 415 V, CE

Accessories

Universal Carrying Cart and Cylinder Rack #042 934

RCC-14 #151 086 Fingertip control

RCCS-14 #043 688 Fingertip control

RHC-14 #129 340 Hand control

RFCS-14 #043 554 Foot control

Replacement Torches See pg 3

Date: Total Quoted Price:

Ordering Information

60 Hz models are certified by Canadian Standards Association to both Canadian and U.S. requirements.

50 Hz models come with RCC-14 fingertip control instead of RFCS-14 foot control, and include 25 ft (7.6 m)

TIG torch instead of 12-1/2 ft (3.8 m) model. Gas regulator not included.
