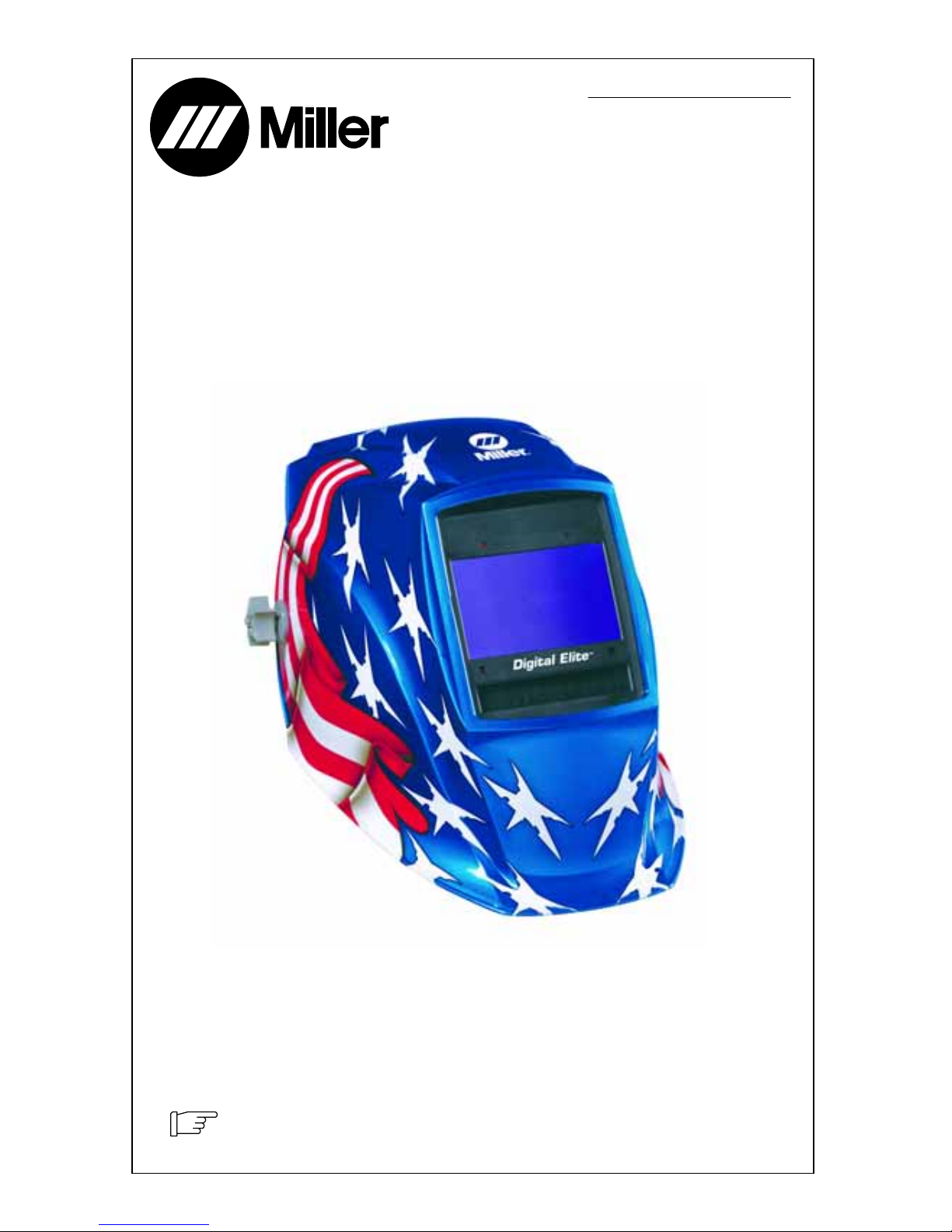

Miller Electric Digital Elitet Bedienungsanleitung

Auto-Darkening Helmets

Model: Digital Elitet

OM-234 388B

2007−08

To help us serve you better, go to www.MillerWelds.Com/HelmetReg/

TABLE OF CONTENTS

SECTION 1 −SAFETY PRECAUTIONS −READ BEFORE USING 1. . . . . . . . . . . . . . . . . . . . . .

1-1. Symbol Usage 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2. Hazards 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 −SPECIFICATIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3 −OPERATING INSTRUCTIONS 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1. Helmet Controls 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2. On-Off Button And Low Battery Indicator 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3. Mode Control 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4. Variable Shade Control 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5. Sensitivity Control 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6. Lens Delay Control 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-7. Lens Adjustment Procedure 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4 −ADJUSTING HEADGEAR 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5 −REPLACING THE LENS COVERS 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6 −REPLACING THE BATTERY 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7 −INSTALLING OPTIONAL MAGNIFYING LENS 13. . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 8 −MAINTENANCE 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 9 −TROUBLESHOOTING 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 10 −PARTS LIST 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 11 −LIMITED WARRANTY 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OM-234 388 Page 1

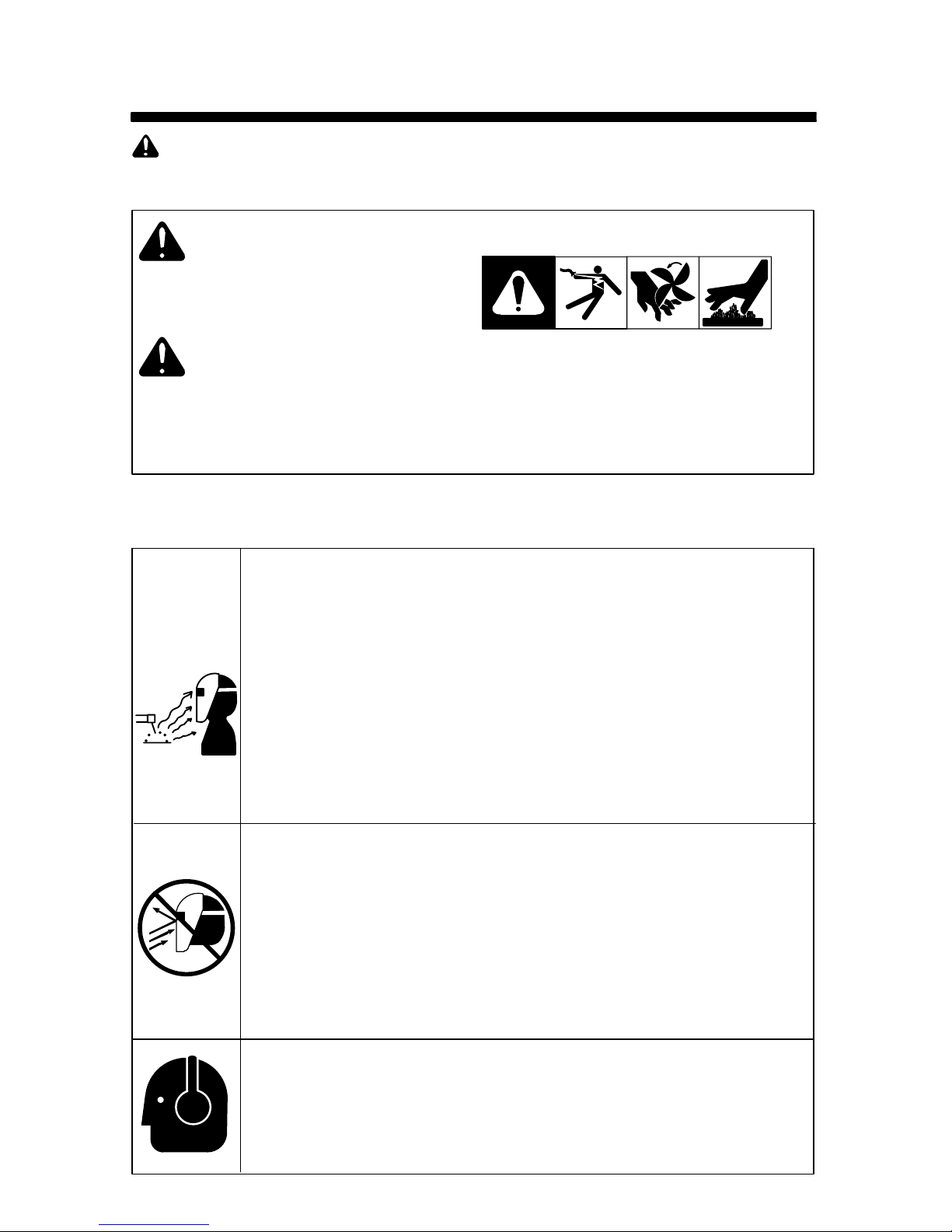

SECTION 1 −SAFETY PRECAUTIONS −

READ BEFORE USING

Protect yourself and others from injury — read and follow these precautions.

1-1. Symbol Usage

This group of symbols means Warning! Watch

Out! ELECTRIC SHOCK, MOVING PARTS,

and HOT PARTS hazards. Consult symbols

and related instructions below for necessary

actions to avoid the hazards.

.Indicates special instructions.

DANGER! −Indicates a hazardous

situation which, if not avoided, will

result in death or serious injury. The

possible hazards are shown in the

adjoining symbols or explained in

the text.

NOTICE −Indicates statements not related to

personal injury.

Indicates a hazardous situation

which, if not avoided, could result in

death or serious injury. The possible

hazards are shown in the adjoining

symbols or explained in the text.

1-2. Hazards

ARC RAYS can burn eyes and skin.

Arc rays from the welding process produce intense visible and invisible (ultravio-

let and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

DWear a welding helmet fitted with a proper shade of filter to protect your

face and eyes when welding or watching (see ANSI Z49.1 and Z87.1 listed

in Safety Standards). Refer to Shade and Sensitivity charts in Sections 3-4

and 3-5.

DWear approved safety glasses with side shields under your helmet.

DUse protective screens or barriers to protect others from flash and glare;

warn others not to watch the arc.

DWear protective clothing made from durable, flame-resistant material

(leather and wool) and foot protection.

WELDING HELMETS do not provide unlimited eye, ear and

face protection.

DUse impact resistant safety spectacles or goggles and ear protection at all

times when using this welding helmet.

DDo not use this helmet while working with or around explosives or

corrosive liquids.

DDo not weld in the overhead position while using this helmet.

DInspect the auto-lens frequently. Immediately replace any scratched,

cracked, or pitted cover lenses or auto-lenses.

NOISE can damage hearing.

Noise from some processes or equipment can damage hearing.

DWear approved ear protection if noise level is high.

OM-234 388 Page 2

SECTION 2 −SPECIFICATIONS

Viewing Field 97 x 60mm/3.81 x 2.62 in

Reaction Time 0.0000500sec (1/20,000)

Operating Modes 4 Modes: Weld, Cutting, Grind, X Mode

Available Shades

All shades provide continu-

ous UV and IR protection.

Weld Mode: Darkened State: No. 8 −No. 13

Light State: No. 3

Cutting Mode: Darkened State: No. 5 −No. 8

Light State: No. 3

Grind Mode: Light State: No. 3

X Mode: Darkened State: No. 8 −No. 13

Light State: No. 3

Sensitivity Settings Adjusts for varying ambient light and welding/cutting arc

Weld Mode: No. 0 −No. 10

Cutting Mode: No. 0 −No. 10

Grind Mode: Not Applicable

X Mode: No. 0 −No. 10

Delay Settings Slows lens dark-to-light state

Weld Mode: No. 0 −No. 10

Cutting Mode: No. 0 −No. 10

Grind Mode: Not Applicable

X Mode: No. 0 −No. 10

Automatic Power Off Shuts lens Off 15−20 minutes after last arc is struck

Low Battery Indicator Display indicates 2−3 days remaining battery life

Power Supply CR2450 Lithium Batteries (Miller Part No. 217 043)

Sensors Independent/Redundant (Four)

Operating Temperature 14_F to 131_F / −10_C to +55_C

.When stored in extremely cold temperatures, warm hel-

met to ambient temperature before welding.

Storage Temperature −4_F to 158_F / −20_C to +70_C

.When stored in extremely cold temperatures, warm hel-

met to ambient temperature before welding.

Total Weight 510.3 g (1 lb 2oz.)

Standards ANSI Z87.1 and CSA/TUV

Warranty 2 years from date of purchase (see Section 11)

.The helmets in this manual are covered by one or more of the following patents:

U.S. Patent −No. 6,552,316, No. 6,483,090, No. 6,614,409

U.S. Patent Application −No. 29/223,100, No. 11/053,977, No. 10/565,858, No. 11/589,542

DE. Patent −No. 199 59 944 C2, No. 199 59 945 C2

FR. Patent −No. 9916004

OM-234 388 Page 3

SECTION 3 −OPERATING INSTRUCTIONS

3-1. Helmet Controls

1 On-Off Button (See Section

3-2)

2 Mode Control Button

(See Section 3-3)

3 Display Screen

4 Variable Shade Control

Buttons (See Section 3-4)

5 Sensitivity Control Buttons

(See Section 3-5)

6 Lens Delay Control Buttons

(See Section 3-6)

.The lens assembly saves the

shade, sensitivity, and delay

settings when the lens turns

off.

12 3

805 010

OM-234 388 Page 4

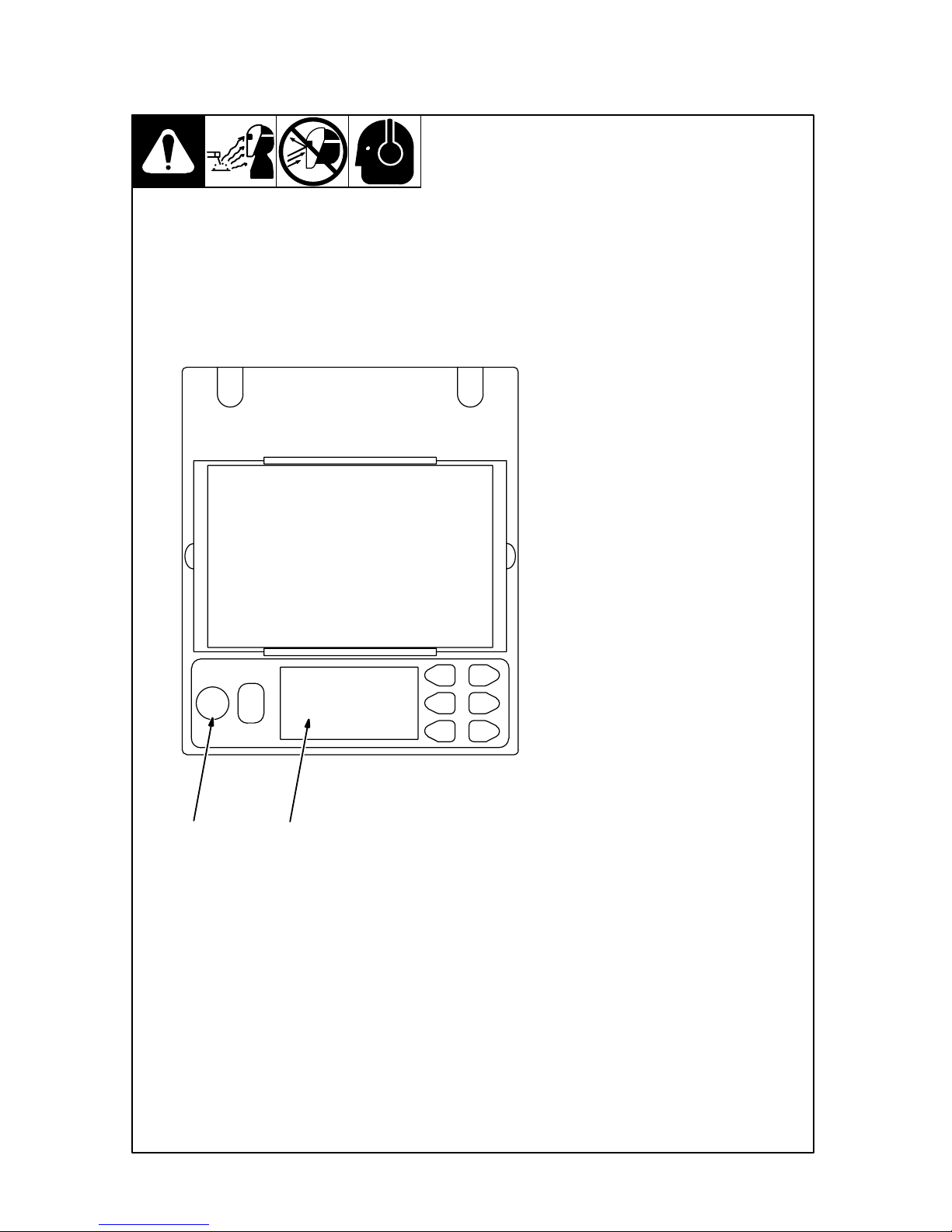

3-2. On-Off Button And Low Battery Indicator

1 On-Off Button

Press On-Off button to check if the

lens is working properly and to be-

gin lens shade, sensitivity, and

delay adjustments.

When the On-Off button is pressed,

the lens should darken and return to

the clear state. Do not use the hel-

met if the lens does not function as

described. (See Section 9, Trouble-

shooting.)

2 Low Battery Indicator

The message “Low Battery” ap-

pears on the display screen when

2−3 days of battery life remains.

If battery power is low, replace with

CR2450 lithium batteries (2 re-

quired −Miller Part No. 217 043)

See Section 6.

805 010

OM-234 388 Page 5

3-3. Mode Control

1 Mode Control Button

Press button to select the mode ap-

propriate for the work activity:

Weld Mode −used for most welding

applications. In this mode the lens

turns on when it optically senses a

welding arc. Adjust shade, sensitivity,

and delay settings as needed.

Cutting Mode −used for cutting ap-

plications. In this mode the lens turns

on when it optically senses a cutting

arc. Adjust shade, sensitivity, and

delay settings as needed.

Grind Mode −used for metal grinding

applications. In this mode the shade is

fixed shade No. 3. No lens adjust-

ments are possible.

X Mode −used for outdoor or low cur-

rent welding applications. In this mode

the lens turns on when it senses weld

current. Adjust shade, sensitivity, and

delay settings as needed.

.Nearby welding may affect hel-

met operation when lens is in X

Mode. Stay at least 12 ft (3.7 m)

away from other welding activity.

805 010

OM-234 388 Page 6

3-4. Variable Shade Control

1 Shade Control Buttons

Use the shade control Down and

Up buttons to select the lens

shade in the darkened state. The

shade ranges for each mode are

as follows:

Weld −No. 8 −No. 13

Cutting −No. 5 −No. 8

Grind −No. 3 only

X Mode −No. 8 −No. 13

Start at the highest setting and ad-

just lighter to suit the application

and your personal preference.

Use the table below to select prop-

er shade control setting based on

your welding process.

805 010

Application Welding Arc Current in Amperes Protective Shade No.

Stick Electrodes Less than 40

40−80

80−175

175−300

300−500

MIG Less than 100

100−175

175−300

300−500

Gas Tungsten Arc Welding

(TIG)

Less than 50

50−100

100−200

200−400

Air Carbon Less than 500

500−700

Plasma Arc Cutting 60−150

150−250

250−400

Plasma Arc Welding Less than 50

50−200

200−400

OM-234 388 Page 7

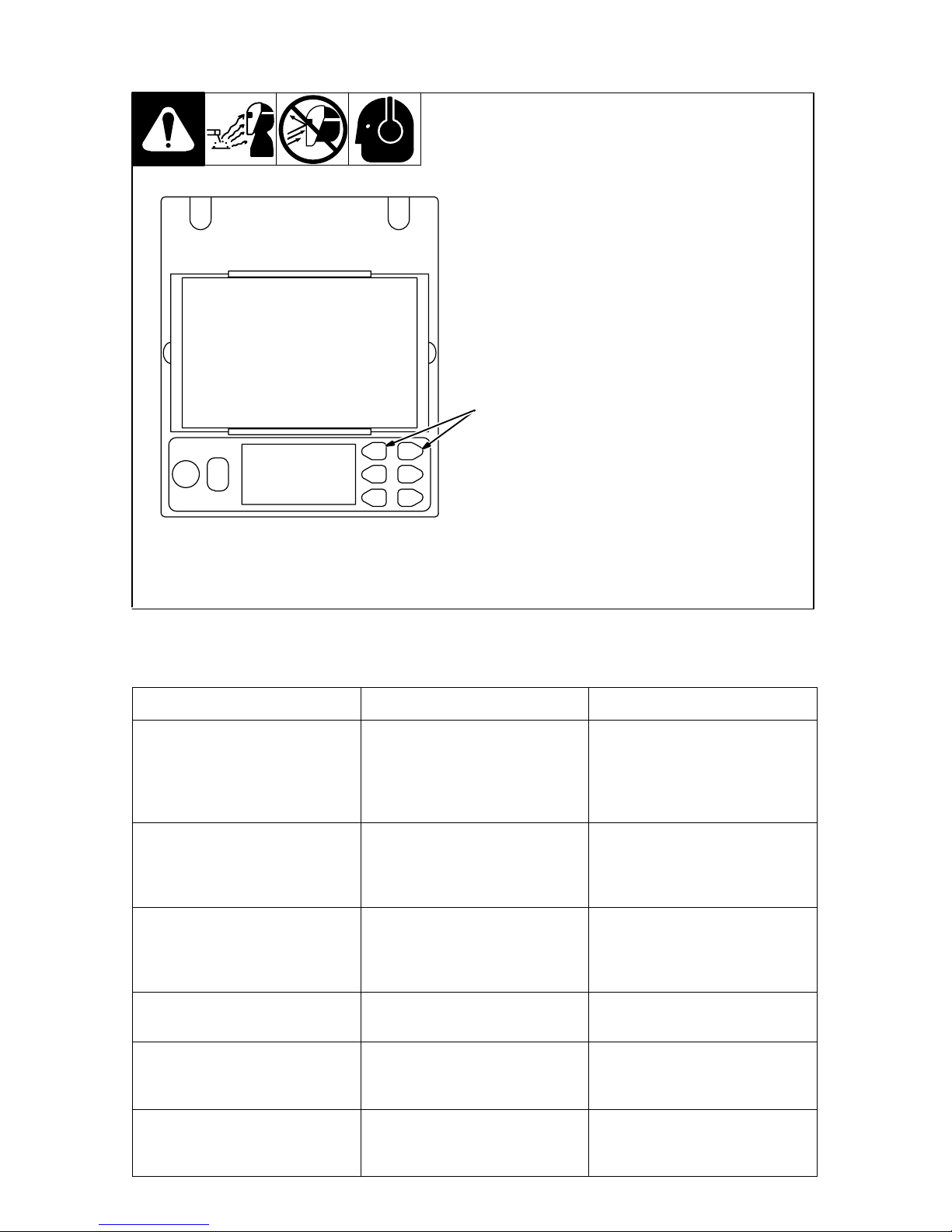

3-5. Sensitivity Control

1 Sensitivity Control Buttons

Use Sensitivity Control Low and Hi buttons

to make the lens more responsive to differ-

ent light levels in various welding pro-

cesses. Use a sensitivity setting of 5 for

most applications.

The sensitivity ranges for each mode are as

follows:

Weld, Cutting, X Modes −0 −10

Grind Mode −No sensitivity adjustment

It may be necessary to adjust helmet sensi-

tivity to accommodate different lighting con-

ditions or if lens is flashing On and Off. Ad-

just helmet sensitivity as follows:

.Adjust helmet sensitivity in lighting con-

ditions helmet will be used in.

SPress Sensitivity Low button to lower

setting to 0.

SFace the helmet in the direction of use,

exposing it to the surrounding light con-

ditions.

SPress Sensitivity Hi button repeatedly

until the lens darkens, then press Low

button until lens clears. Helmet is ready

for use. Slight readjustment may be

necessary for certain applications or if

lens is flashing on and off.

805 010

Recommended Sensitivity Settings

Stick Electrode Mid-Range

Short Circuiting (MIG) Low/Mid-Range

Pulsed & Spray (MIG) Mid-Range

Gas Tungsten Arc (TIG) Mid/High-Range

Plasma Arc Cutting/Welding Low/Mid-Range

Grinding No sensitivity setting; use Grind mode

OM-234 388 Page 8

3-6. Lens Delay Control

1 Lens Delay Control

Use the Lens Delay Control Fast

and Slow buttons to adjust the time

for the lens to switch to the clear

state after welding or cutting.

The delay is particularly useful in

eliminating bright after-rays pres-

ent in higher amperage applica-

tions where the molten puddle re-

mains bright momentarily after

welding. Use the Lens Delay Con-

trol buttons to adjust delay from 0 to

10 (0.1 to 1.0 second).

.There is no lens delay adjust-

ment in the Grind mode.

805 010

Andere Handbücher für Digital Elitet

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Miller Electric Schweißzubehör Handbücher

Miller Electric

Miller Electric 75 Bedienungsanleitung

Miller Electric

Miller Electric OM-1589 Bedienungsanleitung

Miller Electric

Miller Electric MOTORIZED SLIDE MSC-2 Bedienungsanleitung

Miller Electric

Miller Electric MIGmatic M-40 Bedienungsanleitung

Miller Electric

Miller Electric D-74D Bedienungsanleitung

Miller Electric

Miller Electric OM-494 Bedienungsanleitung

Miller Electric

Miller Electric XR A Bedienungsanleitung

Miller Electric

Miller Electric CV-2 Bedienungsanleitung

Miller Electric

Miller Electric I-22A & I-24A Bedienungsanleitung

Miller Electric

Miller Electric Coolmate 3.5 Bedienungsanleitung

Miller Electric

Miller Electric DS-2 Bedienungsanleitung

Miller Electric

Miller Electric WC-115A Bedienungsanleitung

Miller Electric

Miller Electric 301239 Bedienungsanleitung

Miller Electric

Miller Electric SS-74D16 Swingarc Bedienungsanleitung

Miller Electric

Miller Electric Coolmate Coolmate 4 Bedienungsanleitung

Miller Electric

Miller Electric DS-64M Swingarc Bedienungsanleitung

Miller Electric

Miller Electric OM-234 016D Bedienungsanleitung

Miller Electric

Miller Electric R-115 Bedienungsanleitung

Miller Electric

Miller Electric A.B.B. Robot Interface Gas Control Hub And... Bedienungsanleitung

Miller Electric

Miller Electric MIGmatic M-15 Bedienungsanleitung

Miller Electric

Miller Electric S-74D Bedienungsanleitung

Miller Electric

Miller Electric GB-1 GYRO BAIL Bedienungsanleitung

Miller Electric

Miller Electric MC-80 Bedienungsanleitung

Miller Electric

Miller Electric OM-2241 Bedienungsanleitung

Beliebte Schweißzubehör Handbücher anderer Marken

Lincoln Electric

Lincoln Electric LT-7 Tractor Bedienungsanleitung

Weco

Weco Trolley R Bedienungsanleitung

Cornwell Tools

Cornwell Tools MMWC1 Bedienungsanleitung

Dohle

Dohle ExOn2A Bedienungsanleitung

Nederman

Nederman Fume Eliminator FE 840/2500/P150 Bedienungsanleitung

3M Speedglas 9100 Series Bedienungsanleitung

Miller

Miller A-200 Series Bedienungsanleitung

Abicor Binzel

Abicor Binzel ABIMIG WT Series Bedienungsanleitung

optrel

optrel lifeflip autopilot Bedienungsanleitung

Miller

Miller MIGmatic M-25 Bedienungsanleitung

Tregaskiss

Tregaskiss TOUGH GUN TT3 Reamer Bedienungsanleitung

Abicor Binzel

Abicor Binzel xFUME PRO Bedienungsanleitung

Sealey

Sealey SR20.V2 Bedienungsanleitung

iWeld

iWeld NORED EYE Bedienungsanleitung

Sthor

Sthor 74483 Bedienungsanleitung

Leister

Leister TWINNY T7 Bedienungsanleitung

Miller

Miller I-22 CE Bedienungsanleitung

LAHTI PRO

LAHTI PRO L1540400 Bedienungsanleitung
