Miller Classic Series Bedienungsanleitung

Classic Series

Welding Helmets

OM-252052G 2019−07

To help us serve you better, go to www.MillerWelds.Com/Register

TABLE OF CONTENTS

SECTION 1 −WELDING HELMET SAFETY PRECAUTIONS −READ BEFORE USING 1......

1-1. Symbol Usage 1............................................................

1-2. Arc Welding Hazards 1.......................................................

1-3. Proposition 65 Warnings 2....................................................

1-4. Lens Shade Selection Table 3.................................................

1-5. Principal Safety Standards 3..................................................

SECTION 2 −SPECIFICATIONS 4.....................................................

SECTION 3 −OPERATING INSTRUCTIONS 5..........................................

3-1. Helmet Controls 5...........................................................

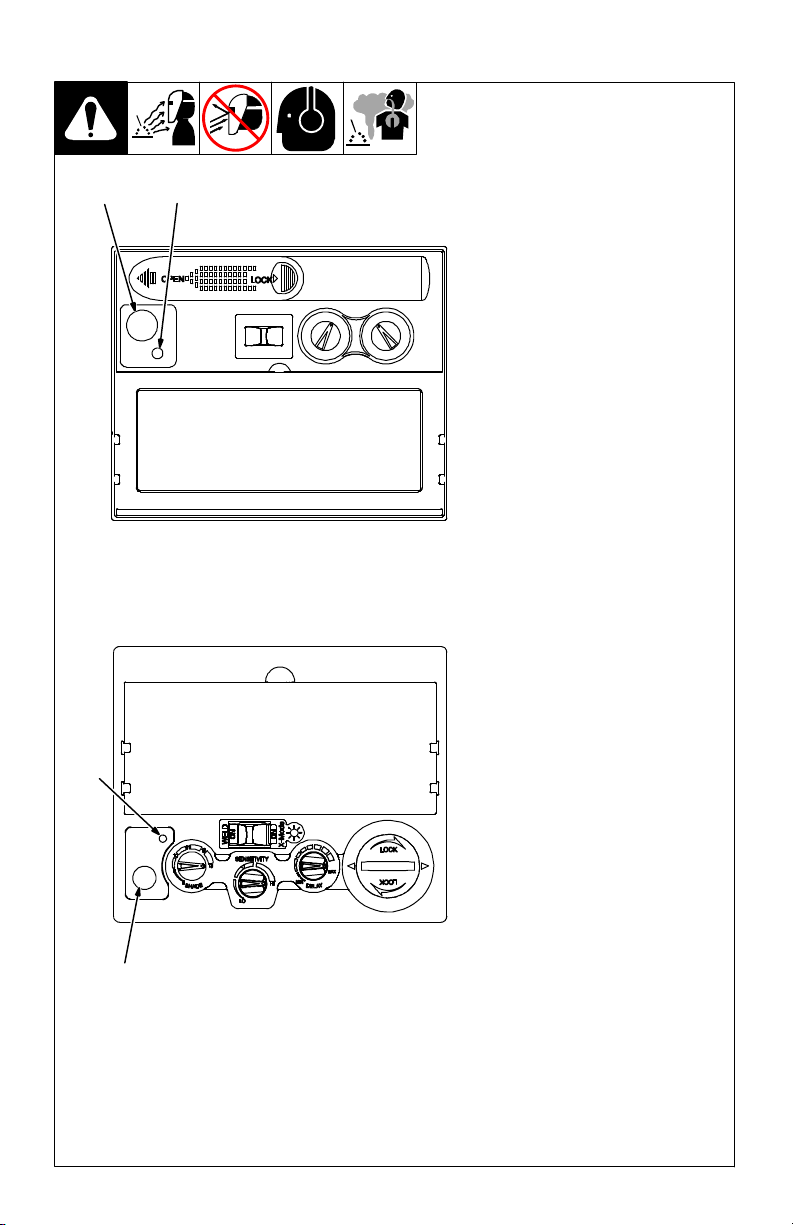

3-2. Reset Button And Low Battery Indicator 7.......................................

3-3. Mode Control (Vsi Helmet Only) 8..............................................

3-4. Lens Delay Control 9.........................................................

3-5. Variable Shade Control 10.....................................................

3-6. Sensitivity Control 11..........................................................

SECTION 4 −ADJUSTING HEADGEAR 12.............................................

SECTION 5 −REPLACING THE LENS COVERS 13.....................................

5-1. Replacing Outside Lens Cover On Variable Shade And Standard Fixed Shade Helmets 13

5-2. Replacing Inside Lens Cover On Variable Shade and Standard Fixed Shade Helmets 14.

5-3. Replacing Lens Covers On VSi Helmet 15........................................

5-4. Replacing Grinding Shield On VSi Helmet 16......................................

5-5. Replacing Lens Covers And Grinding Shield On Fixed Shade Flip-Up Helmets 17.......

SECTION 6 −REPLACING THE BATTERY 18..........................................

6-1. Replacing Battery On Variable Shade Helmets 18..................................

6-2. Replacing Battery On Vsi Helmet 18.............................................

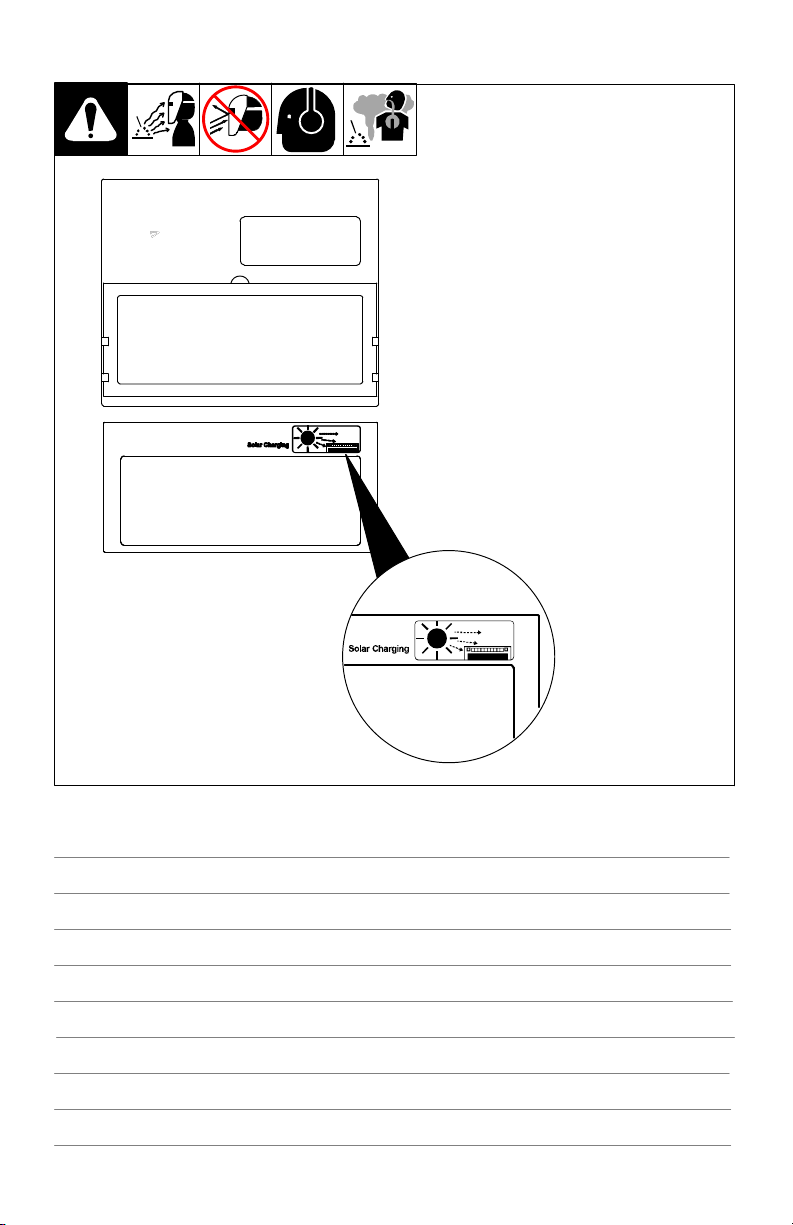

6-3. Solar Cell On Fixed Shade Helmets 19...........................................

SECTION 7 −INSTALLING OPTIONAL MAGNIFYING LENS 20...........................

SECTION 8 −MAINTENANCE AND STORAGE 21......................................

SECTION 9 −TROUBLESHOOTING 22................................................

SECTION 10 −PARTS LIST 24.......................................................

SECTION 11 −LIMITED WARRANTY 29...............................................

OM-252052 Page 1

SECTION 1 −WELDING HELMET SAFETY PRECAUTIONS −

READ BEFORE USING

helmet 2018-08

Protect yourself and others from injury — read, follow, and save these important safety

precautions and operating instructions.

1-1. Symbol Usage

This group of symbols means Warning! Watch

Out! ELECTRIC SHOCK, MOVING PARTS,

and HOT PARTS hazards. Consult symbols

and related instructions below for necessary

actions to avoid the hazards.

Indicates special instructions.

DANGER! −Indicates a hazardous

situation which, if not avoided, will

result in death or serious injury. The

possible hazards are shown in the

adjoining symbols or explained in

the text.

Indicates a hazardous situation

which, if not avoided, could result in

death or serious injury. The possible

hazards are shown in the adjoining

symbols or explained in the text.

NOTICE −Indicates statements not related to

personal injury.

1-2. Arc Welding Hazards

Only qualified persons should install, operate, maintain, and repair this equipment. A

qualified person is defined as one who, by possession of a recognized degree, certificate,

or professional standing, or who by extensive knowledge, training and experience, has

successfully

demonstrated ability to solve or resolve problems relating to the subject

matter, the work, or the project and has received safety training to recognize and avoid

the hazards involved.

Arc rays from the welding process produce intense visible and invisible (ultravio-

let and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

Wear a welding helmet fitted with a proper shade of filter to protect your face and eyes when

welding or watching (see ANSI Z49.1 and Z87.1 listed in Safety Standards). Refer to Lens

Shade Selection table in Section 1-4.

Wear approved safety glasses with side shields under your helmet.

Use protective screens or barriers to protect others from flash, glare, and sparks; warn

others not to watch the arc.

Wear body protection made from durable, flame−resistant material (leather, heavy cotton,

wool). Body protection includes oil-free clothing such as leather gloves, heavy shirt, cuffless

trousers, high shoes, and a cap.

•Before welding, adjust the auto-darkening lens sensitivity setting to meet the application.

•Stop welding immediately if the auto-darkening lens does not darken when the arc is struck.

ARC RAYS can burn eyes and skin.

NOISE can damage hearing.

Noise from some processes or equipment can damage hearing.

 Wear approved ear protection if noise level is high.

OM-252052 Page 2

WELDING HELMETS do not provide unlimited eye, ear, and

face protection.

Arc rays from the welding process produce intense visible and invisible (ultraviolet

and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

Use helmet for welding/cutting applications only. Do not use helmet for laser welding/cutting.

Use impact resistant safety spectacles or goggles and ear protection at all times when using

this welding helmet.

Do not use this helmet while working with or around explosives or corrosive liquids.

This helmet is not rated for overhead welding. Do not weld in the direct overhead position

while using this helmet unless additional precautions are taken to protect yourself from arc

rays, spatter, and other hazards.

Inspect the auto-lens frequently. Immediately replace any scratched, cracked, or pitted cover

lenses or auto-lenses.

Lens and retention components must be installed as instructed in this manual to ensure

compliance with ANSI Z87.1 protection standards.

READ INSTRUCTIONS.

Read and follow all labels and the Owner’s Manual carefully before in-

stalling, operating, or servicing unit. Read the safety information at the be-

ginning of the manual and in each section.

Use only genuine replacement parts from the manufacturer.

Perform installation, maintenance, and service according to the Owner’s Manuals, industry

standards, and national, state, and local codes.

FUMES AND GASES can be hazardous.

Welding produces fumes and gases. Breathing these fumes and gases can be

hazardous to your health.

Keep your head out of the fumes. Do not breathe the fumes.

Ventilate the work area and/or use local forced ventilation at the arc to remove welding fumes

and gases. The recommended way to determine adequate ventilation is to sample for the com-

position and quantity of fumes and gases to which personnel are exposed.

If ventilation is poor, wear an approved air-supplied respirator.

Read and understand the Safety Data Sheets (SDSs) and the manufacturer’s instructions for

adhesives, coatings, cleaners, consumables, coolants, degreasers, fluxes, and metals.

Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator.

Always have a trained watchperson nearby. Welding fumes and gases can displace air and

lower the oxygen level causing injury or death. Be sure the breathing air is safe.

Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays

of the arc can react with vapors to form highly toxic and irritating gases.

Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the

coating is removed from the weld area, the area is well ventilated, and while wearing an air-

supplied respirator. The coatings and any metals containing these elements can give off toxic

fumes if welded.

1-3. Proposition 65 Warnings

WARNING: Cancer and Reproductive Harm −www.P65W

arnings.ca.gov

OM-252052 Page 3

1-4. Lens Shade Selection Table

Process Electrode Size

in. (mm)

Arc Current

Amperes

Minimum

Protective

Shade No.

Suggested

Shade No.

(Comfort)*

Shielded Metal Arc

Welding (SMAW)

Less than 3/32 (2.4)

3/32−5/32 (2.4−4.0)

5/32−1/4 (4.0−6.4)

More than 1/4 (6.4)

Less than 60

60−160

160−250

250−550

−−

Gas Metal

Arc Welding

(GMAW)

Flux Cored

Arc Welding

(FCAW)

Less than 60

60−160

160−250

250−500

−−

Gas Tungsten Arc

Welding (TIG)

Less than 50

50−150

150−500

Air Carbon

Arc Cutting (CAC-A)

Light

Heavy

Less than 500

500−1000

Plasma Arc

Cutting (PAC)

Less than 20

20−40

40−60

60−80

80−300

300−400

400−800

Plasma Arc Welding

(PAW)

Less than 20

20−100

100−400

400−800

6−8

Reference: ANSI Z49.1:2012

* Start with a shade that is too dark to see the weld zone. Then, go to a lighter shade which gives a

sufficient view of the weld zone without going below the minimum.

1-5. Principal Safety Standards

Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1, is available as a free down-

load from the American Welding Society at http://www.aws.org or purchased from Global Engineering

Documents (phone: 1-877-413-5184, website: www

.global.ihs.com).

Safe Practice For Occupational And Educational Eye And Face Protection, ANSI Standard Z87.1,

from American National Standards Institute, 25 West 43rd Street, New York, NY 10036 (phone:

212-642-4900, website: www.ansi.org).

Industrial Head Protection, ANSI/ISEA Standard Z89.1, from American National Standards Institute,

25 West 43rd Street, New York, NY 10036 (phone: 212-642-4900, website: www.ansi.org).

OM-252052 Page 4

SECTION 2 −SPECIFICATIONS

Specification Variable Shade

Helmet VSi Helmet

Standard

Fixed Shade

No. 10 Helmet

Fixed Shade

2 x 4 No. 10

Flip-Up Helmet

Viewing Field 95 x 34 mm

(3.75 x 1.375 in.)

95 x 40 mm

(3.75 x 1.57 in.)

95 x 35 mm

(3.75 x 1.375 in.)

Reaction Time 0.0000833 sec

(1/12,000)

0.00005 sec

(1/20,000)

0.000277 sec (1/3,600)

Available

Shades

Darkened State:

No. 8 −No. 12

Light State: No. 3

Provides Continu-

ous UV And IR

Protection

Darkened State:

No. 8 −No. 13

Light State: No. 3

Provides Continu-

ous UV And IR

Protection

Darkened State: No. 10

Light State: No. 3

Provides Continuous UV And

IR Protection

Sensitivity

Control

Adjusts For Varying

Ambient Light And

Welding Arc

Adjusts For Varying

Ambient Light And

Welding Arc;

X-Mode

Not Applicable

Delay Control Slows Lens Dark-

To-Light State

(Slow −Fast)

Slows Lens Dark-

To-Light State

(Between 0.1 And 1

Second)

Not Applicable

Automatic

Power Off

Shuts Lens Off 15−20 Minutes After Last Arc Is Struck

Low Battery

Indicator

Red Led Light Illuminates To Indicate 2−3

Days Remaining Battery Life

Not Applicable

Power Supply AAA Alkaline

Batteries Only

(Two)

Panasonic CR2450

Lithium Battery

(Part No. 217043)

Rechargeable,

Non-Replaceable Solar Cell

Sensors

Independent/

Redundant (Two)

Independent/

Redundant (Three)

Independent/

Redundant (Two)

Operating

emperature

14F to 131F / −10C to +55C

When stored in extremely cold temperatures, warm helmet to ambient

temperature before welding.

Storage

emperature

−4F to 158F / −20C to +70C

When stored in extremely cold temperatures, warm helmet to ambient

temperature before welding.

Total Weight 453.6g (16oz.) 640.2g (22.58oz.) 453.6g (16 oz.) 396g (13.96oz.)

Standards Meets ANSI Z87.1+ (2015) and CSA Z94.3 (2015) Standards

Warranty 2 Years From Date Of Purchase (See Section 11)

OM-252052 Page 5

SECTION 3 −OPERATING INSTRUCTIONS

3-1. Helmet Controls

Four different lens assemblies are

shown. Refer to the illustration that

matches the lens on your helmet.

Variable Shade Helmet

1 Reset Button

(See Section 3-2)

2 Low Battery Indicator

(See Section 3-2)

3 Lens Delay Control (See Section

3-4)

4 Variable Shade Control

(No. 8 −12) (See Section 3-5)

5 Sensitivity Control

(See Section 3-6)

123 45

Variable Shade

Lens Assembly

VSi Lens Assembly

67 8 9 10 11

VSi Helmet

6 Reset Button

(See Section 3-2)

7 Low Battery Indicator

(See Section 3-2)

8 Variable Shade Control

(No. 8 −13) (See Section 3-5)

9 Sensitivity Control

(See Section 3-6)

10 Mode Control (See Section

3-3)

11 Lens Delay Control (See

Section 3-4)

OM-252052 Page 6

3-1. Helmet Controls −Continued

Fixed Shade No. 10 Helmets

The fixed shade models have no

buttons or controls. The lens turns

on (darkens) automatically when

welding begins and turns off when

welding stops.

To ensure proper function, charge

lens internal battery prior to first

use or after extended storage

(about 30 days). Charge battery by

either of these methods:

Expose lens to direct sunlight

for 10 seconds.

Expose lens to light bulb for 20

minutes.

After initial charging, the welding

arc will maintain the charge in the

battery.

Notes

OM-252052 Page 7

3-2. Reset Button And Low Battery Indicator

The auto-darkening lens turns

on (darkens) automatically

when welding begins and turns

off when welding stops.

1 Reset Button

Press Reset button to check if the

lens is working properly.

When the Reset button is pressed,

the lens should darken twice and re-

turn to the clear state. Do not use the

helmet if the lens does not function

as described. (See Section 9, Trou-

bleshooting.)

2 Low Battery Indicator

The low battery indicator lights when

2−3 days of battery life remain.

If battery power is low, install new

AAA Alkaline batteries (Variable

Shade helmet) or Panasonic

CR2450 Lithium battery (VSi helmet)

(see Section 6).

Variable Shade Lens Assembly

VSi Lens Assembly

OM-252052 Page 8

3-3. Mode Control (VSi Helmet Only)

1 Mode Control Button

Slide Mode Control switch to select

the mode appropriate for the work

activity.

Slide switch away from the de-

sired mode (Weld or X-Mode).

When the switch is moved, “On” is

revealed next to the active mode.

Weld Mode −used for most welding

applications. In this mode the lens

turns on when it optically senses a

welding arc. Adjust shade, sensitivity,

and delay settings as needed.

X-Mode −used for outdoor or low cur-

rent welding applications. In this mode

the lens turns on when it senses weld

current. Adjust shade, sensitivity, and

delay settings as needed.

Nearby welding may affect helmet

operation when lens is in X-Mode.

Stay at least 12 ft (3.7 m) away

from other welding activity.

Andere Handbücher für Classic Series

Inhaltsverzeichnis

Andere Miller Schweißzubehör Handbücher

Miller

Miller Soft Start 2-2F Bedienungsanleitung

Miller

Miller Robotic Interface II Bedienungsanleitung

Miller

Miller S-74 Boom w/Drive Bedienungsanleitung

Miller

Miller MIGmatic M-25 Bedienungsanleitung

Miller

Miller RUNNING GEAR Bedienungsanleitung

Miller

Miller 22A Bedienungsanleitung

Miller

Miller 5 TURNTABLE Bedienungsanleitung

Miller

Miller ArcReach SuitCase 12 Bedienungsanleitung

Miller

Miller Spoolmate 150 Bedienungsanleitung

Miller

Miller MTL-20 Torches Bedienungsanleitung

Miller

Miller I-22 CE Bedienungsanleitung

Miller

Miller Travel Master SB-10D Bedienungsanleitung

Miller

Miller PipeWorx 350 Bedienungsanleitung

Miller

Miller S-74 MPa Plus Bedienungsanleitung

Miller

Miller PipeWorx Bedienungsanleitung

Miller

Miller Infinity Series Bedienungsanleitung

Miller

Miller FieldPro Remote Bedienungsanleitung

Miller

Miller CST 195 114 Bedienungsanleitung

Miller

Miller ps-100 Bedienungsanleitung

Miller

Miller 301523 Bedienungsanleitung

Miller

Miller 043 927 Bedienungsanleitung

Miller

Miller D-74S Bedienungsanleitung

Miller

Miller T94 Series Bedienungsanleitung

Miller

Miller ArcStation 60SX Bedienungsanleitung

Beliebte Schweißzubehör Handbücher anderer Marken

Lincoln Electric

Lincoln Electric LT-7 Tractor Bedienungsanleitung

Weco

Weco Trolley R Bedienungsanleitung

Cornwell Tools

Cornwell Tools MMWC1 Bedienungsanleitung

Dohle

Dohle ExOn2A Bedienungsanleitung

Nederman

Nederman Fume Eliminator FE 840/2500/P150 Bedienungsanleitung

3M Speedglas 9100 Series Bedienungsanleitung

Miller Electric

Miller Electric OM-842 Bedienungsanleitung

Abicor Binzel

Abicor Binzel ABIMIG WT Series Bedienungsanleitung

optrel

optrel lifeflip autopilot Bedienungsanleitung

Tregaskiss

Tregaskiss TOUGH GUN TT3 Reamer Bedienungsanleitung

Abicor Binzel

Abicor Binzel xFUME PRO Bedienungsanleitung

Sealey

Sealey SR20.V2 Bedienungsanleitung

iWeld

iWeld NORED EYE Bedienungsanleitung

Sthor

Sthor 74483 Bedienungsanleitung

Leister

Leister TWINNY T7 Bedienungsanleitung

LAHTI PRO

LAHTI PRO L1540400 Bedienungsanleitung

Lincoln Electric

Lincoln Electric K3091-1 Bedienungsanleitung

Tregaskiss

Tregaskiss TOUGH GUN TT4E Bedienungsanleitung
