MINOURA VFS150 Bedienungsanleitung

Indoor Bicycle Trainer instructions manual

Minoura Japan Headquarters Minoura North American Tech Center

(for all customers) (for U.S. residents only)

1197-1 Godo, Anpachi, Gifu 503-2305 Japan 1996 East Avenue, Hayward, CA 94541 U.S.A.

Phone: +81-584-27-3131 / Fax: +81-584-27-7505 Phone: 1-510-538-8599 / Fax: 1-510-538-5899

Email: [email protected] Email: [email protected]

www.minoura.jp

Made in Japan

VFS150

Read this instructions carefully before use

(Image: VFS150 non-remote type)

IMPORTANT NOTICE

• For use with a normal 2-wheel bicycle only. Do not use a tandem, recumbent, or other.

• Use the supplied rear quick release skewer for maximum stability when your bike is

equipped with a quick release skewer on the rear wheel.

Minoura is not responsible for any problem caused from using your own skewer.

• Hub nut type rear wheel axle is also compatible with VFS150 in standard.

Remove the F-9 Grommet (Hub Nut Protector) from the Right Side Coupling (F-1) for

better stability.

• Fits wheel size between 24" and 27"/700c. To use 26x1.75" or smaller wheel, install

the supplied Z-shaped Small Wheel Adaptor.

• Some assembly required. Use correct tools (10mm spanner & M4 hex wrench).

Tools are not supplied in the kit.

• Use on at and level oor or ground for your safety. Set the trainer on a large enough

mat or towel to protect the oor and carpet from your sweat and stain.

• Adjust the roller pressure to the rear tire properly in order to maximize your tire life.

Tire and roller contact will eventually wear both your tire and the trainer roller.

• If your trainer is the remote controllable version, check and adjust the remote shifter

cable tension when you cannot set at L or H even though you turn the shifter lever.

• Touching the spinning wheel and/or any other moving parts while training may cause

serious injury. Keep children and pets away from the trainer when in use.

• It is not possible to convert the non-remote resistance unit to the remote controllable

one due to a difference in the inside mechanism.

• If you feel any strange noise, smell or oil leakage, stop using VFS150 immediately and

contact the retailer where you purchased the VFS150.

• Any warranty will be void if you use VFS150 for other purpose than instructed.

Minorua offers 1-year limited warranty on the resistance unit and 5-year limited

warranty on the frame from the date of your purchase for any problem caused by

manufacturer's defect.

Any damage or problem caused by transporting process is not covered under warranty.

Any damage from shipping or moving must be made to the shipping company.

Read enclosed "Minoura Limited Warranty Policy" card for more detail.

- Page 2 -

F-1 : Right Side Coupling VF-6 : Fluid Cup

F-2 : Left Side Coupling VF-7 : Fluid Assy

F-4 : Coupling Cover VM-1 : Flywheel Cover

F-7 : Hub Handle VM-2 : Flywheel Side Inner Housing

F-8 : Wheel Position Adjust Knob VM-3 : Flywheel (1.5 kgs)

F-9 : Hub Nut Protector (Grommet) VM-4 : Alloy Rotor

M8-2 : VFS Main Frame VM-5 : Magnet (non-remote)

M8-3 : Rubber Cap (38mm) VM-6 : Axle

M8-4 : Rubber Cap (32mm) VM-7 : Drive Roller

GM-19 : Remote Shifter (Red) VM-8 : Connection Plate

HM-13 : Base Plate VM-9 : Remote Outer Cover

LM-13 : Foot Pedal VM-10 : Spring

VF-1 : Fluid Outer Cover VM-11 : Remote Ring

VF-2 : Fluid Main Case VM-12 : Outer Housing

VF-3 : Fluid Side Inner Housing VM-13 : Magnet (remote)

VF-4 : Fluid Outer Cap VM-14 : Remote Bracket

VF-5 : Oil Seal ring

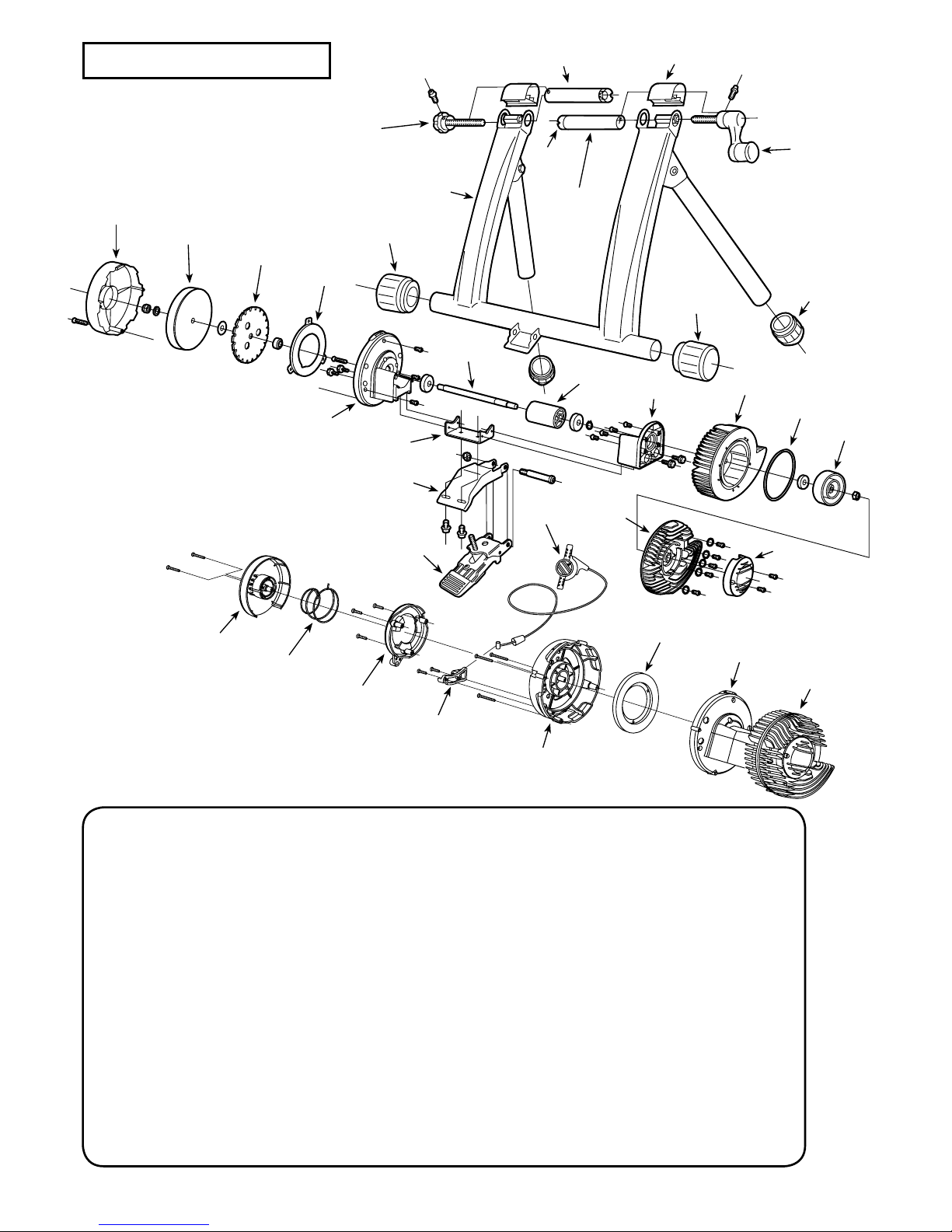

VFS150 Schematics

- Page 3 -

GM-19

F-8

M8-2

F-4 F-2

F-9

F-1

F-4

F-7

M8-4

M8-3

VM-1

VM-3

VM-4

VM-5

VM-2

VM-6

VM-8

HM-13

LM-13

VM-7 VF-3 VF-2

VF-5

VF-6

VF-4

VF-1

VM-9

VM-10

VM-11

VM-14

VM-12

VM-13

VM-2

VF-7

3. Fully open both legs and place VFS150 on a at and

level oor. (see Fig. B)

At this moment, make sure all 4 foot are contacting

the oor at once to sit on the oor stable.

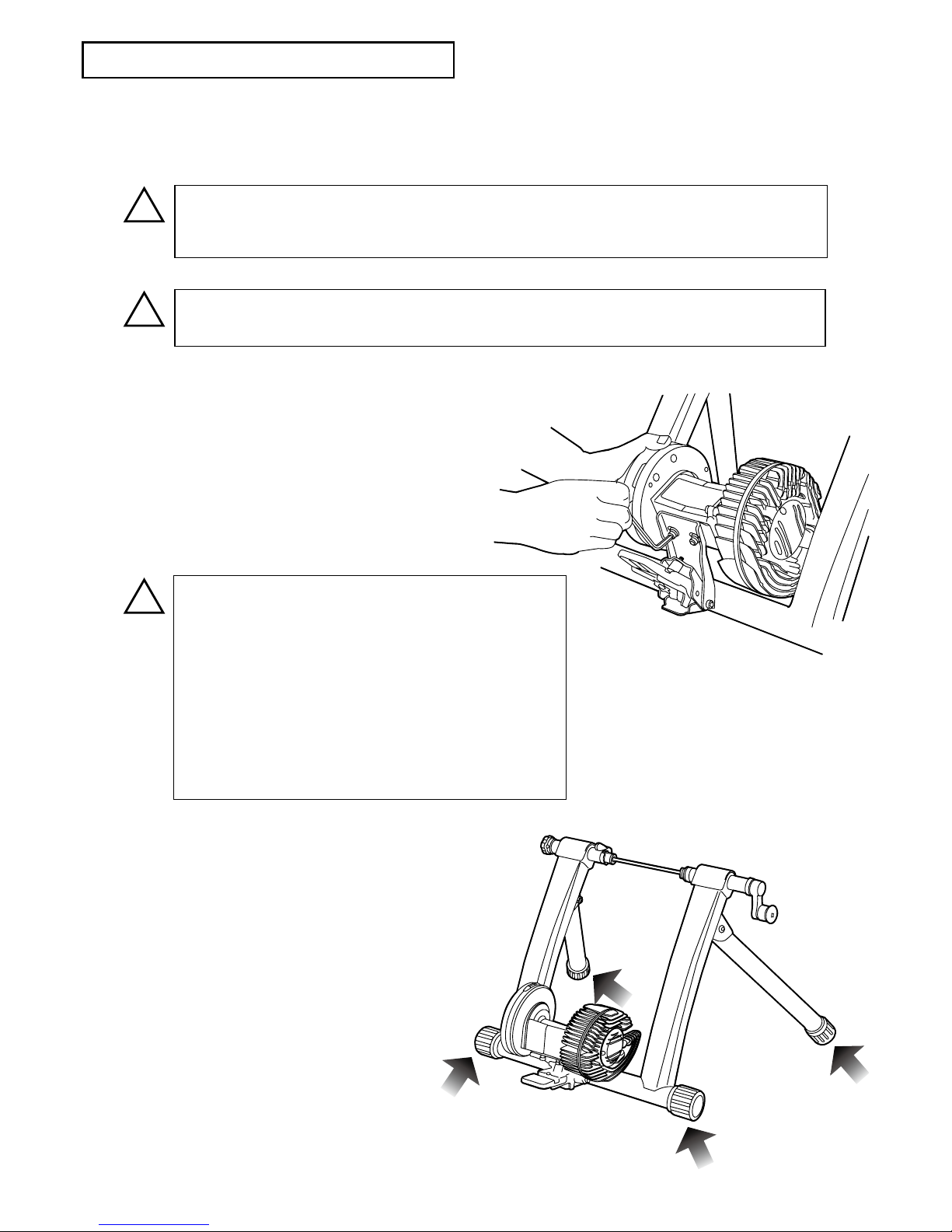

How To Setup Your VFS150 Trainer

2. Install the VFS unit to the Base Plate (HM-13).

(see Fig. A)

Attach the VFS unit onto the Base Plate. Adjust the

VFS unit position to be almost center of the Base

Plate, then tighten the bolts with M5 hex wrench.

- Page 4 -

1. Replace your rear wheel quick release skewer to the supplied one.

Minoura guarantees the stability only when using the supplied skewer due to the coupling inner shape.

If your bike's rear wheel is a hub nut type, remove the Grommet (F-9) from the

Right Side Coupling (F-1) for better stability.

You don't need the supplied quick release skewer if your wheel is a hub nut type.

It's not possible to convert your wheel from the hub nut type to the quick release

skewer type unless replacing the hub.

Required Tools: 1 x 10mm Spanner

1 x M4 Hex Wrench

Check the tightening of the pivot bolt which

connects VFS unit and Foot Pedal to the frame.

It should be tightend with correct torque that

the VFS unit will come down slowly with its own

weight when you release it. In addition, the VFS

unit should move smoothly by operating the

Foot Pedal.

If the pivot bolt has been tightend too much,

loosen a little with M4 hex wrench and 10mm

spanner.

(Fig. A)

(Fig. B)

If the both legs don’t touch

the oor at same time and if

one leg has been slightly lifted

up, pull another leg upward

strongly to adjust the pivot

part, then place the trainer on

the oor again.

TIPS

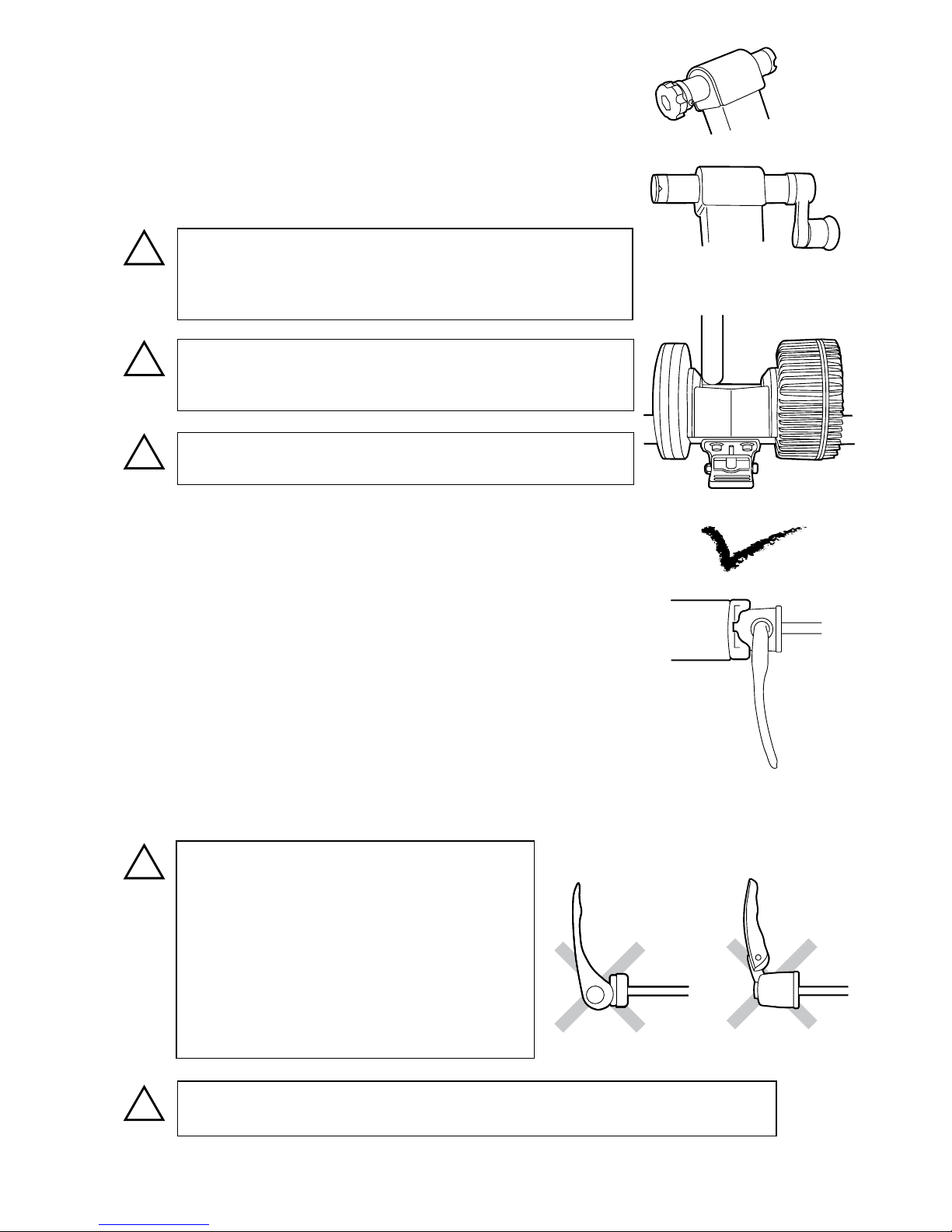

4. Place your rear wheel in between the couplings.

1) Turn the Wheel Position Adjust Knob (F-8) counter-clockwise to

retract the Left Side Coupling (F-2). (see Fig. C)

2) Turn the Hub Handle (F-7) counter-clockwise to almost fully

retract the Right Side Coupling. (see Fig. D)

(Fig. C)

(Fig. D)

(Fig. E)

3) Insert the left side (quick lever side) skewer into the Left Side

Coupling (F-2) rst.

The quick lever shaft must be inserted into the cut-out on the

coupling snugly to hold the bike stable. Turn the coupling to adjust

the cut-out position. (Fig. F)

4) While keeping this position, slowly come down the bike to align

the right side acorn nut to the Right Side Coupling (F-1).

5) Tgihten the Hub Handle clockwise to clamp the rear wheel.

Turn 2 more rotations after you feel resistance and you see the

frame starts opening slightly.

Both left and right side couplings are

designed to suit the supplied quick release

skewer. Esepcially, the left side coupling

must t perfectly in the skewer head to get

correct stability.

Any skewer type which lever is located on

the end of the axle (Fig. G) or the lever will

not be bent over right angle (Fig. H) cannot

be used on VFS150.

(Fig. F)

(Fig. H)

Too tight setting will cause damage to both VFS150 and your bike frame.

Too loose setting may cause the bike to come out of the trainer during use.

- Page 5 -

The tire must be away from any plastic part and touches

the Drive Roller only. (see Fig. E)

Turn the Wheel Position Adjust Knob (F-8) to locate the

tire in the center of the Drive Roller.

(Fig. G)

Do not use Wheel Position Adjust Knob for clamping the

hub axle. It must be done by the Hub Handle (F-7) only.

Do not over-loosen the Hub Handle, otherwise the

inside nut will have to be loosened and you cannot

clamp the hub axle with proper torque.

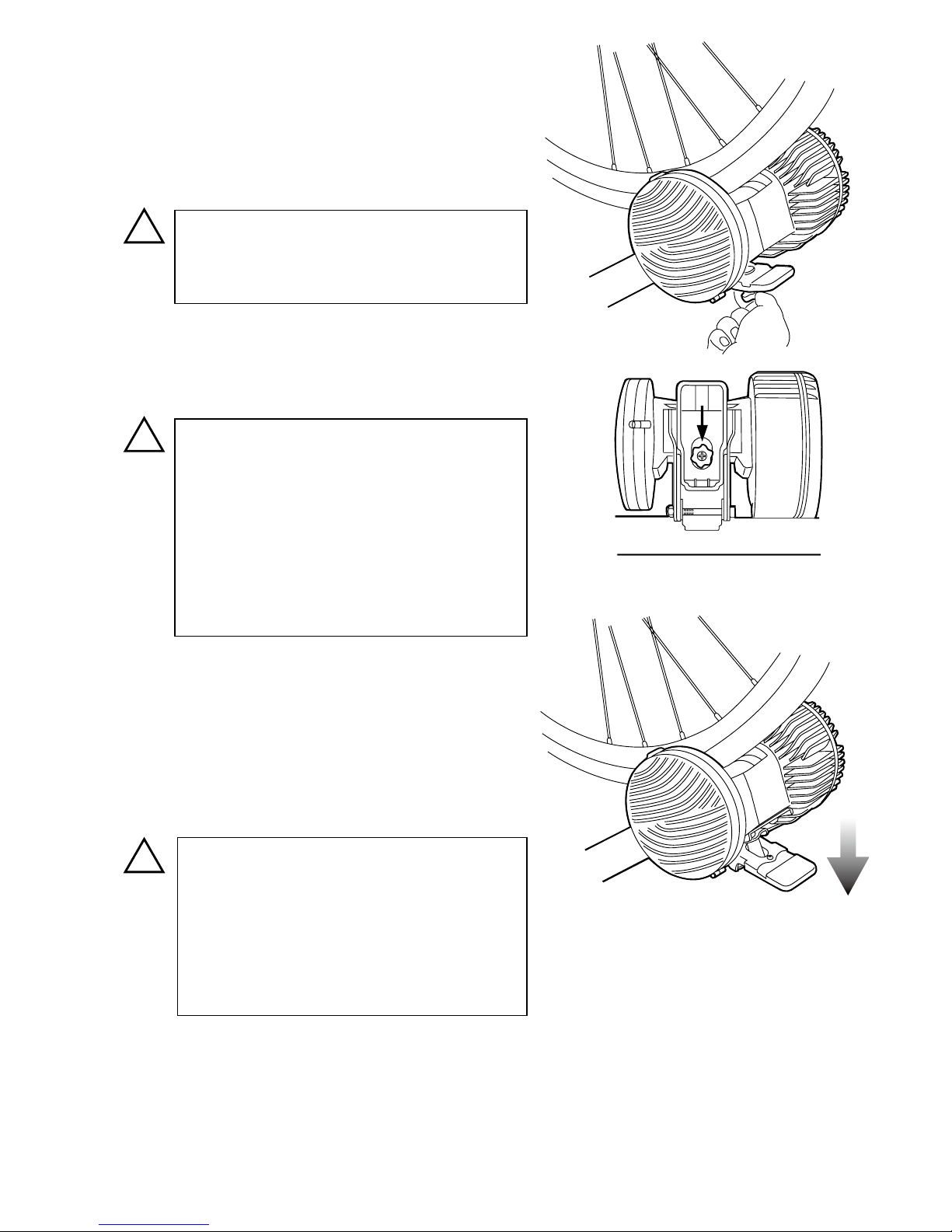

5. Contact the Drive Roller to the rear tire with the following steps;

- Page 6 -

(Fig. K)

(Fig. I)

(Fig. J)

The best position is that the roller comp-

resses the tire in the depth of 3 - 4 mm.

Please note too much and too less roller

pressure will bring premature tire wear.

Keep correct roller pressure and maintain

the air pressure in correct level before

using VFS150.

1) Pull up the Foot Pedal to release the VFS unit lock.

2) Turn the Micro Adjust Knob clockwise until the roller

comes close to the rear tire 2 - 3 mm. (see Fig. I & J)

Do not make the roller touch the tire. It will

bring too much compression to the tire

and will ocuur premature tire wear or burst

problem.

Foot Pedal can repeat the same compression stroke by just pushing down the pedal.

TIPS

TIPS If it's hard to tighten the knob bolt behind

the Foot Pedal, lift up the VFS unit by

hand then tighten the knob.

3) Push down the Foot Pedal to contact the roller to the tire.

(see Fig. K)

Check if the roller compresses the tire in proper depth.

4) To release the roller from the tire, just pull up the Foot

Pedal.

If you cannot rotate the knob but the drive

roller is still far away from the tire, the knob

has been locked by the termination of the

hex head of the inside bolt.

Loosen the knob slightly and pull the knob

for inserting the hex bolt head into the hex

hole on the knob. (see Fig. J)

While pulling the knob, tighten it until the

hex bolt head sinks into the hole.

- Page 7 -

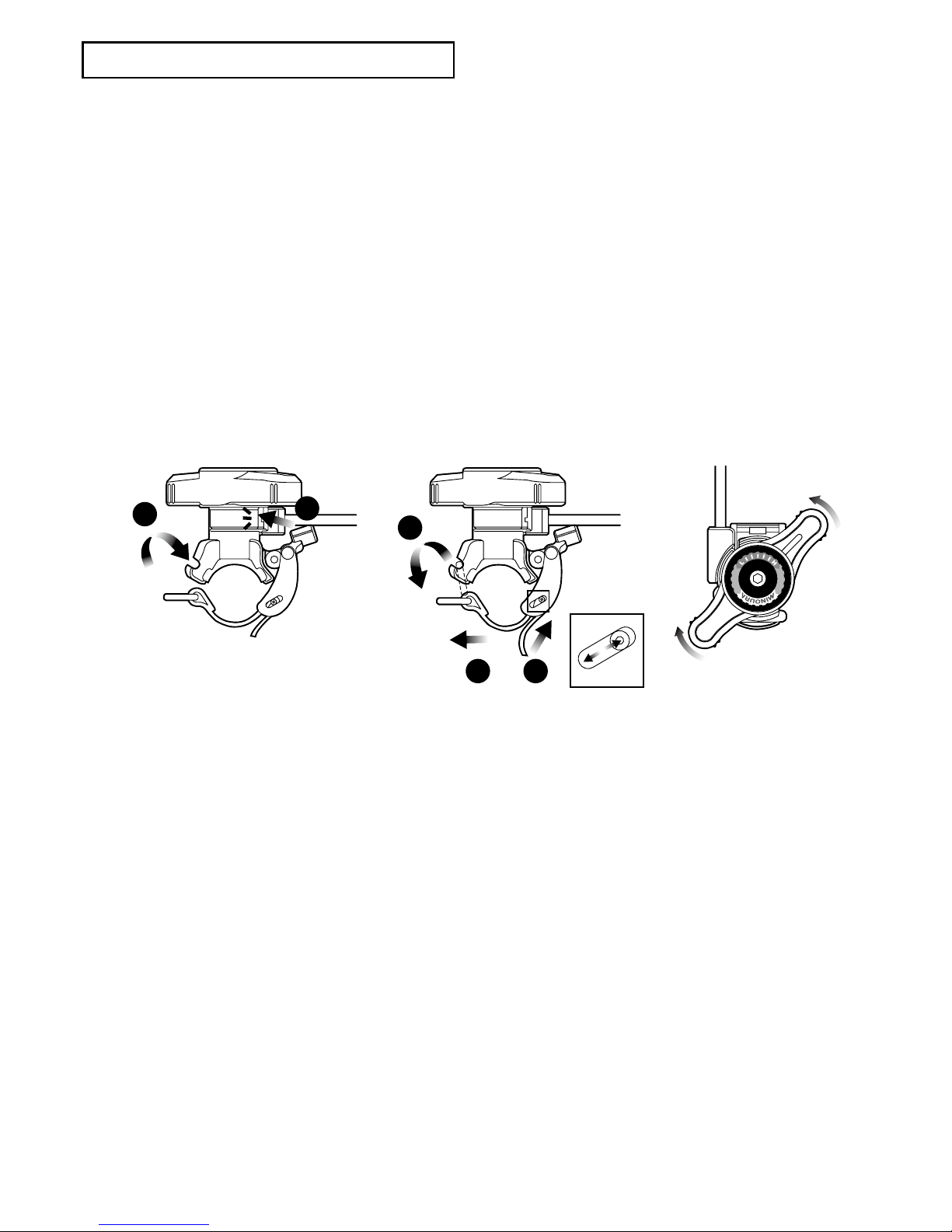

How To Adjust Resistance Level

1. Wind the band around the handlebar and hook the metal ring to the gutter on the remote shifter base.

(see Fig. L-1)

3. The soft fabric band is pre-adjusted to t normal 22mm diameter handlebar.

If you need to mount onto an oversized or specially shaped handlebar or stem, adjust the band (see Fig. M).

At this moment, we suggest you to slide the guide pin downward (see the column) to loosen the band for

easier work.

121

VFS150 non-remote version doesn't have any resistance level adjustment. It is xed at all times.

On the other hand, VFS150-R remote version features a convenient remote shifter lever. You can install it on

the handlebar or stem, then you can control the resistance level without getting off the bike.

Decrease

Increase

(Fig. L)

(Fig. M)

(Fig. N)

2. Flip up the lever to lock (see Fig. L-2). If it is loosened, adjust the band tighter as per instructed in the

following section.

4. To increase the resistance, twist the lever toward "H". To decrease the resistance, twist the lever towawrd

"L". (see Fig. N)

You can choose from 7 different levels to suit your desired workout level.

If you wish to use the tire sized 26 x 1.75" or smaller,

you need to install the supplied Z-shaped "Small

Wheel Adapter" between Base Plate and Mag unit to

raise up the roller height.

The direction of Z-adapter is xed so follow the

arrow printed on the top and make sure it's pointing

toward the front (toward your bike).

If the drive roller cannot reach the tire even if you

install the adaptor, make sure you have been installed

in correct direction.

Use the original cap head bolts for Base Plate, and

use the supplied hex head bolts for the Mag unit.

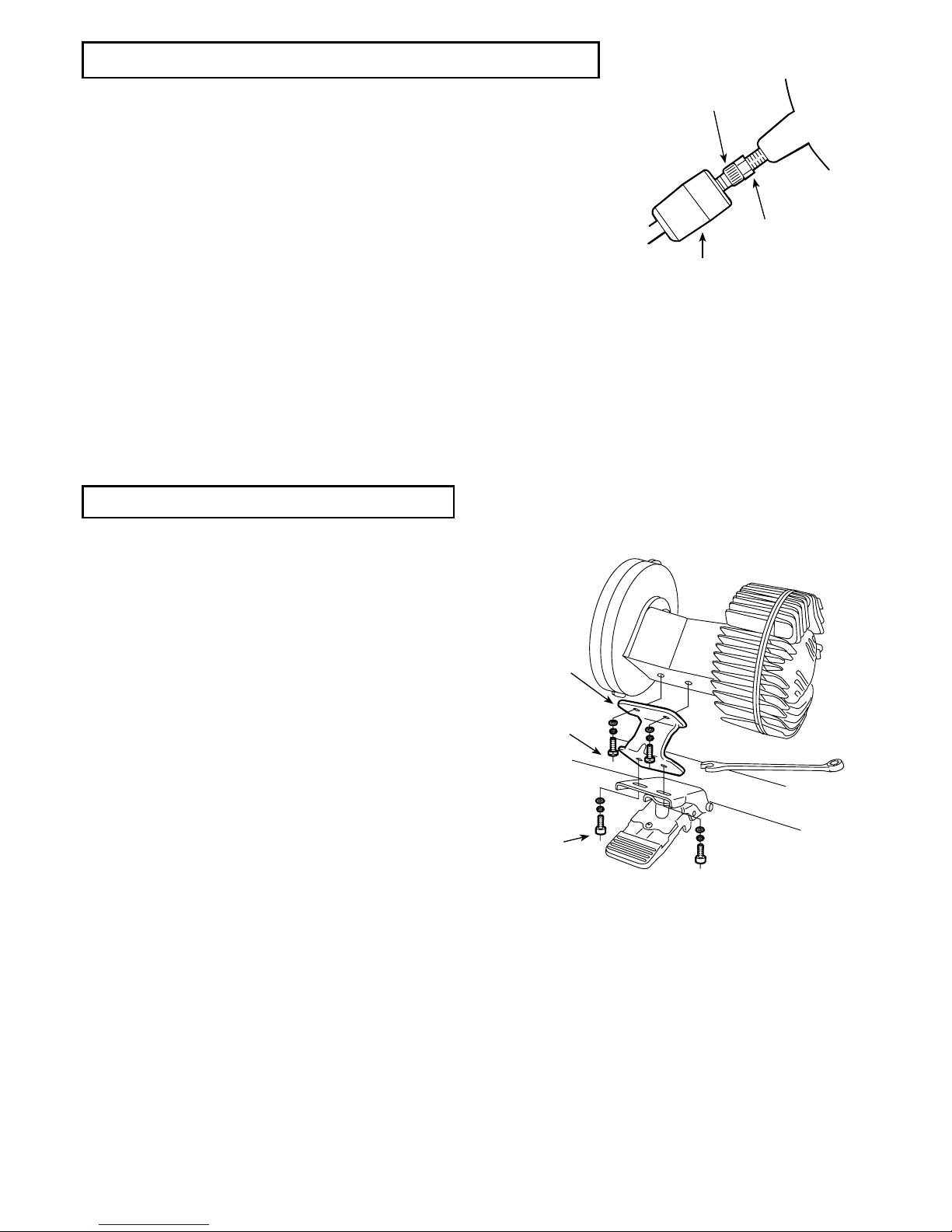

How To Use Small Wheel Adaptor

Hex Head Bolt

Cap Head Bolt

Z-Adaptor

Required Tools: 1 x 10mm Spanner

1 x M5 Hex Wrench

- Page 8 -

Why My Remote Shifter Doesn't Work Properly?

You may have a shifting problem that you cannot set at L or H position

properly due to the lengthened inner cable.

To x this problem, follow the steps to adjust the initial cable tension;

1. Set your remote shifter at "H" position and remove the shifter from

your handlebar, then straighten the cable as much as possible.

2. Pull out the plastic Cap on foot of the remote cable. (see Fig. O)

3. Hold the inside Adjusting Screw and push it toward the shifter, then

adjust the Lock Nut toward the VFS resistance unit until the nut

touches the housing to set the cable tension properly.

4. Install the Cap again.

Adjusting Screw

Lock Nut

Cap (Fig. O)

Inhaltsverzeichnis

Andere MINOURA Heimtrainer Handbücher

MINOURA

MINOURA SmartTurbo KAGURA LSD9200 Bedienungsanleitung

MINOURA

MINOURA LiveRoll R720 Bedienungsanleitung

MINOURA

MINOURA SmartTurbo Kagura EHT1020 Bedienungsanleitung

MINOURA

MINOURA LiveRide FG220 Bedienungsanleitung

MINOURA

MINOURA LiveRide LR961 Bedienungsanleitung

MINOURA

MINOURA LiveRide LST9200 Bedienungsanleitung

MINOURA

MINOURA M60-D Bedienungsanleitung

MINOURA

MINOURA MAG-850 Bedienungsanleitung

MINOURA

MINOURA VFS3R - SCHEMATICS Bedienungsanleitung

MINOURA

MINOURA V270 Bedienungsanleitung

MINOURA

MINOURA LiveRide LR341 Bedienungsanleitung

MINOURA

MINOURA M70-R Bedienungsanleitung

MINOURA

MINOURA LiveRide LR960 Bedienungsanleitung

MINOURA

MINOURA moz-roller Bedienungsanleitung

MINOURA

MINOURA B60 Bedienungsanleitung

MINOURA

MINOURA Minimag M20-D Bedienungsanleitung

MINOURA

MINOURA B60-D Bedienungsanleitung

MINOURA

MINOURA LiveRide LR340 Bedienungsanleitung

MINOURA

MINOURA MAG-850 Bedienungsanleitung

MINOURA

MINOURA VFSG-9 Bedienungsanleitung

MINOURA

MINOURA MAG-500 Series Bedienungsanleitung

MINOURA

MINOURA RDA80 Bedienungsanleitung

MINOURA

MINOURA MAG-850LW Series Bedienungsanleitung

MINOURA

MINOURA FG540 HYBRID ROLLER Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Benutzerhandbuch

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung
