MINOURA PAIR STAND Bedienungsanleitung

Lower Support

Angle Adjust Plate

(projection is foreside)

Alloy Stay Frame Hook

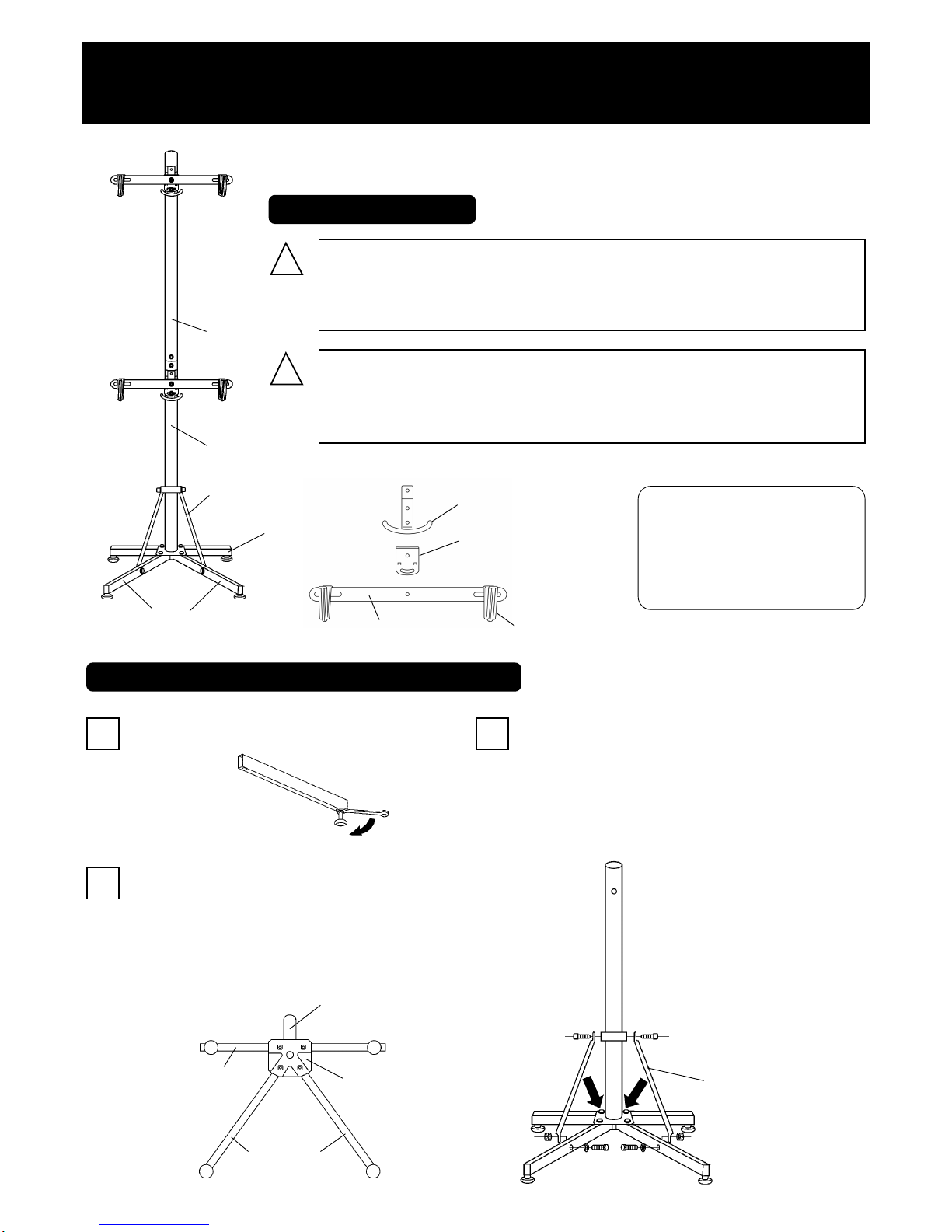

Bicycle display stand “PAIR STAND” instruction manual

Please read this instuctions carefully before use.

Thank you for purchasing Minoura PAIR STAND bike display stand.

This stand can hold up to two bikes horizontally in a space as same as for only one bike.

This stand is designed for standard two wheel bicycles.

Do not use this stand for electric bikes or tandems. The weight

limit for two bikes is 30 kgs. or 66 lbs.

Make sure the stand is used on a level floor.

Failing to set up and use this stand on a level floor may cause the

stand to fall over and cause damage or injury.

This stand requires some

assembly. You will need a M4

Hex wrench and a 13 mm

spanner in order to assemble

the PAIR STAND completely.

IMPORTANT NOTES

HO TO ASSEMBLE YOUR PAIR STAND

1Screw the foot adjuster to the nut located on each leg

end.

Insert four M8x55 bolts into the holes on the bottom of

the Lower Pillar, then put through the legs. The long leg

is for rear section, and the short legs are for front sec-

tion. Be sure to fit the legs to the shape of the horrow of

the bottom plate.

Lower Pillar

Rear Leg Bottom Plate

Front Leg

(Fig. A)

(Fig. B) (Fig.C)

Install the ReinforcementArms between the Lower Pillar and

the Front Legs by tightening the M6x14 bolts for the pillar

side, and M6x30 bolts for the leg side. After installing the

ReinforcementArms, tighten the M8x55 bolts firmly. Wrong

step may make you unable to install the ReinforcementArms.

Reinforcement Arm

Rear Leg

Front Leg

Upper Pillar

Lower Pillar

(fig. J)

4Place the Connecting Plates at the top of the Lower Pil-

lar. Connect the Upper Pillar to the Lower Pillar then

tighten the M6x14 bolts firmly. Now the base frame is

completed. Upper Pillar

Connecting

Plate

Lower Pillar

(Fig. D)

(Fig. E)

(Fig. H)

FOR MORE INFORMATION

For parts or service outside of Japan or North America, please con-

sult your local shop or refer our international distributor list (found

on our web site) for the distributor in your country.

MINOURA JAPAN

1197 1 Godo, Anpachi, Gifu 503 2305 Japan

Phone: +81 (0)584 27 3131 / Fax: +81 (0)584 27 7505

Email: [email protected] / Web: http://www.minoura.jp

MINOURA NORTH AMERICA

(for North American residents only)

1996 East Avenue, Hayward, CA 94541 5454 U.S.A.

Fax: 1 510 538 5899 / Email: MinouraUSA@ATTglobal.net

MADE IN JAPAN

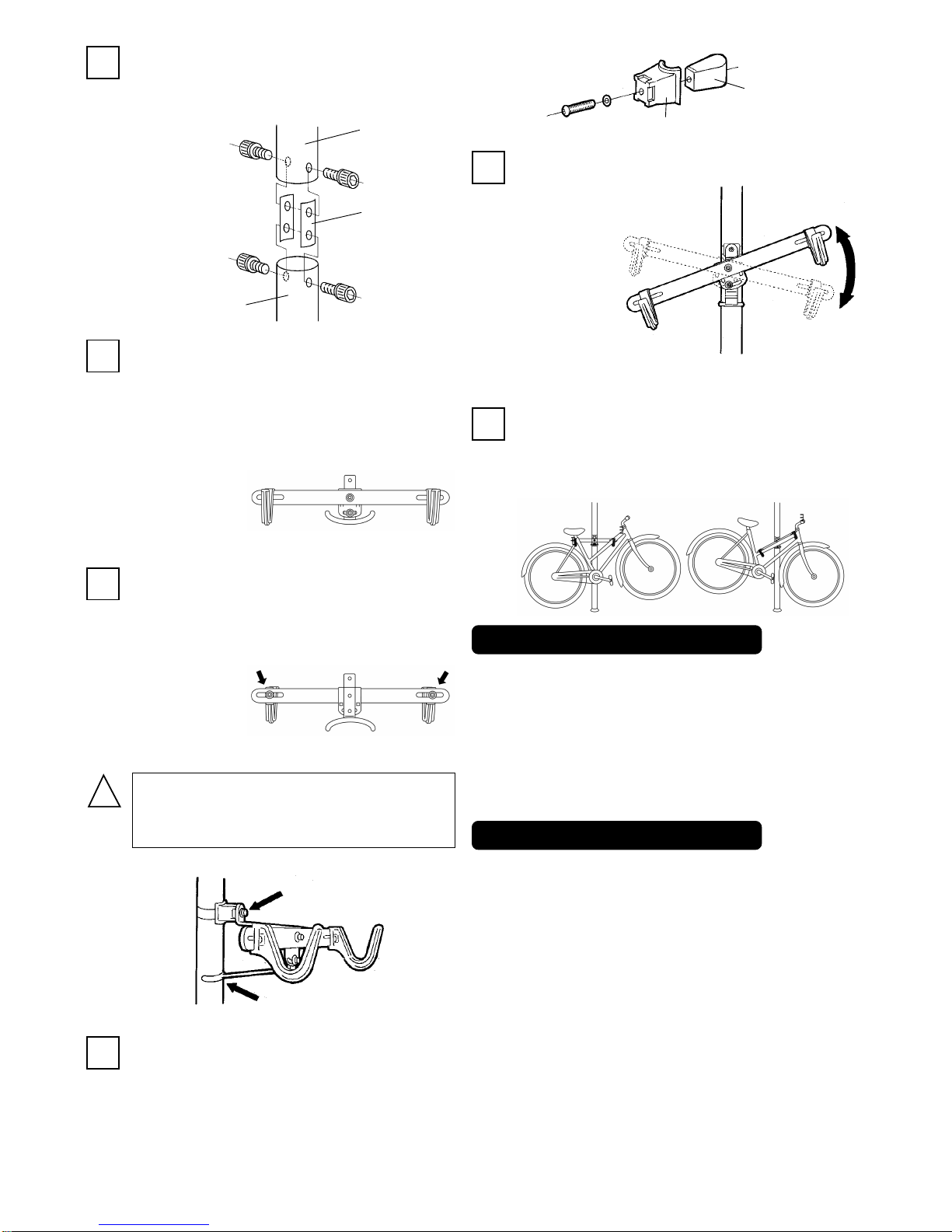

Assemble the cradles.

Place the Angle Adjust Plate onto the Lower Support,

then put the Alloy Stay on it. Fix three parts with the

supplied M6x20 bolt in the upper hole. (see Fig. E)

Screw the supplied M6x15 bolt in the lower hole, but

you don’t need to tighten it so firmly at this time.

Next, you'll install the bike cradles to both the upper and

lower pillars.

Disassemble the band clip first. (see Fig. H)

Wrap the stainless band around the pillar, in-sert the end

of the band between another end and the rectangle nut.

Put the plastic bracket onto the band, attach the hook or

support arm, then tighten the bolt.

Stainless Band

Plastic Bracket

The distance between the plastic frame hooks can be

adjusted to fit different sized bikes.

To do so, loosen the rear nut and adjust the position of

the hook. After adjusted to the required position firmly

re-tighten the nut.

(see Fig. F)

(Fig. F)

The stainless band must ONLY be used on the

upper side of the cradle. Do NOT use it on the

bottom position of the cradle. (see Fig. G)

(Fig. G)

stainless and

just putting onto the pole

8The cradle is adjustable in degrees. If you want to move

the cradle, loosend the lower

bolt on the angle adjust plate,

change the

angle until the

displayed bike

will be

horizontally

as much as

possible then

tighten the bolt again. (see Fig. I) (Fig. I)

To put a bike on PAIR STAND, lift the bike and gently place

the top tube into the frame hooks.

If the bike does not have a standard frame design, it should

be supported by the top tube and rear seatstay configuration.

(see Fig. J)

HY MY NUT IS MISALIGNED?

The inside nut of the stainless band clamp is not square, it is rectanle.

You have to remove the stainless band to wind up it around the pole

for assembling. At this time, do NOT remove the nut from the band.

If you had removed the nut, make sure the nut direction that the

longer side must be vertical. If you see there is some space between

the nut and stainless band, the direction is wrong.
