Mircom OpenBAS-HV-RF433R Bedienungsanleitung

Installation Manual LT-6634 Rev. 0

February 2018

Wireless Receiver

OpenBAS-HV-RF433R

Table of Contents

1.0 Introduction 6

1.1 OpenBAS-HV-RF433R Wireless Receiver .................................................................... 6

1.2 Features ......................................................................................................................... 6

2.0 Overview 7

2.1 OpenBAS-HV-RF433R Components ............................................................................. 7

2.1.1 Controllers ...................................................................................................................... 7

3.0 Installation 8

3.1 Parts of the Enclosure .................................................................................................... 8

3.2 Controller Board Connections ........................................................................................ 11

3.3 Installing Accessories .................................................................................................... 11

3.3.1 I2C Connector ................................................................................................................ 11

3.4 Enclosure Dimensions ................................................................................................... 12

3.5 Assembly ....................................................................................................................... 13

3.6 Mounting the Enclosures ............................................................................................... 14

4.0 Field Wiring 16

4.1 Wiring the Terminals ...................................................................................................... 16

4.1.1 Required Tools ............................................................................................................... 16

4.1.2 Installation Tips .............................................................................................................. 16

4.2 Networking the RF and I2C Modules ............................................................................. 16

4.3 Wireless Communication ............................................................................................... 17

4.4 Circuit Board LEDs ........................................................................................................ 17

5.0 Specifications 18

6.0 Warranty and Warning Information 19

List of Figures

Figure 1 Parts of the enclosure .................................................................................................... 8

Figure 2 Tabs on enclosure .......................................................................................................... 9

Figure 3 Lift tabs and remove circuit board .................................................................................. 10

Figure 4 Board connections ......................................................................................................... 11

Figure 5 Enclosure (back view) .................................................................................................... 12

Figure 6 Fit the circuit board in enclosure .................................................................................... 13

Figure 7 Enclosure mounted on DIN rail (circuit board not shown) .............................................. 14

Figure 8 Enclosure mounted on DIN rail (back view) ................................................................... 15

Figure 9 OpenBAS-HV-RF433R .................................................................................................. 15

Figure 10 Networking the RF and I2C modules ............................................................................. 16

Figure 11 LEDs .............................................................................................................................. 17

List of Tables

Table 1 OpenBAS-HV-RF433R Controllers ................................................................................ 7

1.0 Introduction

This document provides information on installing the OpenBAS-HV-RF433R Wireless

Receiver.

1.1 OpenBAS-HV-RF433R Wireless Receiver

Mircom’s OpenBAS-HV-RF433R Wireless Receiver is a wireless 433 MHz RF receiver that

integrates up to 10 wireless transmitters and thermostats into NX series controllers except for

OpenBAS-HV-NX4AO.

1.2 Features

Mircom’s OpenBAS-HV-RF433R Wireless Receiver integrates into Mircom’s unified platform

for automating HVAC and mechanical rooms as well as incorporating energy management

features and lighting control to offer building owners and managers a seamless operation with

the following features:

•Modular design to cover any small, medium or large project.

•Industry standard field bus protocols to integrate into any existing BAS system, such as

BACnet, Modbus, Optomux, N2-Open, and ASCII.

•Advanced Networking to integrate into IP networks and use the most advanced features

and protocols such as distributed computing, USB and Cloud storage, HTML5,

JavaScript, XML, Ajax, SMS, and GSM.

•Modular add-ons for every Building Automation System solution.

•The OpenBAS software which provides owners and managers a single solution for

managing all their building’s automation needs.

2.0 Overview

2.1 OpenBAS-HV-RF433R Components

2.1.1 Controllers

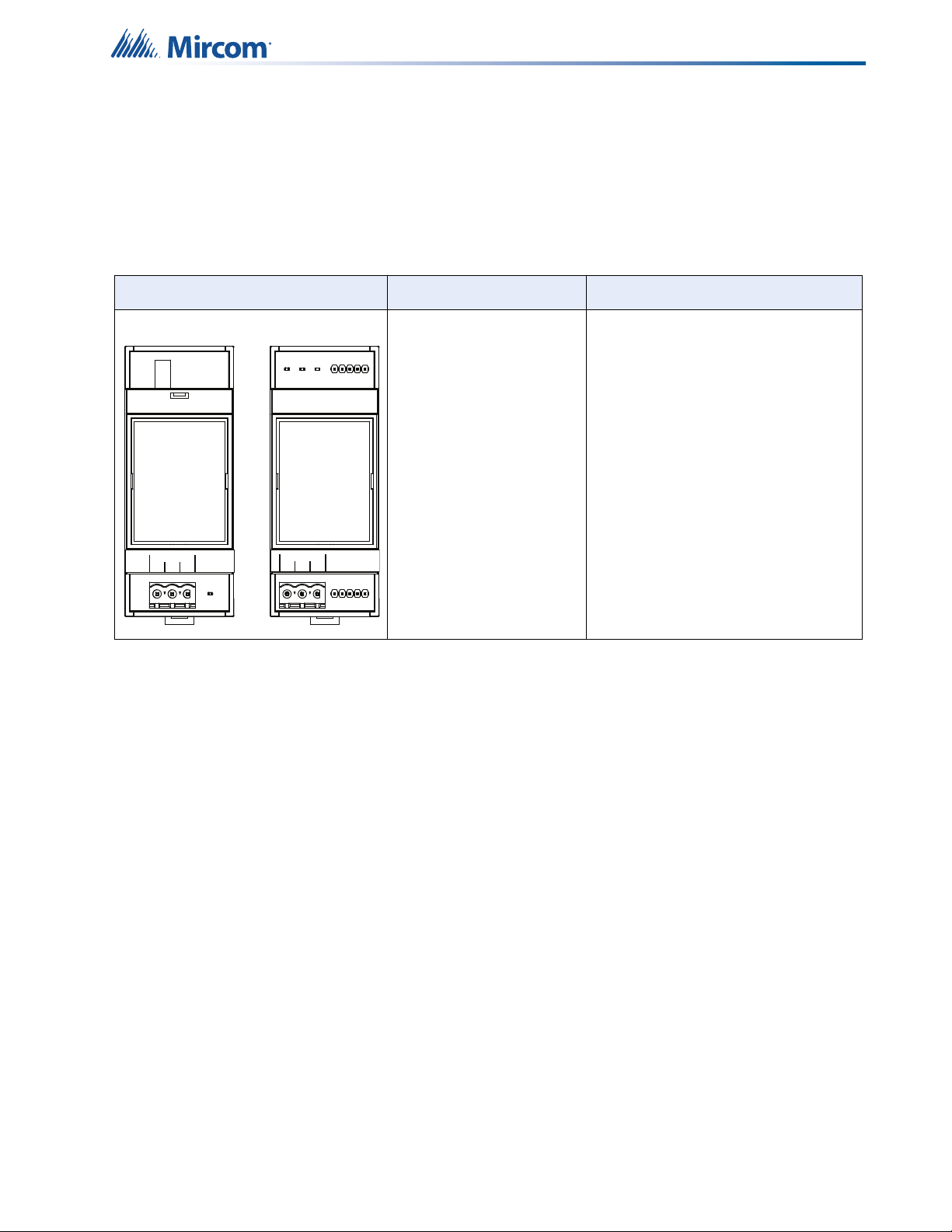

Table 1 OpenBAS-HV-RF433R Controllers

Picture Model Description

OpenBAS-HV-RF433R

Wireless 433 MHz RF receiver that

integrates up to 10 wireless

transmitters and thermostats into

OpenBAS-LC-NX12R and OpenBAS-

HV-NX series controllers

Mounts in a DIN rail-mounted box

RF module I2C module

0V RXD +5V 0V RXD +5V

I2C

3.0 Installation

3.1 Parts of the Enclosure

The OpenBAS-HV-RF433R consists of two modules: the RF module and the I2C module. The

RF module receives information wirelessly from the OpenBAS-HV-WLSTH thermostat. The

I2C module is connected to any OpenBAS NX controller, or an OpenBAS-NWK-ETH3

controller through the I2C connection.

The RF module and the I2C module communicate with each other over wires (shown in

section 4.2 on page 16). The maximum wiring distance between the RF module and the I2C

module is 49 feet (15 m).

Each module consists of a circuit board and an enclosure.

Figure 1 Parts of the enclosure

Note: Installation of OpenBAS-HV-RF433R controllers should be in accordance with

the Canadian Electrical Code or the National Electrical Code, and comply with all

local regulations. Final acceptance is subject to the Local Authority Having

Jurisdiction (AHJ).

Circuit board

Base with

mounting clip

Enclosure

Cover

Circuit board

Base with

mounting clip

Enclosure

Cover

RF module I2C module

Installation

To remove the circuit board from the enclosure

1. Insert a flathead screwdriver under the tabs on the enclosure, shown in Figure 2, in order

to lift the tabs and remove the base.

Figure 2 Tabs on enclosure

Caution: Risk of Electric Shock. Disconnect the mains power and disconnect the

controller from all wiring before opening the enclosure.

Attention: Always hold circuit boards by the edges to prevent damage from static

electricity. Always wear an anti-static bracelet when handling circuit

boards.

Installation

2. Hold the circuit board with one hand, and with the other hand lift the tabs so that you can

remove the circuit board from the enclosure. See Figure 3.

Figure 3 Lift tabs and remove circuit board

Attention: Be careful not to break the tabs. Do not apply excessive force.

Lift tabs and remove

circuit board

Circuit board
