Centralized On-Off Remote Controller

MAC-821SC-E

[FOR INSTALLER]

INSTALLATION MANUAL

[FÜR INSTALLATEURE]

INSTALLATIONSHANDBUCH

[POUR L’INSTALLATEUR]

MANUEL D’INSTALLATION

[FÖR INSTALLATÖREN]

INSTALLATIONSMANUAL

[VOOR DE INSTALLATEUR]

INSTALLATIEHANDLEIDING

[PER L’INSTALLATORE]

MANUALE DI INSTALLAZIONE

[PARA EL INSTALADOR]

MANUAL DE INSTALACIÓN

[PARA O INSTALADOR]

MANUAL DE INSTALAÇÃO

[TIL INSTALLATØREN]

INSTALLATIONSMANUAL

[°π∞ ∞À∆√¡ ¶√À ∫∞¡∂π ∆∏¡ ∂°∫∞∆∞™∆∞™∏]

E°XEIPI¢IO O¢H°IøN E°KATA™TA™H™

[MONTÖR ‹Ç‹N]

MONTAJ ELK‹TABI

[ДЛЯ УСТАНОВИТЕЛЯ]

РУКОВОДСТВО ПО УСТАНОВКЕ

[ ]

2. Accessory

Items to Prepare at the Installation Site

AMA & Contact terminal interface

(MAC-397IF-E)

BPower supply wire (2-core + ground) 1.5 mm2, in

conformity with Design 245 IEC 57.

Connection wire

Wire specification

CCVV (3-core) 0.5 mm2or equivalent

* CVV is a control cable which is sheathed in poly-

vinyl chloride with polyvinyl insulated wires inside.

DRing tongue terminal for M4

One per air

conditioner

One per air

conditioner

EPG connection 1

2-1. Selecting Compatible Models

Connect to the supply terminals and leave a contact separation of at least 3 mm at each pole to

disconnect the source power pole. (When the power switch is shut off, it must disconnect all poles.)

Breaker capacity

10 A

3-1. Mounting Preparations

B, connection wire C

The note (indicated with *) has been revised as follows.

The list of items to prepare at the installation site and the illustrations have been revised.

MAC-821SC-E

ERRATA

The following corrections have been made to the MAC-821SC-E INSTALLATION MANUAL.

Wall opening dimensions 108 ✕3 mm

Rubber seal (large) 5

Switch box 3

PG connection E

The text for step 3 and the lower right portion of the illustration to the right of the text have been revised.

JG79C557H01

Feed the power supply wire

inside of the wall, and pull them through the switch box 3into the room

about 150 mm.

In addition, when not using a conduit for a connection wire C, be sure to

install a rubber seal (large) 5or rubber seal (small) 6into the hole in the

switch box 3before feeding the connection wire Cthrough the hole.

Use the PG connection Eprepared at the installation site to secure the

power supply wire Bin the hole in the switch box 3.

, and ground wire from

■

1. Safety Instructions

• Read all Safety Instructions before using this device.

• This manual contains important safety information. Be sure to comply with all instructions.

• After installing the controller, provide this Installation Manual to the user.

Instruct users to store their room air conditioner Instruction Manual and Warranty in a safe location.

Warning

(Improper handling may have serious consequences, including injury or death.)

■Users should not install the centralized controller themselves.

Improper installation may result in fire, electric shock, or damage/water leaks if the centralized controller falls. Consult the

retailer or specialty store where you purchased the unit for referral to an installer.

■The centralized controller should be securely installed in accordance with the enclosed Installation Instructions.

Improper installation may result in fire, electric shock, or damage/water leaks if the centralized controller falls.

■The unit should be mounted in a location that can support its weight.

If installed in an area that cannot support the unit, the centralized controller could fall and cause damage.

■Securely attach the electrical component cover to the centralized controller.

If the electrical component cover of the centralized controller is not securely attached, dust or water penetration could occur,

resulting in a fire or electric shock.

■Mitsubishi components or other designated components should be used for installation.

Improper installation may result in fire, electric shock, or damage/water leaks if the centralized controller falls.

■When performing electrical work, adhere to the Technical Standards Regarding Electrical Equipment and the Inte-

rior Wiring Standards, follow the instructions provided in the Instruction Manual, and be sure to use a dedicated

circuit.

Inadequate circuit capacity or improper installation could result in a fire or electric shock.

Contents

1. Safety Instructions .......................................................................................................................... 2

2. Accessory ....................................................................................................................................... 3

3. Mounting the Centralized Controller/Direct Wiring .......................................................................... 6

4. Mounting the Centralized Controller ............................................................................................... 8

5. Test Run.......................................................................................................................................... 9

6. Room Name Display ....................................................................................................................... 9

7. Specifications.................................................................................................................................. 9

Caution

To use this centralized controller, you must have a MA &

Contact Terminal Interface (MAC-397IF-E, sold separately)

for each air conditioner unit.

2. Accessory

Before installing the unit, make sure that you have all the necessary parts.

Centralized controller

1ACover 1

Remove the cover with a flathead screwdriver.

BScrew

2Base plate 1

3Switch box 1

4Room name stickers 1

5Rubber seal (large) 2

6Rubber seal (small) 1

7Sealing material (adhesive) 4

8Mounting screw M4 ×30 2

■Mounting Wall

This centralized controller can be mounted on a wall with a thickness of 6–30 mm.

Since the maximum wall thickness for the centralized controller’s mounting screw M4 ×30 8is 17 mm, use screws of the

appropriate length for the wall thickness if the wall is between 17 mm and 30 mm thick.

(The best length for an M4 mounting screw is the wall thickness plus 13 mm.)

■Items to Prepare at the Installation Site

AMA & Contact terminal interface

(MAC-397IF-E)

BPower supply wire (2-core + ground) 1.5 mm2, in

conformity with Design 245 IEC 57.

Connection wire

Wire specification

CCVV (3-core) 0.5 mm2or equivalent

* CVV is a control cable which is sheathed in poly-

vinyl chloride with polyvinyl insulated wires inside.

DRing tongue terminal for M4

One per air

conditioner

One per air

conditioner

1 2

2-1. Selecting Compatible Models

The Installation Manual for the MA & Contact terminal interface (MAC-397IF-E) Acontains a list of room air conditioner models

(sold separately) that are compatible with this centralized controller.

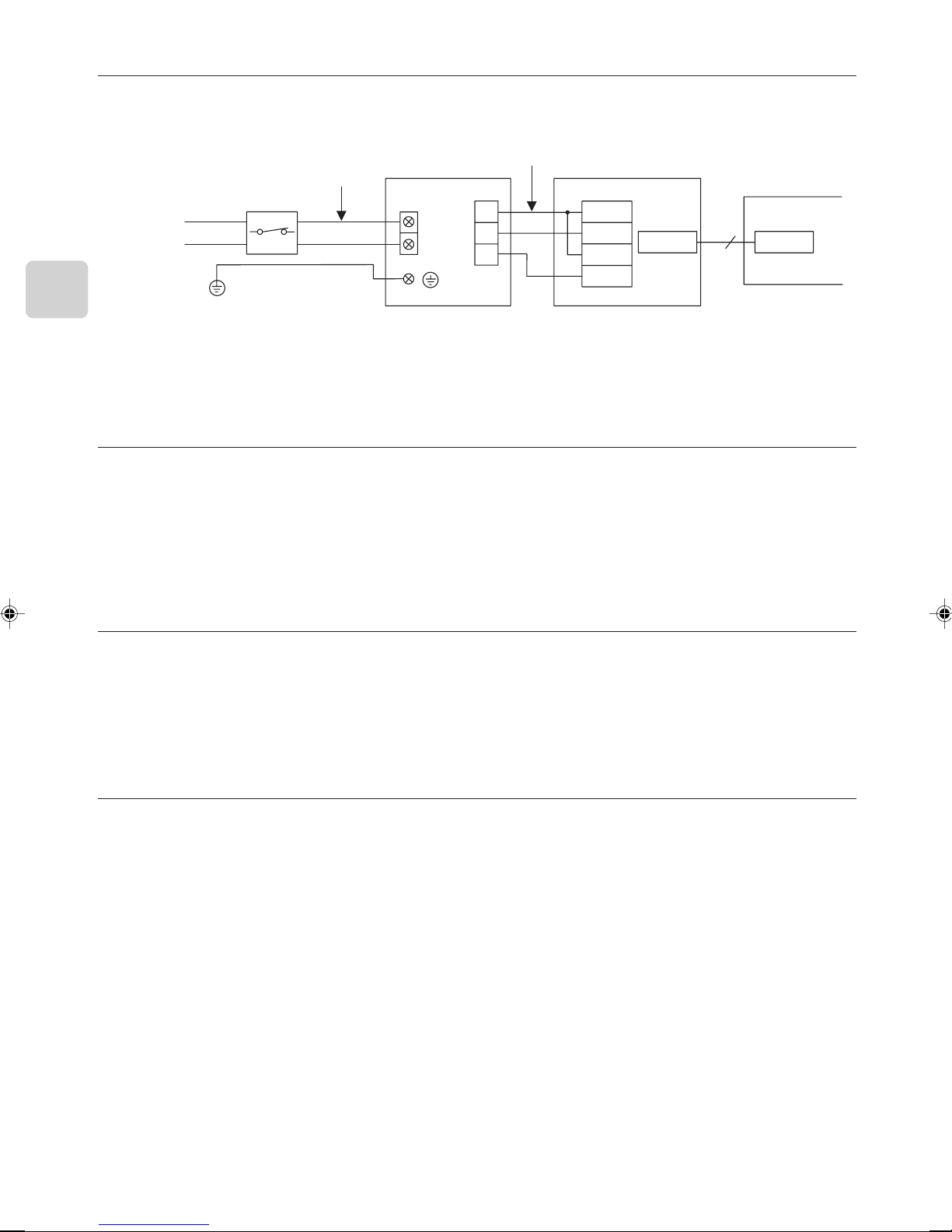

■Connection Requirements

CN105

CN560

MAC-397IF-E

TM2

TM1

TC2

TC1

TB571

MAC-821SC-E

* Connect the power switch with gap of 3 mm or more when open to interrupt the source power phase. (When the

power switch is shut off, it must interrupt all phases.)

2-2. Selecting an Installation Site

•The centralized controller 1is an exposed, wall-mounted model.

Install the unit in a dry location.

•For information on selecting a mounting wall, see the “Mounting Wall”in section 2.

■Switch Box

The centralized controller power and connection wiring is generally direct wired.

The switch box 3supplied (with switch box covers for 2 units) should therefore be used for installing the centralized controller.

2-3. Electrical Work

•Use 1.5 mm2power supply wire (2-core + ground).

•For the connection wire C, use a control cable CVV (0.5 mm23-core) or equivalent product.

CVV is a control cable which is sheathed in polyvinyl chloride with polyvinyl insulated wires inside.

•Complete the power supply wire and connection wire work before mounting the centralized controller.

•The electrical work should be performed in accordance with the Technical Standards Regarding Electrical Equipment and the

Interior Wiring Standards.

2-4. Assigning Air Conditioner Device Numbers

•The numbers (1–8) displayed on the control panel of the centralized controller 1correspond to the numbers of each connected

air conditioner (device number).

•Assign air conditioner device numbers that correspond to the numbers shown on the control panel based on the structure of the

building or the layout of the rooms in which the air conditioners are installed.

Breaker *

Power supply wire B

Connection wire C

Air conditioner

Indoor unit

Ground

Power supply

~/N 220–240 V

50/60 Hz

2-6. Mounting Diagram

A/C Device No. 2

A/C Device No. 1

A/C Device No. 3

A/C Device No.4

Power supply

~/N 220–240 V 50/60 Hz

AMA & Contact terminal interface (MAC-397IF-E)

Power supply

wire B

Cover

Centralized controller 1

Base plate 2

Switch box 3

Connection wire C

(3-core) Rubber seal

(large) 5

Mounting screw 8

M4 ×30

Sealing material 7

(adhesive)

Mounting screw

(M4 ×10)

Wall

Rubber seal (small) 6

Switch box 3

2-5. Sample Configuration

This figure shows a sample 4-unit configuration.

Connection wire C(max. length of 100 m)

Centralized controller 1

Screw

Connection wire C

(3-core)

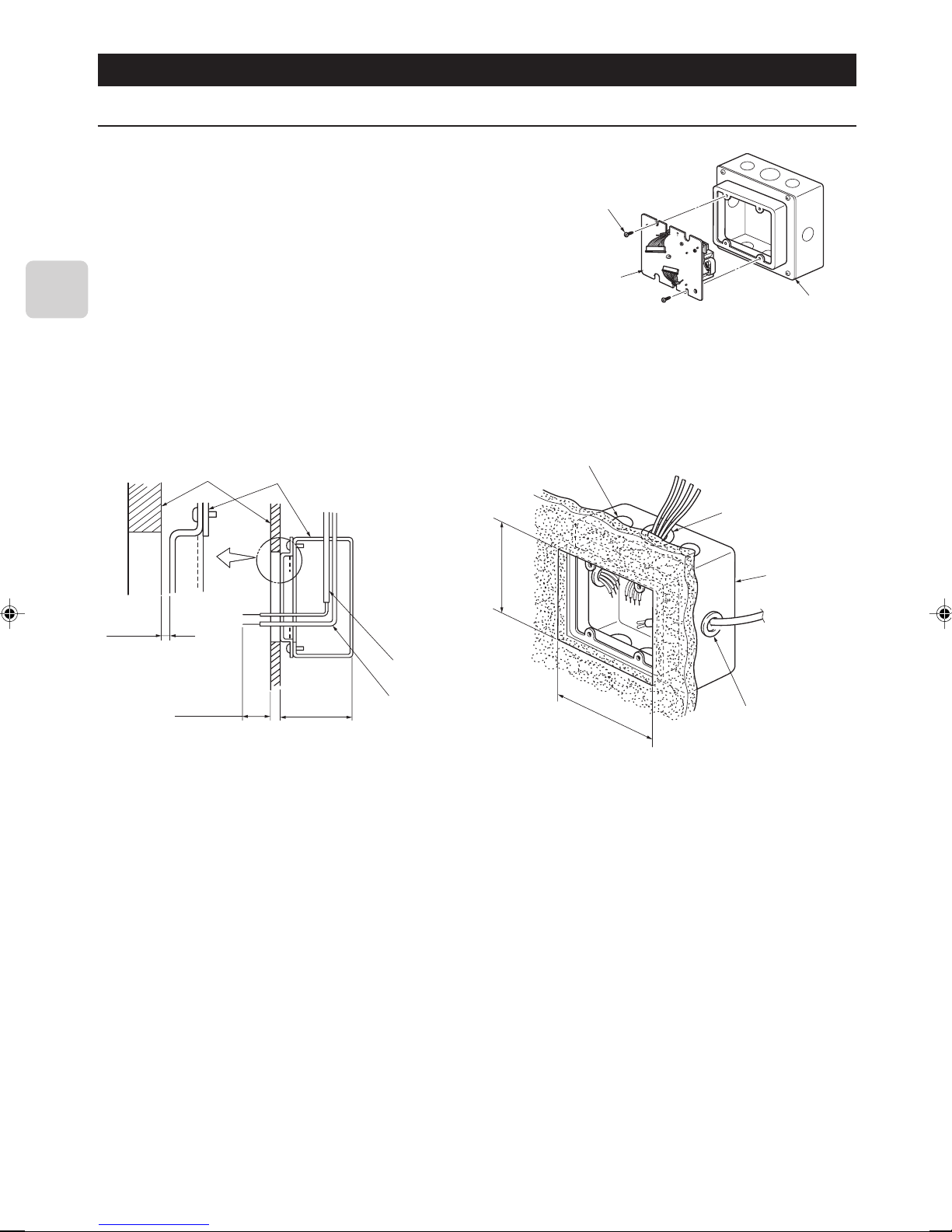

3. Mounting the Centralized Controller/Direct Wiring

3-1. Mounting Preparations

Remove 2 screws, and remove the base plate 2from the switch box 3.

Set the 2 screws aside, as they will be used in the section on “4-1. Mounting

the Base Plate”under “Mounting the Centralized Controller”.

Insert the switch box 3into the wall. Size the hole in the wall to ensure that

there is go gap between the switch box 3and the wall surface.

Use the switch box 3wall installation dimensions and opening dimensions

shown in the figure below.

Feed the power supply wire B, connection wire C, and ground wire from

inside of the wall, and pull them through the switch box 3into the room

about 150 mm.

If you are not using a wire conduit, pull the wires through after attaching the

rubber seal (large) 5and rubber seal (small) 6to the switch box 3open-

ing through which the wires are being fed (to protect the wires from scraping

against the edge of the steel plate).

After the screws have been removed from the cover of the centralized controller 1, remove the cover using a flathead

screwdriver.

Switch box 3

Screw M4

Base plate 2

Wall opening dimensions 108 ±3 mm

Wall Switch box 3

Connection

wire C

Power supply wire B

0–5 mm

150 mm 57 mm or more

* Do not make the hole any larger than

necessary.

Rubber seal (large) 5

Switch box 3

Rubber seal (small) 6

Wall opening dimensions

100 ±3 mm

3-2. Connecting the Connection Wire

Connect the power supply wire (2-core + ground) Bto the power terminal.

After they are connected, check that the wires cannot be easily pulled off.

Mount the ground wire using the ground wire mounting screws.

Connect the connection wire (3-core) Cto the MA & Contact terminal interface (MAC-397IF-E) AA

A, (sold separately) corre-

sponding to the air conditioner device number of each unit on the signal terminal.

Connection wire C

(3-core)

Connection wire C

(3-core)

Power terminal

Signal terminal

Power supply wire B

(2-core + ground)

8 mm

10 mm

100 mm

•One signal terminal can be used for connecting 4 rooms.

Signal terminal

* Connect the devices corresponding to

their display number on the control panel.

Work on Connection Wire End

Note: Centralized controller side

6 mm

TC1

TC2

TM1

TM2

Work on Power Supply wire End

•Be sure to use 1.5 mm2power supply

wire B(2-core + ground).

•The work on power supply wire end

should be performed as shown in the fig-

ure below.

Connection wire (3-core)

MA & Contact

terminal interface A

Centralized

controller

•Connect the centralized controller to the adapters as shown below.

Washer

80 mm Ring tongue

terminal for

M4 D

Ground

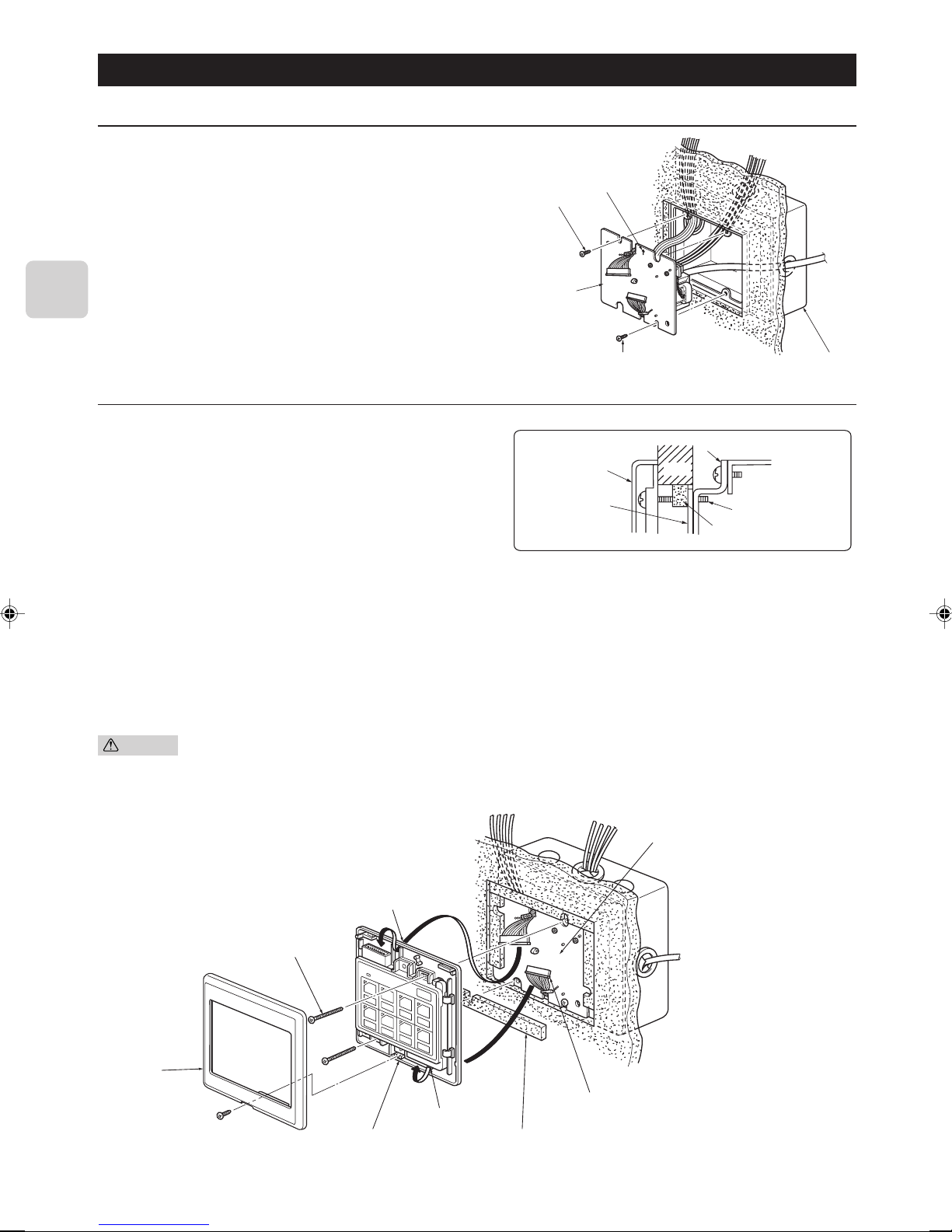

4. Mounting the Centralized Controller

4-1. Mounting the Base Plate

Insert the base plate 2into the switch box 3, and remount it

using the screws removed in the “3-1 Mounting Preparations”.

Be sure to mount the base plate 2so the up arrow is facing

upward.

Also, be careful not to damage the wires by getting them caught

between plate and the switch box 3.

4-2. Mounting the Centralized controller

Before mounting the unit, apply the supplied sealing materials 7

to the base plate 2, and fill in the space between the switch box

3and the hole in the wall (a gap here could result in dew conden-

sation).

Cut the sealing material 7to a length such that it can be wrapped

around the hole in the wall based on the fixed position.

Connect the connection cord from the base plate 2through the

slot in the centralized controller.

Mount the centralized controller to the base plate 2using the supplied mounting screw 8.

Be careful not to damage the connection wires by getting them caught in the walling materials.

Using the supplied screw, attach the cover to the centralized controller.

To attach the cover to the centralized controller, fit the tabs along the top of the cover into the holes in the centralized controller

and then push the lower portion of the cover into place.

Caution

Be sure not to tighten the mounting screw 8too tight.

Doing so may disfigure the centralized controller and prevent the cover from closing securely.

Up arrow

Screw M4

Switch box 3

Base plate 2

Cover

Mounting screw 8

M4 ×30

* Pass through

the slotted hole

Base plate 2

Screw

Centralized

controller

* Pass through the

slotted hole Sealing

material 7

Connection wire C

Extra connection wire can be stored in the area

between the centralized controller and the cover.

Screw

Centralized

controller 1

Base plate 2

Wall

Switch box 3

Mounting screw 8

M4 ×30

Sealing material 7

6. Room Name Display

Select the appropriate stickers from the room name stickers 4supplied, and affix them to the display section of the panel.

5. Test Run

A test run should be performed after the centralized controller and the MA & Contact terminal interface (MAC-397IF-E) have all

been installed.

Turn the power switch on each air conditioner to ON.

Press the ON/OFF button on the wireless remote control for each air conditioner to make sure the air conditioner turns on,

and then press the button again to turn each unit off.

Supply power (AC 220–240 V) to the centralized controller.

Press the ON/OFF button on the upper part of the control panel of the centralized controller, and confirm that the (green)

operation indicator lamp for that device number comes on.

Also confirm that the corresponding air conditioner has turned on (the operation indicator lamp will not come on if the air

conditioner is not connected).

Press the ON/OFF button again, and confirm that the operation indicator lamp goes out and that the air conditioner unit turns

off.

Repeat steps

and

again for each device number.

Press the All OFF button, and confirm that all the (green) operation indicator lamps go out and that all the air conditioners turn

off.

Room name stickers 4

7. Specifications

Model MAC-821SC-E

No. of controlled air conditioners 8 units

Power ~/N, 220–240 V, 50/60 Hz

Power consumption 4 W

Ambient temperature 0–40°C

Dimensions (H ×W ×D) 120 ×120 ×51

Weight 320 g

Andere Handbücher für MAC-821SC-E

Inhaltsverzeichnis

Andere Mitsubishi Electric Fernbedienung Handbücher

Mitsubishi Electric

Mitsubishi Electric PAR-CT01MAA-SB Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-SF44SRA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PZ-61DR-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-60DR-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MHK2 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MAC-SL100M-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAC-SF41SCA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric RC-EX3A Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL94B-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SW96U-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA-US Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MAC-821SC-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-52SF-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric PZ-62DR-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-41SLB-E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MAC-821SC-E Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
