OPERATING INSTRUCTIONS

• Thank you for purchasing the Mitsubishi Centralized On-Off Remote Controller.

• Please read these Operating Instructions carefully before use and then store them for future reference.

Centralized On-Off Remote Controller

MAC-821SC-E

1. Names and Functions of Parts

2. Using the Controller

■Turn on the air conditioner

Press the ON/OFF button for the room whose air conditioner you want to turn on.

The air conditioner will turn on and the operating indicator lamp will be illuminated.

■Turn off the individual air conditioner

Press the ON/OFF button for the room whose air conditioner you want to turn off.

The air conditioner and operating indicator lamp for that room will both turn off.

■Turn off all air conditioners

Press the All Rooms OFF button to turn off the air conditioners in all rooms.

Caution

• If the operating indicator lamp blinks repeatedly, there may be a wiring problem with the air conditioner unit. Please

contact the retailer where you purchased the product.

• After pressing a button, please wait about one second before pressing another to start another operation.

• To use the centralized controller, you must have a MA & Contact Terminal Interface (MAC-397IF-E, sold separately) for

each air conditioner unit.

When using the MA & Contact Terminal Interface, the previous air conditioner operating status is stored in memory.

Thus, if you turn on the air conditioner using the centralized controller, it will start up in the same operating mode it

was in the last time it was turned on.

Before using the centralized controller for the first time or for the first time in a long time, first set the air conditioner

to run under your preferred operating conditions (for 10 seconds or longer) using the remote control that originally

came with the unit.

• The ON/OFF button is used to turn the unit on or off.

If you want to turn on the air conditioner, make sure the operation indicator lamp is off before pressing the button.

If you want to turn off the air conditioner, make sure the operation indicator lamp is illuminated before pressing the

button.

• The air conditioners can also be operated using the remote control in each room.

If an air conditioner is turned on in a particular room, the operation indicator lamp for that room will be illuminated on

the centralized controller.

• You may not be able to control the operations of a unit from the centralized controller while the individual remote

controller for that unit is in use.

• When a unit’s individual remote controller and the centralized controller are both in use, the displays shown on the

centralized controller and the individual remote controller may differ.

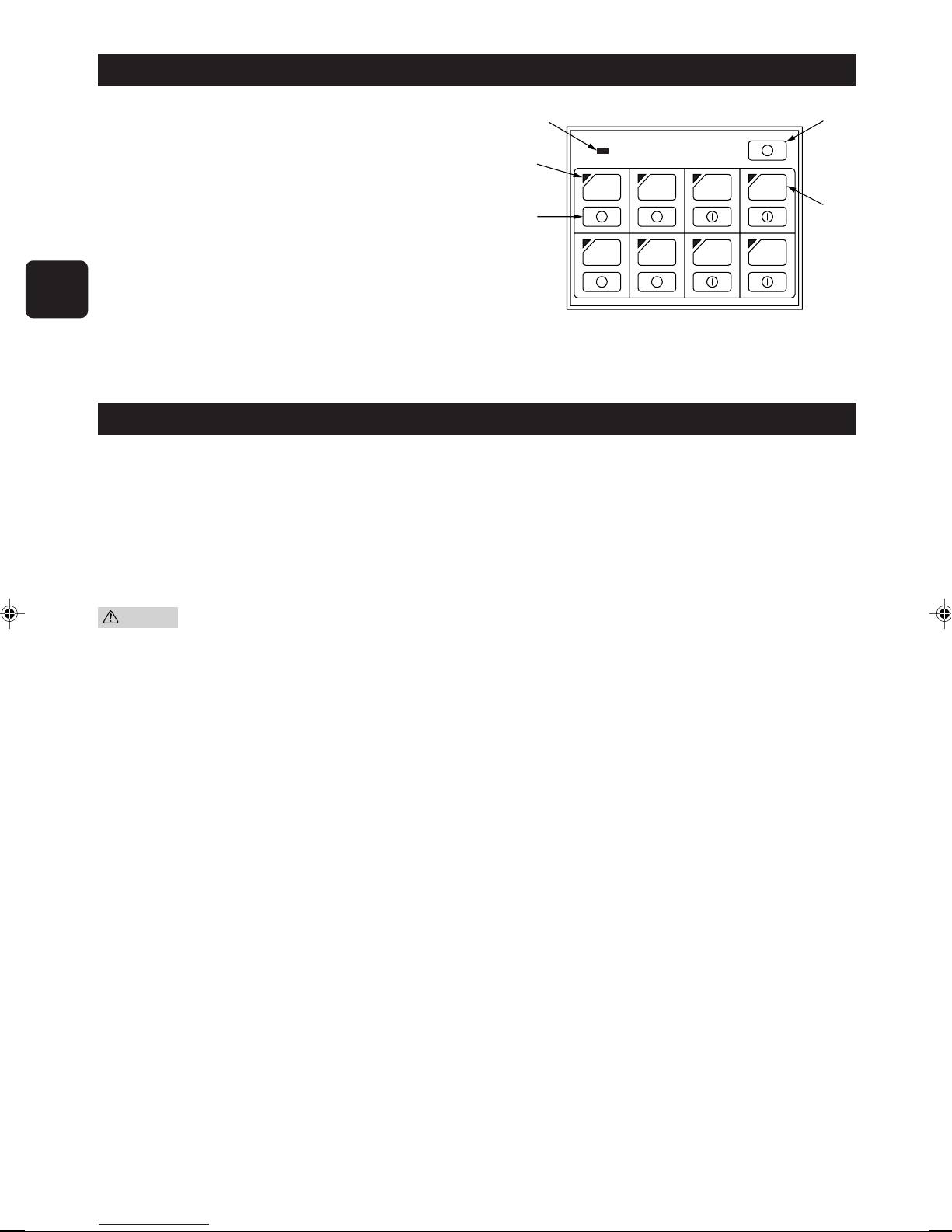

1Power lamp

This lamp is illuminated when the power is turned on.

2Operation indicator lamp

This lamp is illuminated when the air conditioner is run-

ning.

3ON/OFF button

Pressing this button while the air conditioner is running

(while the operating indicator lamp is on) will turn the unit

off. Pressing it while the air conditioner is off (while the op-

erating indicator lamp is off) will turn the unit on.

4All Rooms OFF button

Pressing this button turns off all operating air conditioners

and the operating indicator lamps for all rooms.

5Room name display

Select and apply one of the enclosed room name stickers

to each button.

1 2 3 4

5 6 7 8

POWER

3. Maintenance

The centralized controller can be cleaned using a damp, soft cloth.

Caution

Do not use benzene or solvents on the controller, as they may damage the unit.

4. Notes

•Do not place the centralized controller in a location with a lot of humidity or dust.

•Do not place the centralized controller near heat generating equipment or in direct sunlight.

•Do not disassemble the controller yourself, as this may cause injury.

5. Specifications

Model MAC-821SC-E

No. of controlled air conditioners 8 units

Power ~/N, 220–240 V, 50/60 Hz

Power consumption 4 W

Current 0.02 A

Ambient temperature 0–40°C

Dimensions (H ×W ×D) 120 ×120 ×15

Weight 910 g

6. Products Sold Separately

Product Model

MA & Contact Terminal Interface MAC-397IF-E

This product is designed and intended for use in the residential,

commercial and light-industrial environment.

The product at hand is based on

the following EU regulations:

•Low Voltage Directive 73/23/EEC

•Electromagnetic Compatibility Directive 89/

336/EEC

HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

Printed in JapanSG79N129H02
