MJ LED LIGHTNING MJ-2029E Bedienungsanleitung

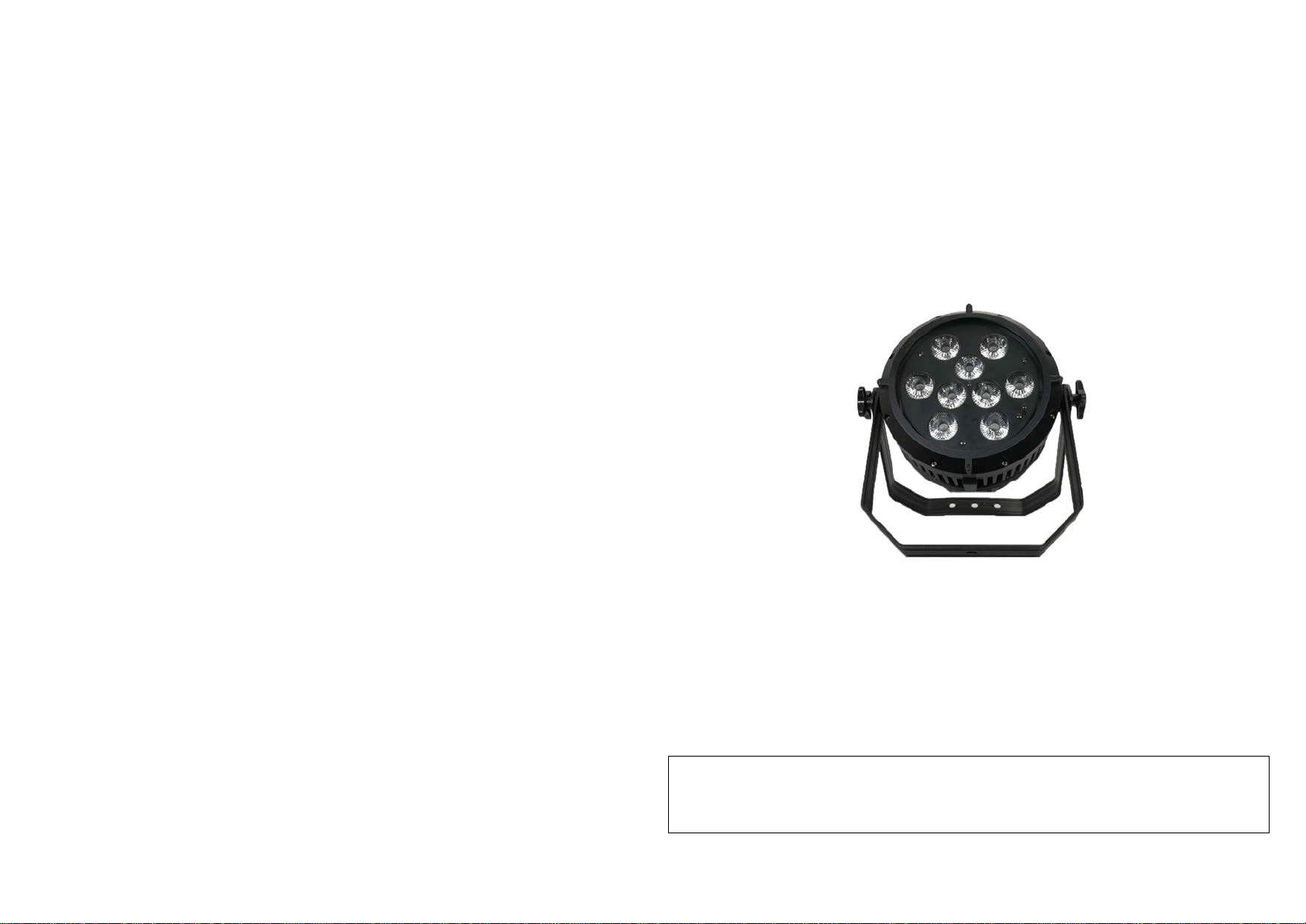

LED OUTDOOR WIRELESS

BATTERY PAR-918

MJ-2029E

User Manual

=======PROFESSIONAL STAGE LIGHTING ========

Thank you for choosing our outdoor LED wireless par can with battery light. For

the sake of your safety, Please read and follow these instructions carefully and keep

this manual in a safe place for future reference

Charge Warning:

1.For carton box:

Please do NOT put in carton box while charging.

2.For Flight case:

Please do NOT close the case while charging.

3.For charge time:

Please do NOT charge over 10 hours.

Warning:

Please do NOT use the lamp under the close environment.

Please do NOT use the lamp under the water.

Please do NOT connect the power cable hand by hand over 5pcs.

Before open the LED outdoor wireless par can with battery light par light and

if you want to do the repair work, please make sure the power source is at

the separation condition.

Unceasingly carries on the product improvement about our company the

policy, in this instruction booklet carries the data will have the possibility to be

able to change in the future, when no longer separate notice change matters

concerned. Our company retains when the product improvement changes

the related specification the authority. This instruction booklet publisher

cannot be responsible regarding this instruction booklet in information

accuracy, also cannot the related consequence which causes regarding

these information be responsible

Most important: FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First

Charge before use. Plug in Power cord. Turn ON charger Switch to charge.

Introduction

Unpacking: Thank you for purchasing this product, all products has been thoroughly tested

and has been shipped in perfect operating condition. Carefully check the shipping carton for

damage that may have occurred during shipping. If the carton appears to be damaged,

carefully inspect your fixture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts are missing, please

contact the manufacturer or your dealer for further instructions. Do not return this unit to your

dealer without first contacting.

Introduction: The Light is a DMX intelligent and battery powered LED par light. This par

light is light weight and compact which makes it a great piece for mobile DJ‟s and clubs.

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit

under water.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself; doing so will void your manufactures warranty. In the unlikely event your unit may

require service please contact the manufacturer or your dealer.

PLEASE recycle the shipping carton whenever possible.

General Instructions

To optimize the performance of this product, please read these operating instructions carefully

to familiarize you with the basic operations of this unit. These instructions contain important

safety information regarding the use and maintenance of this unit. Please keep this manual

with the unit, for future reference.

Notice :please pay attention to ventilation, to prevent the battery

overheat cause burning When charging.

For Battery Function and Charge

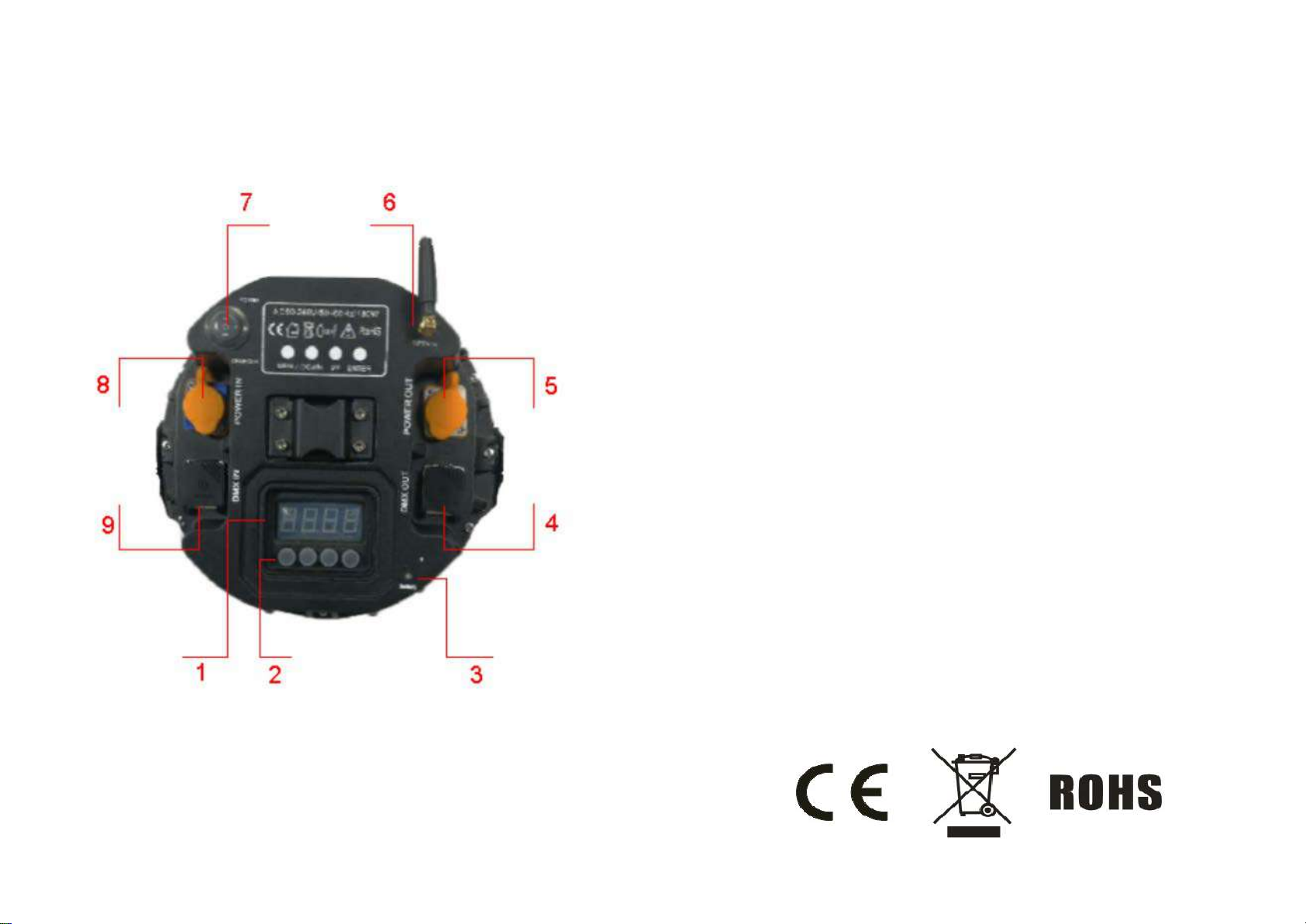

The unit has the function of battery powered. The button for battery and

charge is set on the rear panel. It is showed as the following picture, and the

function is described as below.

1. Alpha-numeric display 2. Button switches 3. Battery indicator

4. DMX-Out 5. Power out 6. Antenna

7. Switch for charger and Power ON 8. Power in

9. DMX-In

Features

● Power supply: AC100V-240V

● Frequency: 50-60Hz

● Power consumption:162W

● Light source: 9pcs 18W high brightness RGBWA+UV 6in1 LED

● Lamp life: 6-10 ten thousand hrs

● LED angle: 30(±5) degree

● Color: 16.7 million kinds of color change

● Control channels: 6/8/10 Ch

● Battery power & wireless DMX&WIFI

●Wireless DMX-512 protocol

●Built in 2.4G receiver/ transmitter for wireless DMX operations

● Control mode: DMX512, master/slave, auto, sound active, IR remote and

Wifi control

● Automatic model(by function button) : color change, color strobe, color

dimmer, color gradual change/color jump change

● Operation menu: 4 digit digital LED display

●Waterproof Rating: IP65

● Packing size: 310*310*300mm

● N.W: 6.5kg

● G.W: 7 kg

Safety Precautions

● To reduce the risk of electrical shock or fire, do not expose this unit under

the water.

● Do not spill water or other liquids into or on to your unit.

● Be sure that the local power outlet match that of the required voltage for

your unit.

● Do not attempt to operate this unit if the power cord has been frayed or

broken. Do not attempt to remove or break off the ground prong from the

electrical cord. This prong is used to reduce the risk of electrical shock and

fire in case of an internal short.

● Disconnect from main power before making any type of connection.

● Do not remove the cover under any conditions. There are no user

serviceable parts inside.

● Never operate this unit when it‟s cover is removed.

● Never plug this unit in to a dimmer pack.

● Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

● Do not attempt to operate this unit, if it becomes damaged.

● During long periods of non-use, disconnect the unit‟s main power.

● Always mount this unit in safe and stable matter.

● Power-supply cords should be routed so that they are not likely to be

Remote Control

If you want use remote control to do master-slave function, you should be only one light do

master light and turn on IR, other slave light should be turn off IR.

Wifi Control

：

1.Use phone scanning this qr-code or search LED WIFI on App store to

download and install APP.

2.When you install APP, You can use phone to search the WIFI, It will be show

WIFI name LED***.

3.Connect this WIFI name and keep it connected

4.Open LED WIFI APP to control the light.

Tip for the battery and charge

●The battery can last for 3-4 hours when all LEDs on after full charge , and can

last for more than 10-12 hours on auto running mode. Up to 20 Hours with one

color diode on. Results will vary based on brightness of LEDs

●It is suggested to charge the battery for at least 6 hours, which will extend the

life span of the battery.

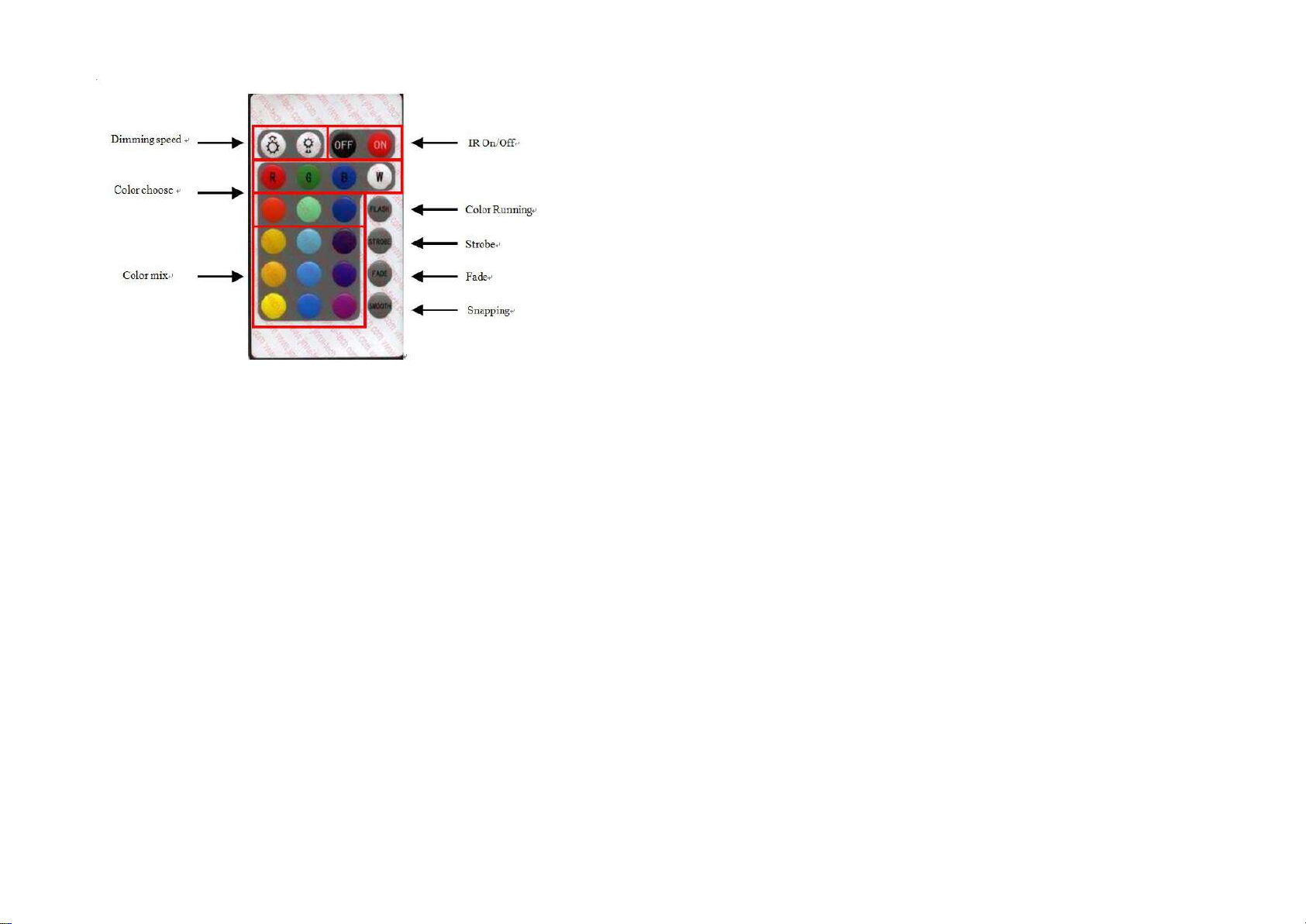

Remote Operation

Note:

1, UP-dimming the up button

2, Down- dimming down button

3, OFF- Turn off light

4, ON- Turn on light

5, R, G, B, W,A, UV keys are 6 kinds of each color

6, 9 numeric keys for 9 static colors (AC 1...AC 9)

7, 0 button for mixed color mode, up and down adjust 32 kinds of static color

8, AUTO button is the color change mode, the up and down keys adjust speed

9, STROBE button is color strobe mode(optional 32),up and down adjust speed

10, FADE button is the gradient mode, the up and down keys adjust speed

11, SOUND button is the voice control mode,up and down adjust the voice control

There are two buttons on the rear panel of the lighting. One is for power,

and the other is for signal.

●When use the fixture with DMX, not wireless, please switch the signal

button for “off”

●When use the wireless DMX, please switch the button for “on”

● When charge the light, please switch both of the button for “of”. At the

same time, if the switch for power is “on”, the light will be at work during the

process of charge, but will consume some power from the charge; if the

switch for power is “off”, the light will be blackout and not be at work.

walked on or pinched by items placed upon or against them, paying particular

attention to the point they exit from unit.

● Cleaning -The fixture should be cleaned only as recommended by the

manufacturer. See “Cleaning” for details.

● Heat -The appliance should be situated away from heat sources such as

radiators, heat registers, stoves, or other appliances (including amplifiers) that

produce heat.

● The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a marked

change in performance

● Fuse standard is 2A/250V

● Grounded using yellow/green line

● The ambient temperature must always be under +35° C

Set Up

Power Supply: Before plugging your unit in, be sure the source voltage in

your area matches the required voltage for your light is workable in

100-240V/50~60Hz. Because line voltage may vary from venue to venue,

you should be sure your unit voltage matches the wall outlet voltage before

attempting to operate you fixture.

Operating Instructions

Operating Modes: You can use the light in 5 ways:

● Sound activation – The unit will activated by the sound signal.

● Static display – The unit will display the color in static way.

● Auto Mode -The unit will automatically chase through the different patterns.

● DMX control mode -This function will allow you to control the lighting with a

standard DMX 512 controller.

● Battery powered – This function will allow you to control the lighting

independently without any DMX cable

DMX Mode: Operating through a DMX controller give the user the freedom

to create their own programs tailored to their own individual needs. This

function also allows you to use your fixtures as pattern changing lights.

1. This function will allow you to control each individual fixtures traits with a

standard DMX 512 controller.

2. The light use 6/8/10 DMX channels to operate. Please see “DMX channel

and Functions” for the DMX traits.

3. To run your fixture in DMX mode, plug in the fixture via the XLR connections

to any standard DMX controller. Set your desired DMX address following the

setup specifications that come with your DMX controller.

4. The unit can automatically recognize the DMX signal once the DMX

connection is done.

DMX Linking

To ensure proper DMX data transmission, when using several DMX fixtures

try to use the shortest cable path possible. The order in which fixtures are

connected in a DMX line does not influence the DMX addressing. For

example; a fixture assigned a DMX address of 1 may be placed anywhere

in a DMX line, at the beginning, at the end, or anywhere in the middle.

When a fixture is assigned a DMX address of 1, the DMX controller knows

to send DATA assigned to address 1 to that unit, no matter where it is

located in the DMX chain.

Buttons instruction

There are four touch buttons under the LED Alpha-numerical display: Menu,

Down, Up, Enter. Normally, the LED will display the current DMX address

code of the fixture. At this time, presses Menu to choose the function you

want to set up. Press and hold Up or Down to fast scrolling within the menu

options. When an options flashing the LED display, press Enter to confirm

and Menu to exit.

Menu down up Enter

No.

Display

Function

1 A001

A001—A512 (DMX address setting) press “UP” and “Down”

button change the DMX address

2 CHND

6CH/8CH/10CH

Channel choose (6CH/8CH/10CH) Press “UP” and “Down” button

change the DMX Channel

4 CL01

CL01—CL32 (Color Mixing), press “UP” and “Down” button

change the mixing color

5 CC01

CC01—CC99 (Color change by Snapping), press “UP” and

“Down” button change the Snapping speed

6 EE01

EE01—EE99 (Color change by Fade), press “UP” and “Down”

button change the Fade speed

7 FF01

FF01—FF99 (Color change by pulse), press “UP” and “Down”

button change the pulse speed

8 ST01

ST01—ST32 (Strobe by hand), press “UP” and “Down” button

change the strobe speed

9 SOU1

Sound mode 1/2/3/4

（

press “UP” and “Down” button change

）

When you press enter key,it can be adjustment Sound sensitivity

10 NANU

R000—R255 (Red dimming by hand)

G000—G255 (Green dimming by hand)

B000—B255 (Blue dimming by hand)

W000—W255 (White dimming by hand)

Y000—Y255 (Amber dimming by hand)

P000—P255 (Purple dimming by hand)

11 UIFI

Wifi mode(when you use wifi control, you need set on this model

and turn off the IR model)

NDIN

CUR1/2/3/4

Four kinds of dimming curve (square, linear model, logarithmic,

S) press the confirmation key adjustable curve of time delay on/off

13 2.4G -ON/OFF 2.4G wireless ON/OFF

14 IRCL -ON/OFF IR remote ON/OFF

15 POUR -ON/OFF Turn light ON/OFF

16 LED-ON/OFF LED display ON/OFF

17 T000 Temperature display, this light no function)

＊If there is no operation after 30 seconds, the LED display will display the power

level(----), which is 25 percent per grid.

DMX Channel

Channel

Value

6CH

8CH

10CH

CH1

Off

1-255

Red dimmer

Main dimmer

CH2

Off

1-255

Green dimmer

Strobe function slow-fast

Red dimmer

CH3

Off

1-255

Blue dimmer

Red dimmer

Green dimmer

CH4

Off

1-255

White dimmer

Green dimmer

Blue dimmer

CH5

Off

1-255

Amber dimmer

Blue dimmer

White dimmer

CH6

Off

1-255

Purple dimmer

White dimmer

Amber dimmer

CH7

Off

1-255

Amber dimmer

Purple dimmer

CH8

0-9

Off

10-255

Purple dimmer

Strobe function slow-fast

CH9

0-9

Off

10-49

Color mixing

50-89

Color change by Snapping

90-129

Color change by Fade

130-199

Color change by pulse

200-219

Sound mode 1

220-239

Sound mode 2

240-255

Sound mode 3

CH10

No action

1-255

Speed control fast -slow

Inhaltsverzeichnis

Andere MJ LED LIGHTNING Beleuchtungsausrüstung Handbücher

MJ LED LIGHTNING

MJ LED LIGHTNING MATRIX BAR 910 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1025 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010 3W5DRGBW Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2400-2IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3118B Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1350B Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1027A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3325C-200W26D Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3004 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2009A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2020 3W25DRGBW Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3372 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2042CR Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010A-4IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005-4IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3301B-6IN1 Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2541-1W25RGB Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3126A Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2006A Series Bedienungsanleitung

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2410 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
