INSTALLATION & MAINTENANCE MANUAL

WAD12AA / WAD12ABK

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following product(s):

WAD12AA / WAD12ABK

GENERAL INSTRUCTIONS

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed

the rating of the circuit cable, fuse, or circuit breaker

•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location

for installation

•This product is IP65 rated

•This product is Class I and must be earthed

INSTALLATION

Note - If this product is being used in conjunction with an external PIR or sensor, please

conﬁrm with the manufacturer of the sensors that they are compatible with LED luminaires.

•Provide power to the required point of installation (refer to BS7671 for correct cabling

methods). Suitable IP rated junction boxes should be used where required

•Round cable should be used for the mains supply. The use of ﬂat cable will cause water

ingress to the ﬁtting

•Using the Allen key provided, unfasten the screws on either side and remove the backplate

•Using the backplate as a template, mark the location for, and drill the ﬁxing holes ensuring

not to infringe with any gas/water pipes or electrical cables

•Feed the mains cable through the rubber grommet to retain IP rating, and secure the

backplate to the surface using the screws provided. Rubber washers or sealant should be

applied around the screw heads to prevent water ingress

•Connect the luminaire to the mains supply ensuring the correct polarity is observed

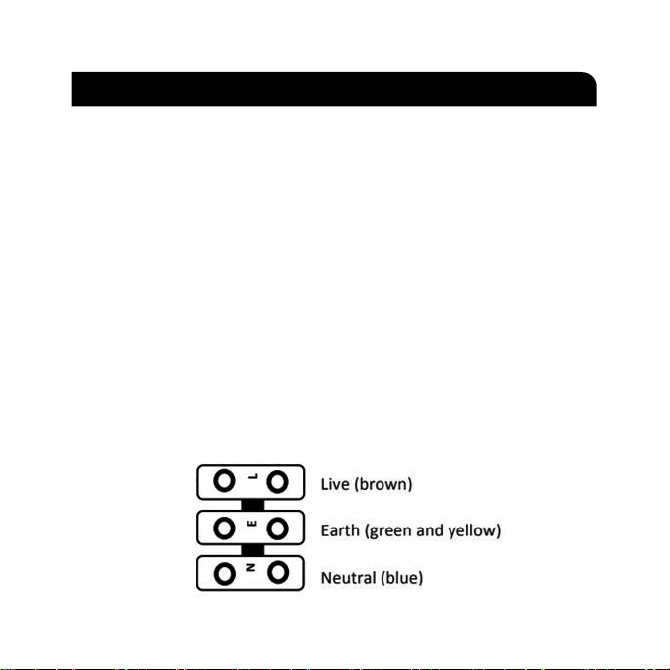

(see Fig. 1): L - Live (brown), E - Earth (green/yellow), N - Neutral (blue)

Fig.1

Fig. 2

•Secure the mains cable under the cable clamp and refit the terminal cover

•Switch on and check for correct operation

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance

testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This luminaire should be recycled in the correct manner when it reaches the end of its life. Check local

authorities for where facilities exist.

The LED lamps fitted in this product are non-replaceable. The luminaire should be recycled in the correct

manner when it reaches the end of its life. Check local authorities for where facilities exist.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the

luminaire.

This luminaire is non-dimmable.

WARRANTY

This luminaire has a warranty of 3 years from the date of purchase. Failure to install this product in accordance

with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will

invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of

purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve

the right to alter product specification without prior notice.

KOFEB20_V1

•Refasten the cover

•Switch on and check for correct operation

•Should the protective glass be cracked or damaged it should be replaced immediately

•This ﬁtting must not be used without the protective glass installed

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or

insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

This product is not suitable for installation in or near a coastal or marine environment.

GENERAL

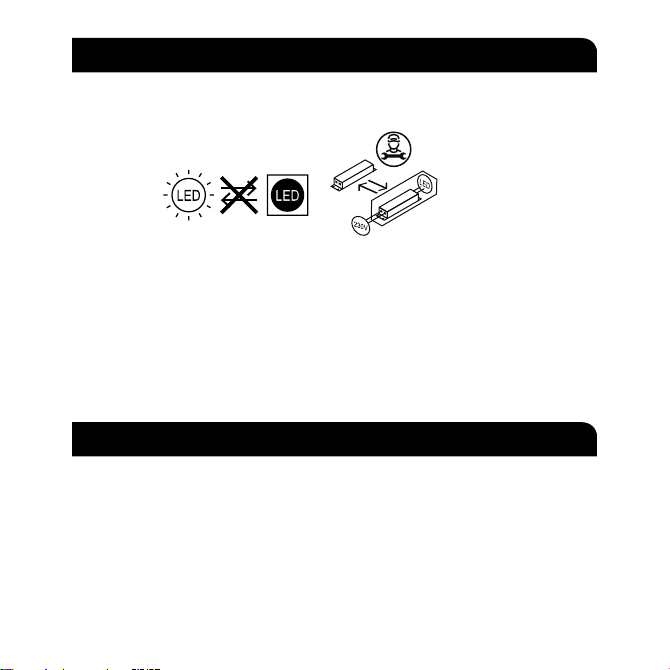

This product contains light sources of energy efﬁciency class E to Regulation (EU)

No. 2019/2015. This product contains a non-replaceable LED light source and a control

gear which can be replaced by a professional.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm

water only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please

see website for dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist.

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper

use, or removal of the batch code will invalidate the warranty. If this product should fail

within its warranty period, it should be returned to the place of purchase for a free of

charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product speciﬁcation without prior notice.

Non-replacable light source

AKJUL21_V2
