INSTALLATION & MAINTENANCE MANUAL

EMLRECL

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following product:

EMLRECL

GENERAL INSTRUCTIONS

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS 7671)

and current Building Regulations. If in any doubt, consult a qualiﬁed electrician.

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed the

rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for

installation

•This product is for indoor use only

• This product is Class II double insulated

• This product is IP20 rated

SAFETY

INSTALLATION

• Provide power to the required point of installation

• Cut a suitable aperture in the ceiling as per the cut-out details in Fig. 1 ensuring that it does not infringe with

electrical cables, water/gas pipes, or ceiling joists

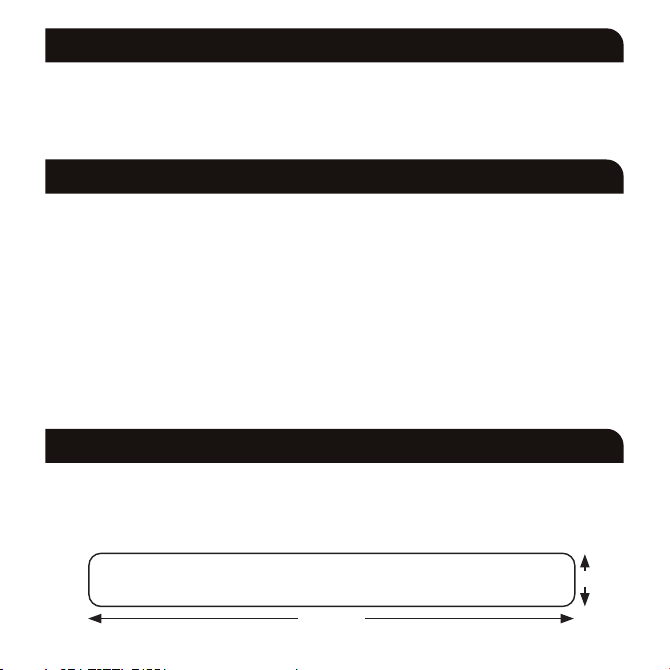

Fig. 1

310mm

48mm

• Feed the mains cable through the cable entry hole in the top cover

• Connect the mains cable into the push-ﬁt terminal block ensuring correct polarity is observed. Live (brown),

Neutral (blue)

• For non-maintained operation, remove the 2-pin connector from the circuit board (see Fig. 3). For

maintained operation, leave it in place. This ﬁtting cannot be connected for switched maintained operation

• Remove the two screws on top of the ﬁtting (see Fig. 2) and remove the top cover

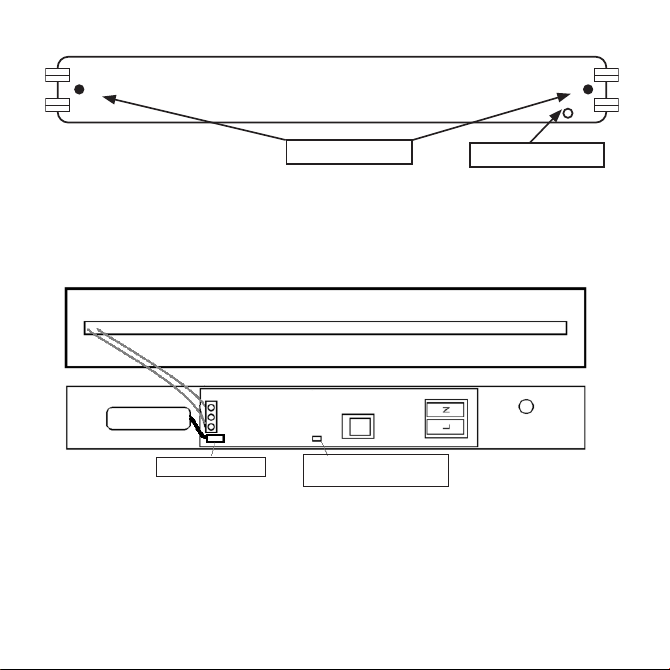

Fig. 2 Remove screws Cable entry point

• Connect the battery lead to the battery connector on the PCB (see Fig. 3)

• Reﬁt the top cover and install into ceiling aperture

• Switch on and check for correct operation, ensuring the green indicator LED is illuminated

• On commissioning the installation, a minimum charge period of 24 hours is recommended before carrying

out an emergency duration test

Fig. 3 Remove 2-pin connector

non-maintained operation

Connect battery lead

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in accordance with

the current edition of the IEE Wiring Regulations, improper use, or removal of the batch codes will invalidate the

warranty. If this product should fail within its warranty period, it should be returned to the place of purchase for

a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated

with the replacement product. Your statutory rights are not affected. ML Accessories reserve the right to alter

product speciﬁcation without prior notice.

GENERAL

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation

resistance testing. Irreparable damage will occur if this instruction is not followed

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole

luminaire should be replaced.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities

for where facilities exist.

The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local

authorities for the disposal of this toxic waste.

• The test button on the side of the luminaire can be used to simulate a power failure to test the lamp and

battery operation. This can be used to carry out monthly functional testing (see below). The ﬁtting will switch

into battery mode while the test button is held in

DCJUN23_V1

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test – simulate a mains supply failure for approx. 30 seconds by operation of key switch

or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is

illuminated

• Annual three-hour duration test - simulate a mains supply failure for a three-hour continuous test by

operation of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure

charge indicator is illuminated

• If the luminaire fails any of the above tests, please contact a qualiﬁed electrician

TESTING FOR EMERGENCY LUMINAIRES

SUPPLIED BY:

(UK) MANUFACTURER

ML ACCESSORIES LTD, UNIT E CHILTERN PARK,

BOSCOMBE ROAD, DUNSTABLE LU5 4LT,

WWW.MLACCESSORIES.CO.UK

(EU) AUTHORISED REPRESENTATIVE

SLV LIGHTING GROUP,

DAIMLERSTRASSE 21-23, 52531 ÜBACH-PALENBERG, GERMANY

EMAIL: EPREL@GROUP.SLV.COM

MADE IN CHINA

TEST RECORD SHEET

INITIAL COMMISSIONING

3 HOUR TEST

SIGNED DATE

MONTH TEST FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR

SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE

1FUNCTIONAL

2FUNCTIONAL

3FUNCTIONAL

4FUNCTIONAL

5FUNCTIONAL

6FUNCTIONAL

7FUNCTIONAL

8FUNCTIONAL

9FUNCTIONAL

10 FUNCTIONAL

11 FUNCTIONAL

12 3-HOUR

Installed by: Installation date:

Contact number:

0~45°C
