Modern Forms FR-W1818-56L Bedienungsanleitung
INSTALLATION INSTRUCTIONS
s
works with the
Google Assistant
DC
MOTOR
WET SMART
modernforms.com
NAUTILUS
FR-W1818-56L
2FR-W1818
All Modern Forms Smart Fans are:
Durably nished and Rated for
interior and exterior use
Able to coordinate with smart
devices for voice-activated and
thermostat control
Quiet, reliable, and up to 70%
more ecient than AC fans
Wi-Fi and RF enabled for
unlimited control
DC
MOTOR
SMARTWET
Wet Location-listed to the strictest
ETL/cETL safety regulations
RF WALL CONTROL
F-WC-WT
Included with each fan
6 Fan speeds
Dims light to 1%
ON/OFF
WI-FI TOUCH PANEL
WALL CONTROL
F-TS-BK Black
F-TS-WT White
Sold separately
Full app control
FREE APP DOWNLOAD
Sync with our exclusive Modern Forms
app to control fan speed, use smart
features like Adaptive Learning, create
groups and reduce energy costs
APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION modernforms.com/mfappins
3FR-W1818
4.
5.
5.
6.
7.
8.
11.
14.
15.
16.
16.
17.
19.
20.
21.
22.
1 Safety Rules..........................................................................................................................................
2 FTC Energy Guide & Specications................................................................................................
3 Tools and Materials Required......................................................................................................
4 Package Contents..............................................................................................................................
5 Mounting Options.............................................................................................................................
6 Hanging the Fan..................................................................................................................................
7 Making the Electrical Connections............................................................................................
8 Installing the Wall Control .........................................................................................................
9 Finishing the Installation...............................................................................................................
10 Attaching the Fan Blades...............................................................................................................
11 Installing the Adapter Plate ........................................................................................................
12 Installing the LED Luminaire Module.........................................................................................
13 Wall Control Operating Instructions......................................................................................
14 Application...........................................................................................................................................
15 Troubleshooting...............................................................................................................................
16 Accessories...........................................................................................................................................
Table Of Contents
4FR-W1818
1. Safety Rules
For operation, maintenance, and troubleshooting information, visit modernforms.com/help.
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70” and local electrical codes. Electrical installation
should be performed by a qualied licensed
and insured electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum
of 35 lbs (15.9 kg). Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use chemicals when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
the outlet box. The wires should be spread apart with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded
conductor on the other side of the outlet box.
9. All set screws must be checked and re-tightened where
necessary before installation.
5FR-W1818
WARNING: To reduce the risk of electric shock, this fan must be
installed with the supplied wall control, or controlled from the Modern Forms app or wall panel.
WARNING: To reduce the risk of personal injury, do not bend the blade arms, when installing the brackets,
balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to the outlet box
marked acceptable for fan support with the screws provided with the outlet box.
NOTE: For use only with light kits marked “Suitable for use in Wet Locations.”
NOTE: A maximum of 12 fans can operate on a circuit through an on/o switch or breaker
when utilizing the app for the fan control without the wall control in the circuit.
NOTE: A maximum of 2 fans can operate on a circuit through the wall control.
6FR-W1818
*Estimated annual energy cost based on $0.12 per kWh and 6.4 hours use per day.
FAN FAN SIZE VOLTS N.W
(lbs)
G.W
(lbs)
STANDARD ELECTRICITY AIR FLOW ENERGY COSTS* FAN EFFICACY
Nautilus 56” 120 23.15 27.07
High Speed 37W 7299 CFM $10/yr 197.3 CFM/W
Weighted Average 21W 4744 CFM $6/yr 226 CFM/W
2. FTC Energy Guide & Specications
3. Tools and Materials Required
Electrical tapePhillips screwdriver Step ladder Wire cutters
7FR-W1818
REF. DESCRIPTION PART NO.
ABlade Set of 4 RPL-F1818-56-BD-**
BBlade Arm Set of 4 RPL-F1818-ARM-**
CHanger Assembly
RPL-HGR-ASM-**
- Mounting Bracket
- Downrod Assembly
DCanopy & Canopy screw cover RPL-CAN-CYL-**
ECoupling Cover RPL-COU-CVR-**
FMotor Assembly ---
GAdapter Plate ---
HLED Module F6IN-120V-R1-30
IGlass Shade W/Trim RPL-F1818-GLA-**
JControl Receiver W/ Hardware RPL-F1818-56-REC
KWall Control W/ Hardware F-WC-WT
LHardware Bag
RPL-NAUTILUS-PARTS
W/ Mounting Hardware
wood screws (2), screws (2),
5/32” lock washers (2), at washers (2),
5.4mm lock washers (2), wire nuts (3)
W/ Blade Attachment Hardware
screws with lock washers (13)
A
B
C
D
E
F
G
H
I
J
K
L
4. Package Contents Unpack your fan and check the contents. You should have the following items:
NOTE: ** denotes nish code of fan
8FR-W1818
FIG. 1
Outlet Box
Outlet Box
Outlet Box
Provides Strong Support
Mounting Bracket
Recessed
Outlet Box
SLOPED CEILING
MAX 30° ANGLE
FIG. 2
FIG. 4
FIG. 3
Joist
Support
Brace
5. Mounting Options
CAUTION: To prevent electrical shock, ensure electricity has been
turned o at the circuit breaker before beginning.
If there isn’t an existing UL/cUL listed outlet box, please refer to the
following instructions. Secure the outlet box directly to the building
structure. Use appropriate fasteners and building materials. The
outlet box and support structure must be able to fully support the
moving weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic
outlet boxes. Use only UL/cUL listed outlet boxes marked
“FOR FAN SUPPORT.”
Secure the outlet box directly to the building structure.
Use appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the moving weight
of the fan (at least 35 lbs). Do not use plastic outlet boxes.
Figures 1-4 are examples of dierent ways to mount the
outlet box.
NOTE: To hang your fan where there is an existing xture but no
ceiling joist, you may need an installation hanger bar.
NOTE: Downrod fans can be suspended up to a maximum
recommended length of 72” using additional downrods
(sold separately) and the included 80” lead wire.
NOTE: The sloped ceiling kit (sold separately) is required for sloped
ceiling applications, and will accommodate slopes up to 45° (Fig.3).
NOTE: You may need a longer downrod to maintain proper blade
clearance when installing on a steep, sloped ceiling (Fig. 3).
9FR-W1818
6. Hanging the Fan
REMEMBER to turn o power at the breaker.
Follow the steps below to hang your fan properly:
1. Disconnect power at the breaker to the fan location. A licensed
electrician must install the fan (FIG. 5).
2. Remove 1 of 2 screws from the bottom of mounting bracket and
save for use in section 9. Loosen the other screw (FIG. 6).
3. Pass the 120-volt supply wires through the center hole in the
ceiling mounting bracket as shown in (FIG. 7).
4. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box (FIG. 7).
FIG. 5
FIG. 7
UL/cUL Listed
Electrical Box
Mounting
Bracket
Mounting Screws
(supplied with
outlet box)
120V Wire
Mounting
Bracket
FIG. 6
Screw
10 FR-W1818
FIGURE 8
FIGURE 9
Cross Pin
Hanger
Ball
Downrod
Downrod
Clevis Pin Cotter Pin
Screws (2)
Collar
Safety Cable
Motor Wires
Screw

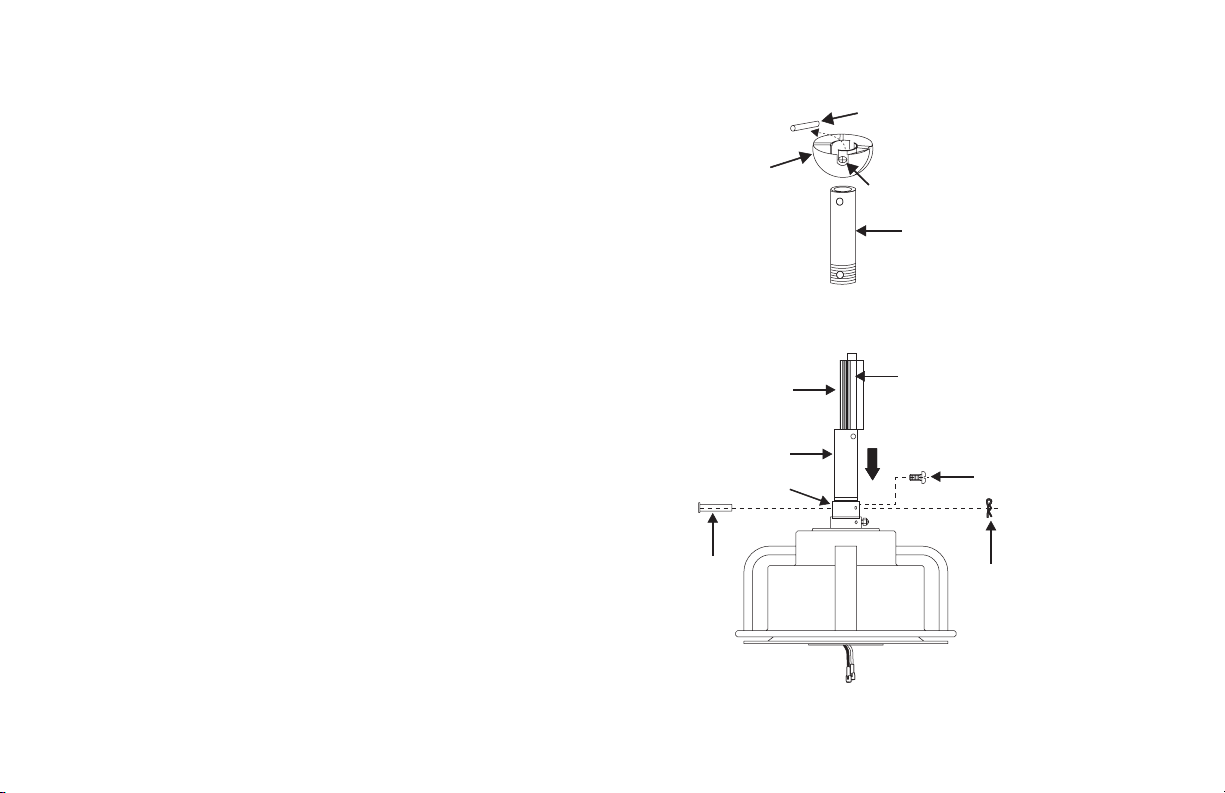

6. Hanging the Fan (cont.)
1. Take out the set screw located in the hanger ball, lower the
hanger ball and remove the cross pin. Remove the hanger ball
from the hanger ball/downrod assembly (FIG. 8).
2. Remove the clevis pin and cotter pin, and loosen the two collar
screws from the motor collar (FIG. 9).
3. Carefully feed the motor wires and safety cable up through the
downrod. Thread the downrod into the collar.
4. Align the holes of downrod and collar and insert the cotter pin
and clevis pin. Tighten the two collar screws (FIG. 9).
WARNING: Failure to properly install the cotter pin and/or tighten
the screws could result in the fan loosening and possibly falling.
