Moduspace DF130 Bedienungsanleitung
Version 2.0
Bespoke Showcase Engineers
DF130 Assembly Guide

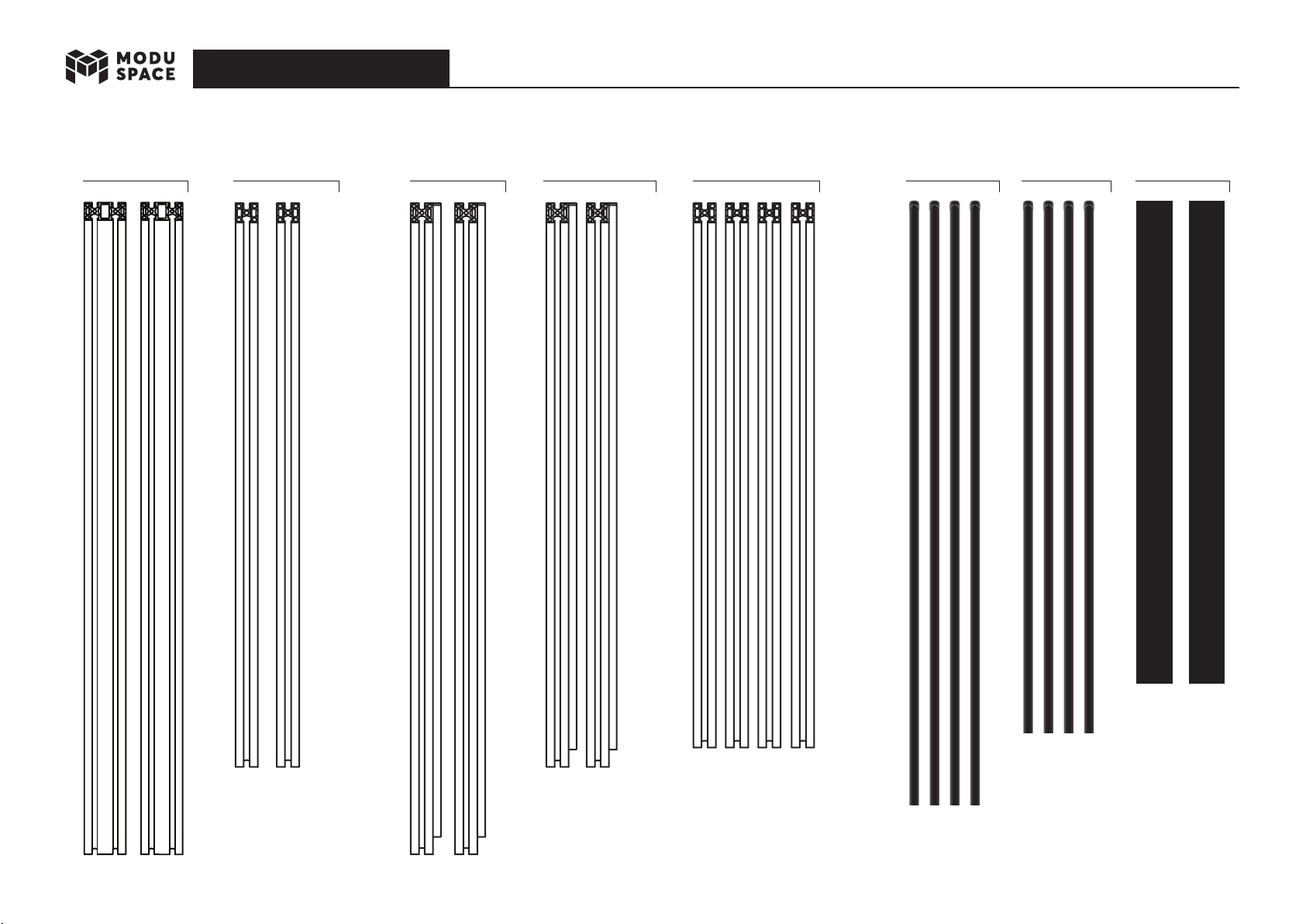

BarsDF130 Assembly Guide
Bespoke Showcase Engineers
1
Side Frame
Back Bar x 2
Back Frame Top
Bottom Bar x2
Side Frame
Front Bar x 2
Front Frame Top
Bottom Bar x 2
Side Frame Top
Bottom Bar x 4
Vertical
C-Channel x 4
Horizontal
C-Channel x 4 Conduits x 2

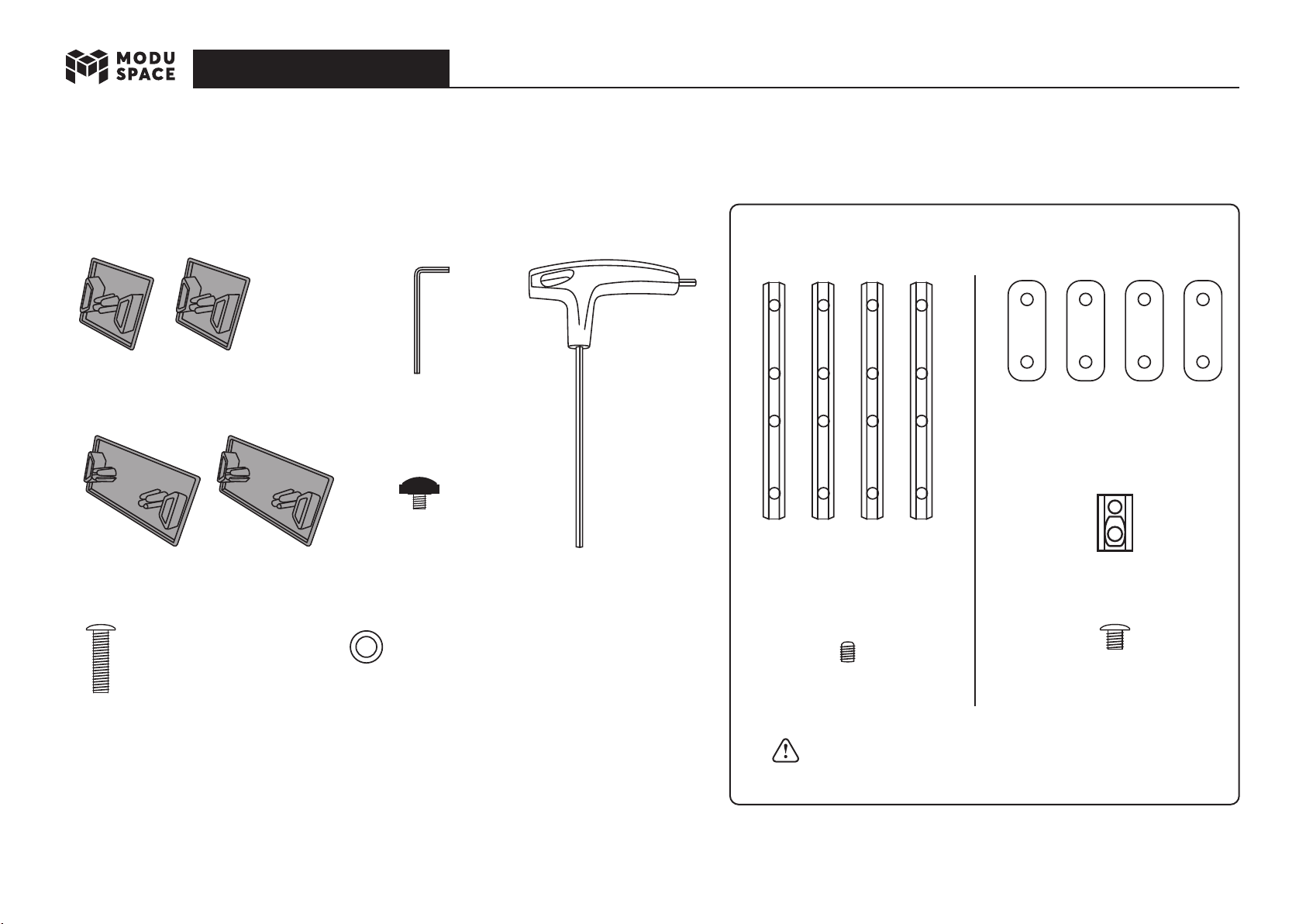

M5-Long Screw x 16 M5-Short Screw x 8M4 Stacking Screw x 8
Stacking Bracket x 4
M5 Washer x 16
M5 Nuts x 8
Back Frame Foot Pad x 2
Front Frame Foot Pad x 2
M5 T-Handle
Allen Key x 1
Front Panel
Safety Screw x 1
Bespoke Showcase Engineers
2
Horizontal Bracket x 4
Accessories for connecting display cases
M4 Allen Key x 1
ToolkitDF130 Assembly Guide
Attention: If you are connecting multiple display cases, please refer to
“Connecting Display Cases” assembly guide before commencing.

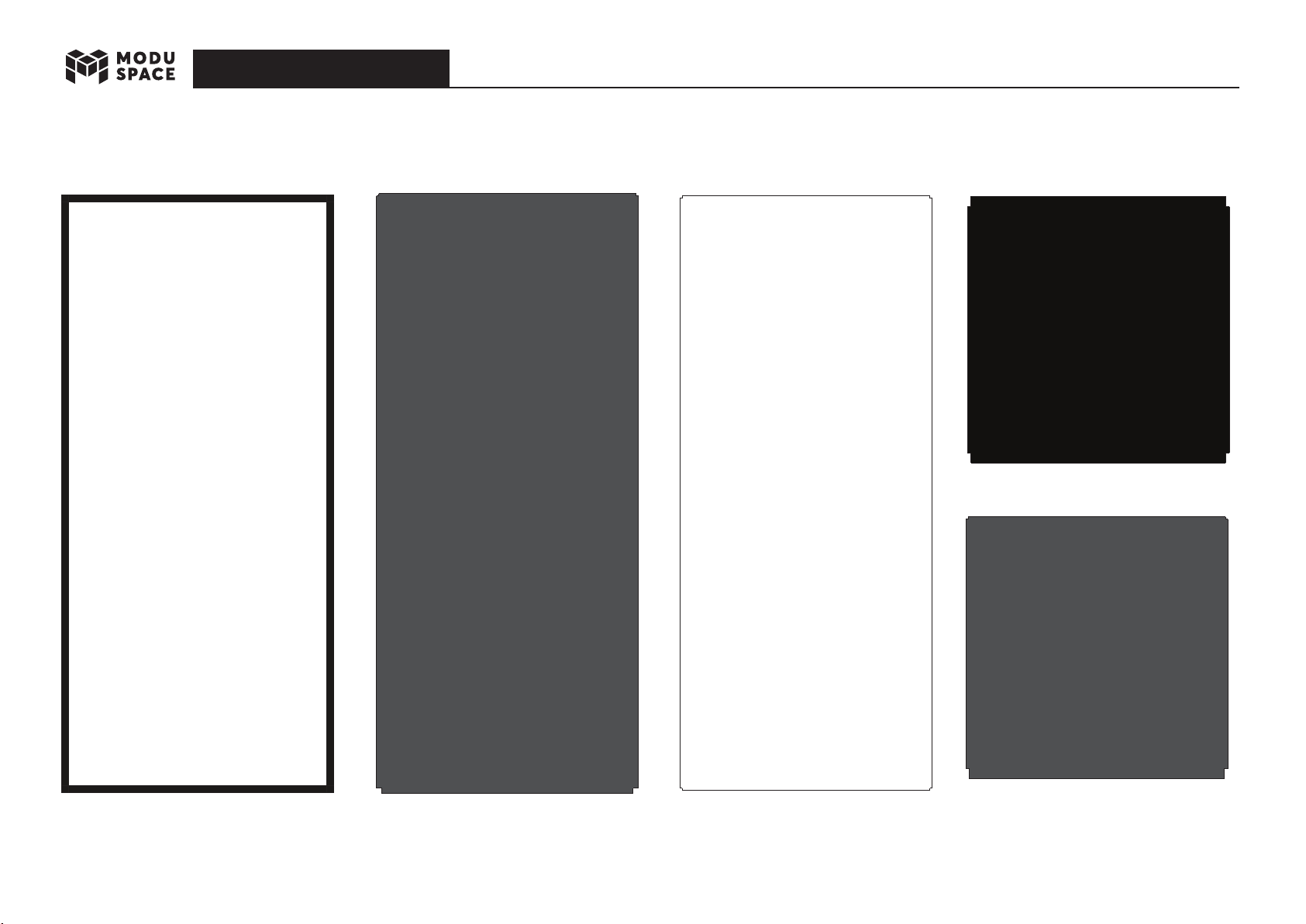

Back Panel x 1
Top Panel x 1
Laminate Base x 1Plexiglass Side Panel x 2
Bespoke Showcase Engineers
3
PanelsDF130 Assembly Guide
Plexiglass Front Panel x 1
Magnet
Magnet
Magnet
Safety Pilot Hole
Bespoke Showcase Engineers
4
Attention: If you have a floor that could easily
scratched or damaged, please ensure you
cover the surface with a protective cover.
Attention: Please ensure you have all the
parts before commencing assembly. Please
read all of the instructions before commencing.
Attention: If you have purchased optional accessories,
please refer to the Optional Accessories assembly
instructions which are supplied separately.

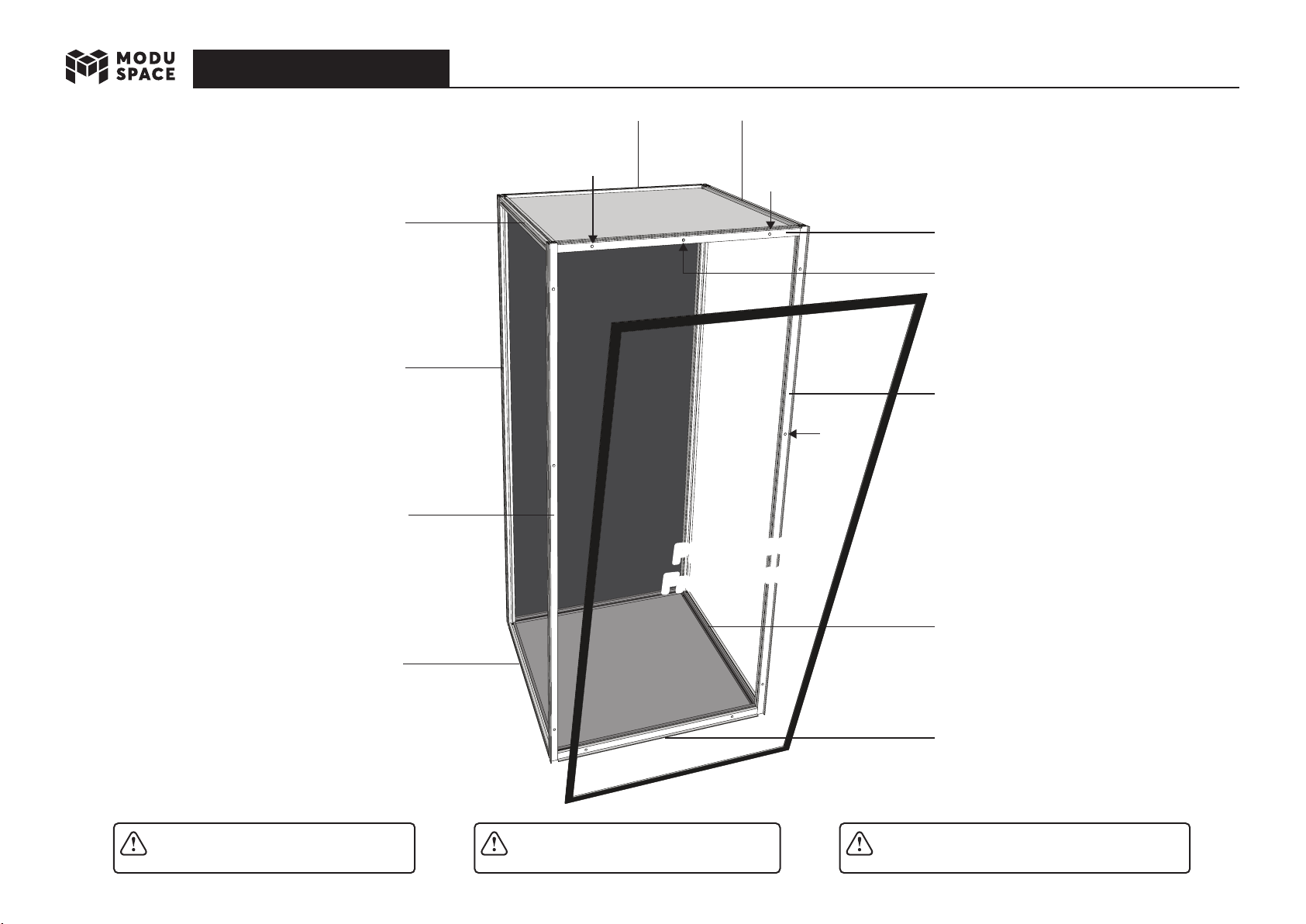

OverviewDF130 Assembly Guide
Back Panel
Plexiglass
Side Panel
Top Panel
Side Frame
Back Bar
Side Frame
Front Bar
Side Frame
Top Bottom Bar
Side Frame
Top Bottom Bar
Side Frame
Front Bar
Side Frame
Top Bottom Bar
Front Frame
Top Bottom Bar
Front Frame
Top Bottom Bar
Side Frame
Top Bottom Bar
Back Frame
Top Bottom Bar
PlexiglassPlexiglass
Front PanelFront Panel
Bespoke Showcase Engineers
5

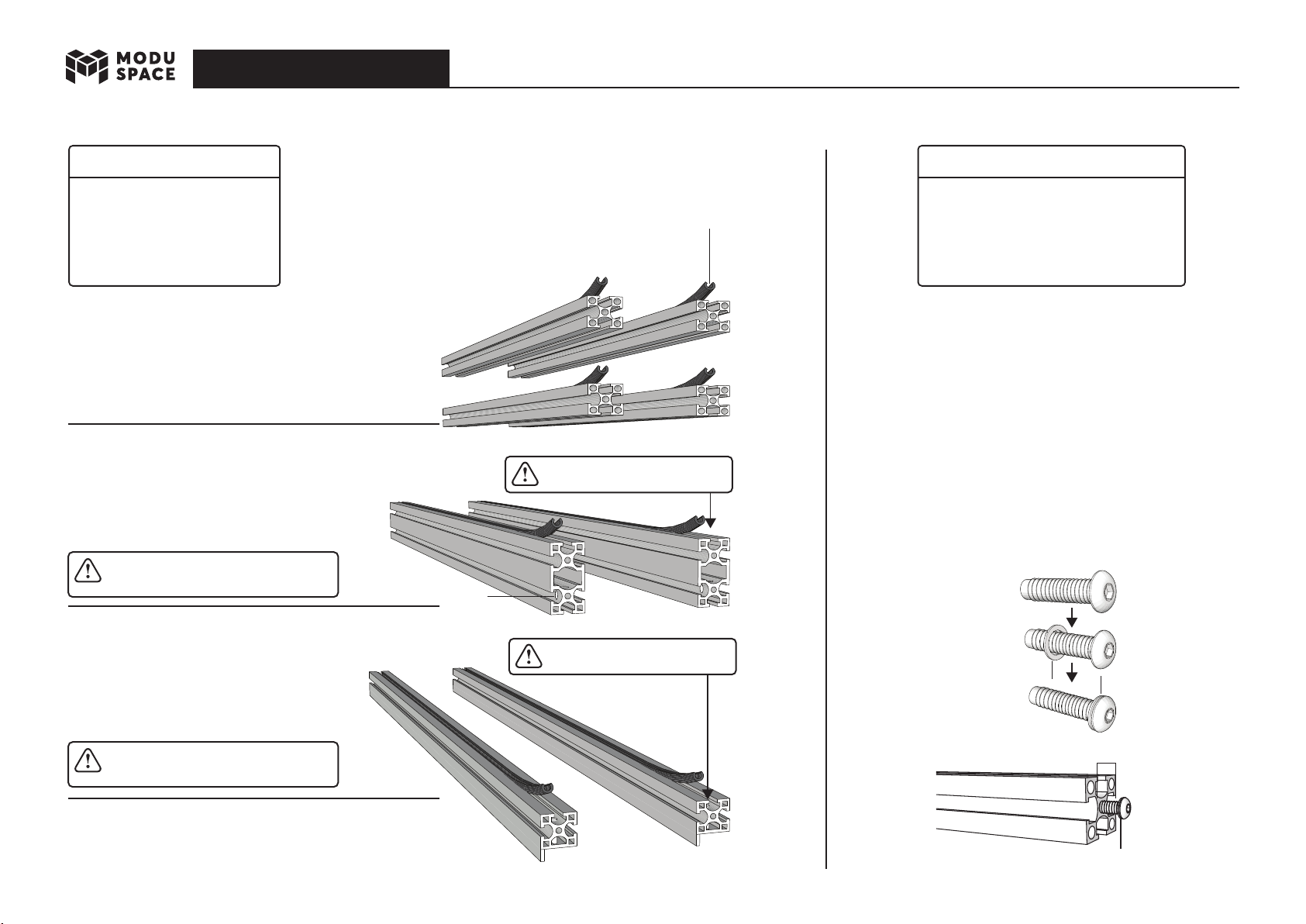

Preparation WorkDF130 Assembly Guide
You will need You will need
C-Channel
Pilot Hole
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
Please make sure the C-channel
does not cover the pilot hole.
Please make sure the C-channel
does not cover the pilot hole.
15mm
M5 Washer
M5 Washer
M5 Washer
Steps to insert M5-Long Screw
Step 1. Insert the M5-Long Screw fully into
the M5-Washer.
Step 2. Position the screw with washer into
the pilot hole on the left side of the
bar. Turn clockwise to tighten the
screw. Leave a 15mm gap between
the washer and bar.
Step 3. Repeat steps 1-2 for the other side
of the bar.
Step 4. Repeat steps 1-3 for
• Side Frame Top Bottom Bar x 4
• Side Frame Back Bar x 2
• Side Frame Front Bar x 2
• Horizontal C-Channel x 4
• Vertical C-Channel x 4
• M5-Long Screw x 16
• M5-Washer x 16
• Side Frame Top Bottom Bar x 4
• Back Frame Top Bottom Bar x 2
• Front Frame Top Bottom Bar x 2
Side Frame Top Bottom Bar
Position the bar on any side. Install a Horizontal
C-Channel into the top slit of the bar. Repeat for all bars.
Side Frame Front Bar
Place a bar with the magnets facing down.
Install a Vertical C-Channel into the top slit.
Repeat for all bars.
Side Frame Back Bar
Position the bar with the pilot holes facing
the flat surface. Install a Vertical C-Channel
into the top slit of the bar. Repeat for all bars.
• Side Frame Top Bottom Bar x 4
• Front Frame Top Bottom Bar x 2
•Back Frame Top Bottom Bar x 2
Steps to install C-Channel
Step 1. Flatten one end of the C-Channel by
pressing the open edges together.
Step 2. Push the compressed tip into the slit
of the bar.
Step 3. Press down the rest of the C-Channel.
Side Frame
Back Bar
Side Frame
Front Bar
Step 4.
Press down the Side Frame Horizontal Bar
into the Plexiglass Side Panel. Tighten the
connecting screw using the T-Allen Key.
Side Frame
Top Bottom Bar

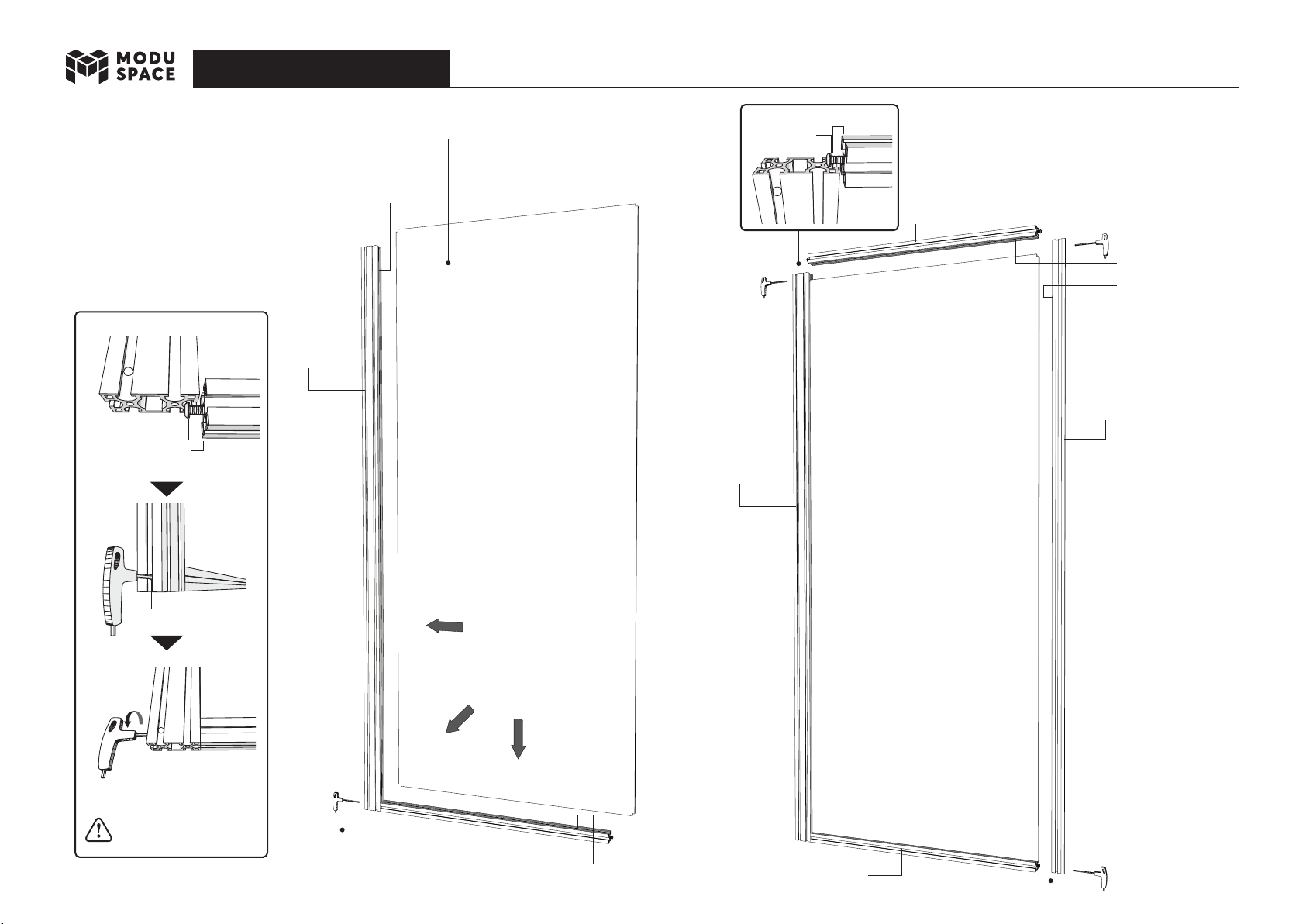

Left Side PanelDF130 Assembly Guide
Bespoke Showcase Engineers
6
C-Channel
C-Channel
Step 2.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
Plexiglass Side Panel Plexiglass Side Panel
Step 3.
Connect Front Frame Vertical
Bar to Side Frame Horizontal
Bar (Refer to Step 1). Tighten
the connecting screw using
the T-Allen Key.
C-Channel
C-Channel
15mm
M5 Washer
Side Frame
Top Bottom Bar
Step 1.
Connect Side Frame Back Bar to Side
Frame Top Bottom Bar. Tighten the
connecting screw using the T-Allen Key.
Check that the pilot holes
are facing outwards.
15mm
M5 Washer
Pilot Hole
Side Frame
Top Bottom Bar
Side Frame
Back Bar
Side Frame
Front Bar

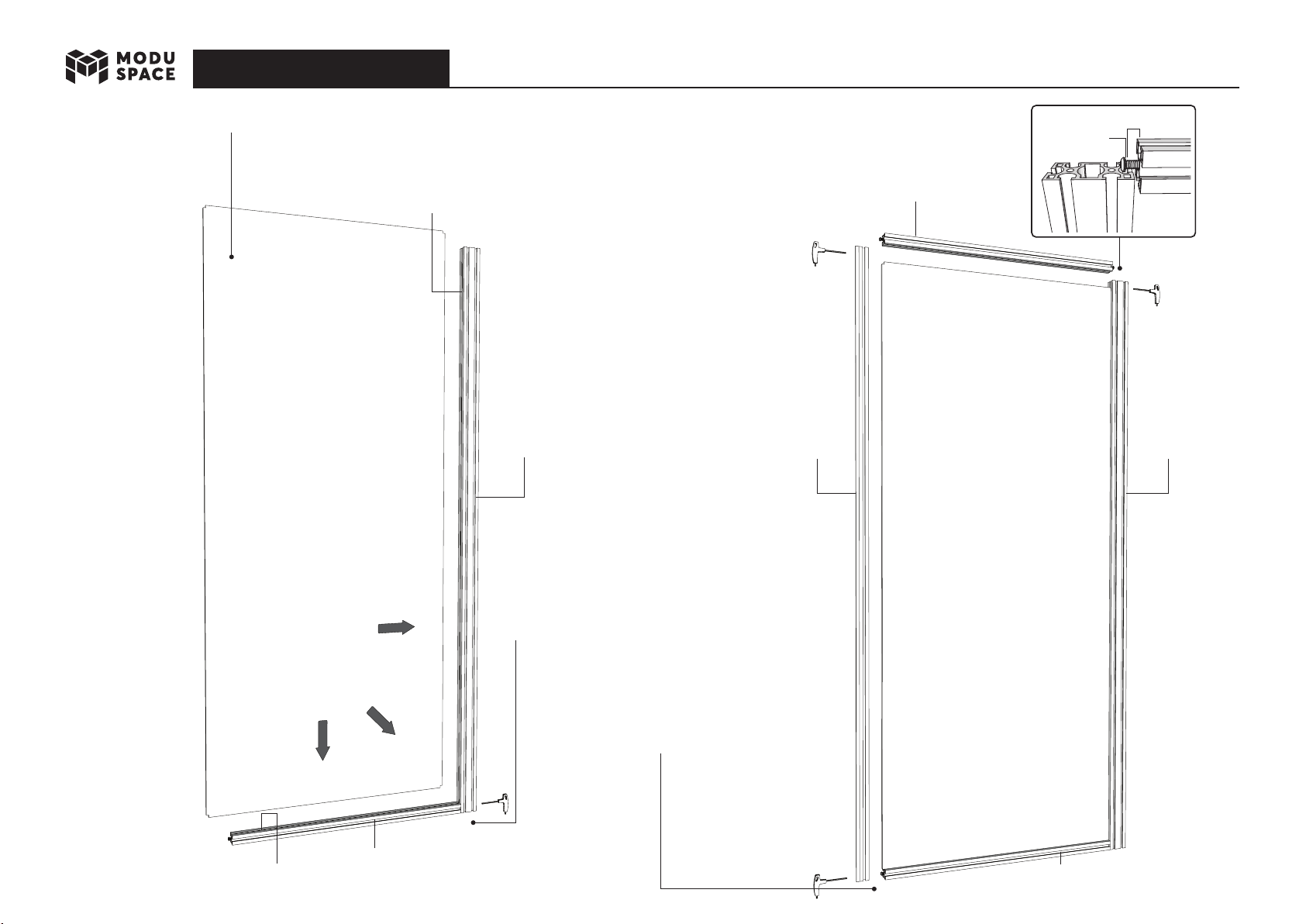

Right Side Panel
Bespoke Showcase Engineers
7
Side Frame
Top Bottom Bar
DF130 Assembly Guide
15mm
M5 Washer
Plexiglass Side Panel
Plexiglass Side Panel
Side Frame
Top Bottom Bar
Step 6.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
C-Channel
C-Channel
Side Frame
Back Bar Side Frame
Back Bar
Side Frame
Top Bottom Bar
Step 5.
Connect Side Frame Back Bar to Side
Frame Top Bottom Bar. Tighten the
connecting screw using the T-Allen Key.
Step 8.
Press down the Side Frame
Top Bottom Bar into the
Plexiglass Side Panel.
Step 7.
Connect Side Frame Front
Bar to Side Frame Top
Bottom Bar (Refer to Step 1).

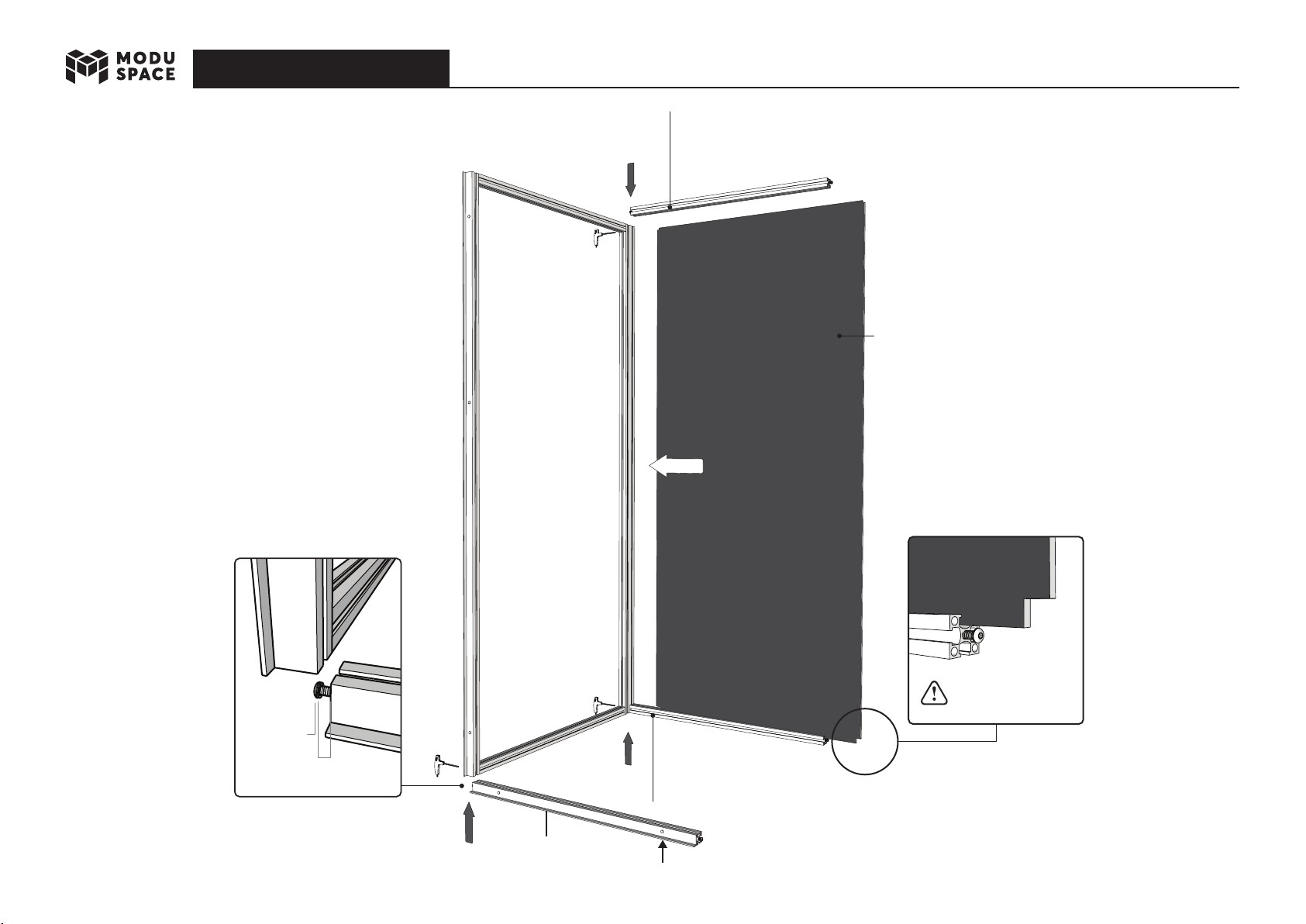

Back PanelDF130 Assembly Guide
Bespoke Showcase Engineers
8
Step 11.
Slide in the Back Panel.
Magnet
15mm
M5 Washer
Back Panel
Please ensure the longer
notch is at the bottom.
Step 12.
Press Back Frame Top
Bottom Bar into Back Panel.
Step 10.
Connect Back Frame Top
Bottom Bar to Left Side Panel.
Step 9.
Connect Front Frame Top
Bottom Bar to Left Side Panel.
Front Frame
Top Bottom Bar
Plexiglass
Left Side
Panel

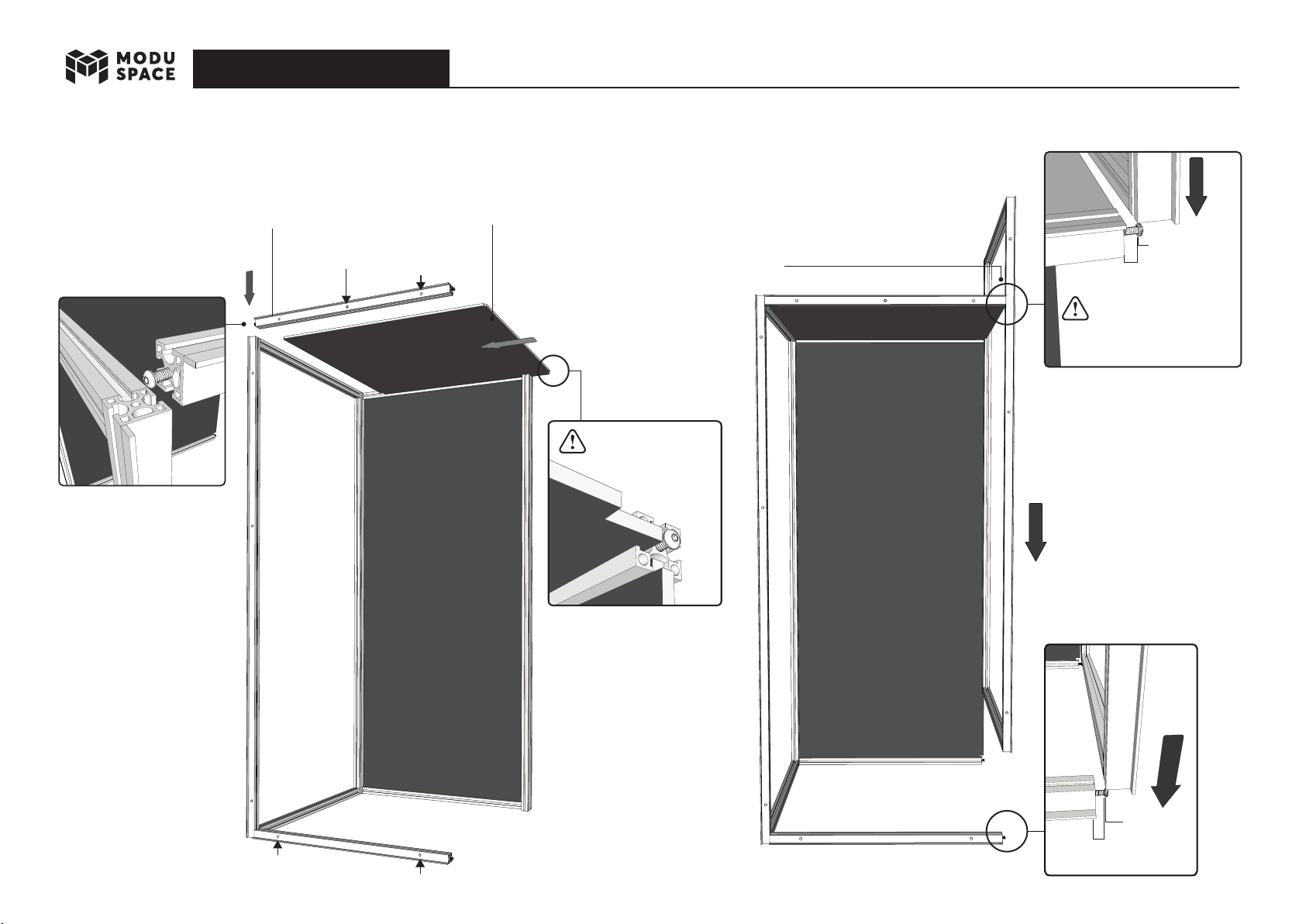

Top PanelDF130 Assembly Guide
Bespoke Showcase Engineers
9
Plexiglass
Left Side
Panel
Front Frame
Top Bottom Bar
Magnet
Magnet
Magnet
Safety Pilot Hole
Back Panel Back Panel
Top Panel
Step 14.
Slide in the Top Panel
between the bars.
Step 15.
Slide in the Right Side Panel.
Please ensure the
longer notch is facing
the Back Panel.
15mm
M5 Washer
M5 Washer
15mm
Please ensure the
Side Frame Front bar
Lip is on the right side
of the panel before
sliding it down.
Step 13.
Connect Front Frame Top
Bottom Bar to Side Frame
Front Bar.
