Modway EEI - 4456 Bedienungsanleitung

Page 1 of 5

Component:

Hardware:

EEI - 4456

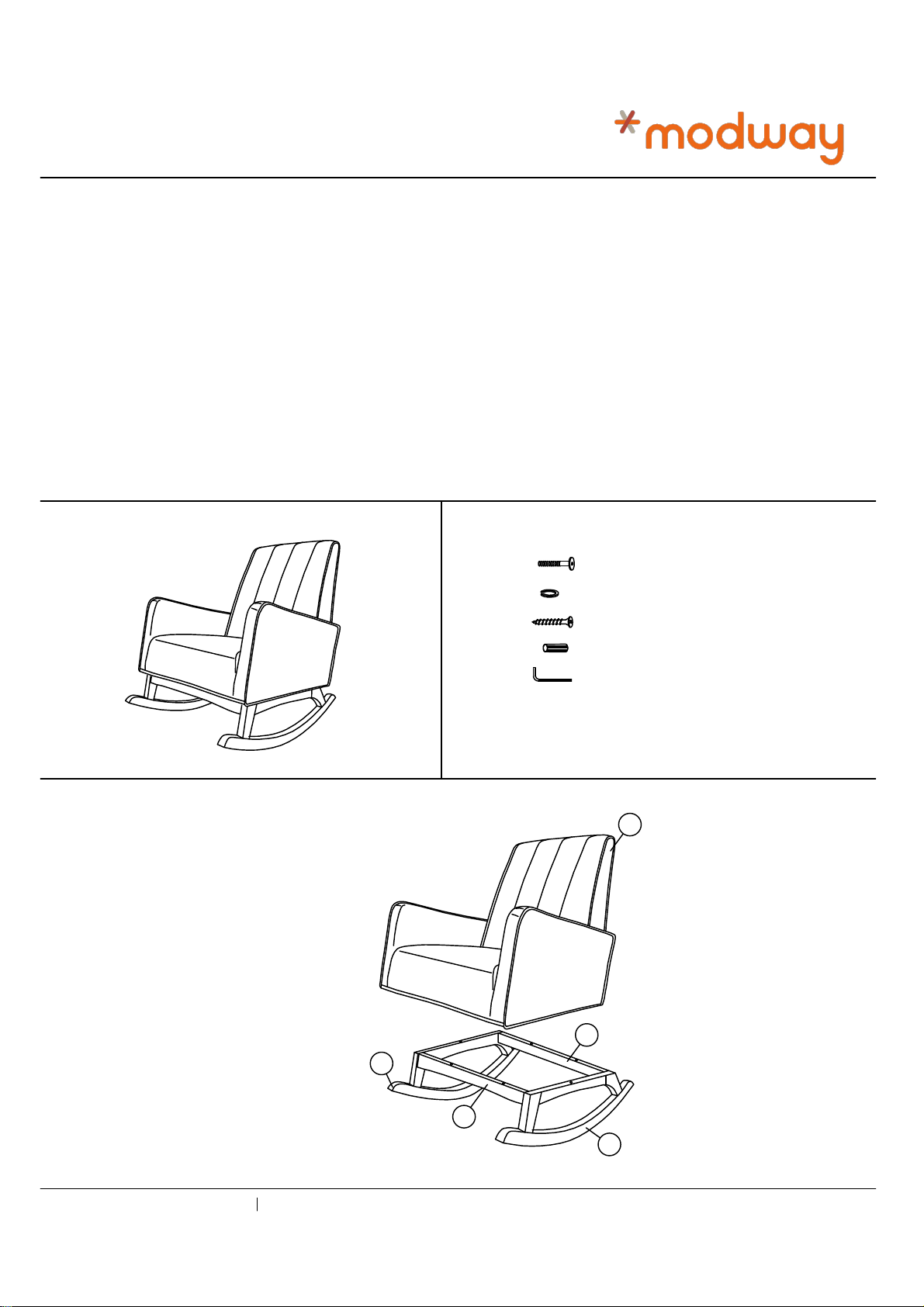

Thank you for purchasing the MODWAY ROCKING CHAIR!

Before you start, here is some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step

instructions.

2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a

carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or instructions until you have checked all the components and

hardware and the furniture is fully assembled.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save the tools that have been provided.

6. Please keep all pieces out of reach of small children.

JCBB BOLT M8 x 50mm

WOOD SCREW M4 x 38mm

WOOD DOWEL M8 x 30mm

ALLEN KEY (BALL SHAPE) M5

6 PCS

4 PCS

8 PCS

1 PC

Customer Service 609-256-9000 www.modway.com

SPRING WASHER M8

1. Front Rail x 1

2. Back Rail x 1

Chair Leg (L/R) x 2

Chair x 1

Hardware & Tool required

STEP 1:

STEP 2:

Page 2 of 5

Dx8

Customer Service 609-256-9000 www.modway.com

FRONT

SIDE VIEW D

BACK

INSIDE

OUTSIDE

SIDE VIEW

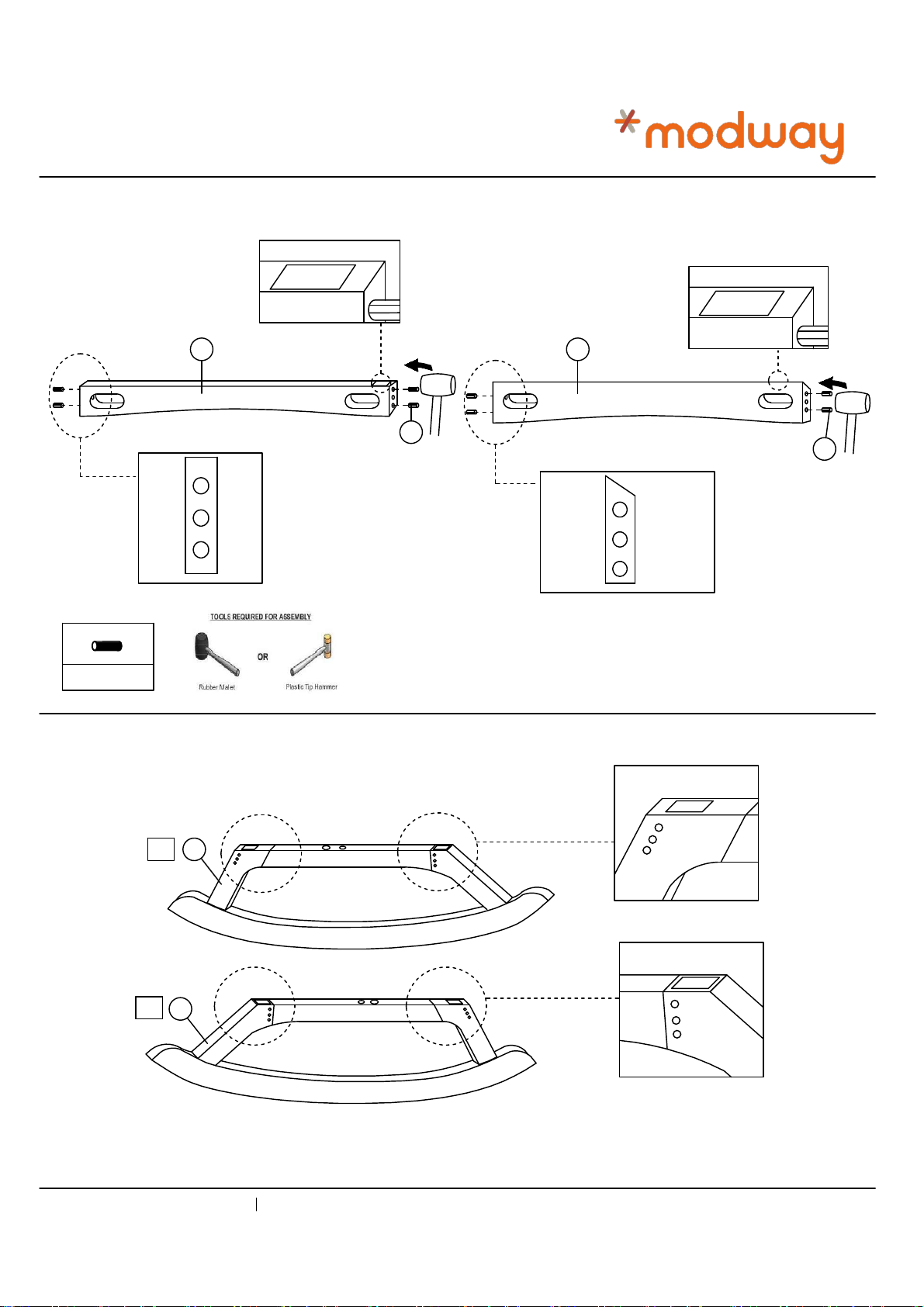

1.2 Fit WOOD DOWEL (D) into FRONT RAIL (1) & BACK RAIL (2).

BACKFRONT

BACK FRONT

FRONT

BACK

1 2

EEI - 4456

Hardware & Tool required

STEP 3:

STEP 4:

Page 3 of 5

Ax2 Bx2 Ex1

Customer Service 609-256-9000 www.modway.com

FRONT

BACK

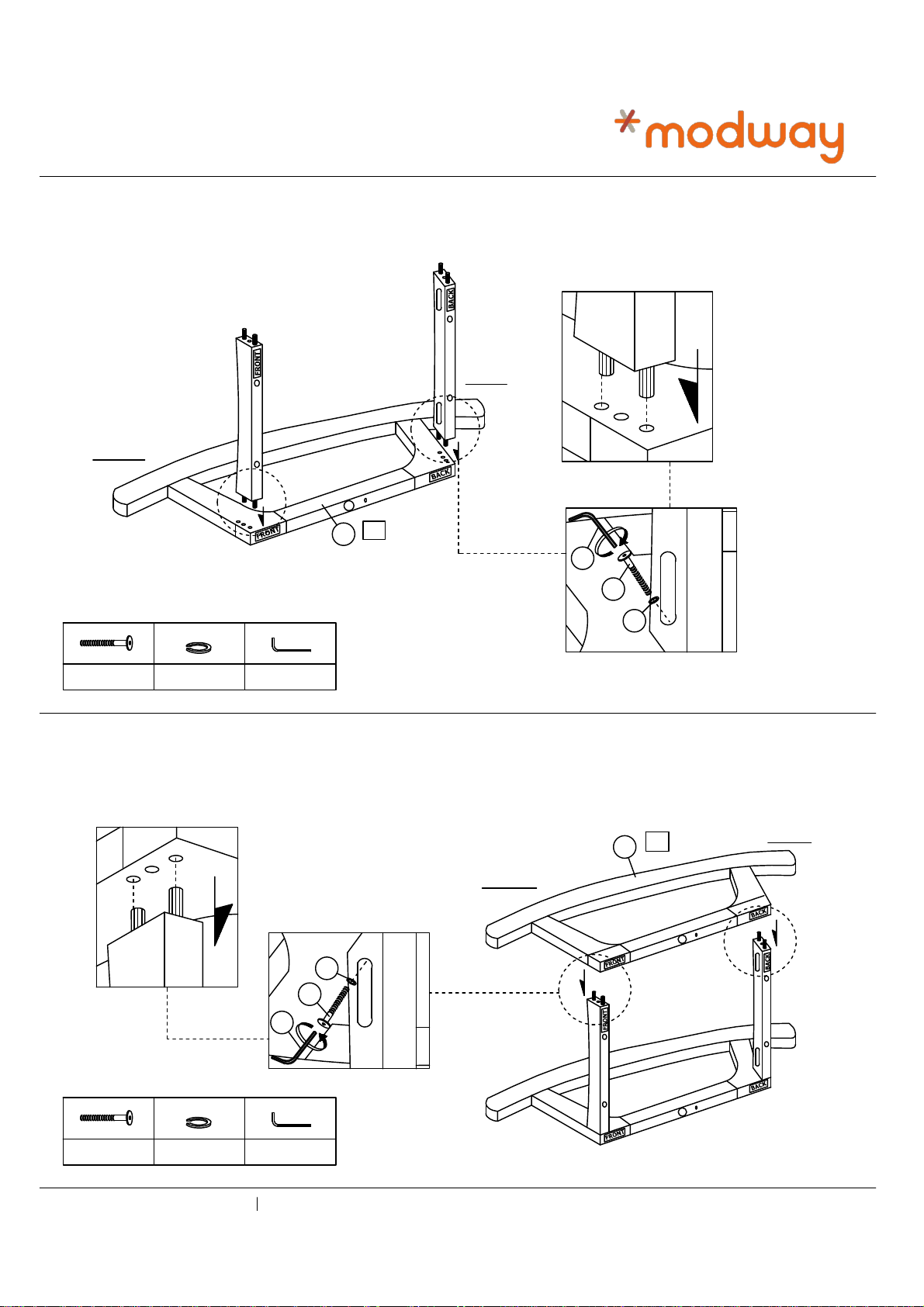

Attach Front rail (1) and Back Rail (2) to Chair Leg R (3) by 2 pieces of Bolt (A), 2 pieces of Spring Washer (B) and 1 pieces of

Allen Key (E) as shown.

Attach Chair Leg L (3) to Front rail (1) and Back Rail (2) by 2 pieces of Bolt (A), 2 pieces of Spring Washer (B) and 1 pieces of

Allen Key (E) as shown.

FRONT

BACK

Ax2 Bx2 Ex1

STEP 4.1

STEP 4.2

STEP 3.1

STEP 3.2

EEI - 4456

Hardware & Tool required

STEP 5:

STEP 6:

Page 4 of 5

Customer Service 609-256-9000 www.modway.com

x 2

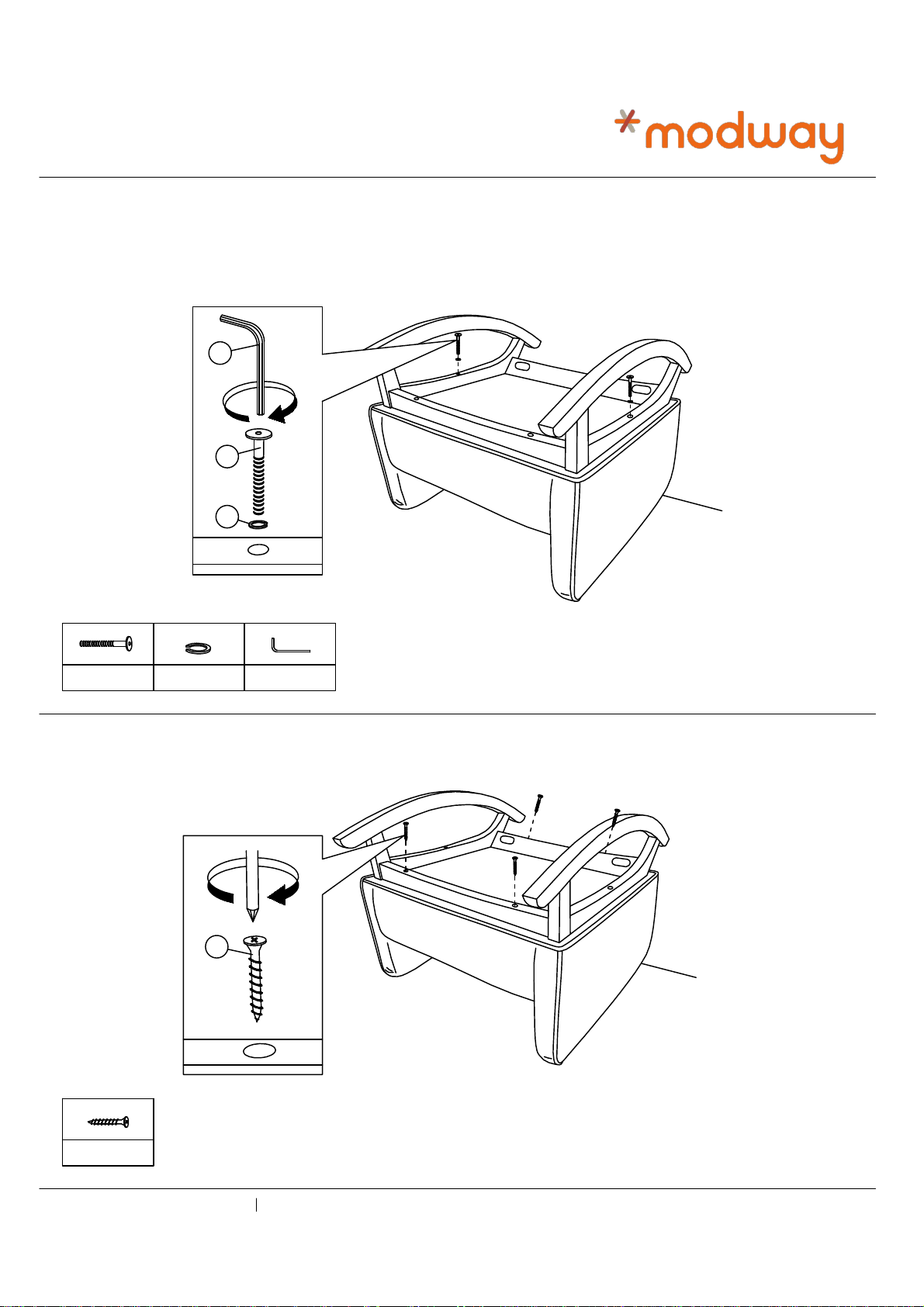

Attach Chair Leg Frame to Chair (4) by 2 pieces of Bolt (A), 2 pieces of Spring Washer (B) and 1 pieces of

Allen Key (E) as shown.

Ax2 Bx2 Ex1

x 4

Cx4

Screw it Chair Leg Frame by 4 pieces of Screw (C) as shown.

Hardware & Tool required

EEI - 4456

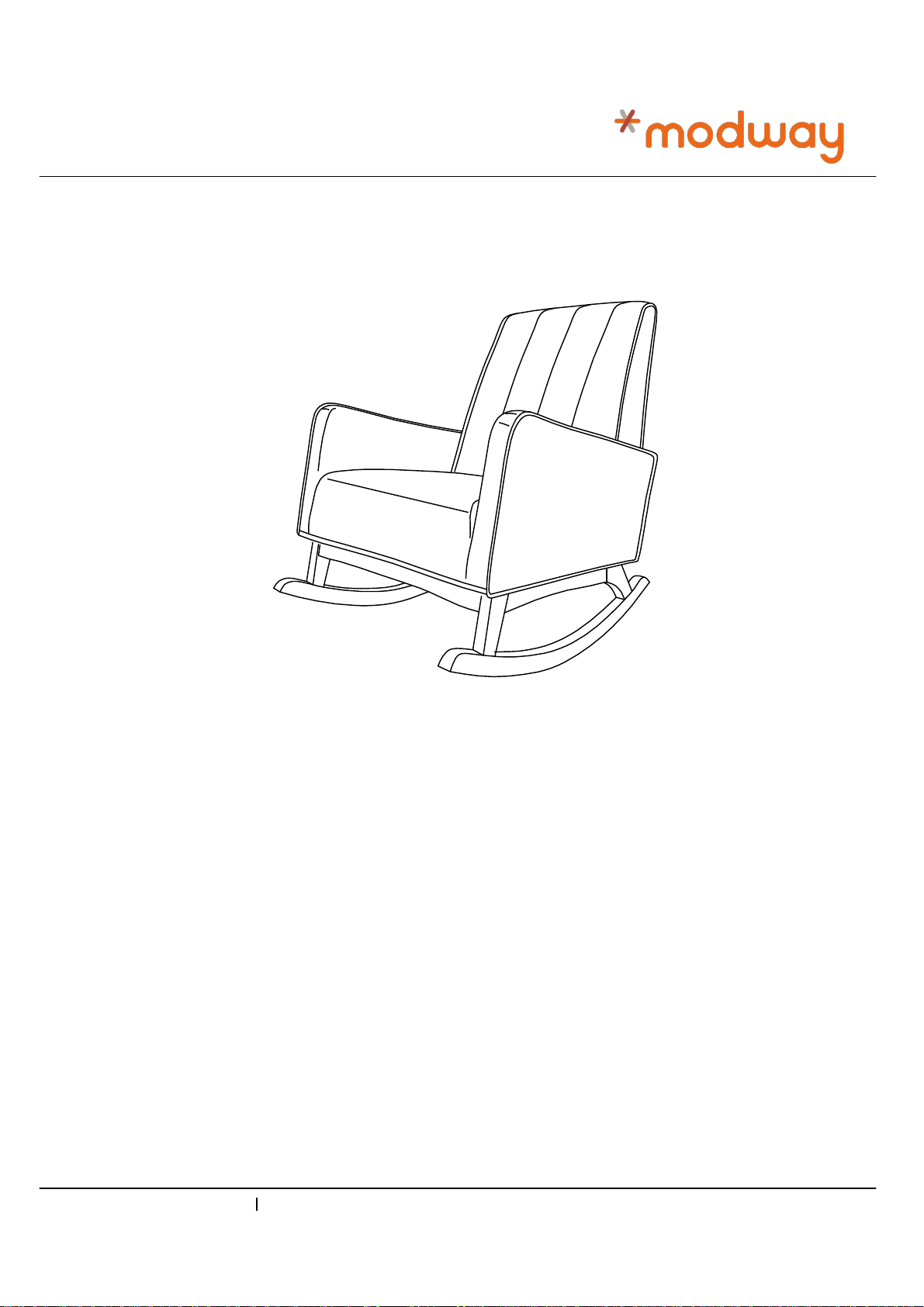

Assembly is completed. The chair is ready to use now!

Hardware & Tool required

Page 5 of 5

Customer Service 609-256-9000 www.modway.com

Carefullly turn over the chair.

EEI - 4456

STEP 7:
